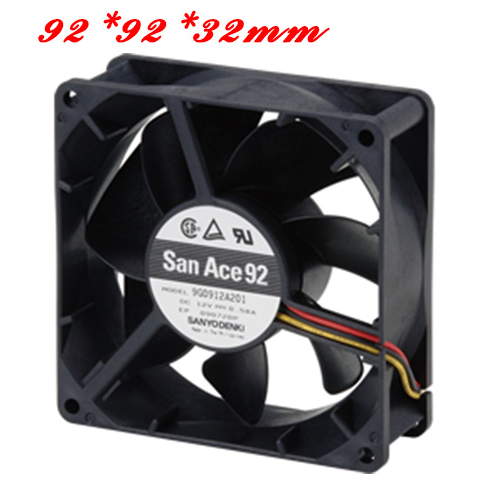

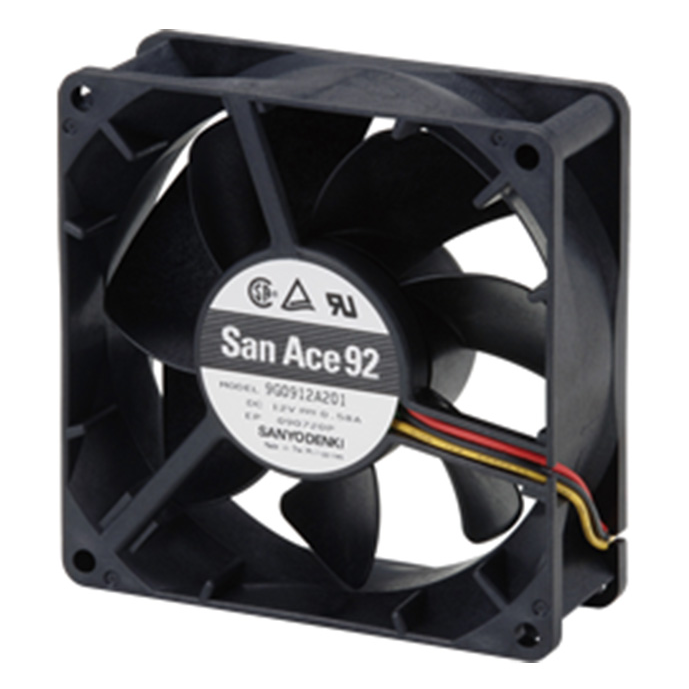

92×92×32 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black or Blue Yellow

· Mass：170g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	92×92×32 mm	9G0912A201	12	10.2 to 13.8		0.58	6.96	4300	2.5	88.3	115	0.462	44	-20 to +70	40000/60˚C (70000/40˚C)
		9G0912S201				0.38	4.56	3500	2.0	70.7	77	0.309	38
		9G0912H201				0.23	2.76	2850	1.59	56.2	51	0.205	32
		9G0912M201				0.13	1.56	2100	1.2	42.4	27	0.108	25
		9G0924A201	24	20.4 to 27.6		0.3	7.2	4300	2.5	88.3	115	0.462	44	-20 to +60
		9G0924S201				0.19	4.56	3500	2.0	70.7	77	0.309	38	-20 to +70
		9G0924H201				0.12	2.88	2850	1.59	56.2	51	0.205	32
		9G0924M201				0.08	1.92	2100	1.2	42.4	27	0.108	25
		9G0948A201	18	40.8 to 55.2		0.16	7.68	4300	2.5	88.3	115	0.462	44
		9G0948S201				0.11	5.28	3500	2.0	70.7	77	0.309	38
		9G0948H201				0.08	3.84	2850	1.59	56.2	51	0.205	32
		9G0948M201				0.05	2.4	2100	1.2	42.4	27	0.108	25
