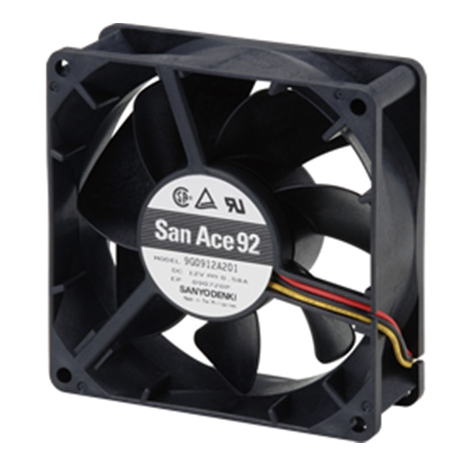

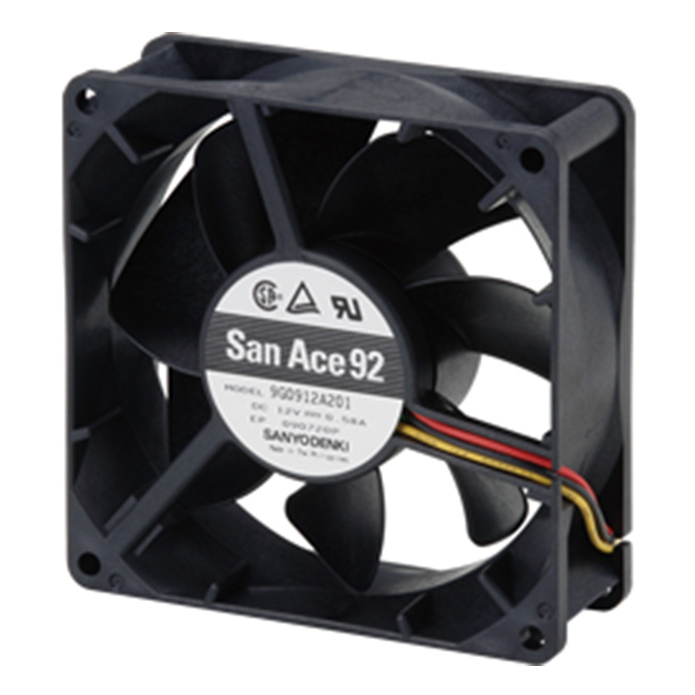

92×92×25 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown (For models without PWM control, there is no speed control wiring.)

· Mass：150g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	92×92×25 mm	9HV0912P4G001	12	10.2 to 13.8	100	1.23	14.76	7350	3.35	118	280	1.12	56	-20 to+70	40000/60℃ (7000040℃)
		9HV0912P4G001			20	0.12	1.44	2200	1.0	35.3	25	0.1	26
		9HV0912P4H001			100	0.71	8.52	6050	2.75	97.1	190	0.76	52
		9HV0912P4H001			20	0.07	0.84	1700	0.77	27.2	15	0.06	20
		9HV0924P4G001	24	20.4 to 27.6	100	0.61	14.64	7350	3.35	118	280	1.12	56
		9HV0924P4G001			20	0.06	1.44	2200	1.0	35.3	25	0.1	26
		9HV0924P4H001			100	0.38	9.12	6050	2.75	97.1	190	0.76	52
		9HV0924P4H001			20	0.05	1.2	1700	0.77	27.2	15	0.06	20
		9GA0912P4J03	12	10.2 to 13.8	100	0.39	4.68	5000	2.2	77.7	105	0.42	43	-20 to +70	60000/60˚C (90000/40˚C)
		9GA0912P4J03			0	0.06	0.72	1500	0.65	23.3	9.4	0.04	14
		9GA0912P4G03			100	0.28	3.36	4400	1.93	68.2	81	0.33	39
		9GA0912P4G03			0	0.06	0.72	1500	0.65	23.3	9.4	0.04	14
		9GA0924P4J03	24	20.4 to 27.6	100	0.28	4.8	5000	2.2	77.7	105	0.42	43
		9GA0924P4J03			0	0.04	0.96	1500	0.65	23.3	9.4	0.04	14
		9GA0924P4G03			100	0.15	3.6	4400	1.93	68.2	81	0.33	39
		9GA0924P4G03			0	0.04	0.96	1500	0.65	23.3	9.4	0.04	14
		9RA0912P4G001	12	10.8 to 13.2	100	0.22	2.64	4200	1.8	63.5	73.5	0.29	37	-20 to +70	60000/60˚C (90000/40˚C)
		9RA0912P4G001	12	10.8 to 13.2	30	0.03	0.36	1000	0.42	14.8	4.1	0.016	11
		9RA0924P4G001	24	21.6 to 26.4	100	0.13	3.12	4200	1.8	63.5	73.5	0.29	37
		9RA0924P4G001	24	21.6 to 26.4	20	0.03	0.72	1000	0.42	14.8	4.1	0.016	11
		9RA0948P4G001	48	43.2 to 52.8	100	0.07	3.36	4200	1.8	63.5	73.5	0.29	37
		9RA0948P4G001	48	43.2 to 52.8	20	0.03	1.44	1400	0.6	21.2	8.1	0.033	14
		9RA0912G4001	12	7 to 13.8		0.22	2.64	4200	1.8	63.5	73.5	0.29	37	-20 to +70	60000/60˚C (90000/40˚C)
		9RA0912S4001				0.2	2.4	3850	1.65	58.3	61.7	0.25	35
		9RA0912H4001				0.14	1.68	3400	1.46	51.6	48.1	0.19	31
		9RA0912F4001				0.1	1.2	2850	1.22	43.1	33.8	0.14	27
		9RA0912M4001				0.07	0.84	2450	1.05	37.1	25	0.1	23
		9RA0924G4001	24	14 to 27.6		0.13	3.12	4200	1.8	63.5	73.5	0.29	37
		9RA0924S4001				0.1	2.4	3850	1.65	58.3	61.7	0.25	35
		9RA0924H4001				0.08	1.92	3400	1.46	51.6	48.1	0.19	31
		9RA0924F4001				0.06	1.44	2850	1.22	43.1	33.8	0.14	27
		9RA0924M4001				0.04	0.96	2450	1.05	37.1	25	0.1	23
		9RA0948G4001	48	36 to 55.2		0.07	3.36	4200	1.8	63.5	73.5	0.29	37
		9RA0948S4001				0.06	2.88	3850	1.65	58.3	61.7	0.25	35
		9RA0948H4001				0.05	2.4	3400	1.46	51.6	48.1	0.19	31
		9S0912F401	12	6 to 13.8		0.14	1.68	2650	1.26	44.5	30.0	0.12	27	-10 to +70	40000/60˚C (70000/40˚C)
		9S0912M401		7 to 13.8		0.11	1.32	2250	1.07	37.8	21.6	0.087	22
		9S0912L401		7 to 13.8		0.07	0.84	1750	0.83	29.3	13.1	0.053	17
		9S0924F401	24	14 to 26.4		0.09	2.16	2650	1.26	44.5	30.0	0.12	27
		9S0924M401				0.07	1.68	2250	1.07	37.8	21.6	0.087	22
		9S0924L401				0.04	0.96	1750	0.83	29.3	13.1	0.053	17
