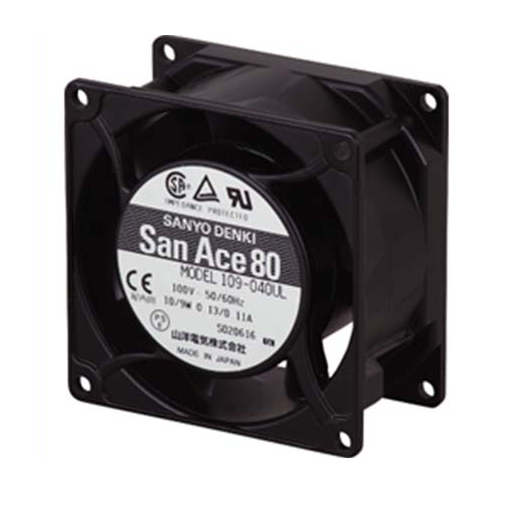

80×80×42 mm AC Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor structure: Shaded coil motor
· Motor protection function: Locked rotor burnout protection, Reverse polarity protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance: 10 MΩ min. at 500 VDC
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Operating voltage range: Voltage of each model ±10%
· Storage temperature: -30 to +70˚C (Non-condensing)
· Mass: 410 g
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model no. Rated Voltage Frequency Input Current Locked rotor current Rated Speed Max. airflow Max. static
pressure		 SPL Operating
temperature		 Expected life
[V] [Hz] [W] [A] [A] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
AC Fan 80×80×42 mm 109-040UL 100 50/60 10/9 0.13/0.11 0.16/0.14 2650/3100 0.85/1.0 30.0/35.3 24.5/35.3 0.098/0.142 40/44 -30 to +60 25000/60˚C
(56000/40˚C)
109-043UL 115 0.11/0.1 0.14/0.12
109-041UL 200 0.07/0.06 0.08/0.07
109-044UL 230 0.06/0.05 0.07/0.06
109-047UL* 100 4/3.5 0.05/0.05 0.05/0.05 1500/1500 0.43/0.43 15.2/15.2 8.8/ 8.8 0.035/0.035 24/24
109-033UL* 115 0.04/0.04 0.04/0.04
