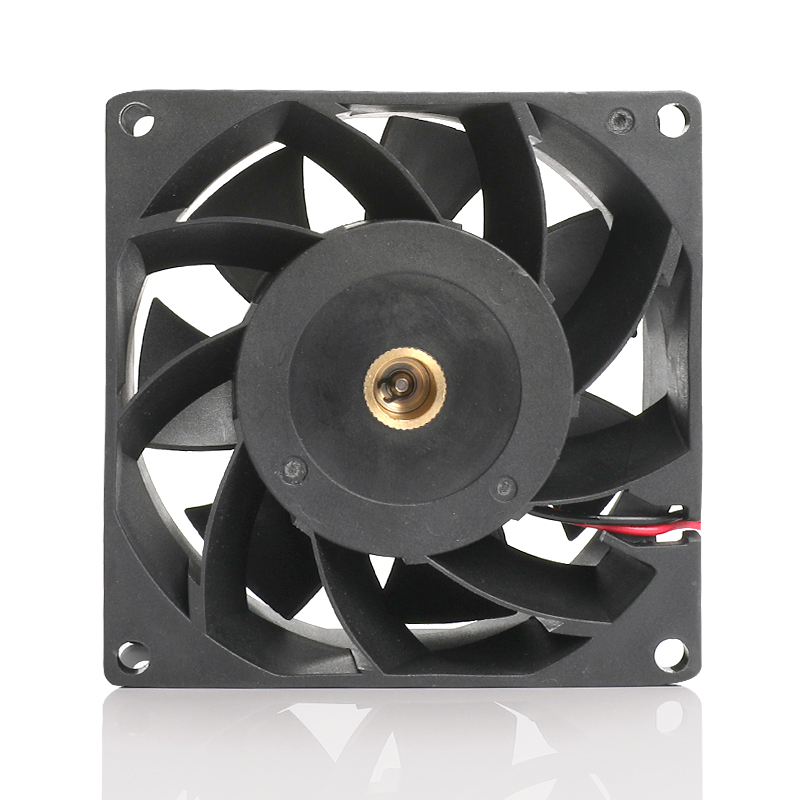

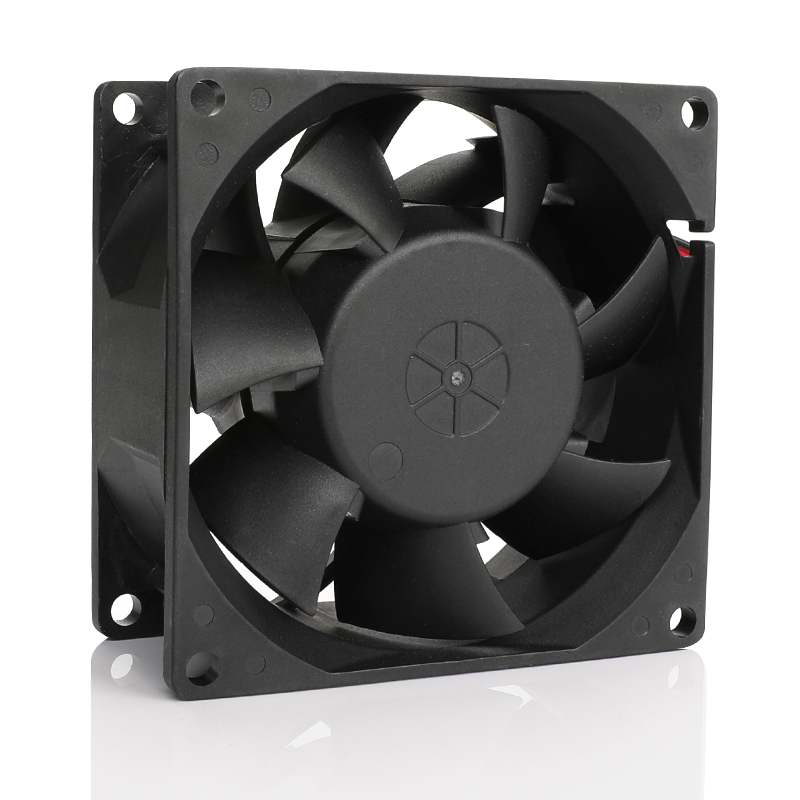

80×80×38mm DC Fan

Size: 80*80*38（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model	Rated	Operating	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			Voltage	Voltage	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			(VDC)	(VDC)	(AMP)	(Watts)	(RPM)	(CFM)	(m³/min)	(mm-H2O)	(pa)	(dBA)
DC Fan CAPITAL	80×80×38mm DC Fan	CPT8038/12L	12	7~14	0.65	7.80	4000	49.21	1.39	8.19	80.32	52.00
		CPT8038/12M			0.80	9.60	5000	61.36	1.74	12.62	123.76	56.30
		CPT8038/12H			1.00	12.00	6000	74.90	2.12	18.17	178.19	60.30
		CPT8038/12E			1.80	21.60	7000	86.34	2.45	23.98	235.16	63.60
		CPT8038/12U			2.50	30.00	8000	99.33	2.81	31.28	306.75	66.50
		CPT8038/24L	24	15~27	0.25	6.00	4000	49.21	1.39	8.19	80.32	52.00
		CPT8038/24M			0.50	12.00	5000	61.36	1.74	12.62	123.76	56.30
		CPT8038/24H			0.50	12.00	6000	74.90	2.12	18.17	178.19	60.30
		CPT8038/24E			0.70	16.80	7000	86.34	2.45	23.98	235.16	63.60
		CPT8038/24U			1.20	28.80	8000	99.33	2.81	31.28	306.75	66.50
		CPT8038/48L	48	30~55	0.12	5.76	4000	49.21	1.39	8.19	80.32	52.00
		CPT8038/48M			0.25	12.00	5000	61.36	1.74	12.62	123.76	56.30
		CPT8038/48H			0.30	14.40	6000	74.90	2.12	18.17	178.19	60.30
		CPT8038/48E			0.40	19.20	7000	86.34	2.45	23.98	235.16	63.60
		CPT8038/48U			0.65	31.20	8000	99.33	2.81	31.28	306.75	66.50
		CPT8038/12L	12	7~14	0.65	7.80	8000	84.94	2.41	31.95	313.32	62.50
		CPT8038/12M			1.00	12.00	9000	101.02	2.86	40.42	396.38	65.06
		CPT8038/12H			1.80	21.60	10000	113.89	3.23	49.21	482.59	67.35
		CPT8038/12E			3.50	42.00	11000	117.89	3.34	60.56	593.89	69.42
		CPT8038/12U			4.50	54.00	12000	131.19	3.72	64.89	636.35	71.30
		CPT8038/24L	24	15~27	0.30	7.20	8000	84.94	2.41	31.95	313.32	62.50
		CPT8038/24M			0.50	12.00	9000	101.02	2.86	40.42	396.38	65.06
		CPT8038/24H			0.85	20.40	10000	113.89	3.23	49.21	482.59	67.35
		CPT8038/24E			1.80	43.20	11000	117.89	3.34	60.56	593.89	69.42
		CPT8038/24U			2.20	52.80	12000	131.19	3.72	64.89	636.35	71.30
		CPT8038/48L	48	30~55	0.12	5.76	8000	84.94	2.41	31.95	313.32	62.50
		CPT8038/48M			0.45	21.60	9000	101.02	2.86	40.42	396.38	65.06
		CPT8038/48H			0.75	36.00	10000	113.89	3.23	49.21	482.59	67.35
		CPT8038/48E			0.80	38.40	11000	117.89	3.34	60.56	593.89	69.42
		CPT8038/48U			1.20	57.60	12000	131.19	3.72	64.89	636.35	71.30
		CPT8038/12L	12	7~14	0.65	7.80	8000	65.28	1.85	28.40	278.51	59.85
		CPT8038/12M			1.00	12.00	10000	76.55	2.17	37.71	369.81	63.60
		CPT8038/12H			1.80	21.60	11000	88.01	2.49	42.61	417.86	66.80
		CPT8038/12E			3.50	42.00	14000	103.32	2.93	66.80	655.08	72.39
		CPT8038/12U			4.50	54.00	15000	116.10	3.29	81.52	799.44	76.39
		CPT8038/24L	24	15~27	0.30	7.20	8000	65.28	1.85	28.40	278.51	59.85
		CPT8038/24M			0.50	12.00	10000	76.55	2.17	37.71	369.81	63.60
		CPT8038/24H			0.85	20.40	11000	88.01	2.49	42.61	417.86	66.80
		CPT8038/24E			1.80	43.20	14000	103.32	2.93	66.80	655.08	72.39
		CPT8038/24U			2.20	52.80	15000	116.10	3.29	81.52	799.44	76.39
		CPT8038/48L	48	30~55	0.12	5.76	8000	65.28	1.85	28.40	278.51	59.85
		CPT8038/48M			0.45	21.60	10000	76.55	2.17	37.71	369.81	63.60
		CPT8038/48H			0.75	36.00	11000	88.01	2.49	42.61	417.86	66.80
		CPT8038/48E			0.80	38.40	14000	103.32	2.93	66.80	655.08	72.39
		CPT8038/48U			1.20	57.60	15000	116.10	3.29	81.52	799.44	76.39
