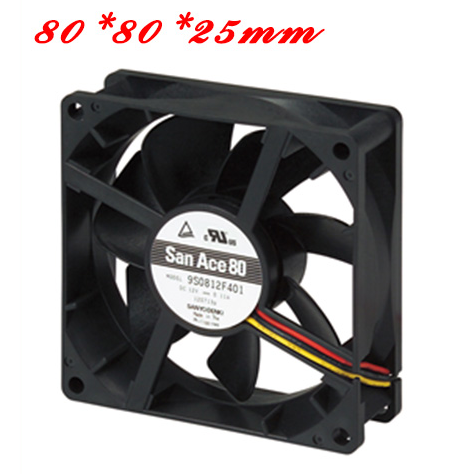

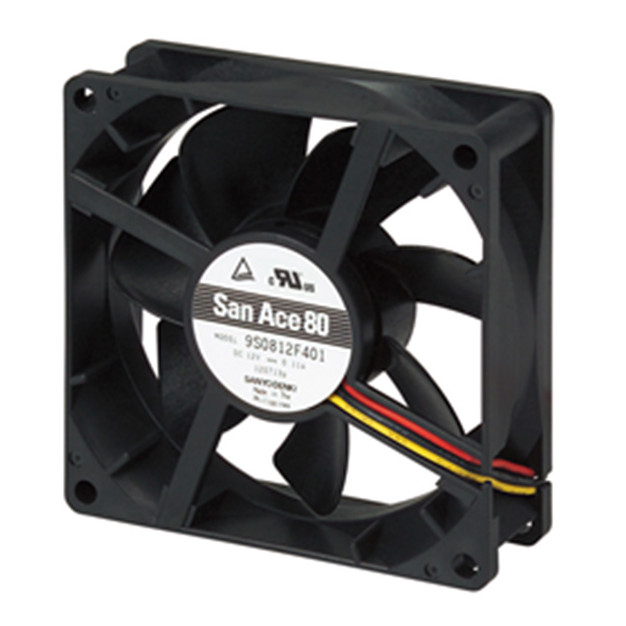

80×80×25 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：110g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	80×80×25 mm	9GA0812P4J001	12	10.8 to 13.2	100	0.6	7.2	7400	2.07	73.0	177.6	0.7	48	-20 to +70	60000/60˚C (90000/40˚C)
		9GA0812P4J001			25	0.08	0.96	2500	0.69	24.3	20.2	0.08	21
		9GA0812P4G001			100	0.48	5.76	6800	1.91	67.4	150	0.6	45
		9GA0812P4G001			25	0.06	0.72	1500	0.42	14.8	7.2	0.02	17
		9GA0824P4J001	24	21.6 to 26.4	100	0.28	6.72	7400	2.07	73.0	177.6	0.7	48
		9GA0824P4J001			25	0.06	1.44	2800	0.78	27.5	25.4	0.1	23
		9GA0824P4G001			100	0.21	5.04	6800	1.91	67.4	150	0.6	45
		9GA0824P4G001			25	0.04	0.96	2100	0.58	20.4	14.3	0.05	19
		9RA0812P4G001	12	10.8 to 13.2	100	0.22	2.64	5000	1.4	49.4	83	0.33	37	-20 to +70	60000/60˚C (90000/40˚C)
		9RA0812P4G001	12	10.8 to 13.2	30	0.03	0.36	1100	0.3	10.6	4	0.01	11
		9RA0824P4G001	24	21.6 to 26.4	100	0.11	2.64	5000	1.4	49.4	83	0.33	37
		9RA0824P4G001	24	21.6 to 26.4	20	0.02	0.48	1000	0.28	9.8	3.3	0.01	10
		9RA0848P4G001	48	43.2 to 52.8	100	0.07	3.36	5000	1.4	49.4	83	0.33	37
		9RA0848P4G001	48	43.2 to 52.8	20	0.02	0.96	1700	0.47	16.5	9.6	0.04	14
		9RA0812G4001	12	7 to 13.8		0.22	2.64	5000	1.4	49.4	83	0.33	37	-20 to +70	60000/60˚C (90000/40˚C)
		9RA0812S4001				0.12	1.44	3900	1.09	38.5	50	0.21	31
		9RA0812H4001				0.08	0.96	3300	0.92	32.5	36	0.14	27
		9RA0812M4001				0.06	0.72	2650	0.74	26.1	23	0.09	22
		9RA0824G4001	24	14 to 27.6		0.11	2.64	5000	1.4	49.4	83	0.33	37
		9RA0824S4001				0.06	1.44	3900	1.09	38.5	50	0.21	31
		9RA0824H4001				0.05	1.2	3300	0.92	32.5	36	0.14	27
		9RA0824M4001				0.04	0.96	2650	0.74	26.1	23	0.09	22
		9RA0848G4001	48	36 to 55.2		0.07	3.36	5000	1.4	49.4	83	0.33	37
		9RA0848S4001	48	36 to 55.2		0.05	2.4	3900	1.09	38.5	50	0.21	31
		9S0812H401	12	6 to 13.2		0.23	2.76	3400	1.12	39.5	52.15	0.2	31	-10 to +70	40000/60˚C (70000/40˚C)
		9S0812F401		6 to 13.8		0.11	1.32	2800	0.93	32.8	35.5	0.143	24
		9S0812M401		7 to 13.8		0.08	0.96	2500	0.83	29.3	27.5	0.11	22
		9S0812L401		7 to 13.8		0.05	0.6	2000	0.66	23.3	18.1	0.073	16
		9S0824M401	24	10 to 26.4		0.06	1.44	2500	0.83	29.3	27.5	0.11	22
		9S0824L401	24	10 to 26.4		0.04	0.96	2000	0.66	23.3	18.1	0.073	16
