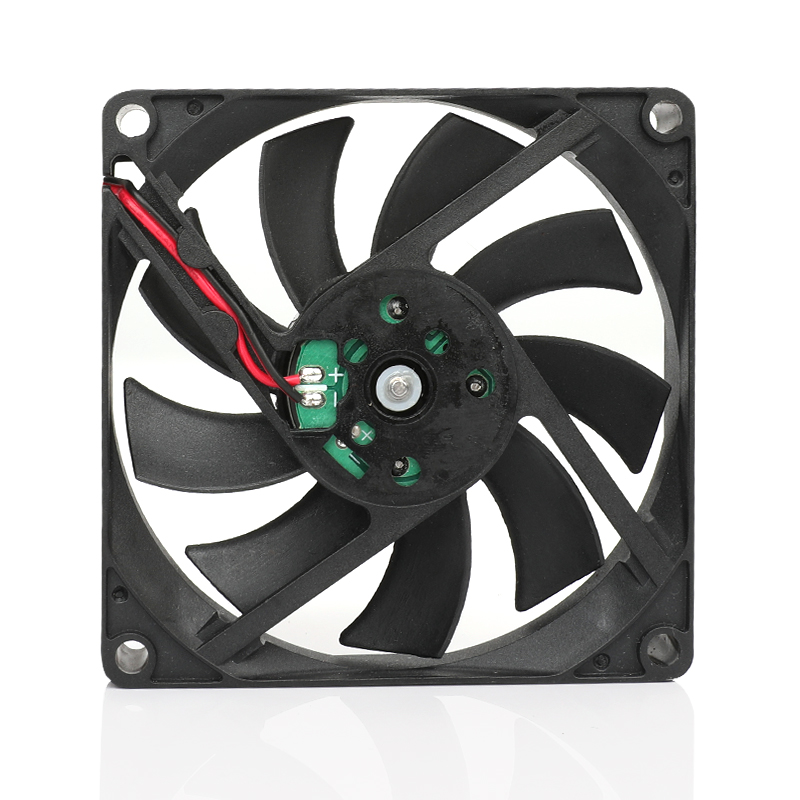

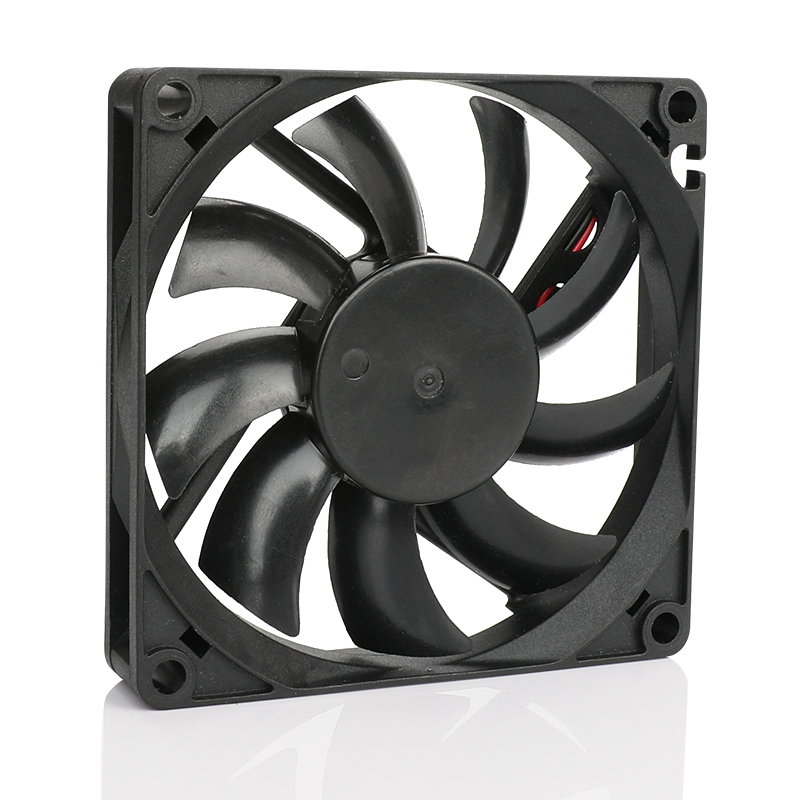

80×80×15mm DC Fan

Size: 80*80*15（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve, Hydraulic Bearing
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model Rated Operating Current Power Speed Max. Air Flow Max.Static Pressure Noise
Voltage Voltage
(VDC) (VDC) (AMP) (Watts) (RPM) (CFM) (m³/min) (mm-H2O) (pa) (dBA)
DC Fan CAPITAL 80×80×15mm DC Fan CPT8015/05L 5 4~6 0.25 1.25 1000 11.86 0.34 0.40 3.92 17.30
CPT8015/05M 0.35 1.75 1500 17.45 0.49 0.75 7.35 26.10
CPT8015/05H 0.50 2.50 2000 23.43 0.66 1.30 12.74 32.35
CPT8015/12L 12 7~14 0.12 1.44 1000 11.86 0.34 0.40 3.92 17.30
CPT8015/12M 0.17 2.04 1500 17.45 0.49 0.75 7.35 26.10
CPT8015/12H 0.24 2.88 2000 23.43 0.66 1.30 12.74 32.35
CPT8015/12E 0.32 3.84 2500 30.43 0.86 2.08 20.38 37.19
CPT8015/12U 0.45 5.40 3000 35.41 1.00 2.77 27.15 41.15
CPT8015/24L 24 15~27 0.06 1.44 1000 11.86 0.34 0.40 3.92 17.30
CPT8015/24M 0.11 2.64 1500 17.45 0.49 0.75 7.35 26.10
CPT8015/24H 0.13 3.12 2000 23.43 0.66 1.30 12.74 32.35
CPT8015/24E 0.16 3.84 2500 30.43 0.86 2.08 20.38 37.19
CPT8015/24U 0.22 5.28 3000 35.41 1.00 2.77 27.15 41.15
CPT8015/05L 5 4~6 0.25 1.25 2500 25.66 0.73 1.82 17.84 33.13
CPT8015/05M 0.35 1.75 3000 30.31 0.86 2.51 24.60 37.09
CPT8015/05H 0.50 2.50 3500 36.42 1.03 3.44 33.71 40.44
CPT8015/12L 12 7~14 0.12 1.44 2500 25.66 0.73 1.82 17.84 33.13
CPT8015/12M 0.17 2.04 3000 30.31 0.86 2.51 24.60 37.09
CPT8015/12H 0.24 2.88 3500 36.42 1.03 3.44 33.71 40.44
CPT8015/12E 0.32 3.84 4000 41.56 1.18 4.38 42.92 43.34
CPT8015/12U 0.45 5.40 4700 49.97 1.42 5.35 52.43 46.84
CPT8015/24L 24 15~27 0.06 1.44 2500 25.66 0.73 1.82 17.84 33.13
CPT8015/24M 0.11 2.64 3000 30.31 0.86 2.51 24.60 37.09
CPT8015/24H 0.13 3.12 3500 36.42 1.03 3.44 33.71 40.44
CPT8015/24E 0.16 3.84 4000 41.56 1.18 4.38 42.92 43.34
CPT8015/24U 0.22 5.28 4700 49.97 1.42 5.35 52.43 46.84
