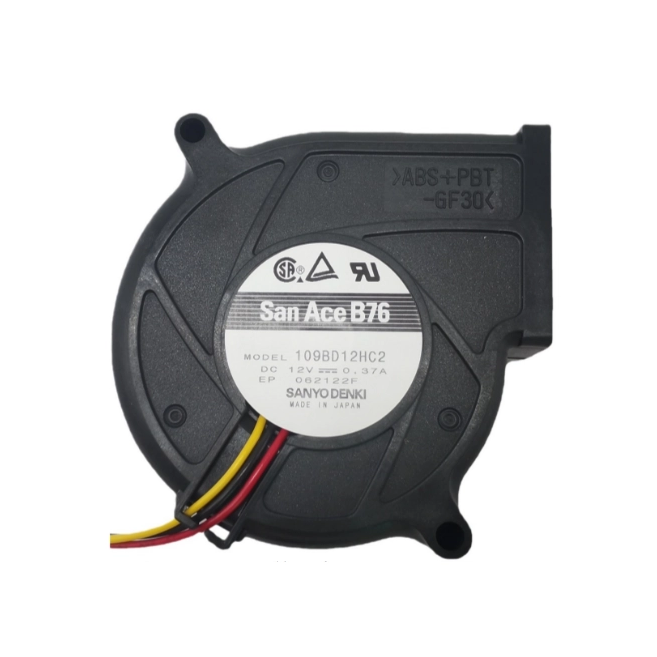

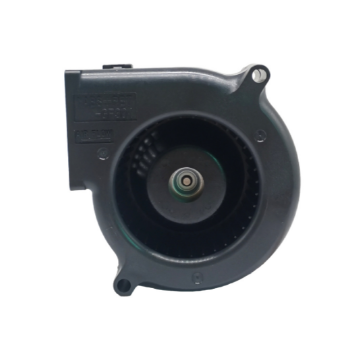

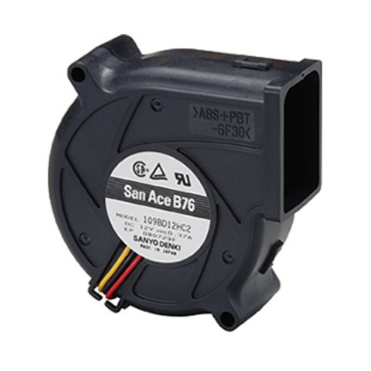

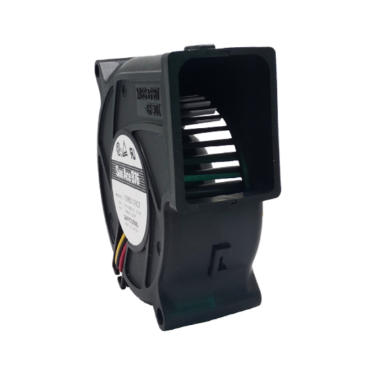

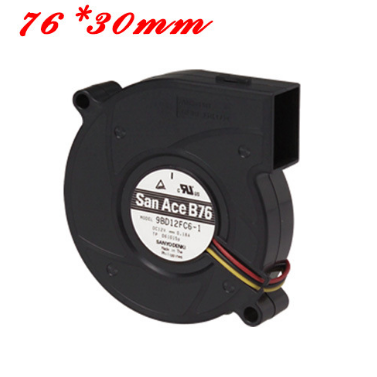

76×30 mm Blower

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black or Blue Yellow

· Mass：100g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Blower	76×30 mm	109BD12HC2	12	10.2 to 13.8		0.37	4.44	3000	0.36	12.7	151.9	0.61	41.5	-20 to +60	40000/60˚C (70000/40˚C)
		109BD12FC2				0.27	3.24	2600	0.31	10.9	98	0.394	37	-20 to +70
		109BD12MC2				0.14	1.68	2100	0.25	8.8	58.8	0.236	32.5	-20 to +70
		109BD24HC2	24	20.4 to 27.6		0.17	4.08	3000	0.36	12.7	151.9	0.61	41.5	-20 to +60
		109BD24FC2				0.14	3.36	2600	0.31	10.9	98	0.394	37	-20 to +70
		109BD24MC2				0.1	2.4	2100	0.25	8.8	58.8	0.236	32.5	-20 to +70
