Specifications
| Category | Model | Model | Rated | Operating | Current | Power | Speed | Max. Air Flow | Max.Static Pressure | Noise | ||
| Voltage | Voltage | |||||||||||
| (VDC) | (VDC) | (AMP) | (Watts) | (RPM) | (CFM) | (m³/min) | (mm-H2O) | (pa) | (dBA) | |||

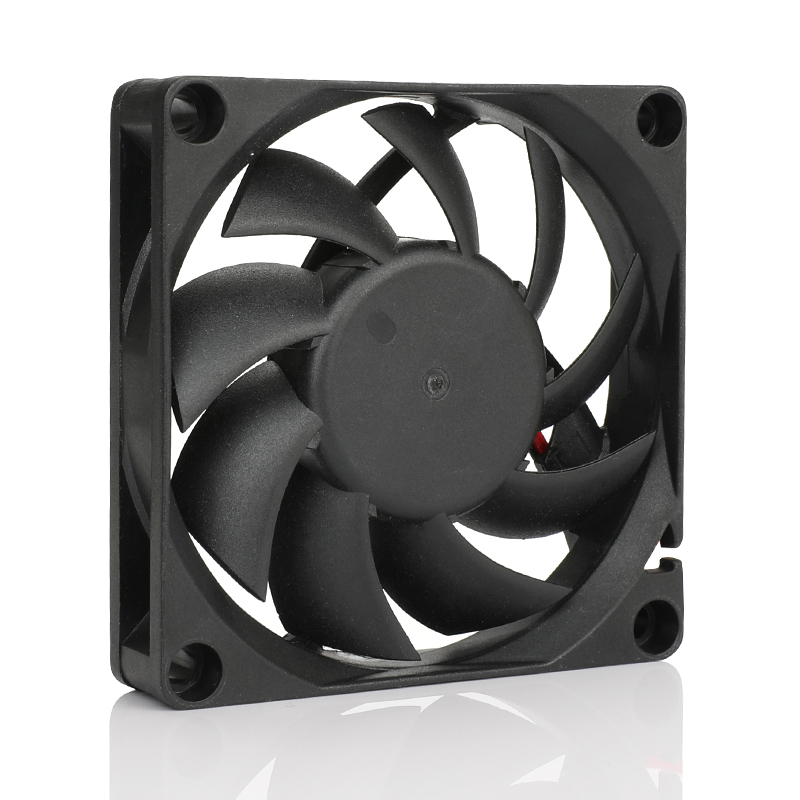

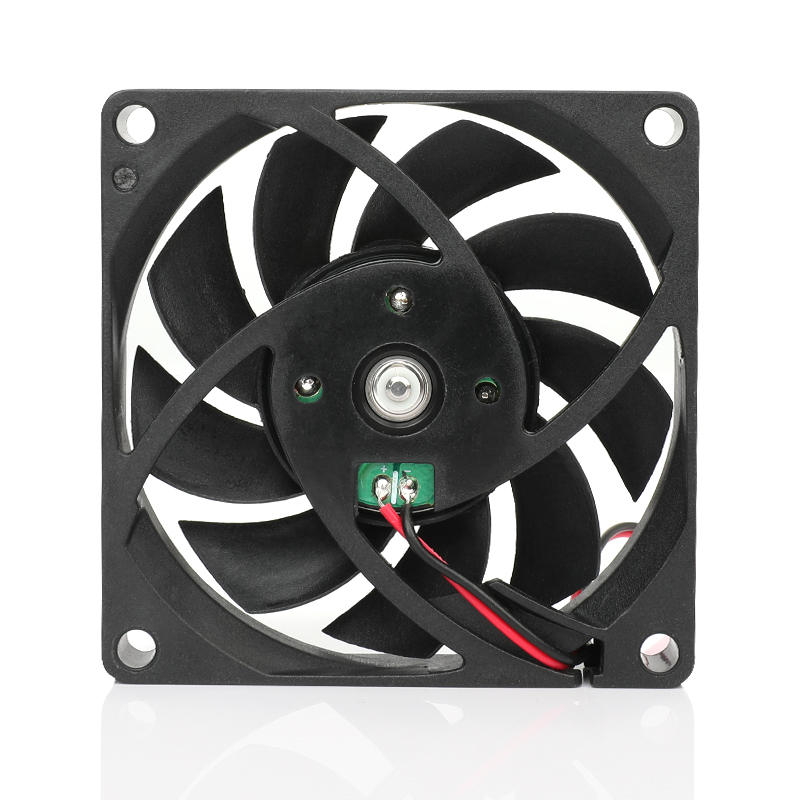

| DC Fan CAPITAL | 70×70×15mm DC Fan | CPT7015/05L | 5 | 4~6 | 0.25 | 1.25 | 3000 | 20.86 | 0.59 | 2.05 | 20.09 | 28.50 |
| CPT7015/05M | 0.35 | 1.75 | 4000 | 26.28 | 0.74 | 3.33 | 32.63 | 34.74 | ||||
| CPT7015/05H | 0.60 | 3.00 | 5000 | 33.37 | 0.95 | 5.01 | 49.10 | 39.59 | ||||
| CPT7015/05E | 0.85 | 4.25 | 5500 | 36.68 | 1.04 | 5.86 | 57.43 | 41.66 | ||||
| CPT7015/12L | 12 | 7~14 | 0.11 | 1.32 | 3000 | 20.86 | 0.59 | 2.05 | 20.09 | 28.50 | ||
| CPT7015/12M | 0.17 | 2.04 | 4000 | 26.28 | 0.74 | 3.33 | 32.63 | 34.74 | ||||
| CPT7015/12H | 0.28 | 3.36 | 5000 | 33.37 | 0.95 | 5.01 | 49.10 | 39.59 | ||||
| CPT7015/12E | 0.39 | 4.68 | 5500 | 36.68 | 1.04 | 5.86 | 57.43 | 41.66 | ||||
| CPT7015/12U | 0.52 | 6.24 | 6000 | 39.96 | 1.13 | 6.59 | 64.58 | 43.55 | ||||
| CPT7015/24L | 24 | 15~27 | 0.08 | 1.92 | 3000 | 20.86 | 0.59 | 2.05 | 20.09 | 28.50 | ||
| CPT7015/24M | 0.11 | 2.64 | 4000 | 26.28 | 0.74 | 3.33 | 32.63 | 34.74 | ||||
| CPT7015/24H | 0.13 | 3.12 | 5000 | 33.37 | 0.95 | 5.01 | 49.10 | 39.59 | ||||
| CPT7015/24E | 0.18 | 4.32 | 5500 | 36.68 | 1.04 | 5.86 | 57.43 | 41.66 | ||||
| CPT7015/24U | 0.25 | 6.00 | 6000 | 39.96 | 1.13 | 6.59 | 64.58 | 43.55 | ||||
