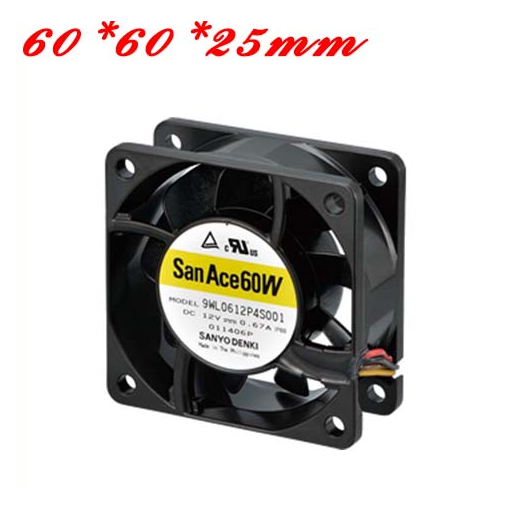

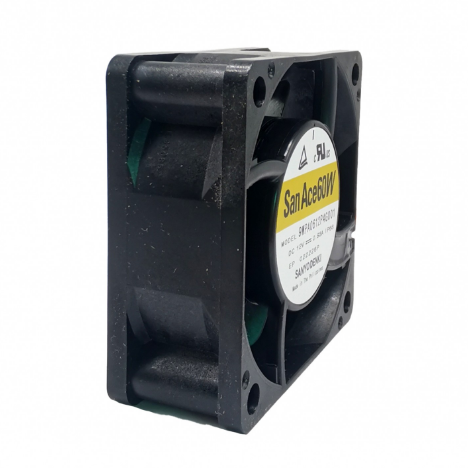

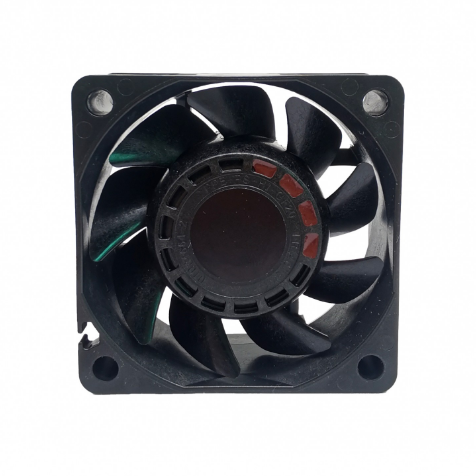

60×60×25 mm Splash Proof Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：90g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Fan	60×60×25 mm	9WPA0612P4G001	12	10.8 to 13.2	100	0.93	11.16	12000	1.52	53.7	357	1.43	56	-20 to +70	40000/60˚C (70000/40˚C)
		9WPA0612P4G001		10.8 to 13.2	20	0.09	1.08	3500	0.43	15.1	30	0.12	22
		9WPA0612P4H001		10.2 to 13.8	100	0.17	2.04	5800	0.73	25.8	83.4	0.33	36
		9WPA0612P4H001		10.2 to 13.8	20	0.04	0.48	1600	0.2	7	6.3	0.02	10
		9WPA0624P4G001	24	21.6 to 26.4	100	0.46	11.04	12000	1.52	53.7	357	1.43	56
		9WPA0624P4G001	24	21.6 to 26.4	20	0.05	1.2	3500	0.43	15.1	30	0.12	22
		9WPA0612M4001	12	10.2 to 13.8		0.11	1.32	4000	0.51	18	39.7	0.16	26	-20 to +70	40000/60˚C (70000/40˚C)
		9WPA0624S4001	24	21.6 to 26.4		0.17	4.08	7800	0.99	35	151	0.6	43
		9WPA0624M4001	24	20.4 to 27.6		0.06	1.44	4000	0.51	18	39.7	0.16	26
		9WL0612P4S001	12	10.8 to 13.2	100	0.67	8.04	11000	1.4	49.4	300	1.204	53	-20 to +70	180000/60˚C (215000/40˚C)
		9WL0612P4S001			20	0.06	0.72	2900	0.36	12.7	20.8	0.083	20
		9WL0612P4J001			100	0.39	4.68	8650	1.1	38.8	182	0.73	47
		9WL0612P4J001			25	0.04	0.48	2100	0.27	9.5	10.7	0.043	17
		9WL0612P4H001			100	0.17	2.04	6150	0.78	27.5	97	0.389	36
		9WL0612P4H001			25	0.03	0.36	1350	0.17	6.0	4.7	0.018	14
		9WL0624P4S001	24	21.6 to 26.4	100	0.34	8.16	11000	1.4	49.4	300	1.204	53
		9WL0624P4S001			20	0.03	0.72	2900	0.36	12.7	20.8	0.083	20
		9WL0624P4J001			100	0.19	4.56	8650	1.1	38.8	182	0.73	47
		9WL0624P4J001			20	0.02	0.48	2200	0.28	9.8	12.0	0.048	17
		9WL0624P4H001			100	0.08	1.92	6150	0.78	27.5	97	0.389	36
		9WL0624P4H001			20	0.02	0.48	1300	0.16	5.6	4.3	0.017	14
