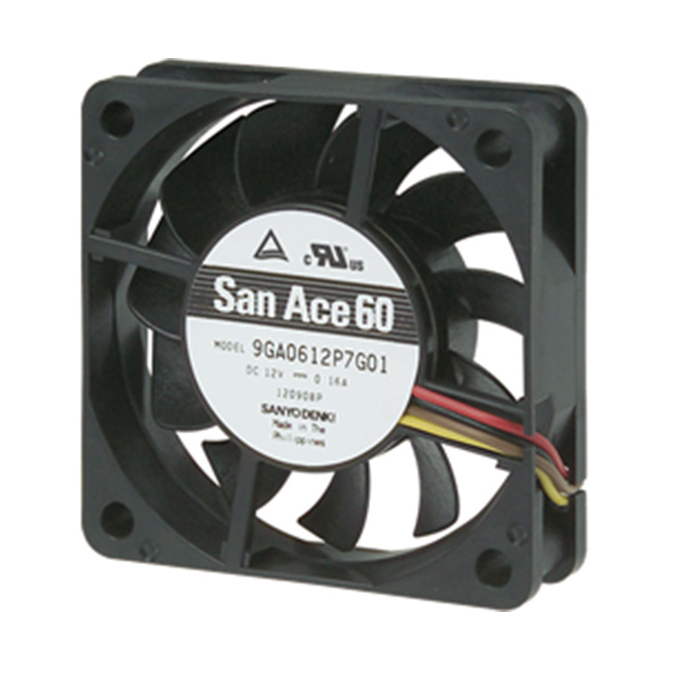

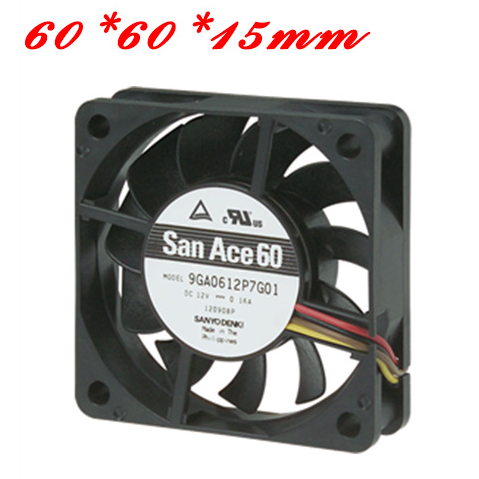

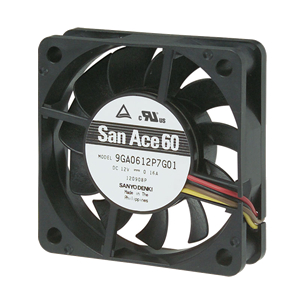

60×60×15 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown (For models without PWM control, there is no speed control wiring.)

· Mass：50g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	60×60×15 mm	9GA0612P7G01	12	10.2 to 13.8	100	0.16	1.92	5900	0.68	24.0	80	0.32	38	-20 to +70	40000/60˚C (70000/40˚C)
		9GA0612P7G01			0	0.05	0.6	1500	0.17	6.0	5.2	0.02	10
		9GA0612P7H01			100	0.16	1.2	4900	0.56	19.7	55.6	0.223	34
		9GA0612P7H01			0	0.03	0.36	1300	0.15	5.3	3.9	0.015	8
		9GA0624P7G01	24	20.4 to 27.6	100	0.08	1.92	5900	0.68	24.0	80	0.32	38
		9GA0612G701	12	6 to 13.8		0.16	1.92	5900	0.68	24	80	0.32	38	-20 to +70	40000/60˚C (70000/40˚C)
		9GA0612H701				0.1	1.2	4900	0.56	19.7	55.6	0.223	34		40000/60˚C (70000/40˚C)
		9GA0612M701				0.08	0.96	3900	0.45	15.9	35.3	0.142	28		60000/60˚C (90000/40˚C)
		9GA0612L701				0.03	0.36	2800	0.31	10.9	18	0.072	17		60000/60˚C (90000/40˚C)
		9GA0612B701		10.2 to 13.8		0.025	0.3	2000	0.22	7.8	9.8	0.039	10		40000/60˚C (70000/40˚C)
		9GA0624M701	24	12 to 27.6		0.05	1.2	3900	0.45	15.9	35.3	0.142	28
		9GA0624L701	24	20.4 to 27.6		0.02	0.48	2800	0.31	10.9	18	0.072	17
