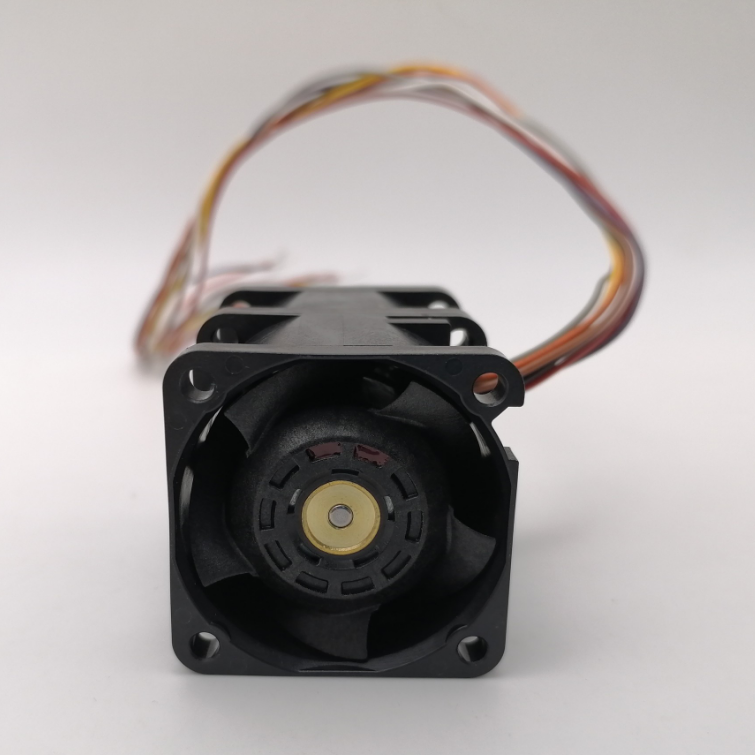

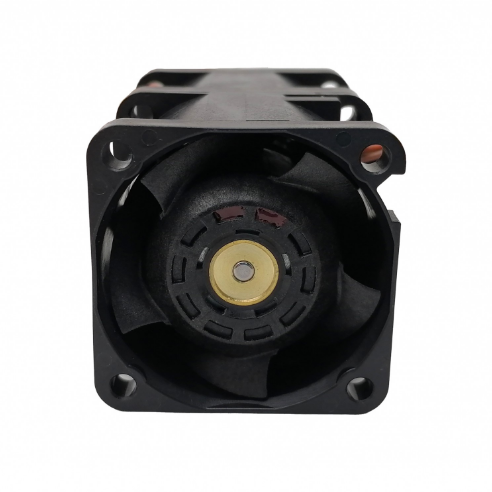

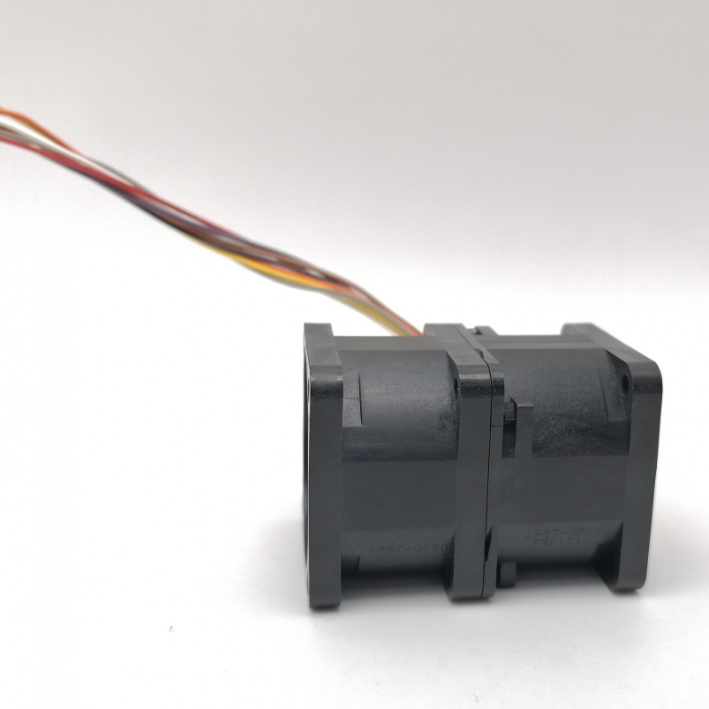

40×40×56 mm Counter Rotating Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Inlet：Red Black Yellow Brown; Outlet：Orange Gray Purple White

· Mass：110g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed [min-1]		Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[Inlet]	[Outlet]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Counter Rotating Fan	40×40×56 mm	9CRJ0412P5J001	12	10.8 to 12.6	100	3.1	37.2	36200	32000	1.06	37.4	2400	9.64	72	-20 to +70	30000/60˚C (53000/40˚C)
		9CRJ0412P5J001	12	10.8 to 12.6	20	0.1	1.2	4500	4000	0.11	3.9	40	0.16	28	-20 to +70	30000/60˚C (53000/40˚C)

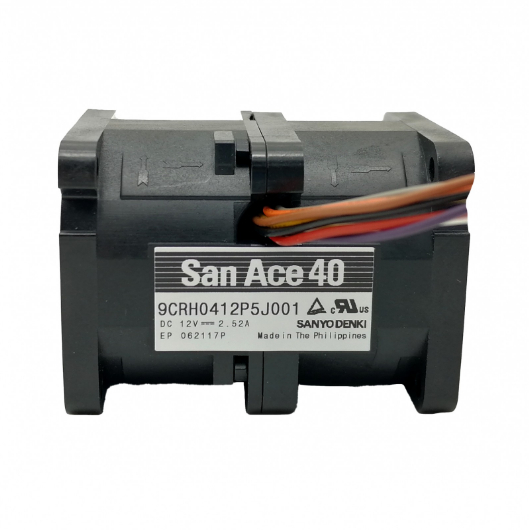

		9CRH0412P5J001	12	10.8 to 12.6	100	2.52	30.24	29500	25500	0.93	32.9	1700	6.83	70	-20 to +70	30000/60˚C (53000/40˚C)
		9CRH0412P5J001	12	10.8 to 12.6	20	0.06	0.72	3000	2600	0.08	2.8	17	0.07	20	-20 to +70	30000/60˚C (53000/40˚C)

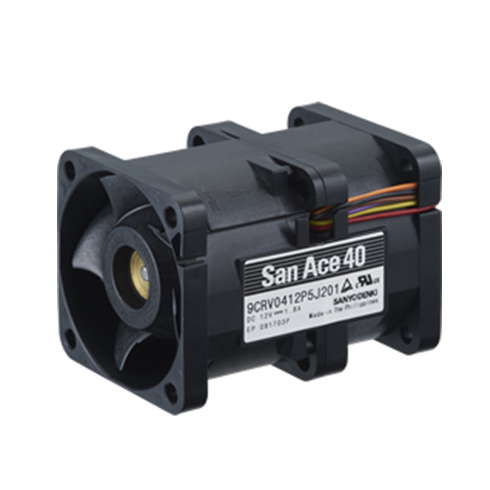

		9CRV0412P5J201	12	10.8 to 13.2	100	1.8	21.6	22500	20000	0.9	31.8	1050	4.22	68	-20 to +70	40000/60˚C (70000/40˚C)
		9CRV0412P5J201			0	0.11	1.32	3800	3500	0.14	4.9	30	0.12	26
		9CRV0412P5G201			100	1.1	13.2	19000	16900	0.76	26.8	748	3.0	62
		9CRV0412P5G201			0	0.11	1.32	3800	3500	0.14	4.9	30	0.12	26
		9CRV0412P5S201			100	0.8	9.6	17000	15100	0.68	24	590	2.37	59
		9CRV0412P5S201			0	0.11	1.32	3800	3500	0.14	4.9	30	0.12	26
		9CRV0412P5H201			100	0.55	6.6	15000	13300	0.6	21.2	451	1.81	56
		9CRV0412P5H201			0	0.11	1.32	3800	3500	0.14	4.9	30	0.12	26
		9CRE0412P5J03	12	10.8 to 13.2	100	1.4	16.8	15800	12200	0.9	31.8	570.0	2.29	62	-20 to +70	40000/60˚C (70000/40˚C)
		9CRE0412P5J03	12	10.8 to 13.2	0	0.1	1.2	2850	2250	0.12	4.2	13.7	0.055	20.5	-20 to +70	40000/60˚C (70000/40˚C)
