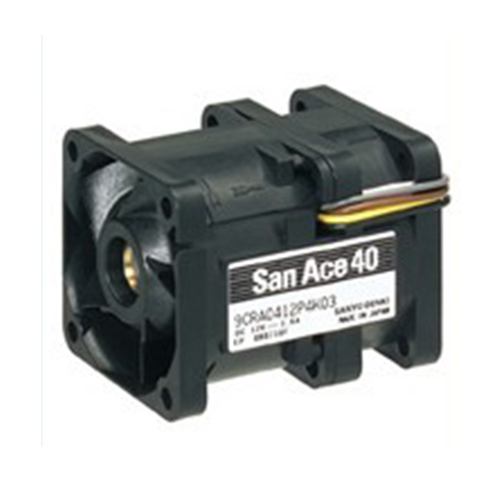

40×40×48 mm Counter Rotating Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Inlet：Red Black Yellow Brown; Outlet：Orange Gray Purple White

· Mass：80g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed [min-1]		Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[Inlet]	[Outlet]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Counter Rotating Fan	40×40×48 mm	9CRA0412P4K03	12	10.8 to 13.2	100	1.6	19.2	17500	11700	0.92	32.5	650.0	2.61	64	-20 to +70	40000/60˚C (70000/40˚C)
		9CRA0412P4K03			0	0.19	2.28	5250	3510	0.276	9.75	58.5	0.235	33
		9CRA0412P4J03			100	1.2	14.4	16200	10800	0.85	30.0	560.0	2.25	62
		9CRA0412P4J03			0	0.15	1.8	4500	3000	0.236	8.33	43.2	0.173	28
		9CRA0412P4G03			100	1.0	12.0	14700	9800	0.77	27.2	460.0	1.85	59
		9CRA0412P4G03			0	0.15	1.8	4410	2940	0.231	8.16	41.4	0.166	28
