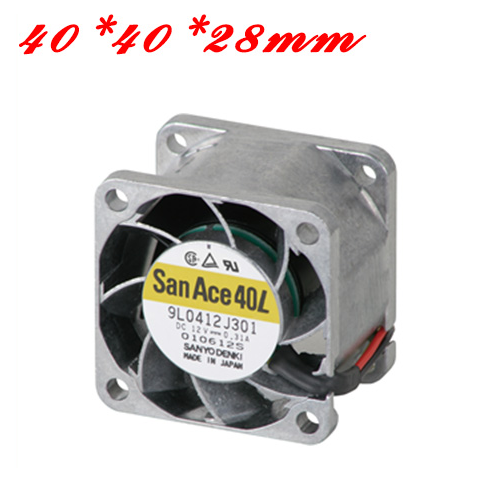

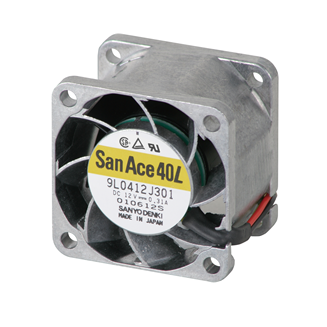

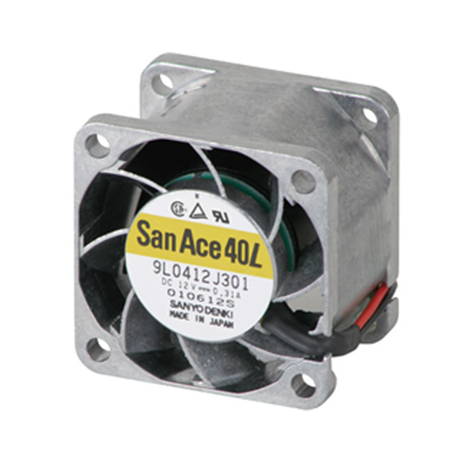

40×40×28 mm Long Life Fan

General Specifications
· Material
Frame: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：60g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Long Life Fan	40×40×28 mm	9LG0412P3G001	12	10.2 to 13.8	100	1.9	22.8	33500	0.93	32.9	1780	7.15	68	-20 to +70	80000/60˚C (115000/40˚C)
		9LG0412P3G001			20	0.09	1.08	7500	0.2	7.07	89	0.36	33		80000/60˚C (115000/40˚C)
		9LG0412P3S001			100	1.23	14.8	28000	0.77	27.2	1290	5.18	65		100000/60˚C (135000/40˚C)
		9LG0412P3S001			20	0.07	0.84	5700	0.15	5.3	53	0.21	28
		9LG0412P3H001			100	0.69	8.28	22500	0.62	21.9	830	3.33	62
		9LG0412P3H001			20	0.07	0.84	5700	0.15	5.3	53	0.21	28
		9LG0424P3G001	24	21.6 to 26.4	100	0.95	22.8	33500	0.93	32.9	1780	7.15	68		80000/60˚C (115000/40˚C)
		9LG0424P3G001			20	0.07	1.68	6800	0.18	6.36	73	0.29	32		80000/60˚C (115000/40˚C)
		9LG0424P3S001			100	0.61	14.6	28000	0.77	27.2	1290	5.18	65		100000/60˚C (135000/40˚C)
		9LG0424P3S001			20	0.05	1.2	5000	0.13	4.59	41	0.16	27
		9LG0424P3H001			100	0.34	8.16	22500	0.62	21.9	830	3.33	62
		9LG0424P3H001			20	0.05	1.2	5000	0.13	4.59	41	0.16	27
		9L0412J301	12	10.2 to 13.8		0.31	3.72	11700	0.52	18.4	206	0.827	48	-20 to +70	100000/60˚C (135000/40˚C)
		9L0412H301				0.15	1.8	8400	0.37	13.1	106	0.426	40
		9L0412M301				0.045	0.54	4000	0.16	5.65	24	0.096	19
