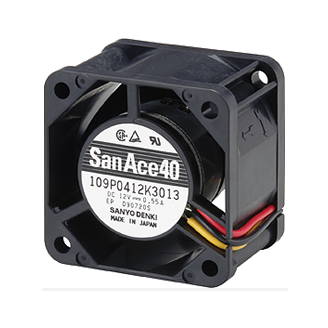

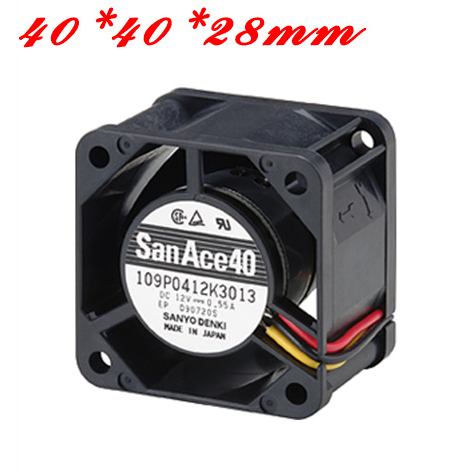

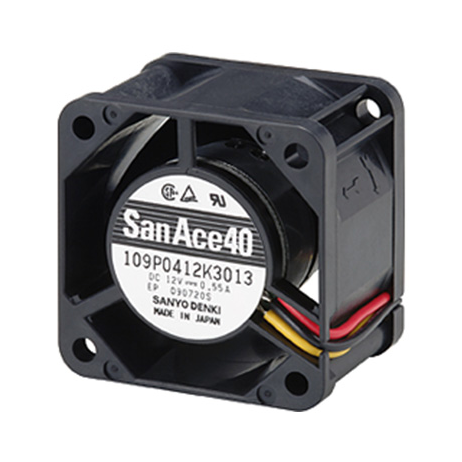

40×40×28 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown
· Mass：57 g
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Model Model no. Rated Voltage Operating
voltage range		 PWM duty
cycle*		 Rated
current		 Rated input Rated
Speed		 Max. airflow Max. static
pressure		 SPL Operating
temperature		 Expected life
[V] [V] [%] [A] [W] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
40×40×28 mm 9HVA0412P3J001 12 10.2 to 13.8 100 2.6 31.2 38000 1.05 37.1 2300 9.24 71 -20 to +70 30000/60˚C
(53000/40˚C)
20 0.12 1.4 8000 0.22 7.8 101 0.41 34
9HVA0424P3G001 24 21.6 to 26.4 100 0.88 21.1 33000 0.92 32.5 1650 6.63 68
20 0.05 1.2 6750 0.18 6.4 74 0.30 31
9HV0412P3K001 12 10.8 to 12.6 100 1.52 18.3 25000 0.83 29.3 1100 4.42 65 -20 to +60 40000/60˚C
(70000/40˚C)
0 0.2 2.4 7500 0.25 8.8 99 0.4 37
9GAX0412P3S001 12 10.8 to 12.6 100 1.3 15.6 25000 0.9 31.8 1000 4.02 64 -20 to +60 30000/60˚C
(53000/40˚C)
20 0.07 0.84 4400 0.155 5.5 32 0.125 21.5
9GAX0412P3S003 100 1.3 15.6 25000 0.9 31.8 1000 4.02 64
0 0.11 1.32 7800 0.26 9.2 87 0.35 38
9GAX0412P3K001 10.8 to 13.2 100 0.92 11.04 22000 0.81 28.6 800 3.21 61
20 0.07 0.84 4200 0.15 5.3 28 0.11 21
9GAX0412P3K003 100 0.92 11.04 22000 0.81 28.6 800 3.21 61
0 0.1 1.2 6500 0.24 8.5 70 0.28 32
9GA0412P3J01 12 10.8 to 13.2 100 0.49 5.88 18000 0.67 23.7 535 2.15 54 -20 to +70 40000/60˚C
(70000/40˚C)
0 0.05 0.6 45000 0.16 5.7 33 0.13 22
9GA0412P3G01 100 0.39 4.68 16500 0.61 21.5 450 1.81 53
0 0.05 0.6 4500 0.16 5.7 33 0.13 22
9GA0412P3H01 100 0.28 3.36 14500 0.54 19.1 347 1.39 50
0 0.04 0.48 3500 0.13 4.6 20 0.08 17
9GA0412P3M01 100 0.21 2.52 12500 0.46 16.2 258 1.04 47
0 0.04 0.48 3500 0.13 4.6 20 0.08 17
9GA0424P3J001 24 21.6 to 26.4 100 0.27 6.48 18000 0.67 23.7 535 2.15 54
9GA0424P3G001 100 0.22 5.28 16500 0.61 21.5 450 1.81 53
9GA0424P3H001 100 0.16 3.84 14500 0.54 19.1 347 1.39 50
9GA0424P3M001 100 0.11 2.64 12500 0.46 16.2 258 1.04 47
9GE0412P3K03 12 10.8 to 13.2 100 0.84 10.08 16500 0.76 26.8 415 1.666 58 -20 to +60 40000/60˚C
(70000/40˚C)
0 0.07 0.84 3000 0.13 4.6 13 0.052 17
9GE0412P3J03 100 0.65 7.8 15000 0.69 24.4 343.0 1.378 56
0 0.05 0.6 2650 0.12 4.2 10.7 0.042 14
9GE0412P3G03 100 0.47 5.64 13000 0.6 21.2 260 1.044 52
0 0.05 0.6 2400 0.11 3.9 8.2 0.033 13
109P0405H3013 5 4.5 to 5.5
0.68 3.4 8700 0.32 11.3 102.9 0.414 37 -20 to +70 40000/60˚C
(70000/40˚C)
109P0405F3013
0.28 1.4 6700 0.244 8.6 58.8 0.236 30 60000/60˚C
(90000/40˚C)
109P0412G3013 12 7 to 13.2
0.31 3.72 11500 0.42 14.8 179 0.719 42 -20 to +60 40000/60˚C
(70000/40˚C)
109P0412B3013
0.28 3.36 10300 0.38 13.4 143 0.574 40
109P0412H3013
0.195 2.34 8700 0.32 11.3 102.9 0.414 37 -20 to +70 60000/60˚C
(90000/40˚C)
109P0412F3013
0.105 1.26 6700 0.244 8.6 58.8 0.236 30
109P0412M3013
0.045 0.54 4100 0.15 5.3 21.6 0.087 20
109P0424G3013 24 7 to 13.8
0.19 4.56 11500 0.42 14.8 179 0.719 42 -20 to +60 40000/60˚C
(70000/40˚C)
109P0424B3013
0.13 3.12 10300 0.38 13.4 143 0.574 40
109P0424H3013
0.095 2.28 8700 0.32 11.3 102.9 0.414 37 -20 to +70 60000/60˚C
(90000/40˚C)
109P0424F3013
0.055 1.32 6700 0.244 8.6 58.8 0.236 30
