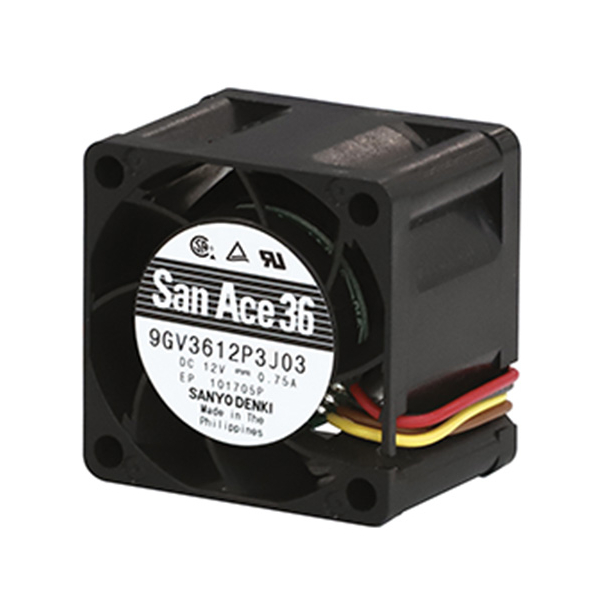

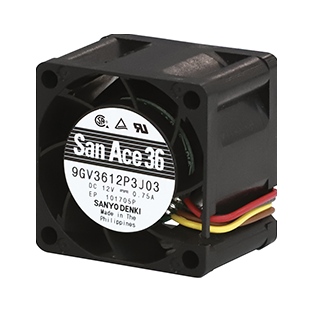

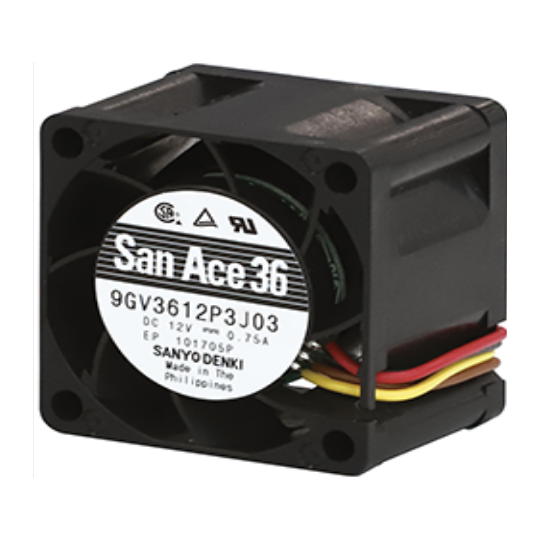

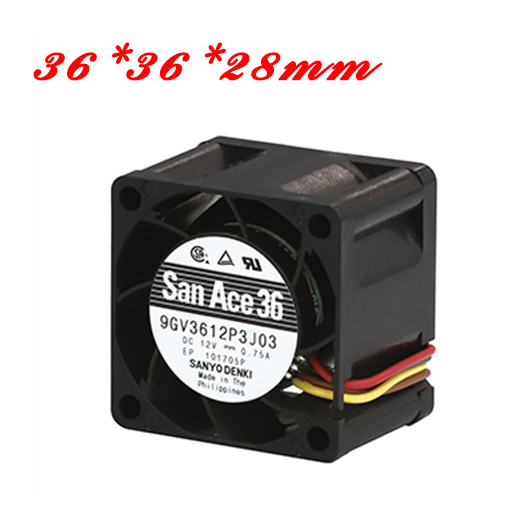

36×36×28 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Control Brown
· Mass：46 g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	36×36×28 mm	9HV3612P3K001	12	10.8 to 13.2	100	1.75	21.0	32500	0.72	25.4	1400	5.62	67	-20 to +60	30000/60˚C (53000/40˚C)
		9HV3612P3K001	12	10.8 to 13.2	20	0.05	0.6	6000	0.12	4.2	47.2	0.19	26	-20 to +60	30000/60˚C (53000/40˚C)
		9GX3612P3K001	12	10.8 to 13.2	100	1.30	15.6	24000	0.69	24.4	838	3.367	66	-10 to +60	40000/60˚C (70000/40˚C)
		9GX3612P3K001	12	10.8 to 13.2	0	0.07	0.8	3200	0.09	3.2	14.0	0.056	16	-10 to +60	40000/60˚C (70000/40˚C)
		9GV3612P3J03	12	10.8 to 13.2	100	0.75	9	19000	0.55	19.4	525	2.108	58.5	-10 to +60	40000/60˚C (70000/40˚C)
		9GV3612P3J03			0	0.07	0.84	3200	0.08	2.8	15	0.060	16
		9GV3612P3G03			100	0.34	4.08	14000	0.40	14.1	275	1.104	52
		9GV3612P3G03			0	0.06	0.72	3200	0.08	2.8	15	0.060	16
