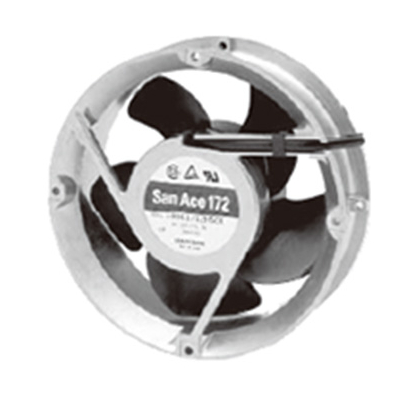

172×51 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black or Blue Yellow

· Mass：800g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]
DC Fan	ø172×51 mm	109E1712K501	12	10.2 to 13.8	2.9	34.8	4100	8.5	300	243.0	0.976	55	-20 to +60	40000/60˚C (70000/40˚C)
		109E1712Y501			2.3	27.6	3800	7.8	276	210.0	0.843	53	-20 to +60
		109E1712H501			1.2	14.4	3050	6.4	226	137.2	0.551	47	-20 to +70
		109E1712F501			0.68	10.8	2500	5.1	180	92.0	0.382	42
		109E1712M501			0.48	5.76	2000	4.2	148	67.6	0.271	36
		109E1724C501	24	20.4 to 27.6	2.3	55.2	4800	9.9	350	308.0	1.237	60
		109E1724K501			1.3	31.2	4100	8.5	300	243.0	0.976	55
		109E1724H501			0.58	13.92	3050	6.4	226	137.2	0.551	47
		109E1724F501			0.35	8.4	2500	5.1	180	95	0.382	42
		109E1724M501			0.2	4.8	2000	4.2	148	67.6	0.271	36
		109E1748C501	48	40.8 to 55.2	1.2	57.6	4800	9.9	350	308.0	1.237	60
		109E1748K501			0.7	33.6	4100	8.5	300	243.0	0.976	55	-20 to +60
		109E1748H501			0.28	13.44	3050	6.4	226	137.2	0.551	47	-20 to +70
		109E1748F501			0.19	9.12	2500	5.1	180	95	0.382	42
		109E1748M501			0.11	5.28	2000	4.2	148	67.6	0.271	36
