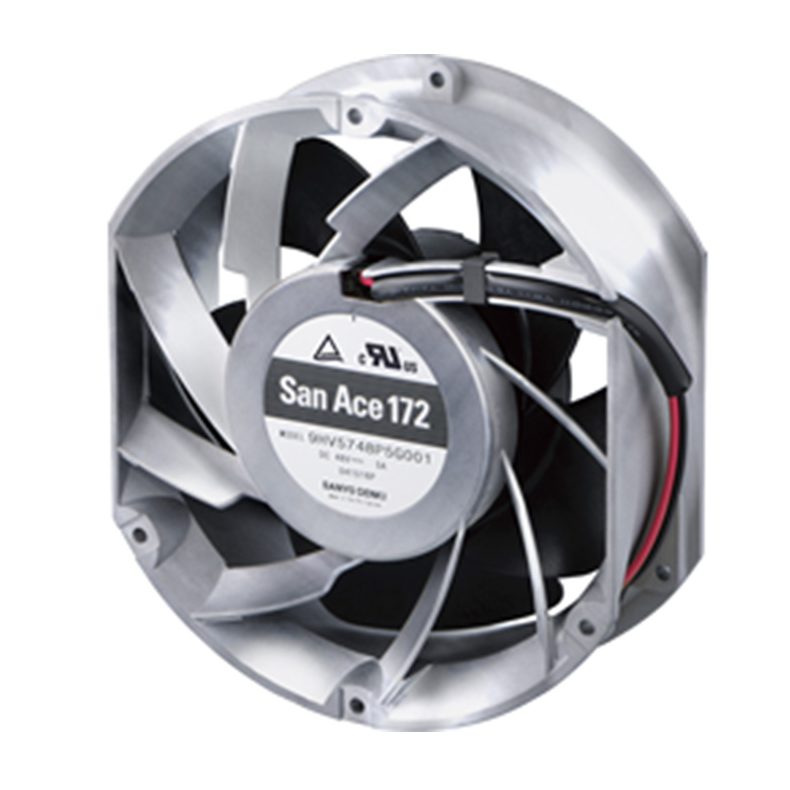

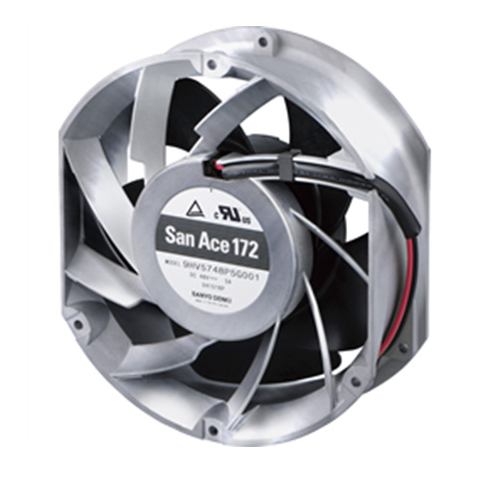

172×150×51 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black or Blue Yellow

· Mass：800g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	ø172×150×51 mm	9HV5724P5H001	24	16 to 30	100	5.0	120	8000	12.3	434	1000	4.02	77	-20 to +70	40000/60˚C (70000/40˚C)
		9HV5724P5H001	24	16 to 30	20	0.5	12.0	3000	4.6	162	175	0.7	51
		9HV5748P5G001	48	36 to 72	100	5.0	240	10500	16.1	568	1600	6.43	83
		9HV5748P5G001	48	36 to 72	20	0.41	19.7	3700	5.6	198	250	1.01	57
		9SG5724P5H61	24	20.4 to 27.6	100	2.8	67.2	6500	11.6	410	540	2.16	71	-20 to +70	40000/60˚C (70000/40˚C)
		9SG5724P5H61	24	20.4 to 27.6	0	0.18	4.32	1300	2.32	81.9	30	0.12	28	-20 to +70
		9SG5748P5G01	48	36 to 72	100	2.91	140	8600	15.46	546	1000	4.02	78	-20 to +60
		9SG5748P5G01			0	0.21	10.1	2000	3.59	127	75.1	0.3	40
		9SG5748P5H01			100	1.62	78	6500	11.6	410	770	3.09	71
		9SG5748P5H01			0	0.21	10.1	2000	3.59	127	75.1	0.3	40
		109E5712K501	12	10.2 to 13.8		2.9	34.8	4100	8.5	300	243.0	0.976	60	-20 to +60	40000/60˚C (70000/40˚C)
		109E5712Y501				2.3	27.6	3800	8	282	210	0.84	60	-20 to +60
		109E5712H501				1.2	14.4	3050	6.4	226	137.2	0.551	52	-20 to +70
		109E5712F501				0.68	8.16	2500	5.1	180	95	0.38	47
		109E5712M501				0.48	5.76	2000	4.2	148	67.6	0.271	41
		109E5724C501	24	20.4 to 27.6		2.3	55.2	4800	9.9	350	308.0	1.237	66
		109E5724K501				1.3	31.2	4100	8.5	300	243.0	0.976	60
		109E5724H501				0.58	13.92	3050	6.4	226	137.2	0.551	52
		109E5724F501				0.35	8.4	2500	5.1	180	95	0.38	47
		109E5724M501				0.2	4.8	2000	4.2	148	67.6	0.271	41
		109E5748C501	48	40.8 to 55.2		1.2	57.6	4800	9.9	350	308.0	1.237	66
		109E5748K501				0.7	33.6	4100	8.5	300	243.0	0.976	60	-20 to +60
		109E5748H501				0.28	13.44	3050	6.4	226	137.2	0.551	52	-20 to +70
		109E5748F501				0.19	9.12	2500	5.1	180	95	0.38	47
		109E5748M501				0.11	5.28	2000	4.2	148	67.6	0.271	41
