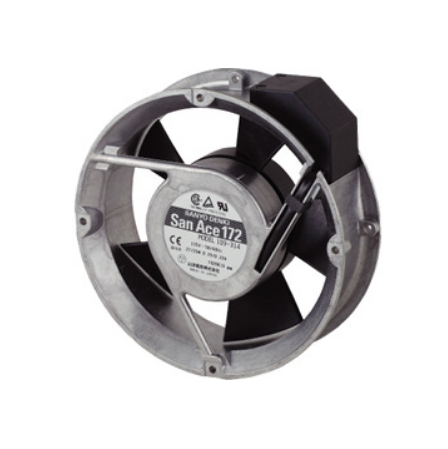

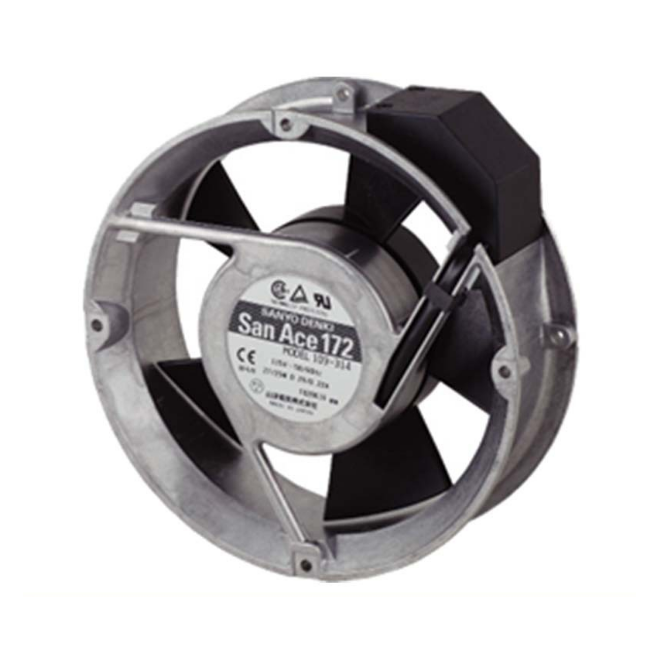

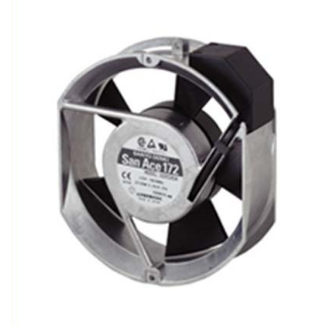

172×150×51 mm AC Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor structure: Capacitor motor
· Motor protection function: Locked rotor burnout protection, Reverse polarity protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (between input terminal and frame)
· Insulation resistance: 10 MΩ min. at 500 VDC
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Operating voltage range: Voltage of each model ±10%
· Storage temperature: -30 to +70˚C (Non-condensing)
· Mass: 1000 g
