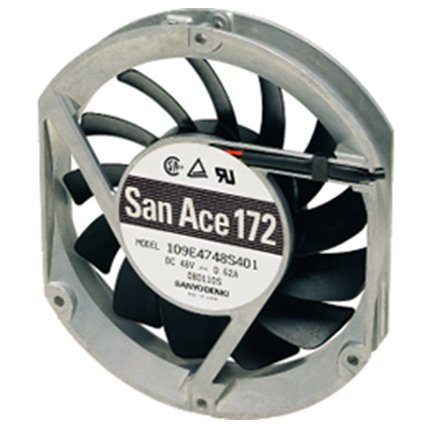

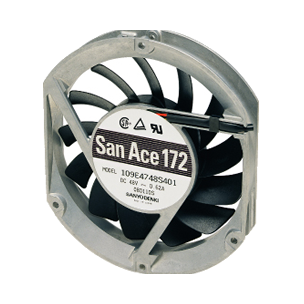

172×147×25 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black or Blue Yellow

· Mass：500g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]
DC Fan	ø172×147×25 mm	109E4712M401	12	10.2 to 13.8	1.3	15.6	2800	5.2	183	92	0.369	51	-20 to +60	40000/60˚C (70000/40˚C)
		109E4712L401	12	10.2 to 13.8	1.0	12.0	2500	4.6	162	73	0.293	48
		109E4724H401	24	20.4 to 27.6	1.0	24.0	3400	6.4	226	135	0.542	57
		109E4724F401			0.79	19.0	3100	5.8	204	112	0.45	54
		109E4724M401			0.58	13.9	2800	5.2	183	92	0.369	51
		109E4724L401			0.44	10.6	2500	4.6	162	73	0.293	48
		109E4748S401	48	40.8 to 55.2	0.62	29.8	3650	6.8	240	156	0.627	58
		109E4748H401			0.52	25.0	3400	6.4	226	135	0.542	57
		109E4748F401			0.4	19.2	3100	5.8	204	112	0.45	54
		109E4748M401			0.32	15.4	2800	5.2	183	92	0.369	51
		109E4748L401			0.25	12.0	2500	4.6	162	73	0.293	48
