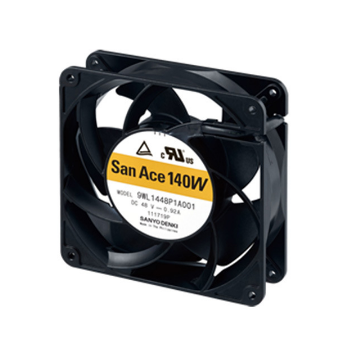

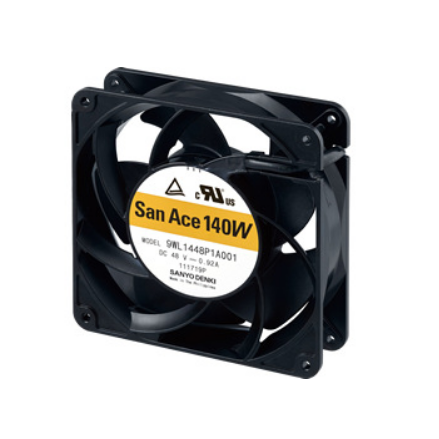

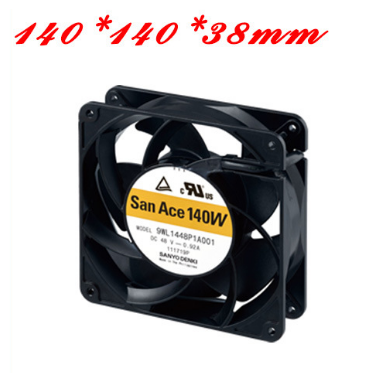

140×140×38 mm Splash Proof Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：630g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Fan	140×140×38 mm	9WL1412P1A001	12	10.2 to 13.8	100	3.72	44.64	6900	8.0	282	516	2.07	68	-20 to +70	100000/60˚C (135000/40˚C)
		9WL1412P1A001			20	0.27	3.24	2300	2.66	93	80	0.32	39
		9WL1412P1H001			100	1.7	20.4	5200	6.0	212	300	1.2	62
		9WL1412P1H001			20	0.27	3.24	2300	2.66	93	80	0.32	39
		9WL1412P1M001			100	0.6	7.2	3300	3.7	130	170	0.68	46
		9WL1412P1M001			20	0.16	1.92	1300	1.45	51	26	0.1	29
		9WL1424P1A001	24	20.4 to 27.6	100	1.86	44.64	6900	8.0	282	516	2.07	68
		9WL1424P1A001			20	0.17	4.08	2300	2.66	93	80	0.32	39
		9WL1424P1H001			100	0.85	20.4	5200	6.0	212	300	1.2	62
		9WL1424P1H001			20	0.16	3.84	2300	2.66	93	80	0.32	39
		9WL1424P1M001			100	0.3	7.2	3300	3.7	130	170	0.68	46
		9WL1424P1M001			20	0.11	2.64	1300	1.45	51	26	0.1	29
		9WL1448P1A001	48	40.8 to 55.2	100	0.92	44.16	6900	8.0	282	516	2.07	68
		9WL1448P1A001			20	0.11	5.28	2300	2.66	93	80	0.32	39
		9WL1448P1H001			100	0.42	20.16	5200	6.0	212	300	1.2	62
		9WL1448P1H001			20	0.11	5.28	2300	2.66	93	80	0.32	39
		9WL1448P1M001			100	0.15	7.2	3300	3.7	130	170	0.68	46
		9WL1448P1M001			20	0.09	4.32	1300	1.45	51	26	0.1	29
		9WL1448L1001	48	40.8 to 55.2		0.11	5.3	2300	2.66	91.9	80	0.32	39	-20 to +70	100000/60˚C (135000/40˚C)
