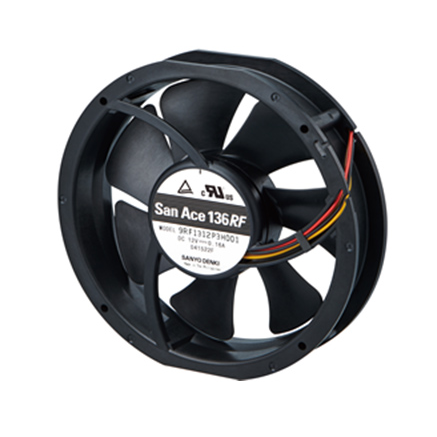

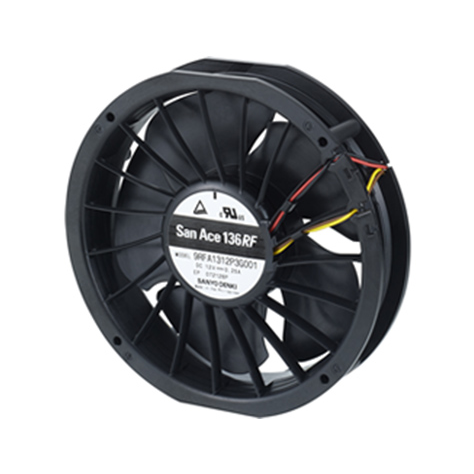

136×28 mm Reversible Flow Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：204g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Airflow directio	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	Airflow directio	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Reversible Flow Fan	ø136×28 mm	9RFA1312P3G001	Forward	12	10.2 to 13.8	100	0.25	3.00	5450	2.10	74.2	285	1.14	49	-25 to +70	40000/60˚C (70000/40˚C)
		9RFA1312P3G001	Reverse			0	0.25	3.00	5450	2.05	72.4	280	1.12	52
		9RFA1312P3H001	Forward			100	0.16	1.92	4350	1.67	59.2	185	0.74	44
		9RFA1312P3H001	Reverse			0	0.16	1.92	4350	1.63	57.8	180	0.72	47
		9RFA1324P3G001	Forward	24	20.4 to 27.6	100	0.13	3.12	5450	2.10	74.2	285	1.14	49
		9RFA1324P3G001	Reverse			0	0.13	3.12	5450	2.05	72.4	280	1.12	52
		9RFA1324P3H001	Forward			100	0.08	1.92	4350	1.67	59.2	185	0.74	44
		9RFA1324P3H001	Reverse			0	0.08	1.92	4350	1.63	57.8	180	0.72	47
