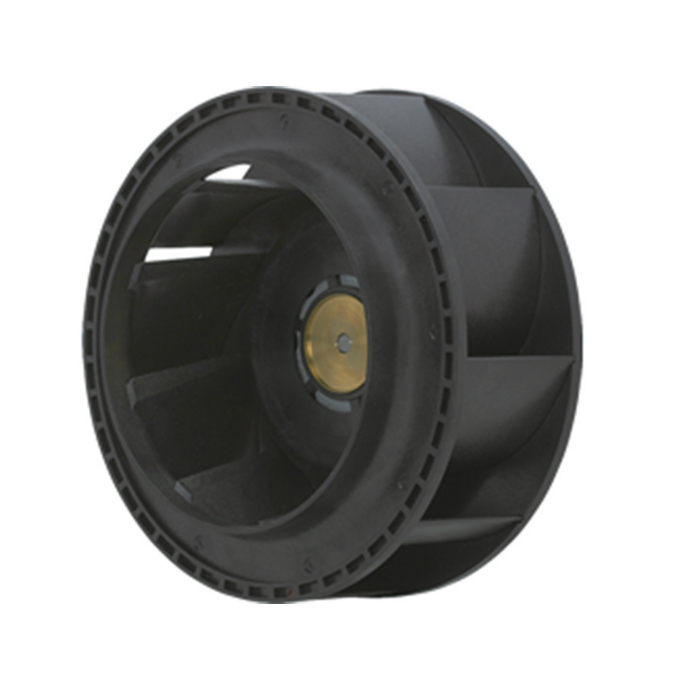

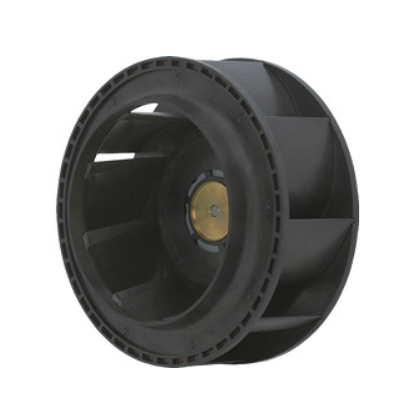

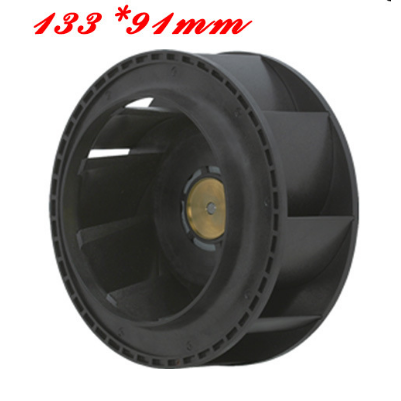

133×91 mm Centrifugal Fan

General Specifications
· Material
Motor case: Aluminum, Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown
· Mass：660g
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model no. Rated Voltage Operating
voltage range		 PWM duty
cycle*		 Rated
current		 Rated input Rated Speed Max. airflow Max. static
pressure		 SPL Operating
temperature		 Expected life
[V] [V] [%] [A] [W] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
Centrifugal Fan ø133×91 mm 9TJ24P0H61 24 20.4 to 27.6 100 1.2 28.8 4150 6.39 226 395 1.59 61 -20 to +70 40000/60˚C
(70000/40˚C)
9TJ48P0H01 48 36 to 72 100 0.55 26.4 4150 6.39 226 395 1.59 61
