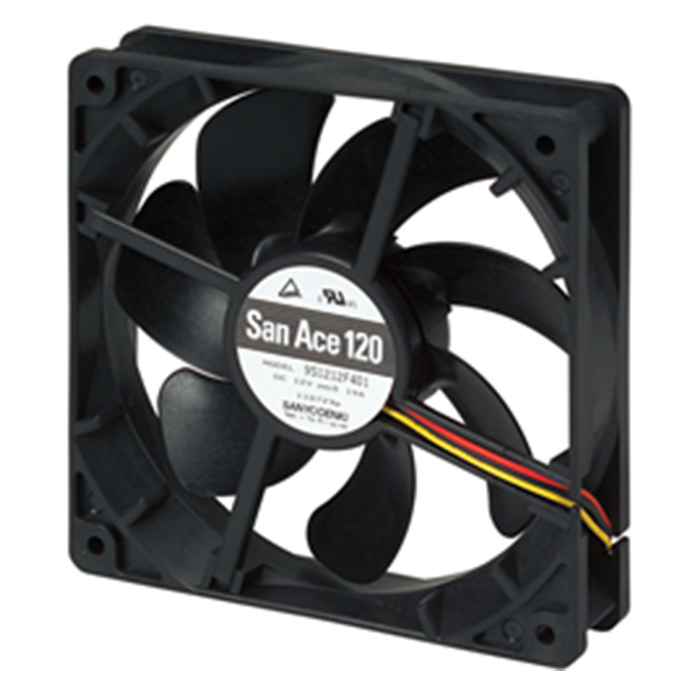

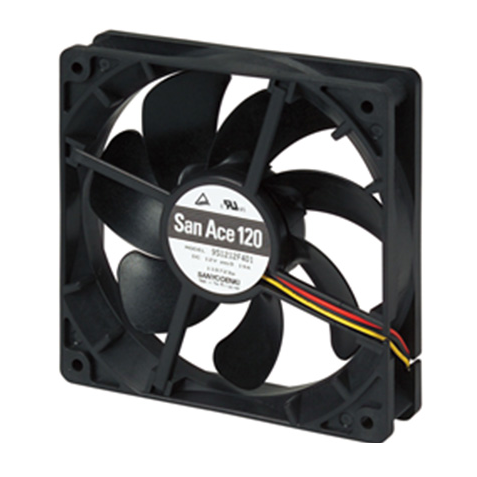

120×120×25 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown (For models without PWM control, there is no speed control wiring.)
· Mass：280g
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category Model Model no. Rated Voltage Operating
voltage range		 PWM duty
cycle*		 Rated
current		 Rated input Rated
Speed		 Max. airflow Max. static
pressure		 SPL Operating
temperature		 Expected life
[V] [V] [%] [A] [W] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
DC Fan 120×120×25 mm 9GA1212P4G001 12 10.2 to 13.8 100 0.93 11.16 6400 3.8 134 365 1.47 57 -20 to +70 40000/60˚C
(70000/40˚C)
25 0.16 1.92 2550 1.5 53 60 0.24 34
9GA1212P4S001 100 0.61 7.32 5400 3.2 113 260 1.04 54
25 0.16 1.92 2550 1.5 53 60 0.24 34
9GA1224P4G001 24 20.4 to 27.6 100 0.47 11.28 6400 3.8 134 365 1.47 57
25 0.16 2.4 2550 1.5 53 60 0.24 34
9GA1224P4S001 100 0.31 7.44 5400 3.2 113 260 1.04 54
25 0.16 2.4 2550 1.5 53 60 0.24 34
9GA1248P4G001 48 40.8 to 53 100 0.24 11.53 6400 3.8 134 365 1.47 57
25 0.08 3.84 2550 1.5 53 60 0.24 34
9GA1248P4S001 100 0.16 7.68 5400 3.2 113 260 1.04 54
25 0.08 3.84 2550 1.5 53 60 0.24 34
9GA1212G4001 12 7 to 13.8
0.93 11.16 6400 3.8 134 365 1.47 57 -20 to +70 40000/60˚C
(70000/40˚C)
9GA1212S4001
0.61 7.32 5400 3.2 113 260 1.04 54
9GA1224G4001 24 14 to 27.6
0.47 11.28 6400 3.8 134 365 1.47 57
9GA1224S4001
0.31 7.44 5400 3.2 113 260 1.04 54
9GA1248G4001 48 36 to 53
0.24 11.52 6400 3.8 134 365 1.47 57
9GA1248S4001
0.16 7.68 5400 3.2 113 260 1.04 54
9GV1212P4G01 12 10.2 to 13.8 100 1.68 20.16 5100 4.83 171 224 0.9 58 -20 to +70 40000/60˚C
(70000/40˚C)
0 0.18 2.16 1650 1.56 55.1 23.5 0.09 30
9GV1224P4G01 24 20.4 to 27.6 100 0.84 20.16 5100 4.83 171 224 0.9 58
0 0.13 3.12 1650 1.56 55.1 23.5 0.09 30
9GV1248P4J01 48 40.8 to 55.2 100 0.5 24.0 5400 5.11 180 251 1.01 59
0 0.15 7.2 3000 2.84 100 77.5 0.31 47
9GV1248P4G01 40.8 to 60.0 100 0.42 20.16 5100 4.83 171 224 0.9 58
0 0.07 3.36 1650 1.56 55.1 23.5 0.09 30
9GV1248P4H01 100 0.33 15.84 4600 4.35 154 182 0.73 55
0 0.07 3.36 1650 1.56 55.1 23.5 0.09 30
9RA1212P4G001 12 10.8 to 13.2 100 0.55 6.6 4500 3.68 130 120 0.48 47 -20 to +70 60000/60˚C
(90000/40˚C)
20 0.06 0.72 1250 1.02 36 9.2 0.037 15
9RA1224P4G001 24 21.6 to 26.4 100 0.28 6.72 4500 3.68 130 120 0.48 47
20 0.05 1.2 1750 1.43 50.5 18.1 0.073 22
9RA1248P4G001 48 43.2 to 52.8 100 0.15 7.2 4500 3.68 130 120 0.48 47
20 0.03 1.44 1650 1.34 47.3 16.1 0.065 21
9RA1212G4001 12 7 to 13.8
0.55 6.6 4500 3.68 130 120 0.48 47 -20 to +70 60000/60˚C
(90000/40˚C)
9RA1212E4001
0.41 4.92 4000 3.3 116.5 96 0.386 45
9RA1212A4001
0.3 3.6 3500 2.86 101.1 73 0.293 42
9RA1212H4001
0.26 3.12 3200 2.62 92.4 61 0.245 39
9RA1212F4001
0.17 2.04 2700 2.2 77.6 43 0.172 35
9RA1212M4001
0.12 1.44 2200 1.8 63.5 29 0.116 28
9RA1224G4001 24 14 to 27.6
0.28 6.72 4500 3.68 130 120 0.48 47
9RA1224E4001
0.22 5.28 4000 3.3 116.5 96 0.386 45
9RA1224A4001
0.16 3.84 3500 2.86 101.1 73 0.293 42
9RA1224H4001
0.13 3.12 3200 2.62 92.4 61 0.245 39
9RA1224M4001
0.07 1.68 2200 1.8 63.5 29 0.116 28
9RA1248G4001 48 36 to 55.2
0.15 7.2 4500 3.68 130 120 0.48 47
9RA1248E4001
0.11 5.28 4000 3.3 116.5 96 0.386 45
9RA1248A4001
0.09 4.32 3500 2.86 101.1 73 0.293 42
9S1212H401 12 8 to 13.2
0.39 4.68 2700 2.45 86.5 45.2 0.18 36 -10 to +60 40000/60˚C
(70000/40˚C)
9S1212F401 8 to 13.8
0.19 2.28 2200 2.0 70.6 30.0 0.12 30 -10 to +70
9S1212M401
0.13 1.56 1850 1.66 58.6 22.7 0.09 24
9S1212L401
0.08 0.96 1500 1.36 48.1 14.9 0.065 17
9S1224M401 24 14 to 26.4
0.06 1.44 1850 1.66 58.6 22.7 0.09 24
