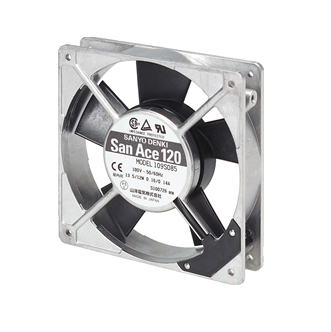

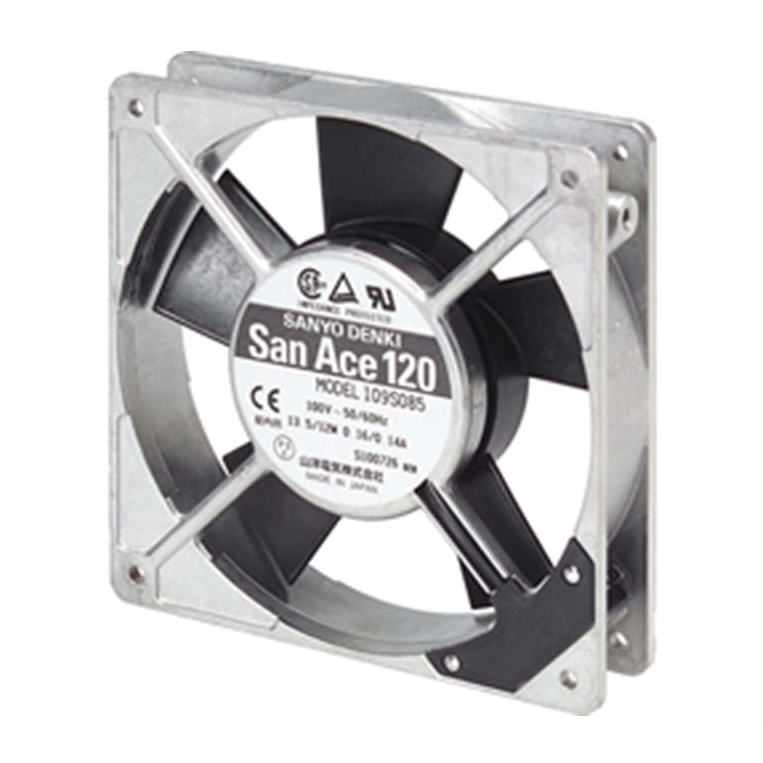

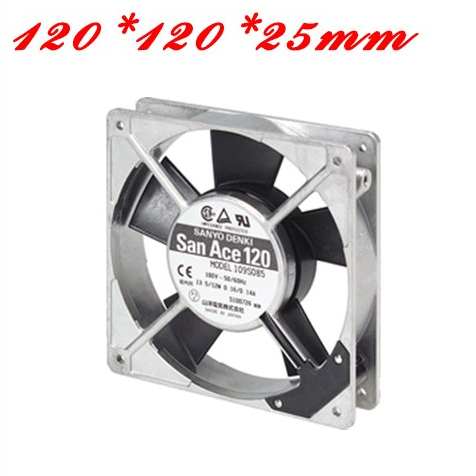

120×120×25 mm AC Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor structure: Shaded coil motor
· Motor protection function: Locked rotor burnout protection, Reverse polarity protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (between input terminal and frame)
· Dielectric strength (with sensor): 50/60 Hz 1500 VAC 1 minute (between AC input terminal and frame)；50/60 Hz 1000 VAC 1 minute (between lead wire conductors and frame)
· Insulation resistance: 10 MΩ min. at 500 VDC
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Operating voltage range: Voltage of each model ±10%
· Storage temperature: -30 to +70˚C (Non-condensing)
· Sensor-Purpose lead wire: Brown Black；Sensor: Yellow
· Mass: 370 g/390 g (with Sensor)
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model no. Rated Voltage Frequency Input Current Locked rotor current Rated Speed Max. airflow Max. static
pressure		 SPL Operating
temperature		 Expected life
[V] [Hz] [W] [A] [A] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
AC Fan 120×120×25 mm 109S085 100 50/60 13.5/12 0.16/0.14 0.19/0.17 2500/2900 1.95/2.3 68.9/81.3 48 /51.9 0.193/0.207 38/41 -30 to +60 25000/60˚C
(56000/40˚C)
109S084 115 0.14/0.12 0.16/0.15
109S088 200 0.08/0.07 0.1 /0.09
109S087 230 0.07/0.06 0.08/0.07
109S081 100 9.5/8.5 0.11 0.11/0.1 2200/2350 1.7 /1.8 60.1/63.6 29.4/26.5 0.118/0.106 34/35
109S083 115 0.1 0.1 /0.09
109S082 200 0.07 0.07/0.06
109S089 230 0.06 0.06/0.05
109S086* 100 12/10 0.14/0.12 0.15/0.13 1400/1600 1.1 /1.25 38.9/44.2 14.7/18.6 0.059/0.075 24/27
109S485 100 50/60 13.5/12 0.16/0.14 0.19/0.17 2500/2900 1.95/2.3 68.9/81.3 48 /51.9 0.193/0.207 38/41 -10 to +60 25000/60˚C
(56000/40˚C)
109S484 115 0.14/0.12 0.16/0.15
109S488 200 0.08/0.07 0.1 /0.09
109S487 230 0.07/0.06 0.08/0.07
109S486* 100 12/10 0.14/0.12 0.15/0.13 1400/1600 1.1 /1.25 38.9/44.2 14.7/18.6 0.059/0.075 24/27
