As someone who has spent years helping telecom, networking and industrial clients optimize their cooling and ventilation systems, I've seen centrifugal fans evolve from simple air movers into highly engineered, energy‑saving components at the heart of critical infrastructure. In this guide, I'll walk through what centrifugal fans are, how they work, where they're used, and how decision‑makers can select the right solution—especially when comparing DC fans, AC fans and advanced EC centrifugal designs. [ikf.co]
A centrifugal fan is a mechanical device that moves air or gas by increasing its velocity and converting that velocity into pressure, using a rotating impeller housed in a scroll‑shaped casing. Air enters through the center of the impeller, accelerates outward due to centrifugal force, and exits at roughly a 90‑degree angle through the fan outlet. [ikf.co]
Because of this geometry, centrifugal fans are ideal in systems that require higher static pressure, stable performance under resistance, and reliable airflow through ducts, filters, heat exchangers or long piping runs. [ikf.co]
From an engineering perspective, the key performance advantages are:
- High static pressure for ducted systems and filters
- More controlled airflow compared with open‑frame axial fans
- Better tolerance of resistance in complex HVAC and industrial setups [ikf.co]
For telecom cabinets, base stations or industrial control panels, these characteristics often make centrifugal fans a better choice than simple axial fans when reliability, noise and pressure all matter.
In most real‑world projects, engineers don't ask "Do I need a fan?"—they ask "Do I need centrifugal or axial?" Each design has clear strengths, and getting the choice wrong can lead to hot spots, noise complaints, or wasted energy. [ikf.co]
- Centrifugal fans draw air into the center of a rotating impeller and discharge it at 90° through the side outlet, generating higher pressure and more controlled airflow. [ikf.co]
- Axial fans move air parallel to the shaft, like a propeller, delivering lower pressure but high airflow and high efficiency in open or lightly restricted systems. [ikf.co]
- Axial fans: factories, tunnel ventilation, warehouse cooling, large open spaces, mining—anywhere very high airflow with relatively low resistance is needed. [ikf.co]
- Centrifugal fans: air conveyor systems, dust collection, filtration, cooling equipment, telecom cabinets, and industrial drying where higher static pressure is crucial. [ikf.co]
A practical rule I use with clients is:
- If you have short airflow paths with little resistance, an axial fan may be sufficient.
- If you're pushing air through ducts, filters or crowded electronics, a centrifugal fan generally delivers more reliable results over time.

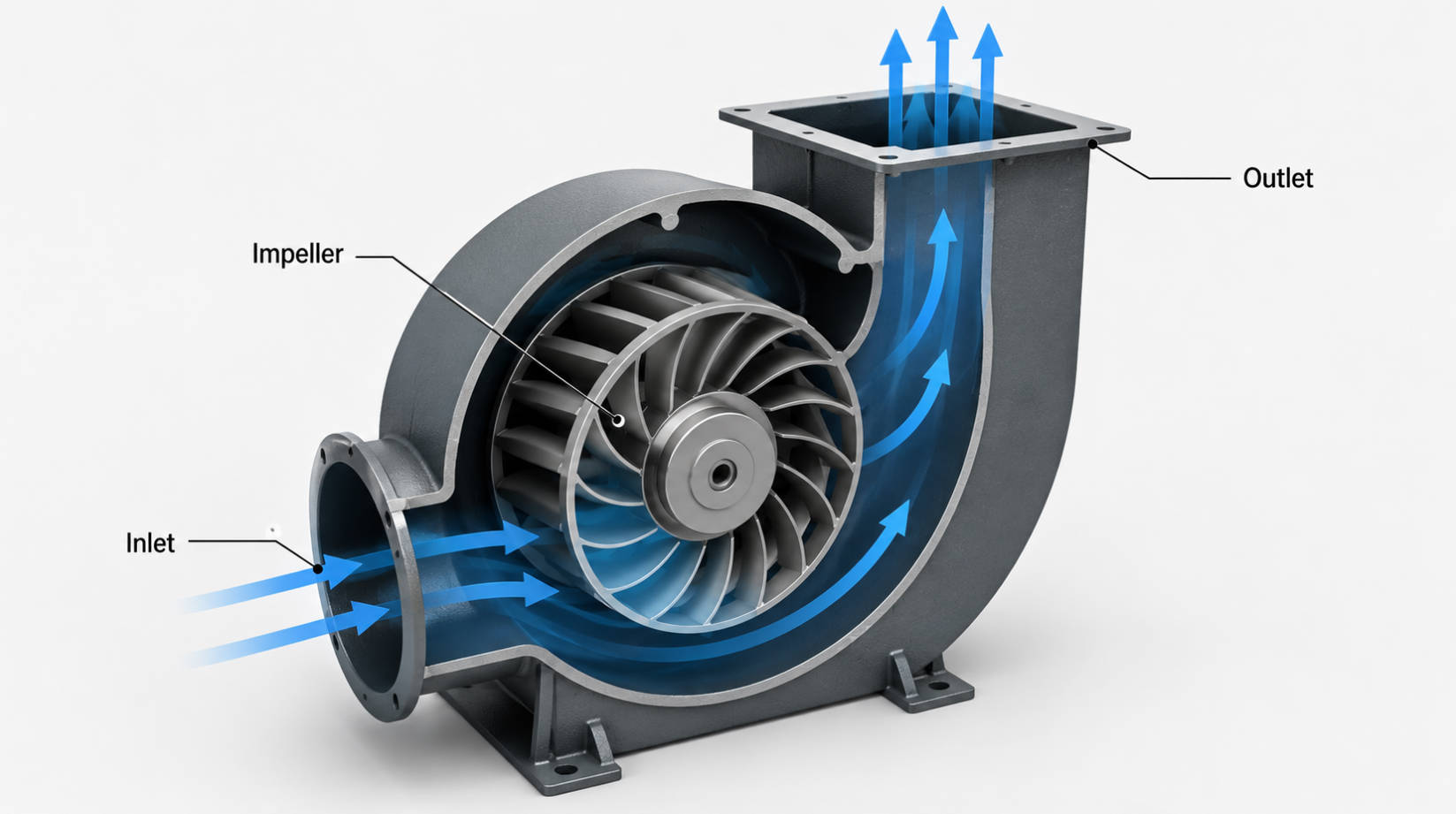

Understanding the main components helps engineers and purchasers evaluate quality, maintenance needs and compatibility with DC, AC or EC motor technologies. [ikf.co]
- Impeller – The impeller is the heart of the fan, made of multiple curved or straight blades mounted around a hub. Its blade geometry directly affects airflow, pressure, efficiency and noise. [ikf.co]
- Housing (casing) – A scroll‑shaped housing surrounds the impeller and converts air velocity into usable static pressure while guiding flow to the outlet. [ikf.co]
- Air inlet – Positioned at the front or center, the inlet design influences how smoothly air enters, shaping efficiency and noise.
- Air outlet – Typically on the side of the housing due to the 90‑degree discharge angle, the outlet geometry helps reduce turbulence and optimize distribution. [ikf.co]
- Motor – Centrifugal fans can use AC, DC or high‑efficiency EC motors, and motor choice is critical for energy consumption, control strategy and lifetime cost. [ikf.co]
To improve performance and reliability, many centrifugal fans integrate:
- Airflow dampers for fine flow control
- Vibration isolators or shock absorbers for smoother operation
- Sound‑absorbing materials for lower operating noise
- Variable frequency drives (VFDs) or intelligent PCBs for speed control and monitoring [ikf.co]
In modern projects—especially for telecom, data centers, or smart manufacturing—these auxiliary features are often mandatory rather than optional.
At a system level, a centrifugal fan converts mechanical energy from the motor into airflow pressure and velocity. During operation: [ikf.co]
1. The motor drives the impeller at high speed inside the housing. [ikf.co]
2. Air is drawn into the center through the inlet.
3. The curved blades accelerate air outward via centrifugal force.
4. Velocity and static pressure both increase as air moves along the blade channels.
5. The scroll casing guides the pressurized air to the outlet for controlled discharge. [ikf.co]
This continuous process produces stable airflow and higher pressure, which is why centrifugal fans are widely used in HVAC ventilation, air purification, industrial cooling, exhaust systems and air handling units. [ikf.co]
Centrifugal fans may be powered by:
- Traditional AC motors
- DC motors in targeted applications
- High‑efficiency EC motors where precise control and energy savings are required [semrush]
From a design perspective, the biggest differentiation between centrifugal fan types is blade geometry: forward curved, backward curved, radial, or airfoil. [ikf.co]
Forward curved fans use many small blades that curve in the direction of rotation. They are designed for: [ikf.co]
- High airflow volume
- Relatively low static pressure
- Low operating noise
- Compact structure suitable for residential and commercial HVAC units [ikf.co]
Common applications include fan coil units, air purifiers, indoor ventilation and commercial air conditioning.
Backward curved fans feature blades curved against the direction of rotation, which improves aerodynamic efficiency and reduces energy consumption. They typically provide: [ikf.co]
- Higher efficiency
- Higher static pressure capability
- Lower power consumption than many forward‑curved designs [ikf.co]
These fans are widely used in industrial ventilation, commercial HVAC systems, data center cooling and clean room ventilation. [ikf.co]
Radial fans use straight blades extending radially outward from the hub. They are engineered for harsh environments and provide: [ikf.co]
- Very robust construction
- High‑pressure performance
- Strong resistance to dust, particles and contaminants [ikf.co]
Typical uses include dust collection systems, industrial exhaust, material conveying and high‑temperature ventilation. [ikf.co]
Because they can maintain stable airflow under significant resistance, centrifugal fans appear across both industrial and commercial sectors. [ikf.co]
Some of the most common application areas include:
- HVAC systems – Air handling units, fan coil units, building ventilation and distribution. [ikf.co]
- Industrial ventilation and exhaust – Removing fumes, dust and airborne contaminants in factories and workshops, welding smoke extraction and general exhaust. [ikf.co]
- Dust collection and air pollution control – Driving airflow through baghouses, filters and purification systems. [ikf.co]
- Data centers and electronics cooling – Cooling server racks, telecom equipment cabinets and high‑density electronics that demand constant, predictable airflow. [ikf.co]
- Clean rooms and medical environments – Delivering low‑noise, high‑efficiency airflow where contamination control is paramount. [ikf.co]
- Process cooling and drying – Ovens, furnaces, printing machines, packaging equipment and material conveying systems. [ikf.co]
- Energy and environmental systems – Waste gas treatment, heat recovery ventilation (HRV), industrial emission control and power plant ventilation. [ikf.co]
For OEM and ODM projects, the same fan technology is often customized across multiple industries—from telecom carriers to medical equipment manufacturers—by changing impeller design, motor type and control strategy.
Selecting the right centrifugal fan is both a technical and economic decision. As an SEO and industrial content strategist working with manufacturers, I've seen choices typically hinge on four dimensions: system requirements, pressure and airflow, energy efficiency and noise. [developers.google]
Before you compare models, lock down the basics:
- Required airflow (m³/h or CFM)
- Required static pressure (total system resistance)
- Air quality (clean vs dusty or corrosive)
- Noise limits (office vs factory)
- Energy efficiency targets (short‑term vs lifecycle cost)
- Operating environment (industrial, commercial, high temperature) [aeppl]
Clear specifications prevent over‑sizing or under‑performing installations.

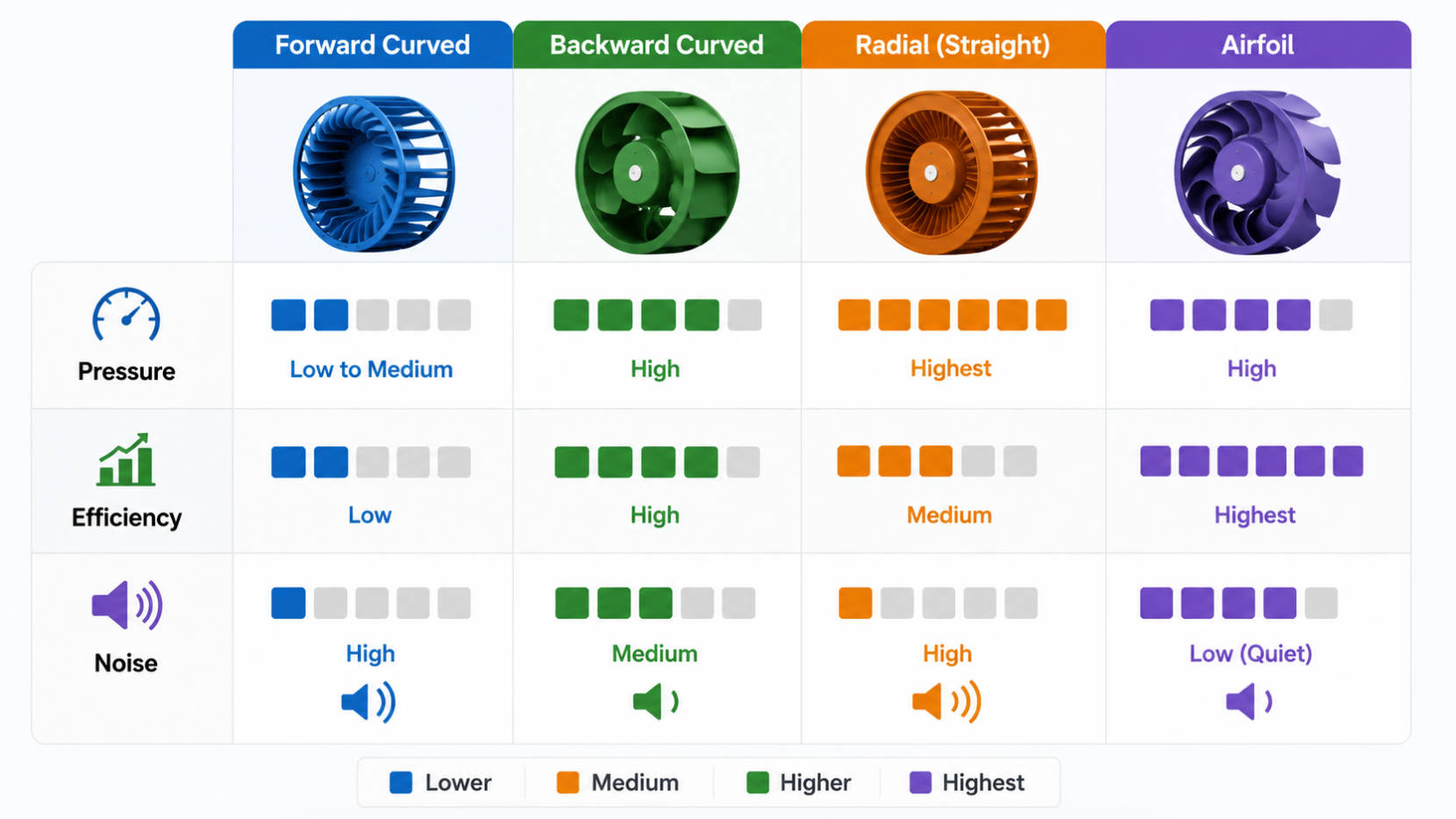

- Low pressure, high airflow – Forward curved centrifugal fans are often best for large air volumes in low‑resistance systems. [ikf.co]
- Medium to high efficiency – Backward curved fans typically suit modern HVAC and industrial ventilation with balanced pressure and energy use. [ikf.co]
- High resistance or contaminated air – Radial blade fans are preferred where dust, particles or high pressure dominate the design constraints. [aeppl]
Total cost of ownership usually matters more than initial price, especially for 24/7 systems. [semrush]
- Backward curved – High efficiency with good static pressure, ideal for many standard HVAC applications.
- Airfoil centrifugal – Very high efficiency with aerodynamic blade profiles, targeting maximum energy savings in high‑performance HVAC. [aeppl]
- Forward curved – Moderate efficiency, suitable where compact size and lower pressure requirements dominate.
- Radial blade – Typically lowest efficiency but highest durability and pressure capability. [ikf.co]
In continuous‑duty scenarios—such as telecom or data center cooling—marginal efficiency gains can translate into significant annual energy savings.
Noise is a critical design constraint in offices, hospitals and public facilities. [ikf.co]
Noise varies both by blade design and operating speed:
- Quietest: forward curved and airfoil centrifugal fans, thanks to smoother airflow and reduced turbulence. [ikf.co]
- Moderate: backward curved fans, with a balanced acoustic profile suitable for many commercial and industrial settings. [ikf.co]
- Loudest: radial blade fans, especially under load, often used where noise is secondary to performance. [ikf.co]
For projects in telecom shelters or indoor networking rooms, investing in lower‑noise designs can improve user comfort and reduce complaints.
As a source‑factory focusing on DC fans (DC Fan) and AC fans (AC Fan) for thermal solutions, and as a key partner to leading brands, Capital Technology Co., Limited understands that motor technology is just as important as impeller geometry. [ikf.co]
While centrifugal fans describe how air moves, DC, AC and EC refer to how the motor is powered and controlled. [semrush]
- DC fans – Use direct current power, often preferred in electronic devices, telecom equipment and applications that require fine‑grained speed control via voltage or PWM signals.
- AC fans – Run on alternating current, commonly used in general HVAC, appliances and environments where simple, robust construction is valued.
- EC centrifugal fans – Combine AC‑input compatibility with DC‑side electronic commutation and permanent‑magnet motors, delivering high efficiency, precise speed control and advanced monitoring. [semrush]
In modern projects, EC centrifugal fans increasingly replace traditional AC fans because they provide up to double‑digit percentage energy savings, tighter speed regulation and superior integration with building management systems. [semrush]
From my work with OEM and ODM manufacturers targeting telecom, data center and high‑end HVAC projects, three engineering disciplines define next‑generation EC centrifugal fans: motor architecture, impeller design and smart control. [ikf.co]
Advanced EC motors integrate AC input with DC‑side permanent magnet control, eliminating rotor copper losses and reaching efficiency levels comparable to or exceeding top IE4 classifications. Electronic commutation enables tightly controlled speed—often within ±1% across the operating range—which keeps airflow predictable despite load changes. [semrush]
Because EC motors avoid brushes and slip rings, energy draw falls significantly, especially in variable‑load HVAC scenarios where fans seldom run at full speed. [ikf.co]
Modern EC centrifugal fans use airfoil‑profile blades tuned via CFD simulations to minimize boundary‑layer separation, the main cause of turbulent noise and pressure loss. This design delivers high static pressure at lower power input and sustains pressure across long duct runs common in large buildings, data centers and hospitals. [aeppl]
By optimizing blade count, sweep angle and tip clearance together, engineers shift tonal frequencies away from sensitive ranges, achieving quieter operation without bulky silencers. [ikf.co]
Built‑in PCB control continuously measures motor current, speed and temperature, enabling commissioning engineers to trim airflow without manual damper balancing. Over‑temperature and vibration thresholds trigger early alerts, shifting maintenance from reactive to predictive and reducing downtime. [ikf.co]
Native integration with standard building management protocols (such as BACnet or Modbus) gives facility teams transparent status and remote override capabilities without proprietary gateways. [ikf.co]
For critical environments—from telecom networks to medical buildings—these capabilities turn a fan from a passive component into an intelligent part of the infrastructure.
When advising B2B buyers, I recommend working through a simple but structured checklist:
1. Define airflow and pressure – Document required CFM/m³/h and system static pressure.
2. Map the airflow path – Count ducts, filters, bends and equipment in the path.
3. Confirm environment – Note temperature ranges, dust/particle levels, and corrosion risks.
4. Set noise and energy targets – Decide acceptable noise levels and annual energy budget.
5. Choose motor type – Match DC, AC or EC based on control needs and energy goals.
6. Select impeller geometry – Forward, backward, radial or airfoil based on application.
7. Plan controls and monitoring – Determine if BMS integration, fault detection or remote monitoring is needed. [aeppl]
Using this checklist not only simplifies specification but also helps align engineering, procurement and operations teams around clear requirements.
If you are evaluating centrifugal fans—whether DC, AC or advanced EC designs—for telecom cabinets, data centers, industrial ventilation or OEM projects, partnering with a source manufacturer that understands both cooling performance and long‑term reliability is essential. [ikf.co]
You can use the selection checklist above as a starting point, then share your airflow requirements, static pressure, noise constraints and energy goals with a specialist team to receive a tailored thermal solution that aligns with your project's lifecycle and budget. [developers.google]
Centrifugal fans discharge air at roughly 90° through a side outlet, generating higher static pressure for ducted or filtered systems, while axial fans move air parallel to the shaft and are better for high‑volume, low‑resistance applications. [ikf.co]
Radial blade centrifugal fans with straight blades are typically preferred for dusty, particle‑laden air because they offer robust construction, high pressure capability and strong resistance to contamination. [aeppl]
EC centrifugal fans use permanent‑magnet motors with electronic commutation that eliminate many losses found in conventional AC induction motors, allowing precise speed control and significantly lower energy consumption over the equipment's lifetime. [semrush]
Noise is critical in offices, hospitals, clean rooms and telecom rooms where people work near equipment; forward curved and airfoil centrifugal fans usually offer the lowest noise, while radial blade fans are louder but suited to heavy industrial settings. [ikf.co]
You should prepare your required airflow and static pressure, operating environment, air quality, noise limits, energy efficiency targets and preferred motor type (DC, AC or EC) so that the supplier can design an optimized fan solution. [developers.google]
