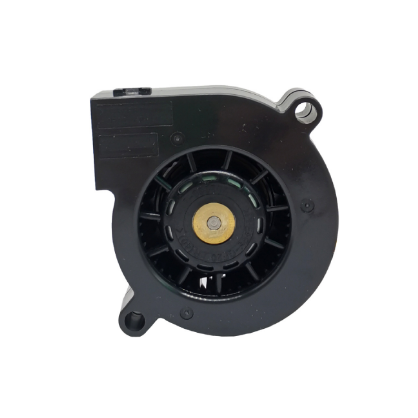

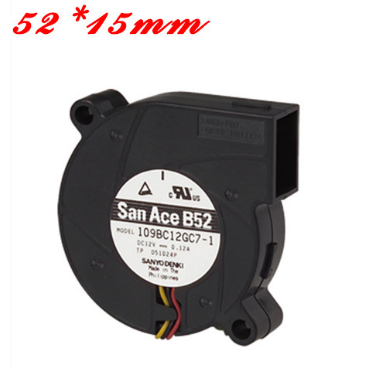

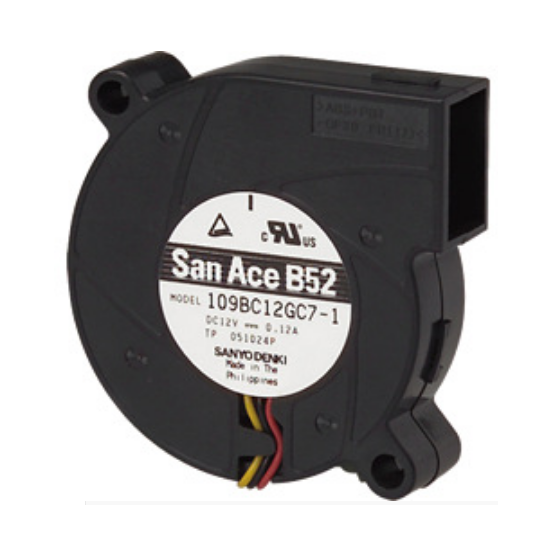

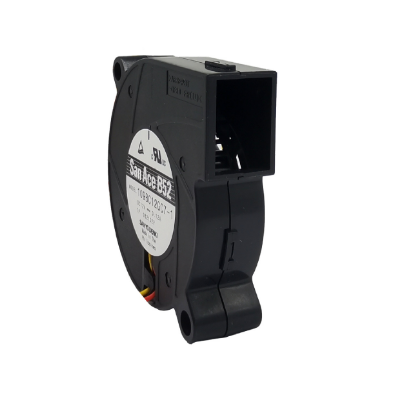

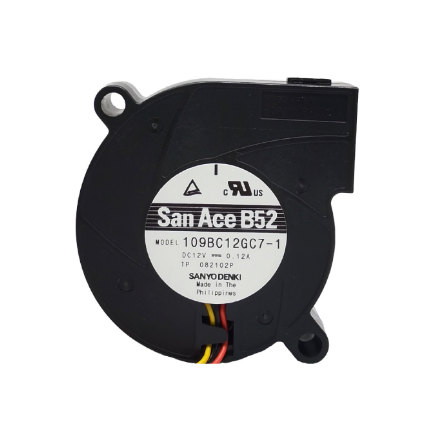

52×15 mm Blower

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow

· Mass：33g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Blower	52×15 mm	109BC12GC7-1	12	6 to 13.8		0.12	1.44	6200	0.125	4.4	215	0.86	43	-20 to +70	40000/60˚C (70000/40˚C)
		109BC12HC7-1				0.12	1.2	5600	0.112	4.0	165	0.66	40
		109BC12FC7-1				0.08	0.96	5100	0.101	3.6	130	0.52	38
		109BC12MC7-1				0.06	0.72	4600	0.091	3.2	100	0.4	35
		109BC24GC7-1	24	12 to 27.6		0.07	1.68	6200	0.125	4.4	215	0.86	43
		109BC24HC7-1				0.05	1.2	5600	0.112	4.0	165	0.66	40
		109BC24FC7-1				0.04	0.96	5100	0.101	3.6	130	0.52	38
