In the medical equipment industry, precision is not just a requirement—it is a matter of patient safety. Advanced diagnostic systems such as MRI scanners, CT machines, and laboratory analyzers depend on stable thermal environments to maintain over 95% reproducibility in clinical results.
From my experience working with OEMs in the medical electronics sector, one of the most underestimated risks is thermal fluctuation combined with acoustic interference. Cooling systems must not only maintain tight temperature tolerances but also operate quietly within hospital environments where noise regulations are strict.
This case study highlights how CAPITAL, leveraging SANYO DENKI's advanced AC/DC fan technology, addressed these dual challenges with a customized, high-performance cooling solution.
Medical imaging and diagnostic systems operate continuously under high computational loads. Key challenges include:
- Maintaining stable internal temperatures to protect sensitive imaging sensors
- Avoiding vibration and acoustic noise that can interfere with both patient comfort and device accuracy
- Ensuring compatibility with global power infrastructures, especially where only AC input is available
Unlike standard industrial cooling scenarios, medical environments require a balance between performance, silence, and reliability.
Hospitals and laboratories impose strict acoustic limits. Excessive fan noise can:
- Disturb patients during sensitive procedures
- Interfere with medical staff concentration
- Reduce the perceived quality of high-end diagnostic equipment
Traditional AC fans often struggle to meet ultra-low noise requirements without sacrificing airflow.
Many medical systems are installed in environments where:
- Only AC power input is available
- Space constraints limit additional power conversion modules
- Equipment still requires the efficiency and controllability of DC fans
This creates a fundamental conflict between infrastructure limitations and performance needs.

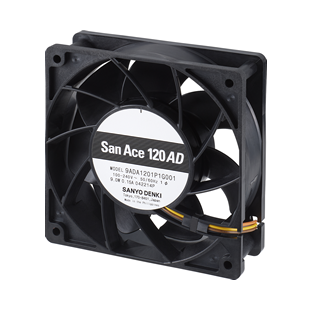

To address these challenges, we implemented a hybrid cooling architecture centered on the SANYO DENKI San Ace 120AD (9AD type) AC/DC EC fan, paired with a San Ace PWM controller.
The selected fan combines:
- Global AC power compatibility for seamless integration
- Internal DC brushless motor technology for higher efficiency and longer lifespan
This approach eliminates the need for external conversion while maintaining the advantages of DC fan performance.
We customized the system with dynamic PWM (Pulse Width Modulation) control, enabling:
- Real-time speed adjustment based on thermistor sensor feedback
- Automatic reduction of fan speed during low thermal load conditions
- Precise temperature stabilization within narrow operating ranges
From an engineering standpoint, this is critical. Instead of running at constant high speed, the fan adapts intelligently, reducing both noise and energy consumption.
During integration, several key optimizations were made:
- Thermal sensor placement was calibrated to reflect actual hotspot conditions inside the equipment
- PWM curves were fine-tuned to balance airflow and acoustic output
- Airflow paths were optimized to reduce turbulence and vibration
These adjustments ensured that the cooling system operated as an integral part of the diagnostic equipment rather than a standalone component.
The optimized system achieved:
- Over 8 dB reduction in noise levels during idle and low-load conditions
This improvement is substantial in medical environments, where even small decibel reductions can greatly enhance patient comfort.
Compared to conventional AC fan systems:
- Power consumption was reduced by approximately 40%
This not only lowers operational costs but also contributes to more sustainable medical device design.
Most importantly:
- Temperature fluctuations were tightly controlled within critical thresholds
- Sensitive imaging sensors operated under stable conditions
- Diagnostic accuracy and repeatability were preserved
This directly supports the reliability of clinical outcomes, which is the ultimate goal in medical applications.
This project reflects CAPITAL's core strengths:
- Deep experience in cooling solutions for mission-critical applications
- Strategic partnership with SANYO DENKI as a leading authorized distributor
- Proven track record serving global brands such as ZTE, Huawei, and Hytera
Our approach goes beyond supplying components—we deliver engineered thermal solutions tailored to real-world challenges.
