As someone who has spent years helping OEMs and system integrators rescue failing electronics projects due to thermal issues, I've seen one pattern repeat: inadequate enclosure cooling fans are the silent killer of reliability. When you treat DC and AC fans as a strategic design decision instead of a low-cost accessory, your electronics stay stable, certifications are easier, and support tickets drop dramatically. [sofasco]
In any electronics enclosure—whether it's a 5G base station, an industrial controller, or a network cabinet—every watt you dissipate eventually turns into heat. Electronic components are rated for specific temperature ranges, and once you exceed those limits, you get thermal throttling, random resets, derated power output, or outright failures. [resources.sw.siemens]
Enclosure cooling fans are active airflow devices (typically DC or AC axial, centrifugal, or blower-type fans) installed to move cooler ambient air into the enclosure and exhaust hot air out. By creating a controlled airflow path, they prevent hot spots, stabilize operating temperature, and protect core components such as processors, power supplies, RF modules, and batteries. [continentalfan]
From a thermal design perspective, you should think of fans not just as add-ons, but as part of a complete enclosure thermal management strategy that includes airflow paths, vent placement, filters, and even humidity control in outdoor applications. [axaironline.co]
When designing or upgrading electronics enclosures, the first high-impact decision is whether to use DC fans, AC fans, or a mixed architecture. Each choice carries implications for power distribution, control flexibility, noise, and long-term reliability. [simcona]
DC fans are typically powered by 12 V, 24 V, or 48 V rails already present in telecom, networking, and industrial systems. They are widely used where precise speed control, low noise, and energy efficiency are critical. [us.misumi-ec]
Key characteristics of DC fans:
- Fine-grained control using PWM or voltage regulation, enabling dynamic speed based on real-time temperature. [simcona]
- Lower power consumption compared with equivalent AC models, especially in energy-saving DC designs. [us.misumi-ec]
- Easier integration with system monitoring (tachometer outputs, alarms) and smart thermal control algorithms. [resources.sw.siemens]
DC fans are ideal for telecom equipment, base stations, embedded systems, and compact enclosures where efficiency and tight thermal control matter. [sofasco]
AC fans are powered directly from mains (e.g., 110–240 V), making them straightforward in large cabinets, industrial automation, or legacy systems where an AC feed is already available. [continentalfan]
Key characteristics of AC fans:
- Robust, simple wiring directly from power distribution panels. [continentalfan]
- High airflow performance at low static pressure, often used for large cabinet ventilation. [axaironline.co]
- Suitable for harsh environments with proper IP-rated housings and filters. [axaironline.co]
AC axial fans are frequently used in large enclosures: data centers, inverter cabinets, industrial control panels, and power distribution boards where high airflow and long service life are essential. [continentalfan]
Many modern designs adopt EC (electronically commutated) fans, which combine AC input with DC motor efficiency. [simcona]
Characteristics of EC fans:
- Direct connection to AC mains with integrated electronics. [continentalfan]
- Efficiency benefits comparable to premium DC fans, reducing total energy consumption. [simcona]
- Lower noise and improved lifetime, especially in mission-critical applications. [simcona]
For OEMs balancing simplicity and performance, EC fans can be a strategic choice in new product lines. [simcona]
Selecting the right fan geometry is as important as choosing DC vs AC. Different fan types behave very differently under static pressure and space constraints. [sofasco]
Axial fans move air parallel to the shaft, delivering high airflow at relatively low static pressure. [sofasco]
Use axial fans when:
- You need general enclosure ventilation with low airflow resistance. [sofasco]
- The enclosure has ample vent area and short airflow paths.
- You're cooling open spaces or large boards rather than dense heat sinks. [axaironline.co]
Axial fans are the workhorse in cabinet cooling, often installed with filter kits on doors or side panels for easy service. [axaironline.co]
Centrifugal fans move air perpendicular to the shaft, generating higher static pressure. [sofasco]
Use centrifugal fans when:
- Your enclosure has high airflow resistance due to dense PCBs, heat sinks, ducts, or restrictive filters. [continentalfan]
- You need focused airflow across specific components or through tight channels.
- You're dealing with complex airflow paths or top-mounted roof units. [axaironline.co]
Backward-curved centrifugal impellers are especially effective at overcoming resistance without cumbersome scroll housings, making them popular in control panels and compact industrial designs. [continentalfan]
Cross-flow blowers provide wide, uniform airflow across their length, excellent for narrow spaces. [sofasco]
Use cross-flow blowers when:
- You must cool long, narrow boards or modules consistently. [sofasco]
- Designs demand low profile fans behind front panels or displays.
- Space and clearance are constrained, but you still need laminar airflow across components. [axaironline.co]
From my work with enclosure designers, I often see fan selection treated as an "afterthought." A more robust approach is to use a structured set of criteria. [resources.sw.siemens]
Start with a rough thermal calculation: total power dissipation, allowed temperature rise, and enclosure volume. Use this to estimate required airflow and number of fans. [resources.sw.siemens]
- Define maximum ambient temperature and component limits. [resources.sw.siemens]
- Calculate or estimate heat losses for major modules. [axaironline.co]
- Select fan airflow (CFM) and static pressure capable of maintaining target temperatures. [resources.sw.siemens]
Enclosure geometry determines whether axial or centrifugal fans are realistic. [continentalfan]
- Check available panel area for fan-and-filter units.
- Consider roof mounting for large cabinets with vertical airflow. [continentalfan]
- Plan service access so filters can be replaced and fans swapped without dismantling the whole system. [axaironline.co]
Environments demand attention to IP rating, filtration, condensation, and contamination. [resources.sw.siemens]
- Outdoor and industrial environments may require IP54/IP55 protection and slanted louver designs for water run-off. [axaironline.co]
- Dust-heavy environments demand accessible filter media and planned replacement intervals. [axaironline.co]
- High humidity or temperature swings may require heaters and thermostats to avoid condensation. [axaironline.co]
Your market segment will dictate noise and efficiency expectations. [simcona]
- Telecom and office equipment often require low-noise, energy-saving DC fans with PWM control. [us.misumi-ec]
- Industrial cabinets may tolerate higher noise if reliability and airflow are prioritized.
- Dynamic fan control (based on sensors) reduces noise and power consumption while extending fan life. [simcona]
Enclosure cooling is not just a theoretical concern—it directly affects uptime in mission-critical environments. [resources.sw.siemens]
Telecom base stations, radio units, and network cabinets often run 24/7 under variable ambient conditions. [sofasco]
- Dense RF modules and high-power amplifiers demand stable thermal conditions for consistent RF performance. [resources.sw.siemens]
- DC fans with intelligent control are common for fine-grained temperature management and remote monitoring.
- Suppliers such as SANYO DENKI offer specialized electrical enclosure cooling fans designed for these applications. [us.misumi-ec]
While server fans handle component-level cooling, enclosure fans manage cabinet and room-level airflow. [sofasco]
- AC and EC axial fans handle front-to-back or bottom-to-top airflow for racks and cabinets. [continentalfan]
- Proper enclosure cooling reduces hotspots, preserves redundancy, and keeps power distribution gear within safe limits. [resources.sw.siemens]
Industrial cabinets controlling conveyors, robots, or process lines often house inverters, PLCs, and drives that produce significant heat. [sofasco]
- Fan-filter units with ball-bearing fans and easy-access filter covers support planned maintenance. [axaironline.co]
- Backward-curved centrifugal fans are often used when simple axial units cannot overcome ducting resistance. [continentalfan]
- Combined thermal solutions can include heaters and pressure compensation devices to control condensation and protect electronics. [axaironline.co]

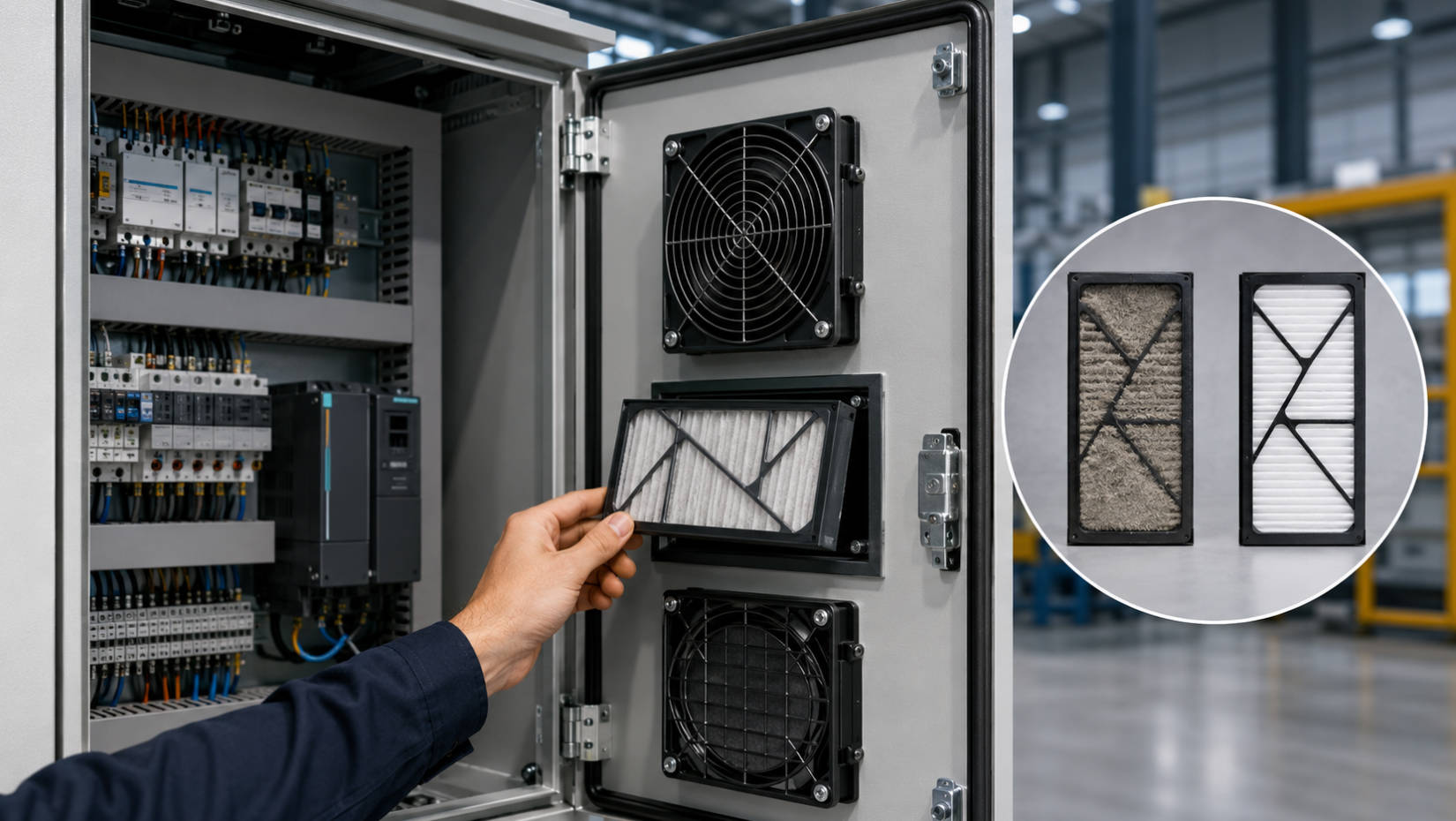

Even high-quality fans fail to deliver if installation and maintenance are neglected. The following practices are consistent with both industry guidelines and what I've seen in the field. [sofasco]

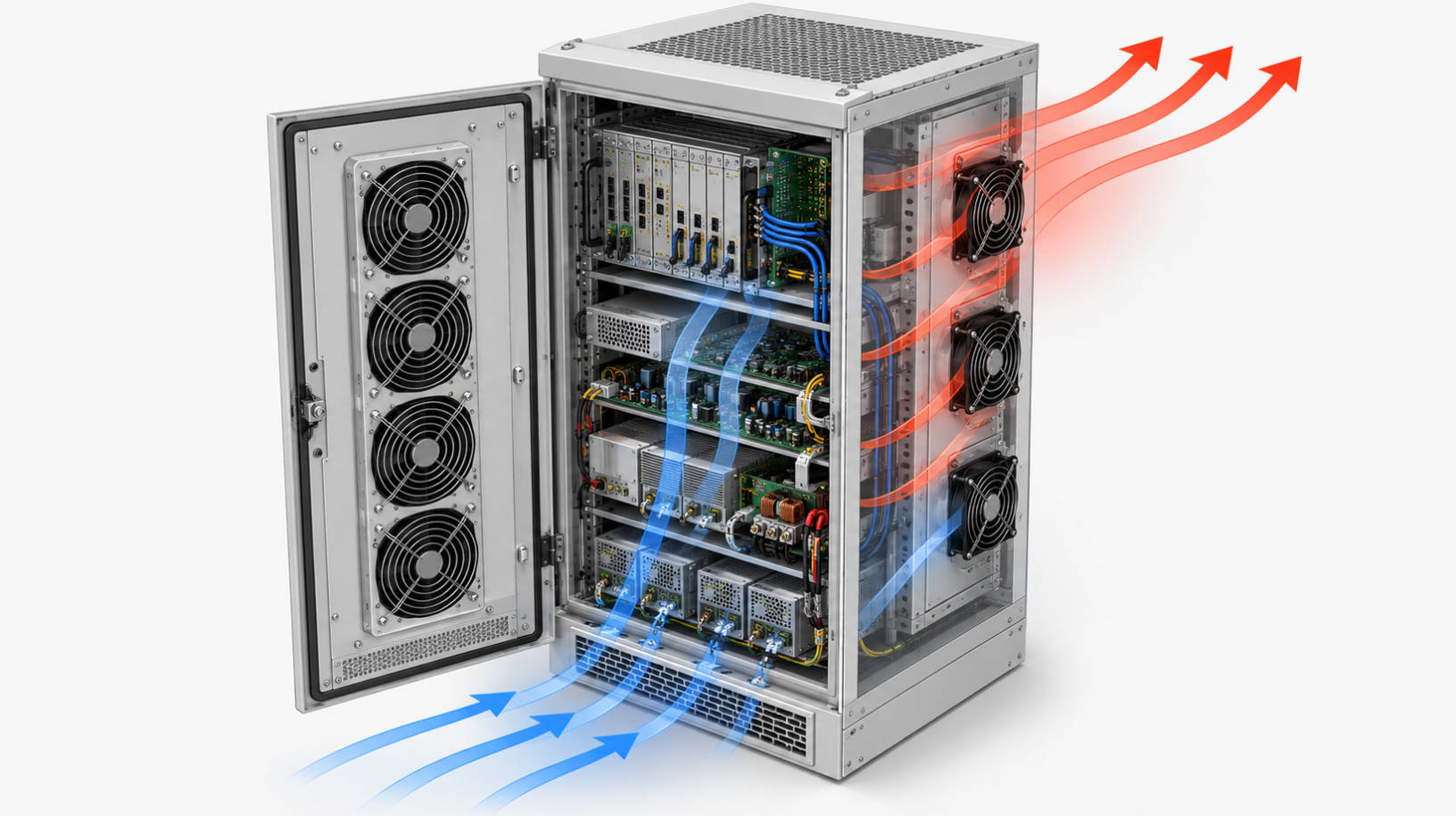

1. Plan airflow paths deliberately. Inlet and exhaust must be aligned with component placement, not randomly distributed. [sofasco]
2. Place inlets low, outlets high in tall cabinets to leverage natural convection, and avoid short-circuiting airflow near the door. [newark]
3. Use filter kits where dust or fibers are present, and make sure filters can be changed without tools. [axaironline.co]
4. Monitor temperatures via sensors at critical points (e.g., near power modules and CPUs) rather than relying solely on ambient readings. [resources.sw.siemens]
5. Schedule cleaning and replacement. Dust buildup and worn bearings dramatically reduce airflow and increase noise, often before outright failure. [axaironline.co]
When these practices are applied, enclosure cooling fans become a predictable, controllable part of system reliability instead of a constant source of surprises. [resources.sw.siemens]
The enclosure cooling space is evolving rapidly, driven by higher power density and stricter energy regulations. [simcona]
- High-efficiency DC and EC fans with energy-saving designs reduce power consumption and help OEMs meet efficiency targets. [us.misumi-ec]
- Smart thermal control integrates temperature sensors, fan tach outputs, and predictive analytics to adjust speed, detect impending failures, and log thermal events. [simcona]
- Modular fan assemblies and cabinet cooling units allow faster customization and replacement, especially in large telecom and data center deployments. [simcona]
For enclosure designers, these trends mean that fan choice is now part of a broader strategy to meet performance, regulatory, and sustainability goals. [simcona]

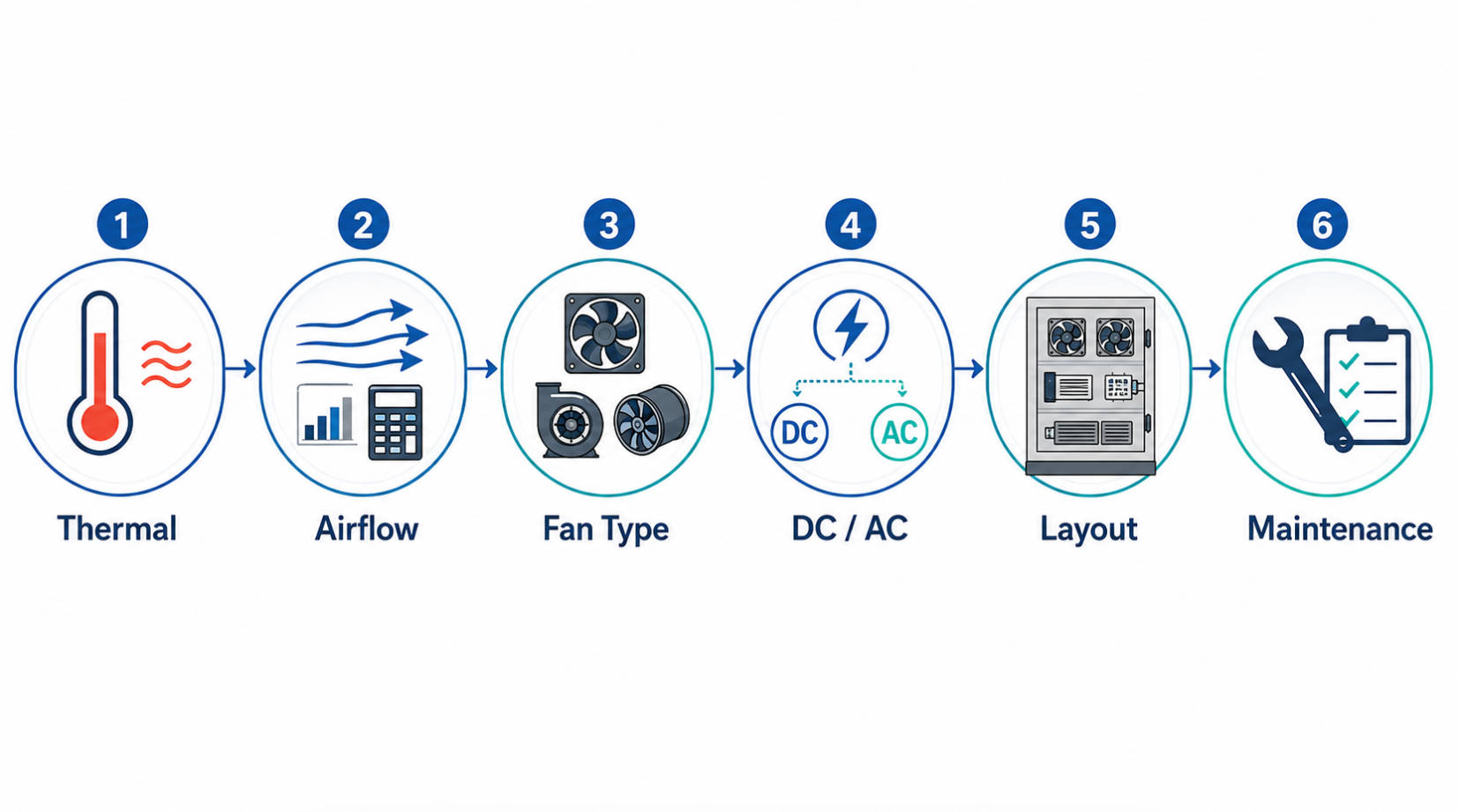

To make this practical, here is a streamlined workflow that mirrors what many engineering teams follow.
1. Define thermal and environmental requirements.
- Maximum ambient temperature, component limits, humidity expectations, dust or water exposure. [resources.sw.siemens]
2. Estimate required airflow.
- Use component heat loss figures and allowable temperature rise to approximate airflow in CFM. [resources.sw.siemens]
3. Choose fan type (axial vs centrifugal vs blower).
- Match fan type to enclosure geometry and static pressure conditions. [continentalfan]
4. Select DC, AC, or EC models.
- Align with available power, control requirements, and efficiency targets. [us.misumi-ec]
5. Define installation strategy.
- Inlet/exhaust layout, filter selection, IP rating, condensation control when needed. [newark]
6. Plan monitoring and maintenance.
- Include temperature sensors, tach signals, and a documented cleaning/replacement schedule. [resources.sw.siemens]
This process turns fan selection from guesswork into a repeatable, engineering-driven decision flow.
If internal temperatures regularly approach or exceed component ratings, or if you see thermal throttling, resets, or shortened component lifetimes, active fans are likely required. Measuring temperatures at multiple points during worst-case operation is the most reliable way to confirm this. [newark]
Choose DC fans when you need fine-grained control, energy efficiency, and integration with system monitoring; choose AC fans when you prioritize simplicity and cabinet-level ventilation from mains power. In mixed environments, EC fans can offer a balanced approach with AC input and DC motor efficiency. [us.misumi-ec]
Common causes include dust buildup, clogged filters, operation at excessive temperatures, and mechanical wear from continuous high-speed operation. Inadequate maintenance and poor airflow design can force fans to work harder, accelerating bearing wear and noise. [axaironline.co]
In dusty industrial or outdoor environments, filter cleaning may be necessary monthly or quarterly; in cleaner environments, intervals can be longer. Fans should be inspected periodically for noise, vibration, and reduced airflow, with replacement planned before catastrophic failure. [axaironline.co]
Fans draw continuous power, but efficient DC or EC models with smart control can minimize energy impact while protecting high-value electronics. In most cases, the energy saved by preventing overheating and performance degradation outweighs the incremental fan power. [us.misumi-ec]
