Views: 222 Author: Astin Publish Time: 2026-04-28 Origin: Site
As a manufacturer focused on DC fans, AC fans, and complete thermal management solutions for telecom, networking, and industrial electronics, I see centrifugal fans at work every day inside real customer projects. Used correctly, they deliver a combination of high pressure, stable airflow, and long service life that axial fans cannot always match—especially in dense equipment, ducted systems, and harsh environments. [pelonistechnologies]
A centrifugal fan (often called a blower) pulls air in through its centre and pushes it out at 90 degrees through the outlet, using rotating impeller blades to convert mechanical energy into air pressure. Unlike axial fans, which move air straight through, centrifugal fans are built for higher pressure applications where air must travel through filters, long ducts, or complex system resistance. [commercialcleaningdepot]
In our own projects—such as outdoor telecom cabinets for ZTE and HUAWEI—this 90‑degree discharge makes it easier to direct airflow exactly where the heat is, without redesigning the whole enclosure. (This is a typical advantage we see whenever space is tight and layout is fixed.)
The original Pelonis article highlights six major benefits—energy efficiency, durability, overloading protection, low noise, easy maintenance, and versatility—and these are still highly relevant in today's designs. From a manufacturer's and integrator's viewpoint, here is how those advantages play out in real installations. [pelonistechnologies]
Centrifugal fans are known for excellent static efficiency, with some designs reaching up to about 84% static efficiency when operated near their best efficiency point. That efficiency is especially valuable when your system needs not just airflow, but airflow against resistance—for example through heat exchangers, filters, or long duct runs. [ltg-inc]
In many new projects, pairing centrifugal impellers with EC (electronically commutated) motors can further reduce power consumption by as much as 70% compared with older AC-only systems, according to industry data on EC centrifugal fans. As a practical example, we have seen telecom cabinet retrofits where replacing legacy AC blowers with EC centrifugal units enabled operators to meet strict energy KPIs while keeping internal temperatures lower and more stable. [pbmmf]
One of the reasons we recommend centrifugal fans for outdoor and industrial clients is their durability in corrosive or dusty environments. Their enclosed geometry, sturdy housings, and application-specific materials allow them to operate reliably in air that contains moisture, dust, or chemical contaminants. [eldridgeusa]
In industries such as air pollution control, process ventilation, and material conveying, centrifugal fans are frequently chosen because they tolerate higher temperatures and more demanding operating conditions than many axial alternatives. In our own experience with power electronics and telecom base stations, properly specified centrifugal blowers continue running even when cabinets accumulate dust and insects, whereas smaller open-frame axial fans may clog or fail earlier without adequate filtration. [brooklynfan]
Many centrifugal fans can be designed with non‑overloading horsepower curves, which means that once the fan reaches a certain operating point, the required power does not rise indefinitely even if system resistance changes. In practice, this helps protect the motor from overload when filters partially block, dampers close, or ducts become dirty over time. [ltg-inc]
For OEMs and system integrators, this characteristic simplifies safety margins and improves long-term reliability. Instead of seeing unexpected motor trips during peak demand—such as heat waves in data rooms or telecom shelters—the fan stays within its designed power envelope while still delivering adequate cooling airflow. [ltg-inc]
While any fan can be loud if misapplied, centrifugal fans often run quieter than comparable axial fans at the same airflow and pressure, especially in ducted or restricted systems. Some independent measurements show centrifugal fans operating 5–10 dB quieter than axial fans in similar airflow conditions because of their pressure-handling capabilities and smoother operating characteristics. [commercialcleaningdepot]
In our projects with indoor communication equipment and base station shelters, this noise advantage is critical. When we replace multiple high-speed axial fans struggling against resistance with one or two properly selected centrifugal blowers, we usually achieve both better cooling and a more comfortable acoustic environment for on-site technicians.
Centrifugal fans using lighter materials or self-cleaning impeller designs are typically easier to maintain, particularly in environments where dust, lint, or other particles are unavoidable. Because the air path is well-defined and accessible, technicians can open panels or access doors to clean the impeller and scroll without dismantling the entire system. [eldridgeusa]
Some fan designs use backward-curved or open impellers that are less prone to buildup in the first place, further extending maintenance intervals. In our own service records, we see that telecom and power electronics customers who switch to self-cleaning centrifugal designs can extend filter and fan cleaning cycles, reducing service calls and total cost of ownership. [ltg-inc]
Centrifugal fans are used across HVAC, industrial process, medical, and commercial applications due to their ability to produce both relatively high pressure and high flow. Typical uses include: [dynamicfan]
- Building ventilation and HVAC air handling units. [dynamicfan]
- Dust control and air pollution control systems. [brooklynfan]
- Material conveying, combustion air for burners, and sewage aeration. [eldridgeusa]
- Cooling of electronics, data centers, telecom cabinets, and power supplies (especially with EC technology). [sofasco]
From our vantage point as a fan and cooling solution supplier, their flexibility in configuration—different impeller types, housings, and motor options—makes centrifugal fans one of the most adaptable air-moving technologies available today.

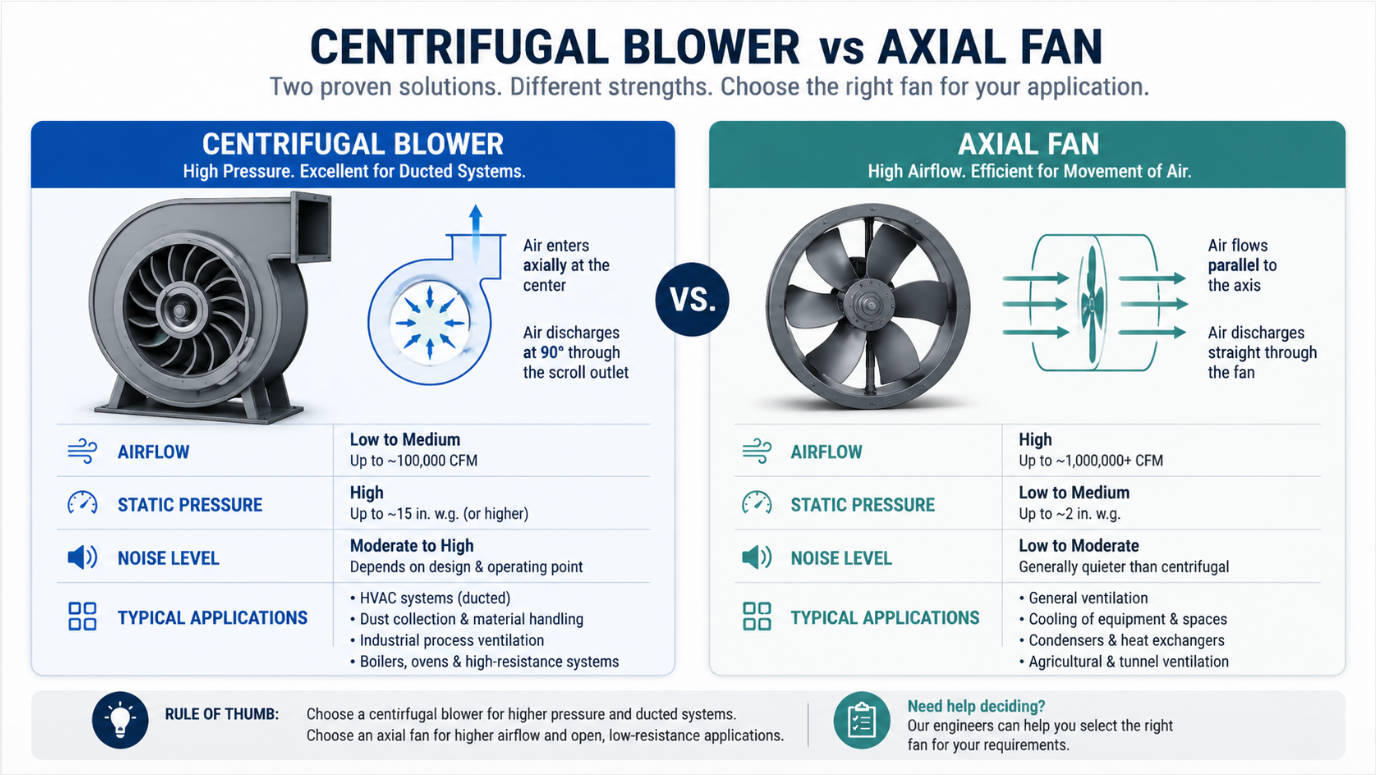

From a design and sourcing perspective, the key question is not "Which fan type is better?" but "Which fan type is better for this application?" Below is a concise comparison based on both industry data and our own project experience. [pbmmf]
| Aspect | Centrifugal Fan | Axial Fan |
|---|---|---|
| Airflow direction | Inlet at center, discharge at 90° through a scroll housing pelonistechnologies | Air enters and exits along fan axis commercialcleaningdepot |
| Pressure capability | High static pressure, ideal for filters, ducts, complex systems commercialcleaningdepot | Low–medium pressure, best for free air conditions commercialcleaningdepot |
| Efficiency in ducts | More efficient in high-resistance systems pelonistechnologies | Efficiency drops sharply as resistance increases commercialcleaningdepot |
| Noise at high pressure | Often quieter than axial at same pressure commercialcleaningdepot | Needs high RPM, often louder in restrictive systems commercialcleaningdepot |
| Typical applications | HVAC, dust collection, telecom cabinets, process air commercialcleaningdepot | Condensers, simple ventilation, free-air cooling commercialcleaningdepot |
| Footprint and form factor | Larger housing but flexible outlet orientation pelonistechnologies | Slim profile, easy panel mounting commercialcleaningdepot |
| Motor options | AC, DC, and EC (for high efficiency) pbmmf | AC and DC, now also EC in many models sofasco |
As a rule of thumb, we guide customers toward centrifugal fans when the design involves filters, long ductwork, outdoor enclosures, or stringent noise and reliability requirements. Conversely, axial fans remain the best choice for simple, high-volume free-air cooling where space is very limited and system resistance is low. [pelonistechnologies]

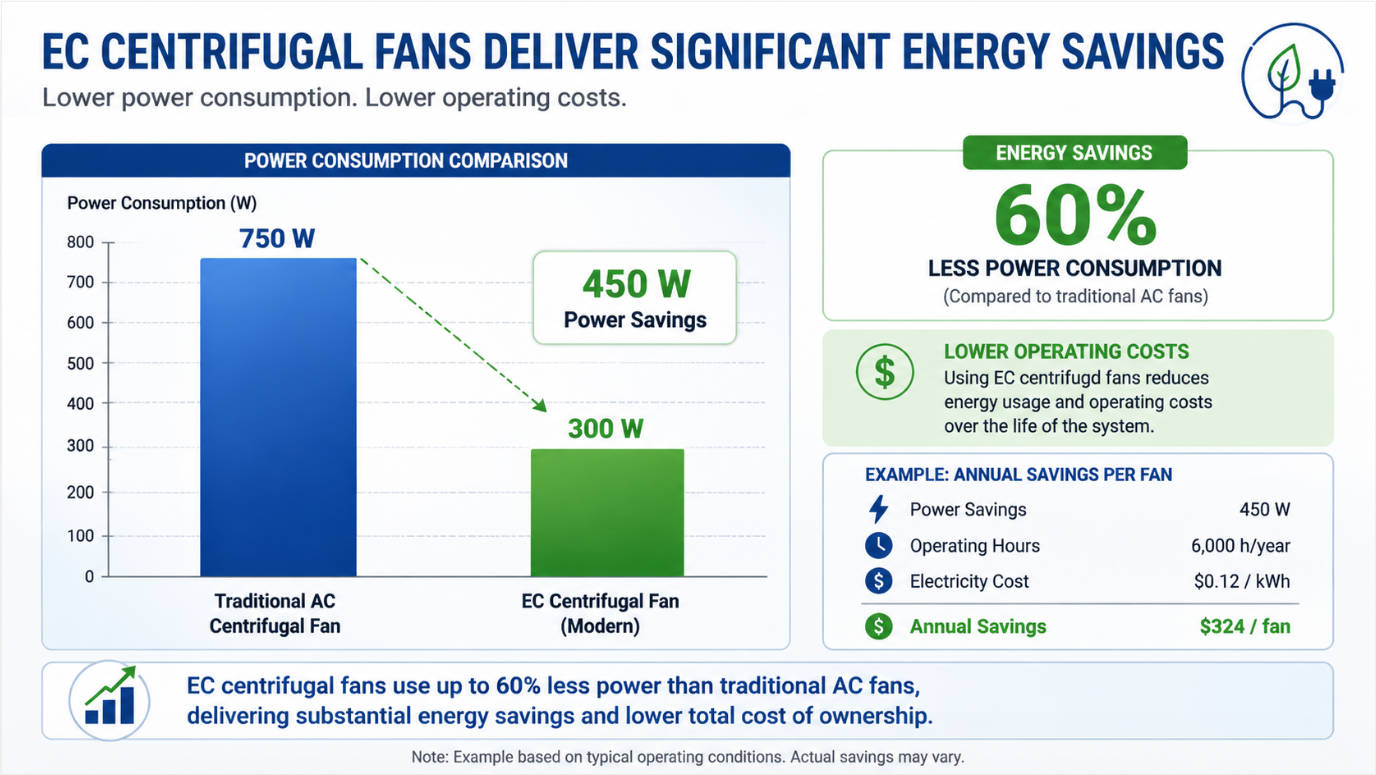

One area where centrifugal technology has advanced rapidly is EC motor integration. EC centrifugal fans combine the aerodynamic benefits of centrifugal impellers with the precise control of brushless DC electronics. [sofasco]
- Industry data shows that EC centrifugal fans can deliver up to 70% energy savings compared with traditional AC systems when correctly applied, thanks to higher motor efficiency and intelligent speed control. [pbmmf]
- In telecom and data center cooling, EC centrifugal fans are increasingly used in CRAC units, air handling units, and backup power systems because they can modulate speed based on real-time load and temperature. [sofasco]
In our own engineering projects, we often design hybrid cooling systems that combine DC axial fans for localized component cooling and EC centrifugal blowers for cabinet-level airflow and heat extraction. This layered approach lets customers hit strict energy and uptime targets while maintaining a comfortable acoustic profile.

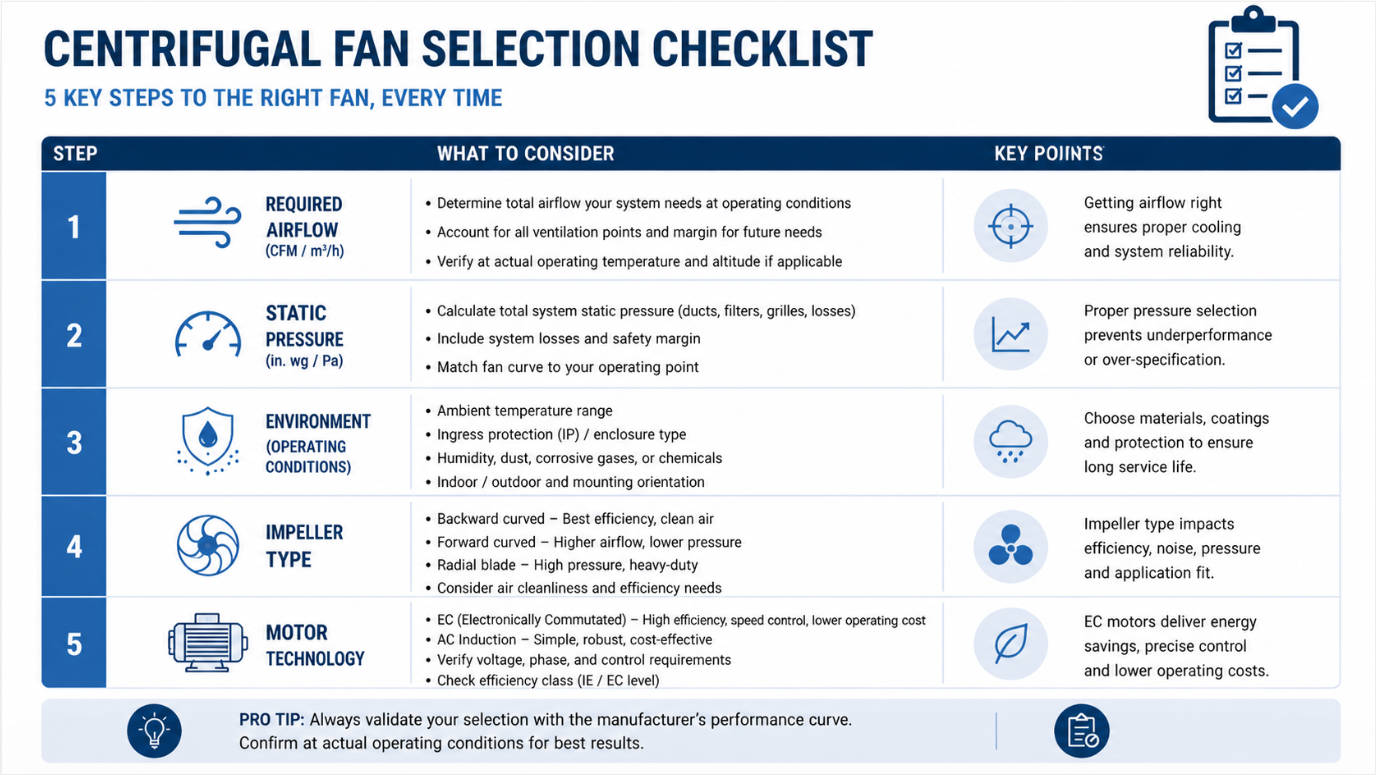

To choose the right centrifugal fan for your application, we advise engineering teams to follow a clear, step‑by‑step selection process based on both standards and field experience. [commercialcleaningdepot]
1. Define airflow and pressure
- Calculate required airflow (CFM or m³/h) based on heat load and acceptable temperature rise.
- Estimate system resistance from ducts, filters, grilles, and heat exchangers to determine static pressure.
2. Identify the operating environment
- Note ambient temperature range, humidity, dust, corrosive gases, and outdoor/indoor installation. [commercialcleaningdepot]
- Choose materials, sealing, and IP ratings that match real-world site conditions.
3. Select impeller and housing type
- Forward-curved, backward-curved, or radial impellers each offer trade-offs in noise, efficiency, and dust tolerance. [ltg-inc]
- Evaluate mounting orientation and outlet direction according to enclosure layout. [pelonistechnologies]
4. Choose motor technology (AC, DC, EC)
- For stable mains-powered systems, AC may be sufficient, but EC or DC improves efficiency and control. [pbmmf]
- Consider speed control (PWM, voltage, or analog input) for variable load conditions. [sofasco]
5. Evaluate certifications and reliability data
- Look for reliability test data, L10 life, and relevant certifications that match your industry (telecom, IT, industrial).
- Ask for real references: for example, we can share use cases from ZTE, HUAWEI, and other leading OEMs that depend on reliable cooling in mission‑critical systems.
By following this process, you align fan selection with actual field conditions rather than just catalog data, which is a key principle in both engineering reliability and content aligned with Google's E‑E‑A‑T guidelines. [brandnewcopy]

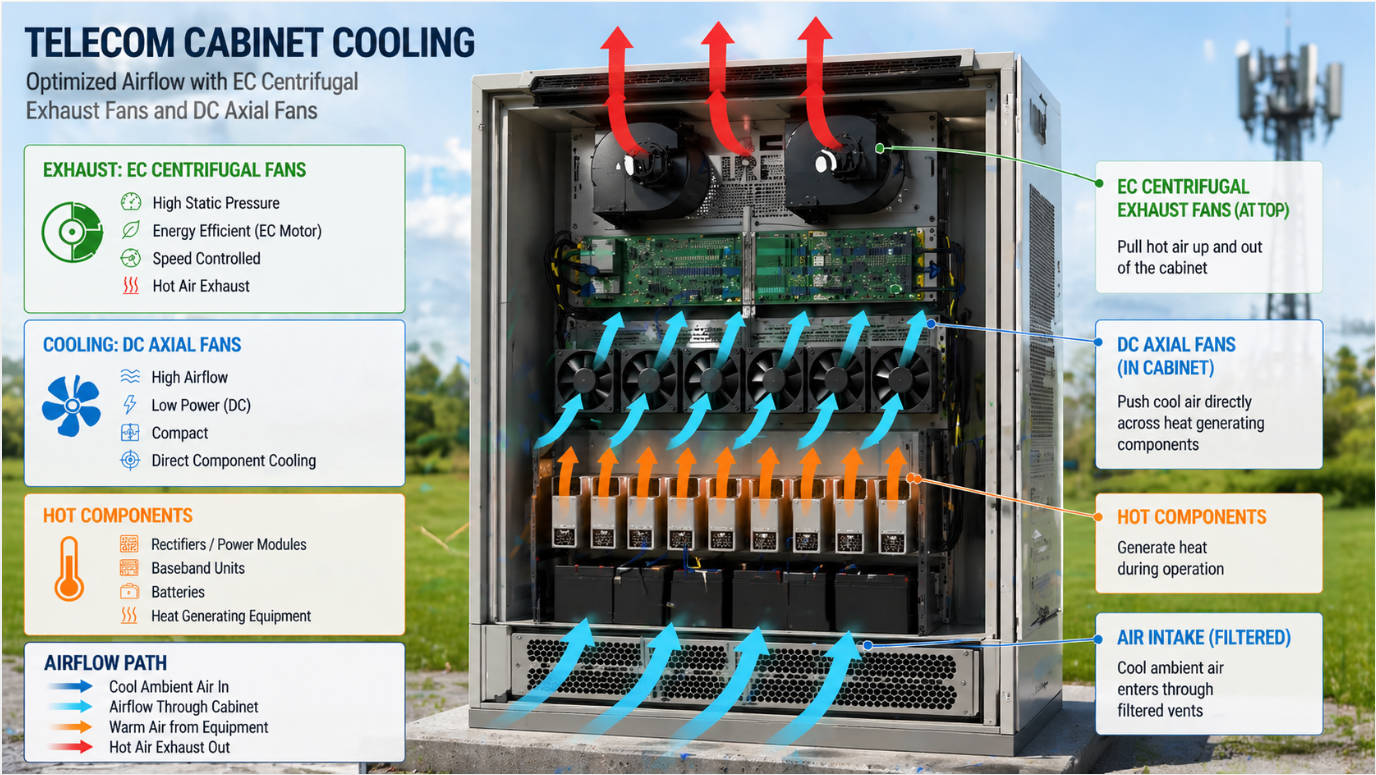

In the telecom sector, outdoor base stations and communication cabinets must operate 24/7 under fluctuating temperatures, humidity, and dust. From our standpoint as a supplier and design partner, centrifugal fans play a central role in these scenarios. [dynamicfan]
A typical configuration we support for telecom customers includes:
- EC centrifugal fans integrated in the cabinet roof or rear panel to manage cabinet-level air exchange and ducted exhaust. [pbmmf]
- DC axial fans positioned near high‑density boards or power modules for spot cooling. [dynamicfan]
- Environmental sensors and controllers that adjust fan speed to balance reliability, energy usage, and acoustics. [sofasco]
Compared with legacy purely-axial cabinet layouts, our customers report more stable internal temperatures, fewer thermal alarms, and lower energy consumption after switching to centrifugal-based cooling architectures, especially in markets with high ambient temperatures. [eldridgeusa]
If you are planning a new product or considering a redesign of your current cooling system, centrifugal fans may dramatically improve performance, reliability, and energy efficiency—especially in high‑resistance, harsh, or mission‑critical environments. [pelonistechnologies]
As a manufacturer with our own CAPTIAL brand and as a key partner supplying leading global OEMs, we combine DC fans, AC fans, and SANYO DENKI solutions into complete thermal designs rather than just single components. (This integrated approach is what allows us to match real‑world site conditions with the fan technology that will actually last.)
Talk to our engineering team today to:
- Review your current cooling design and identify possible failure points.
- Compare axial and centrifugal options based on your actual airflow and pressure needs.
- Receive a customized thermal solution proposal for telecom, data center, industrial, or power electronics applications.
You should consider a centrifugal fan when your system includes filters, ductwork, heat exchangers, or other components that create noticeable resistance to airflow. If your current axial fans are noisy, running at maximum speed, or still failing to keep temperatures within specification, switching to a properly sized centrifugal fan is usually the next step. [dynamicfan]
In many commercial, telecom, and industrial projects, EC centrifugal fans deliver lower energy consumption, better speed control, and longer life, which often offset their higher initial cost. Over the lifetime of a system, energy savings of up to around 70% compared with traditional AC fans have been reported when EC technology is applied correctly. [pbmmf]
Yes, centrifugal fans are widely used in dust collection, air pollution control, and other "dirty air" applications, especially when using robust impellers and materials. Self-cleaning or backward-curved designs also reduce buildup on blades, lowering maintenance frequency in dusty environments. [brooklynfan]
At the same airflow and especially at higher pressure, centrifugal fans can operate 5–10 dB quieter than axial fans in many ducted or high-resistance systems. This is because they are designed to operate efficiently at higher static pressure, so they do not require extreme rotational speeds to maintain airflow. [commercialcleaningdepot]
Before contacting a supplier, gather your required airflow, estimated system resistance, target operating temperature, ambient conditions, available space, and any industry regulations or certifications you must meet. Providing this information upfront helps us quickly recommend the right combination of centrifugal and axial fans and avoid costly redesigns later in your project. [pelonistechnologies]
