A San Ace counter rotating fan is often the better starting point for high-density equipment with straight-through airflow and substantial resistance. A blower becomes especially attractive when air must turn, enter a duct, or reach a localized cooling zone. In a San Ace counter rotating fan vs blower comparison, the deciding factor is not the product category alone. It is the operating point inside your equipment.
For engineers and procurement teams, that distinction prevents expensive mistakes. A fan with impressive catalog specifications can still underperform when installed behind restrictive grilles, crowded circuit boards, or tightly packed heat sinks.
Our selection perspective is straightforward: define the airflow path, establish the required pressure and airflow, and then compare suitable models.
Both technologies can cool equipment with high system resistance. Their main differences concern airflow direction, mechanical integration, and the performance available within a particular installation envelope.

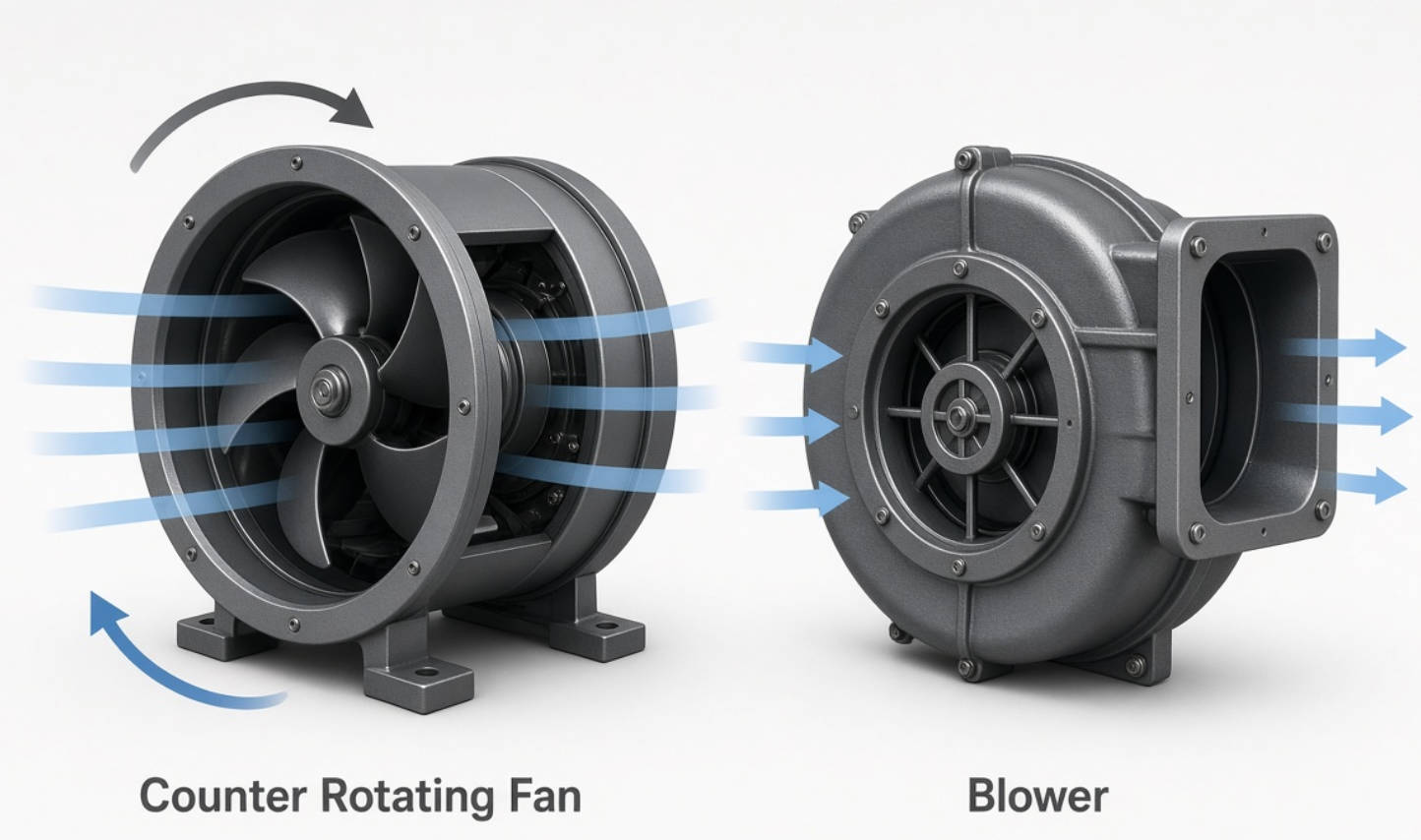

| Selection factor | San Ace counter rotating fan | Centrifugal blower |
|---|---|---|
| Basic construction | Two axial impellers rotating in opposite directions | Centrifugal impeller, typically within a shaped housing |
| Airflow direction | Generally follows the fan's axis | Enters axially and discharges radially, often through a side outlet |
| Typical integration | Straight-through chassis and fan walls | Ducted, redirected, or localized airflow |
| Packaging consideration | Requires sufficient installation depth | Requires inlet clearance and space for the discharge path |
| Pressure capability | Can provide very high static pressure | Can also provide high static pressure |
| Common application fit | Dense servers, networking equipment, power supplies | Compact enclosures, directed cooling, restrictive ducts |
| Final selection basis | Installed airflow, temperatures, power, and noise | Installed airflow, temperatures, power, and noise |
Neither category automatically wins on efficiency, acoustics, or reliability. Those characteristics must be assessed at model level and under comparable conditions.
A counter rotating fan places two impellers in series along the same airflow axis. The impellers rotate in opposite directions and work together as an engineered assembly.
The downstream stage interacts with the airflow leaving the upstream stage. Appropriate blade, motor, and frame design enables high airflow and pressure within a compact frontal area.
This matters when densely installed components create substantial resistance. Moving air through narrow passages requires pressure, not simply a high free-air airflow rating.
A San Ace counter rotating fan deserves early consideration when:
- The enclosure already uses front-to-back ventilation.
- Fan mounting area is limited, but installation depth is available.
- Dense heat sinks and components restrict airflow.
- A substantial volume of air must pass through the chassis.
- Cooling modules need to align with an existing axial airflow architecture.
However, a powerful axial assembly cannot correct poor airflow distribution by itself. Leakage paths and recirculation can allow air to bypass the hottest components.
A centrifugal blower draws air into its impeller and accelerates it outward. Its housing guides the discharge toward an outlet.
That arrangement is useful when the cooling path cannot remain straight. A blower can feed a duct or plenum that directs air toward a specific heat source.
Throughout this comparison, "blower" means a centrifugal cooling blower—not an industrial positive-displacement machine.
Consider a blower when:
- Air must exit through a side-facing opening.
- A duct must deliver air to a remote component.
- The enclosure has limited space for an axial fan stack.
- Cooling requires a controlled discharge path.
- Mechanical layout makes straight-through airflow impractical.
A blower's compact thickness does not tell the whole packaging story. The complete assembly also needs sufficient inlet clearance, outlet area, and duct space.
An obstructed inlet or poorly designed discharge transition can undermine its intended advantage.
The most common selection error is comparing maximum airflow with maximum static pressure as though both occur simultaneously.
They do not.
Maximum airflow is measured with essentially no external resistance. Maximum static pressure occurs at zero airflow. Neither endpoint describes normal operation inside a populated enclosure.

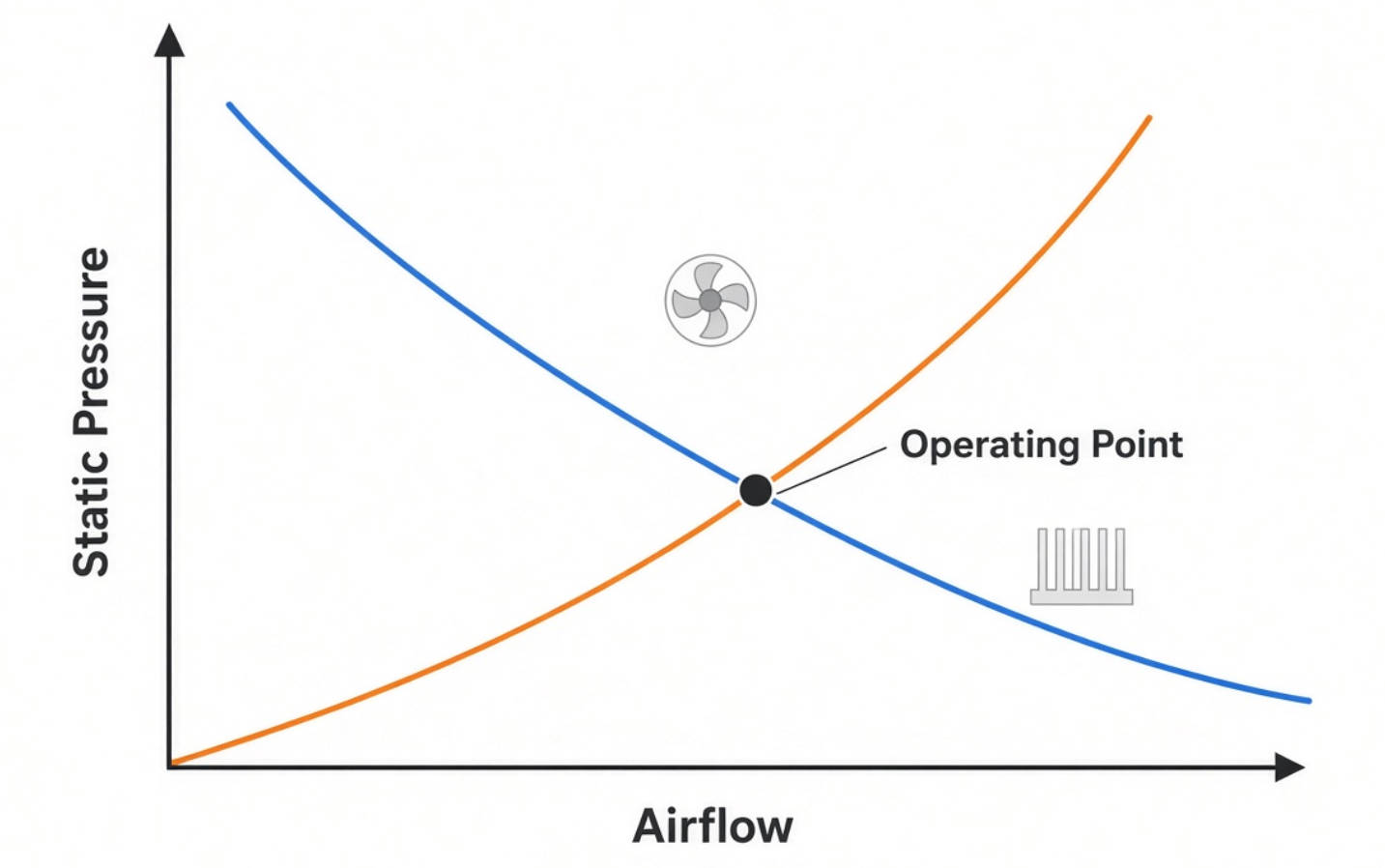

Actual performance lies where the fan's pressure–airflow curve intersects the equipment's resistance curve.
Blowers are often associated with high-pressure applications. However, modern counter rotating fans can also achieve substantial pressure.
For example, published specifications for the San Ace 60 9CRH0612P6G001 list maximum static pressure of 3,350 Pa. The San Ace B97 9BMB12P2K01 blower lists 1,280 Pa.
These figures do not prove that counter rotating fans universally outperform blowers. The products differ in size, power, airflow, and intended integration. They demonstrate why category-wide assumptions are unreliable.
The better question is: which candidate delivers the required airflow against your actual resistance?
The following models illustrate the capabilities and trade-offs available. This is a specification comparison, not a controlled head-to-head test.
| Published specification | San Ace 80 counter rotating fan | San Ace B97 blower |
|---|---|---|
| Model | 9CRHA0812P8J001 | 9BMB12P2K01 |
| Frame dimensions | 80 × 80 × 80 mm | 97 mm frame, 33 mm thickness |
| Rated voltage | 12 VDC | 12 VDC |
| Maximum airflow | 199 CFM | 56.8 CFM |
| Maximum static pressure | 2,700 Pa | 1,280 Pa |
| Rated input | 144 W | 40.8 W |
| Published sound pressure level | 85 dB(A) | 66 dB(A) |
The counter rotating model offers higher published airflow and pressure endpoints, but also substantially higher rated input.
The blower has lower published input and sound pressure, but those numbers do not establish superior efficiency or acoustics at an equivalent cooling duty.
A meaningful comparison requires both candidates to meet the same temperature limits. Their installed power and noise can then be evaluated under consistent conditions.
High-density cooling often creates a three-way compromise between thermal performance, electrical consumption, and acoustics.
Increasing speed may improve cooling, but operating continuously at maximum speed can be unnecessary during lighter loads.
For compatible models, pulse-width modulation, or PWM, allows speed adjustment. Temperature-based control can reduce speed when thermal demand falls.
Our recommended purchasing question is not, "Which fan consumes fewer watts?"
It is, "Which cooling arrangement meets the required component temperatures with the lowest acceptable power and noise?"
That assessment should include:
- All fans required by the design.
- Duct and grille pressure losses.
- Expected operating loads.
- Inlet temperature variation.
- Control behavior during rapid load changes.
Published sound pressure values also need context. Measurement distance, mounting, airflow restriction, and enclosure vibration affect the final acoustic result.
A quieter catalog model is not automatically the quieter installed solution.
Counter rotating construction should not be treated as equivalent to two independently redundant cooling modules.
A stopped impeller can alter resistance and reduce airflow through the assembly. The resulting thermal performance must be tested rather than assumed.
Likewise, a single blower feeding several critical components can become a common failure point.
For mission-critical equipment, review:
- Available speed feedback and alarm signals.
- Response to a stalled or disconnected motor.
- Component temperatures after a cooling fault.
- Replacement access and service time.
- Whether the complete architecture meets redundancy requirements.
Expected-life figures also require careful interpretation. The San Ace 80 model above specifies 40,000 hours of L10 life under stated free-air, rated-voltage, and 60°C conditions. L10 means 90% survival under those conditions—not a guaranteed service life for every installation.
A disciplined selection process is more valuable than choosing a preferred fan category first.
Record total heat dissipation, inlet temperature, allowable component temperatures, and expected workload.
Separate overall enclosure cooling from localized hot-spot cooling. Adequate exhaust airflow does not guarantee adequate airflow through every heat sink.
Identify inlet openings, filters, boards, heat sinks, cables, and outlet grilles.
Determine whether air can travel straight through or must turn into a duct. This often establishes the first practical preference between a counter rotating fan and blower.
Measure pressure and airflow where possible. Validated simulation can also support early design decisions.
Include realistic restrictions. An empty chassis rarely represents the resistance of the finished product.
Locate each candidate's predicted operating point.
Reject models that cannot deliver the required airflow against the measured resistance. Do not select solely from maximum CFM or pressure.

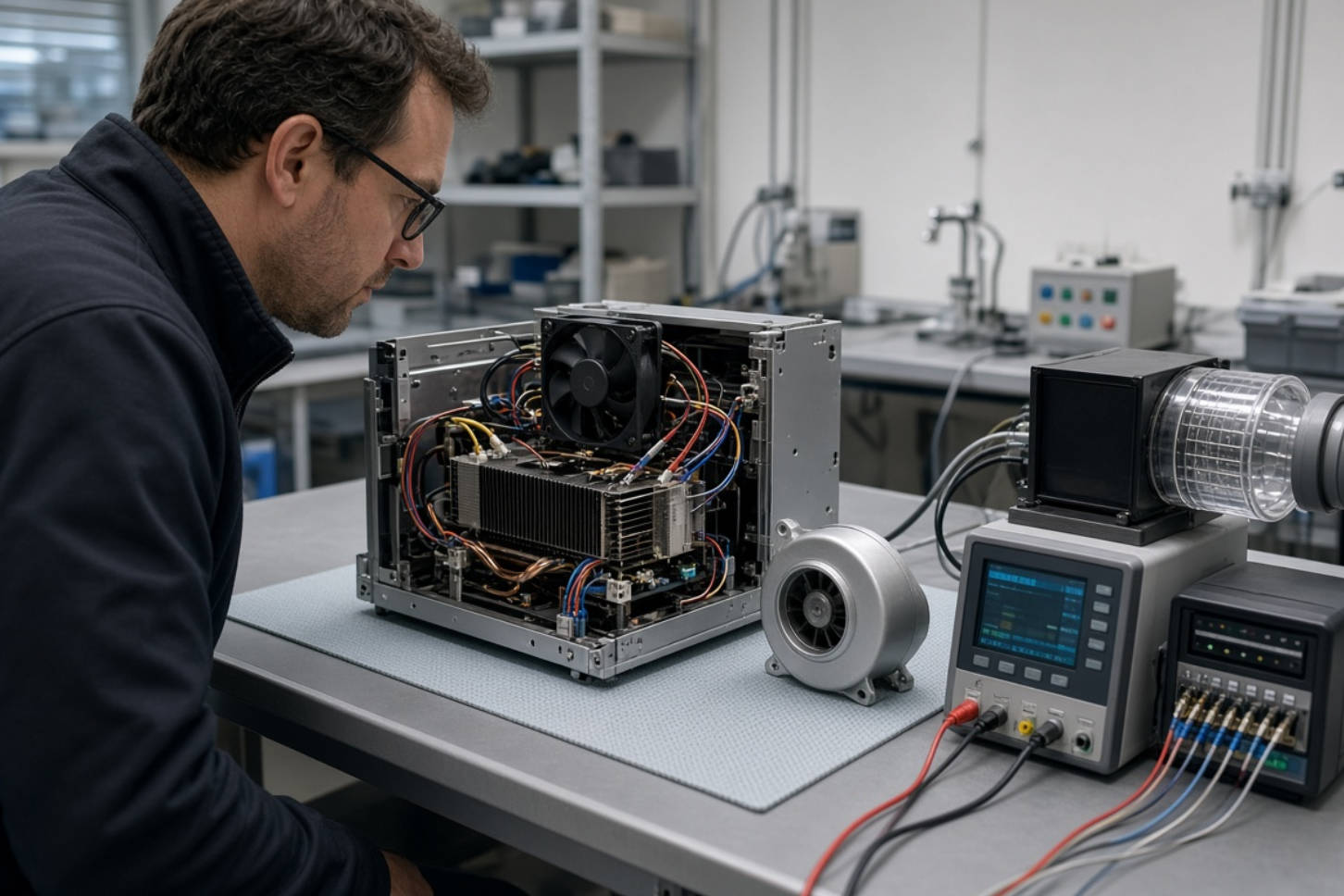

Measure component temperatures, installed airflow, electrical input, and noise.
Test the expected worst-case inlet temperature and workload. Include filter loading or other foreseeable restrictions where relevant.
Confirm PWM compatibility, feedback signals, startup behavior, and thermal recovery after load changes.
Where availability matters, test cooling faults and service procedures before production approval.
The following are illustrative selection scenarios, not documented customer test results.
A server contains closely spaced heat sinks and a defined front-to-back ventilation path.
A counter rotating fan is a logical starting point because it can provide substantial pressure without redirecting the primary airflow. Selection still depends on the populated chassis resistance and component temperatures.
A compact enclosure cannot accommodate a deep axial assembly. Its exhaust opening sits beside the hottest component.
A blower may integrate more naturally because its discharge can align with the outlet or a short duct. The design must preserve inlet clearance and prevent discharged air from returning to the intake.
The enclosure's average temperature is acceptable, but one component overheats.
Before increasing whole-system airflow, inspect local distribution. A dedicated duct or localized blower may address the problem more effectively than a larger chassis fan. Prototype measurements should confirm the improvement.
Capital Technology Co., Limited specializes in DC fans, AC fans, and thermal-management solutions, with its independent CAPITAL brand and SANYO DENKI chief-agency offering.
The company's stated supplier background includes ZTE, HUAWEI, and HYTERA. Those relationships provide company context; they should not be interpreted as endorsements of a particular fan comparison or configuration.
For a useful technical inquiry, provide:
- Enclosure drawings and available installation space.
- Heat load and critical temperature limits.
- Supply voltage and control requirements.
- Required airflow and pressure, if known.
- Noise, environmental, and serviceability constraints.
Send these requirements to Capital Technology Co., Limited to discuss suitable San Ace counter rotating fan and blower candidates before committing to prototype hardware.
It is often a strong choice for dense servers with straight-through airflow. A blower may suit a ducted or redirected layout better. The installed operating point and component temperatures determine the final choice.
Usually, it is not a simple mechanical substitution. Airflow direction, outlet geometry, mounting, electrical requirements, and control compatibility may differ. Revalidate the entire cooling path after changing technologies.
There is no universal winner. Both categories include high-pressure models. Compare specific performance curves and physical envelopes rather than assuming every blower exceeds every counter rotating fan.
Compare electrical input at the same required cooling result. A lower-rated-power device may need additional units or higher operating speed to meet the thermal requirement, changing the system-level comparison.
Yes, compatible models can reduce speed when cooling demand allows. However, minimum speed, startup behavior, temperature response, and fault handling must be validated for the application.
Provide heat dissipation, inlet temperature, enclosure dimensions, airflow direction, voltage, and acoustic limits. Measured system resistance and required airflow make the recommendation considerably more precise.
