When specifying cooling for industrial cabinets, telecom systems, power equipment, or automation devices, the choice between a San Ace ACDC fan and a conventional AC fan affects much more than airflow. It influences energy consumption, speed stability, acoustic performance, monitoring capability, system integration, and the lifetime operating cost of the finished equipment.
As a thermal-management supplier working with industrial customers, we often see a common assumption: "If the equipment has an AC power input, an AC fan is the obvious choice." In practice, that is not always true. A San Ace ACDC fan accepts AC input power, but it internally converts that power to DC and uses a DC fan motor/control architecture. This gives equipment designers many of the controllability and performance advantages traditionally associated with DC fans while preserving the installation convenience of AC-powered equipment.
For OEMs, panel builders, telecom-equipment manufacturers, and industrial maintenance teams, the real question is not simply "ACDC fan vs AC fan." The better question is: Which fan architecture provides the right balance of cooling performance, controllability, reliability, compliance, and total cost for the application?

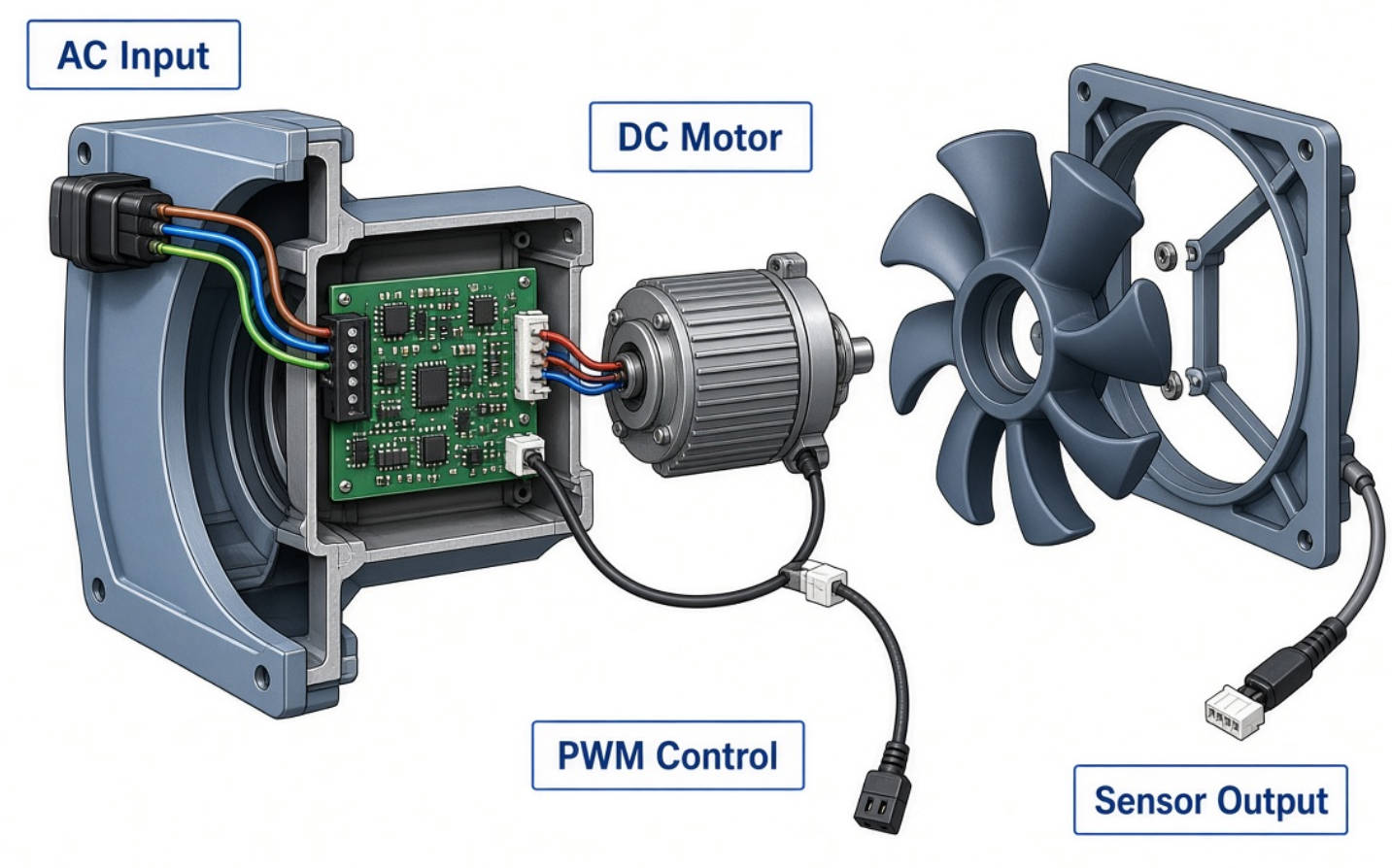

A San Ace ACDC fan is an AC-input cooling fan that internally converts alternating current into direct current before operating the fan motor. San Ace is the cooling-system product brand of SANYO DENKI, covering cooling fans and cooling fan units. The ACDC design combines AC-input compatibility with the electronic control characteristics of a DC fan.
In simple terms, the fan receives AC power from the equipment, such as 100–240 VAC, and internally manages the conversion and motor drive process. This integrated design can support more stable rotational speed, optional speed control, and selected monitoring functions, depending on the specific model.
San Ace ACDC fans are especially relevant when an OEM wants to upgrade cooling performance but does not want to redesign the system around an external DC power supply.
- AC input with internal AC-to-DC conversion
- Wide input-voltage compatibility in selected ranges, often supporting 100–240 VAC systems
- Constant fan speed across different input voltages and frequencies within the specified operating range
- Optional PWM speed control on applicable models
- Optional sensors, including pulse, low-speed, and locked-rotor detection
- High airflow and high static-pressure options for restrictive airflow paths
- Potentially lower energy consumption than conventional AC fan designs
- Models available for industrial, telecom, server, power, and outdoor-equipment cooling needs
SANYO DENKI states that its ACDC fans internally convert AC power to DC power, support 100–240 VAC input on relevant models, and can maintain fan speed regardless of input voltage and frequency. The company also offers options such as low-speed sensors, pulse sensors, and locked-rotor sensors for selected models.
A conventional AC fan uses an AC motor directly powered by alternating current. It is a familiar cooling solution for electrical cabinets, appliances, machinery, HVAC-related systems, and general industrial equipment.
Traditional AC axial fans are often selected because they are straightforward to install. They can connect directly to the available AC mains supply, typically without external speed-control electronics or a dedicated DC fan power supply.
However, a conventional AC fan's speed is closely related to the input frequency and motor design. This makes it less flexible when an application requires dynamic thermal control, digital monitoring, or stable performance across global voltage and frequency conditions.
- Simple, established fan architecture
- Direct connection to AC electrical systems
- Broad availability in standard sizes
- Suitable for fixed-speed applications
- Often appropriate for basic, non-critical ventilation requirements
- Familiar replacement option for maintenance teams
Traditional AC fans remain practical when the equipment has a stable thermal load, requires only fixed airflow, and does not benefit from variable-speed control or fault feedback.
However, simplicity should not be confused with the lowest total system cost. In high-duty-cycle equipment, a lower-efficiency fan can increase long-term power use, noise, and heat-related reliability risk.

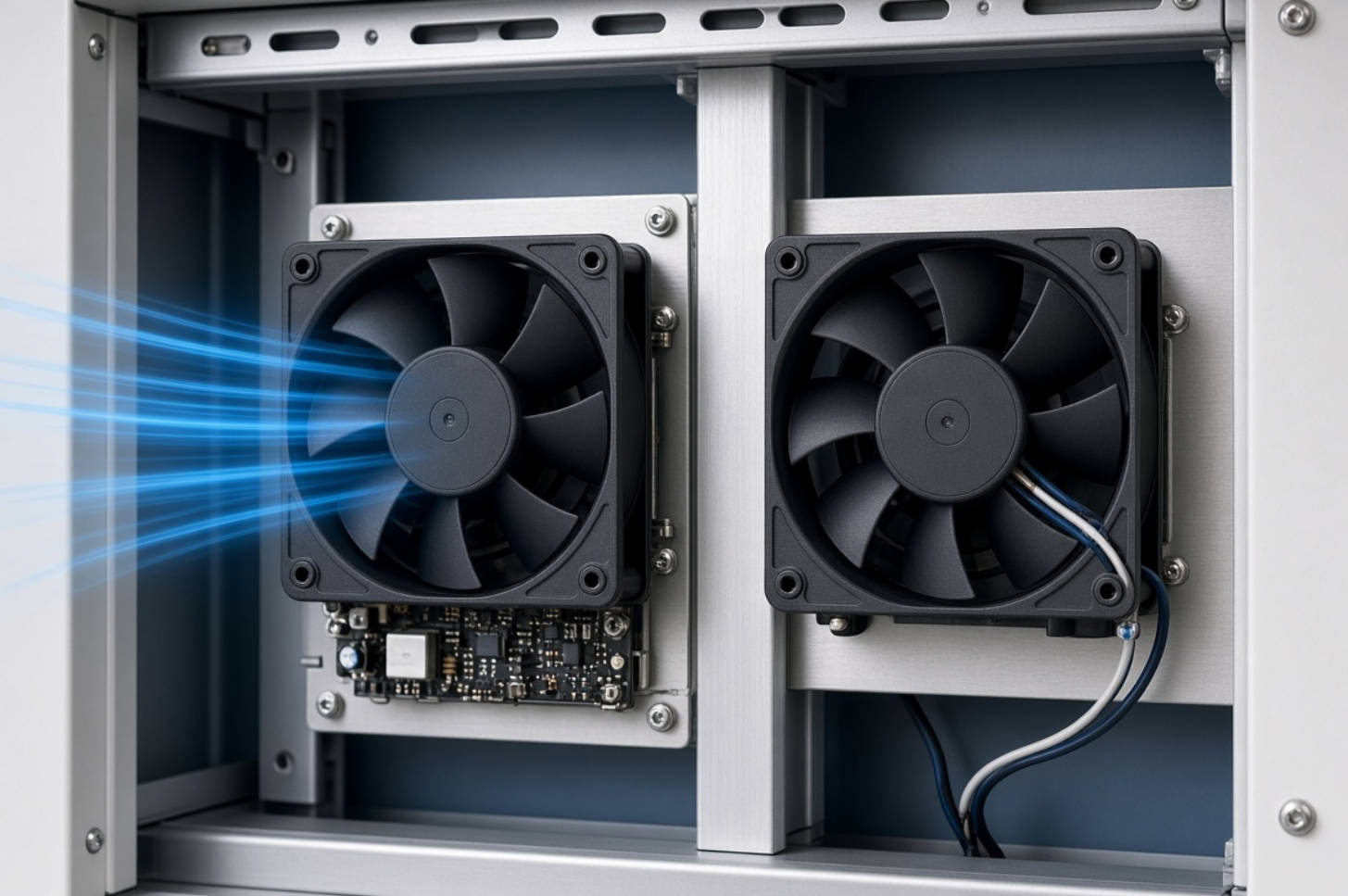

The most important distinction is the motor and control concept. A traditional AC fan uses AC power directly. A San Ace ACDC fan takes AC input but internally operates through a DC-based fan-driving system.
| Factor | San Ace ACDC Fan | Traditional AC Fan |
|---|---|---|
| Power input | AC input, internally converted to DC | AC input directly drives AC motor |
| Motor/control principle | DC motor + electronic drive architecture | Conventional AC motor architecture |
| Speed stability | Maintains stable speed across specified voltage/frequency ranges | More dependent on input frequency and motor behavior |
| Speed control | PWM control available on applicable models | Usually fixed speed; variable control limited or needs extra components |
| Energy efficiency | Often designed for lower power consumption | Can consume more power in comparable high-performance use |
| Monitoring options | Pulse, low-speed, locked-rotor sensors on selected models | Sensor functions generally less common |
| Noise management | Variable-speed control reduces noise at lower thermal loads | Fixed-speed operation can create unnecessary noise during low-load periods |
| Cooling performance | High airflow and high static pressure available | Performance varies widely by model and design |
| Global equipment use | Wide-voltage models support international AC systems | Voltage/frequency compatibility needs more careful selection |
| Typical fit | Telecom, industrial automation, power electronics, network systems, high-value equipment | Basic enclosures, fixed-load systems, simple ventilation tasks |
The table highlights an important design principle: fan selection should be based on the operating profile of the equipment, not only on the power source available at installation.

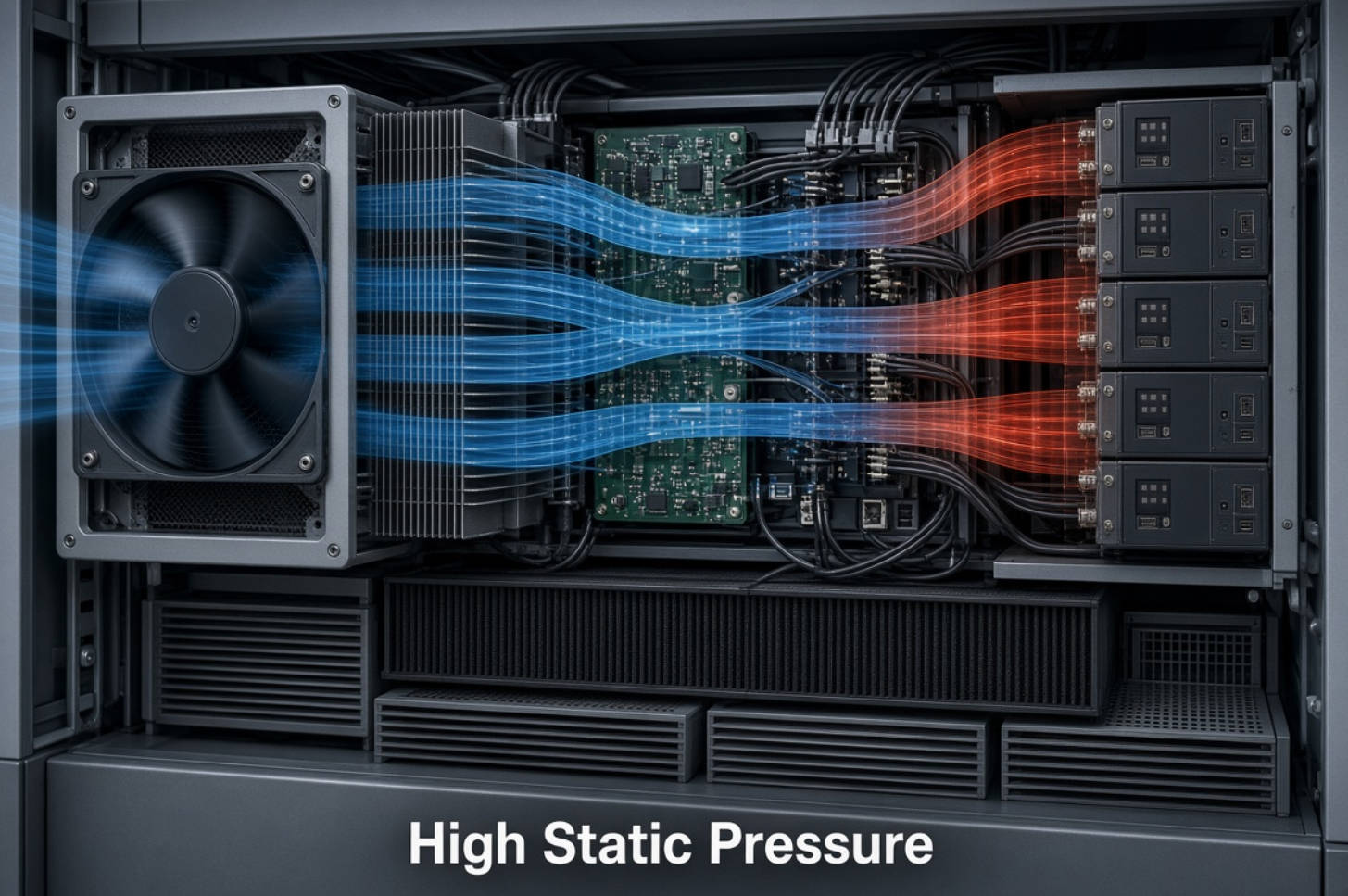

Many buyers compare fans only by airflow, often expressed in CFM or cubic meters per minute. Airflow is important, but it is not enough.
In real equipment, air rarely moves through an open space. It must pass through:
- Fan guards
- Air filters
- Heat sinks
- Cable bundles
- Narrow cabinet openings
- EMI shielding structures
- Dense printed circuit boards
- Power modules and internal partitions
These restrictions create resistance. The fan must generate enough static pressure to sustain airflow through the system.
A fan with high free-air CFM but weak static pressure may perform poorly once installed in a dense enclosure. In contrast, an ACDC fan designed for high-pressure performance may retain more usable airflow in a restricted thermal path.
For example, SANYO DENKI's 92 × 92 × 25 mm San Ace 92AD ACDC fan reaches up to 47.3 CFM and 76 Pa, or 0.305 inches H₂O, of maximum static pressure in its high-speed version. SANYO DENKI reported this as approximately 55% higher static pressure and 21% higher airflow than its previous model.
This is particularly relevant for compact devices where component density rises while available cooling space shrinks.
Use free-air airflow as an initial reference. Then evaluate the fan's P-Q curve, also called the airflow-static-pressure curve, against the actual system resistance.
The final operating point is where:
Fan Pressure = System Resistance
A reliable cooling design therefore requires more than choosing the highest CFM rating. It requires matching the fan curve to the enclosure, airflow path, filter condition, and expected thermal load.
Energy consumption has become a more important fan-selection factor because many industrial systems operate continuously. A fan that runs 24 hours per day can accumulate substantial electricity use over years of equipment operation.
San Ace ACDC fans are designed to use DC-based drive technology while accepting AC input. This can improve efficiency compared with conventional AC fan configurations, particularly when the application can use fan-speed control.
SANYO DENKI promotes selected San Ace ACDC fan products as achieving DC-fan performance with AC power, with power-consumption reductions of up to 91% and expected life of up to 60,000 hours for applicable products and comparison conditions. Actual savings depend on the specific model, duty cycle, airflow requirement, and system design.
A 120 mm San Ace 120AD ACDC fan line has also been promoted with approximately 72% lower power consumption than a conventional AC fan in the cited comparison, along with a 60,000-hour expected service life.
A conventional fixed-speed AC fan generally runs at or near full output whenever the equipment is energized. But many systems do not need full cooling all the time.
A fan with applicable PWM control can run at a reduced speed when temperatures are low and increase speed only when thermal demand rises. This can reduce:
- Fan power consumption
- Acoustic noise
- Bearing stress
- Dust intake rate
- Unnecessary airflow turbulence
PWM, or pulse-width modulation, controls fan speed by varying the duty cycle of an input signal. SANYO DENKI notes that PWM-controlled fans can respond to device heat levels and reduce both system noise and power consumption.
One of the clearest advantages of a San Ace ACDC fan over a basic AC fan is the potential for intelligent control and diagnostic feedback.
In critical equipment, cooling failure can cause overheating, performance throttling, unexpected shutdowns, component degradation, or even safety risks. The ability to monitor fan operation gives OEMs and end users more opportunity to detect problems before they become field failures.
- Pulse sensor: Provides fan-speed feedback to the controller
- Low-speed alarm: Identifies abnormal rotational-speed reduction
- Locked-rotor sensor: Indicates stalled or blocked fan operation
- PWM speed control: Adjusts fan speed to actual thermal demand
- Alarm integration: Sends fault signals to PLCs, BMS platforms, or equipment controllers
This is highly valuable for telecom base stations, UPS systems, network cabinets, energy storage equipment, medical devices, industrial drives, and unattended outdoor enclosures.
A fan should not be treated only as a low-cost mechanical component. In high-value electronics, it is part of the equipment's thermal reliability system.
Choose a San Ace ACDC fan when the equipment benefits from performance stability, intelligent control, or higher reliability.
- Telecom and communication equipment
- Network switches and data infrastructure
- Industrial automation cabinets
- PLC and control panels
- UPS and power-conversion systems
- EV charging equipment
- Renewable-energy inverters
- Medical and laboratory equipment
- Railway, transportation, and ruggedized electronics
- High-density power supplies
- Outdoor cabinets requiring dust or splash protection
For example, the San Ace 172AD ACDC fan line includes models with a 100–240 VAC input range, PWM control capability, and an IP56 splash-proof option. One cited 172 × 150 × 51 mm model delivers up to 236 CFM and 195 Pa, or 0.78 inches H₂O, of static pressure.
These characteristics make ACDC fans especially suitable for high-resistance airflow paths or equipment operating in variable environments.
A standard AC fan can still be the sensible choice when the application is simple and cost-sensitive.
Consider a traditional AC fan when:
- The thermal load is stable and predictable
- Fan speed control is unnecessary
- No tachometer or alarm output is required
- The enclosure has low airflow resistance
- The device operates in a single voltage/frequency region
- The fan is easy to access and replace
- Downtime from fan failure creates limited operational risk
- Initial component cost is more important than lifecycle efficiency
For a basic electrical cabinet with a low-power thermal load, a fixed-speed AC fan may meet the engineering requirement effectively.
The key is to avoid selecting an AC fan by habit when the product requires higher cooling density, quieter operation, global input compatibility, or remote fault monitoring.
Before selecting either fan type, confirm the following points with your thermal engineer or fan supplier:
1. What is the actual heat load in watts?
Calculate both normal-load and peak-load heat dissipation.
2. What is the required operating temperature range?
Ambient conditions, solar load, altitude, and enclosure heat buildup all matter.
3. How restrictive is the airflow path?
Account for filters, louvers, grilles, heat sinks, internal cables, and dust accumulation.
4. What airflow and static pressure are required at the real operating point?
Do not choose a fan only by its maximum free-air airflow rating.
5. Does the system need speed control?
PWM control can support better energy and noise management when thermal load changes.
6. Is fan-failure monitoring required?
Use pulse, low-speed, or locked-rotor feedback when equipment uptime is important.
7. Which AC input range must the equipment support?
Verify voltage and frequency compatibility for domestic and export markets.
8. What are the acoustic targets?
Consider both fan sound pressure level and the acoustics of the full enclosure.
9. What protection rating is needed?
Assess dust, humidity, splash exposure, corrosive gases, and outdoor installation conditions.
10. What is the total cost of ownership?
Include energy use, maintenance, replacement access, warranty exposure, and downtime risk.
A traditional AC fan remains a practical fixed-speed cooling option for simple equipment. But for modern industrial and electronic systems, a San Ace ACDC fan can provide a more advanced thermal-management solution.
Its key advantage is architectural: it combines AC-input convenience with the performance and controllability benefits associated with DC fan technology.
Choose a San Ace ACDC fan when your equipment needs:
- Higher usable airflow under resistance
- Stronger static-pressure performance
- Wide AC input compatibility
- More stable speed performance
- PWM-based thermal control
- Lower noise at partial load
- Diagnostic feedback and fan-failure monitoring
- Better lifecycle efficiency for continuous-duty equipment
For manufacturers building reliable, export-ready equipment, the fan should be selected as an engineering component, not as a last-minute accessory. A correctly matched ACDC fan can improve thermal headroom, support longer component life, and strengthen the overall reliability of the final product.
Need help selecting the right San Ace ACDC fan or AC fan for your equipment? Contact Capital Technology Co., Limited with your fan size, voltage, airflow target, static-pressure requirement, operating temperature, and application details. Our technical team can help evaluate suitable San Ace fan models and develop a more reliable cooling solution for your project.
An ACDC fan accepts AC input power but internally converts it to DC to operate a DC-based motor and control system. A conventional AC fan uses AC power directly to drive an AC motor. This difference can give ACDC fans better speed stability, monitoring options, and variable-speed control capability.
In many cases, yes. However, the replacement must be verified for dimensions, mounting hole pattern, voltage range, airflow, static pressure, wire connection, safety approvals, alarm requirements, and airflow direction. A direct physical fit does not automatically guarantee correct thermal or electrical performance.
Static pressure determines how effectively a fan can push air through restrictive components such as filters, heat sinks, grilles, dense circuit boards, and narrow ducts. A fan with insufficient static pressure may deliver much less airflow after installation than its free-air CFM rating suggests.
No. PWM capability depends on the specific fan model and configuration. Always check the relevant datasheet, wiring information, operating conditions, and control-signal specifications before designing PWM control into the equipment.
They can be, especially when the model uses efficient DC drive technology and speed control is matched to changing thermal demand. Actual power savings depend on fan size, speed, system resistance, operating hours, control profile, and the comparison baseline.
Depending on the model, available options may include pulse sensors, low-speed sensors, and locked-rotor sensors. These functions can help equipment controllers detect abnormal fan operation and support preventive maintenance.
ACDC fans are especially suitable for telecom, networking, industrial automation, power electronics, UPS systems, renewable-energy equipment, EV charging systems, transportation electronics, medical devices, and other applications where thermal reliability and system uptime are important.
