On the Benefits of Choosing High-Voltage DC Cooling Fans

High-voltage direct current (HVDC) cooling fans, typically operating at voltages above 48V and even as high as 400V–850V, represent a performance and application upgrade over traditional low-voltage DC fans.

Choosing them primarily offers the following major benefits:

Performance and Efficiency Advantages

1. Greater airflow and power

HVDC fans usually have a rated power exceeding 1kW, far higher than conventional low-voltage fans. This enables them to generate greater airflow and static pressure, easily meeting the stringent cooling requirements of high-power equipment such as high-power fuel cell systems, large-scale energy storage stations, and heavy-duty trucks.

2. Higher energy utilization

In some high-voltage systems (such as new energy vehicles and energy storage systems), directly using HVDC to drive fans eliminates the need for DC-DC converters to step down the voltage, thereby avoiding energy losses during power conversion and achieving higher overall energy efficiency.

3. Optimized system cost and space

A single high-power HVDC fan can replace multiple low-voltage fans operating in parallel. This not only reduces the number of fans but also saves valuable installation space, simplifies wiring harness layouts, and lowers the overall complexity and cost of the system.

Intelligent Control and Reliability

1. Precise and intelligent speed control

HVDC fans inherit the excellent characteristics of DC fans, supporting precise stepless speed regulation via signals such as PWM (Pulse Width Modulation) or CAN bus. They can work collaboratively with the system's temperature control units (such as FCU, VCU) to dynamically adjust speed based on actual temperature needs, achieving "on-demand cooling" and striking the optimal balance between energy savings and quiet operation.

2. More stable and reliable operation

Designed with brushless DC motors (BLDC), they do not suffer from brush wear, resulting in longer lifespans and more reliable operation. Meanwhile, the motors and power electronics are often cooled via methods such as liquid cooling, ensuring stable operation even under high loads.

3. Stronger environmental adaptability

Many HVDC fans are designed for harsh operating conditions, featuring high protection ratings (such as IP67), stable operation in extreme temperatures ranging from -40°C to 65°C, and passing strict vibration tests, making them suitable for complex environments such as heavy-duty trucks and mining machinery.

Typical Applications and Implementation of Cooling Fans

DC cooling fans are suitable for high-density servers and data centers (fan trays, rear-door heat exchangers), telecommunications cabinets around 48V backplanes, and industrial high-power air-cooled equipment such as drives, inverters, and sealed control boxes. These environments feature high thermal density and high-voltage rails; running fans at 24/48V reduces current, thereby shrinking wiring harnesses, simplifying wiring, improving internal airflow, and keeping control/telemetry predictable—ultimately enabling higher rack density and simpler servicing.

Fan Recommendation: SANYO DENKI High-Voltage DC Cooling Fan

Sanyo Denki's high-voltage DC cooling fans typically refer to the product series with a rated voltage of 48V.

Based on existing information, the following series/models are recommended:

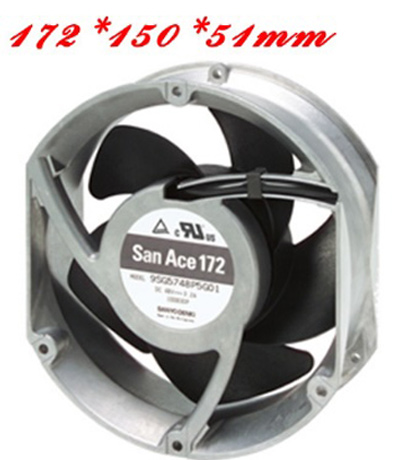

☢ Recommended Series: San Ace 172 Series

① Model: 9SG5748P5G01

② Dimensions: 172mm × 150mm × 51mm

③ Voltage: 48V

④ Current: 2.91A

⑤ Speed: 8600 min-⊃1;

⑥ Airflow: 546 CFM (approx. 15.46 m³/min)

⑦ Static Pressure: 1000 Pa

⑧ Features: Supports PWM speed control. The frame is made of aluminum, making it suitable for applications requiring high airflow and high static pressure.

Key Advantages

① Efficient Cooling: Characterized by high airflow and high static pressure, it can effectively meet the cooling challenges of high-heat-density equipment.

② Smart Control: With PWM speed control, the fan speed can be dynamically adjusted based on system temperature. This achieves demand-based cooling, saving energy and reducing noise.

③ Long Lifespan: It has an expected lifespan of 40,000 hours in a 60℃ environment, ensuring reliability during long-term operation.

Other Size Series

Besides the 172mm series, Sanyo Denki also offers 48V fans in other sizes, such as the 92mm and 120mm series. These also include models supporting PWM speed control, allowing selection based on equipment space and cooling requirements.

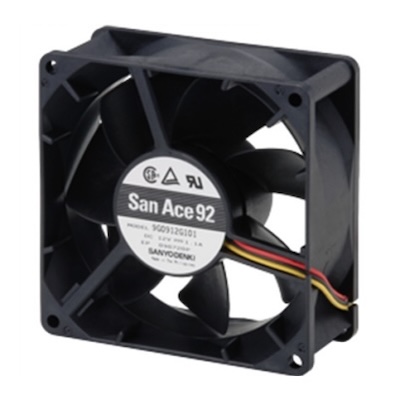

92mm Series (48V Models)

The 92mm series primarily corresponds to the 9G Type or 9RA Type. Under a 48V voltage specification, this size is typically used in space-constrained scenarios requiring relatively high static pressure.

Note: 48V models in the 92mm size are relatively rare; the market is dominated by 12V or 24V models. If strictly limited to 48V, you may need to check sub-models of the latest 9RA 48V series or consider sizes above 120mm.

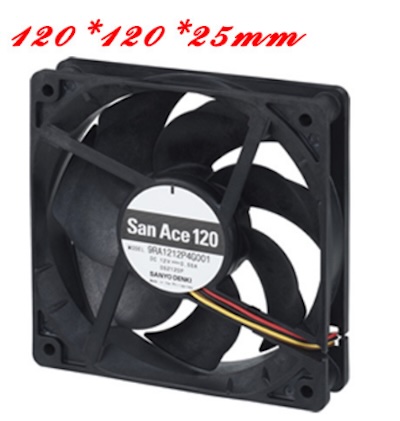

120mm Series (48V Models)

The 120mm series is the (main force) in high-voltage applications, corresponding to the 9RA Type, offering stronger cooling capacity and higher energy efficiency.

Summary

In short, choosing HVDC cooling fans is an inevitable trend for addressing the cooling needs of high-power, high-efficiency applications. By providing stronger cooling performance, higher system efficiency, and more intelligent control methods, they offer critical thermal management solutions for cutting-edge technology fields such as fuel cells, new-energy heavy-duty trucks, and large-scale energy storage.
