As electronic devices become smaller, denser, and more powerful, micro fans for electronics have become an essential part of reliable thermal management. From compact communication equipment and IP cameras to medical instruments, portable analyzers, LED systems, and edge-computing devices, a properly selected DC micro fan or miniature blower can help remove concentrated heat, protect sensitive components, and extend product operating life.
At Capital Technology Co., Limited, we work with OEMs and system designers that need cooling solutions for space-constrained electronics. As a source manufacturer of DC fans, AC fans, and customized cooling solutions, as well as a leading SANYO DENKI distributor, we understand a common engineering reality: choosing a fan by its free-air airflow figure alone often leads to insufficient cooling after installation. The right micro fan must match the device's actual heat load, airflow path, static-pressure resistance, voltage, noise target, and reliability requirement.
A micro fan is a compact cooling fan designed for applications with limited installation space and restricted power budgets. In many electronics projects, micro fans range approximately from 8 mm to 40 mm in frame size, although the exact definition varies by application and manufacturer.
Unlike a standard cabinet fan, a miniature cooling fan must deliver useful airflow within a very small enclosure. It is not simply a smaller version of a large fan. At compact dimensions, every design detail matters: blade geometry, bearing structure, motor efficiency, frame design, air inlet clearance, outlet restriction, cable routing, and mounting method can influence final cooling performance.
Micro fans are commonly used when passive cooling alone cannot control internal temperatures. They create forced airflow across heat-generating components, heat sinks, circuit boards, power modules, and ventilation channels.
Typical applications include:
- Telecommunications equipment and network devices
- 5G radio units, routers, switches, and gateways
- CCTV cameras and intelligent IP surveillance systems
- Industrial control cabinets and compact automation modules
- Portable medical and diagnostic devices
- LED lighting systems and laser equipment
- Battery systems, charging modules, and energy-storage electronics
- Portable gas detectors and environmental monitoring equipment
- Consumer electronics, tablets, notebooks, and smart devices
- Power supplies, inverters, and embedded computing systems
A micro cooling fan works by creating a pressure difference that moves air through an electronic enclosure. The fan draws cooler air into the system or pushes heated air out, allowing heat to transfer away from internal components.
In practice, the fan does not cool an enclosure uniformly. It cools the areas that air can actually reach. This is why airflow direction, component layout, vent placement, cable blockage, and heat-sink location are as important as the fan itself.

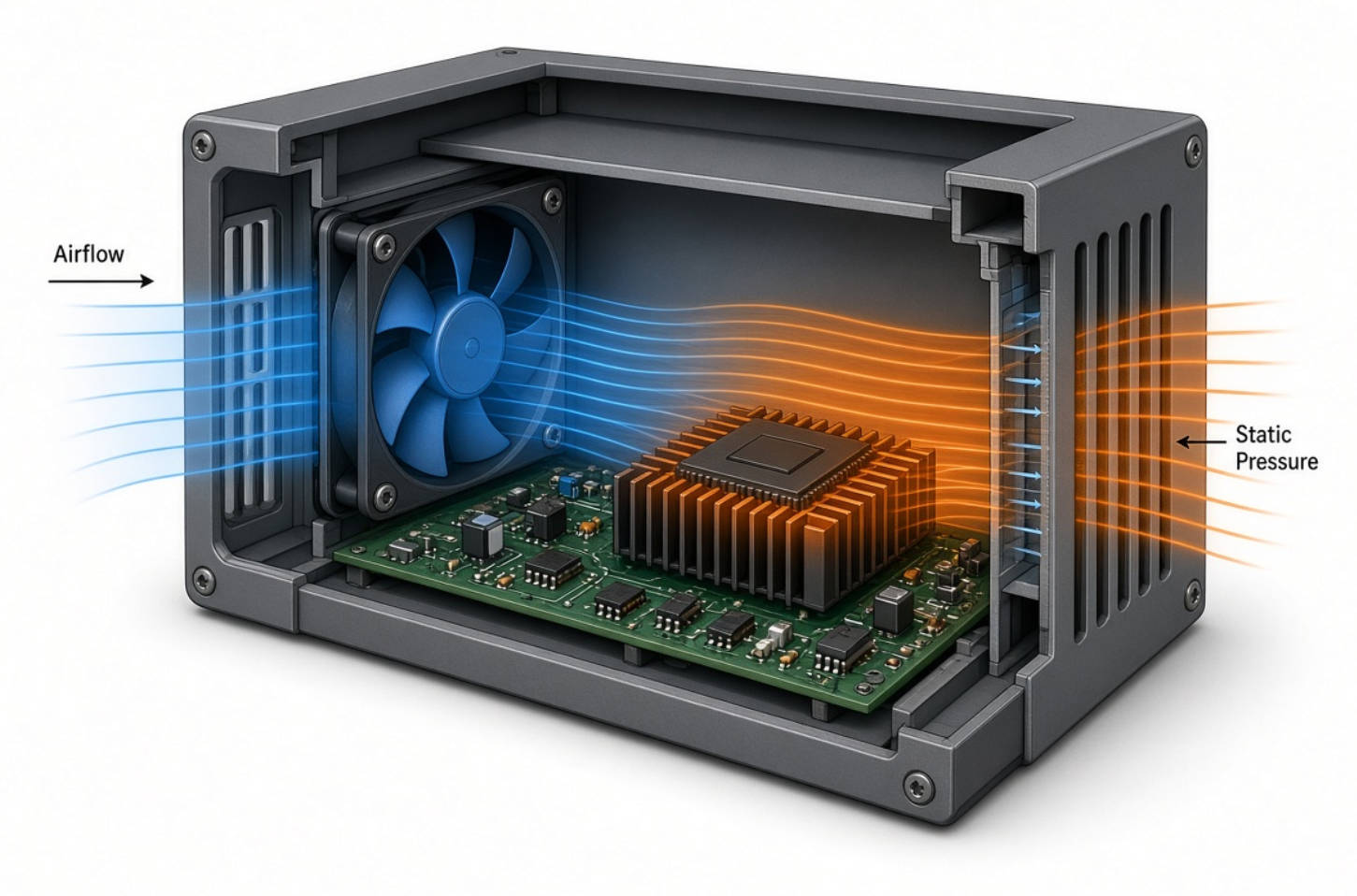

A fan's maximum airflow is measured under zero static pressure, meaning there is no resistance in the airflow path. Inside a real device, however, air encounters obstacles such as:
- Narrow ventilation openings
- Dense PCB layouts
- Heat sinks
- Dust filters
- Cable bundles
- Protective grilles
- Long or irregular air channels
- High component density
These restrictions create static pressure. The fan's true installed airflow is determined by the intersection of the fan performance curve and the system-resistance curve. Therefore, a fan that looks powerful on a datasheet may underperform in a restricted enclosure if it cannot overcome the required pressure. SANYO DENKI explains that static pressure represents a fan's ability to move air against resistance caused by the internal structure of the equipment.
| Parameter | What It Means | Why It Matters for Micro Fans |
|---|---|---|
| Airflow | The volume of air moved per unit of time, commonly measured in CFM or m³/min | Indicates cooling potential in open or low-resistance conditions |
| Static pressure | The fan's ability to push air against resistance, commonly measured in Pa or mmH₂O | Critical in compact, crowded, filtered, or ducted electronic products |
| Operating point | The actual airflow and pressure achieved after installation | Determines real cooling performance inside the device |
| Noise level | Acoustic output, normally measured in dB(A) | Important for medical, office, consumer, and indoor equipment |
| Expected life | Estimated operating life under stated conditions | A key consideration for industrial, telecom, and unattended equipment |
Engineering insight: In compact electronics, high airflow alone is rarely enough. If the airflow path is restricted, a micro fan with stronger static-pressure capability may achieve a lower component temperature than a nominally higher-CFM fan.

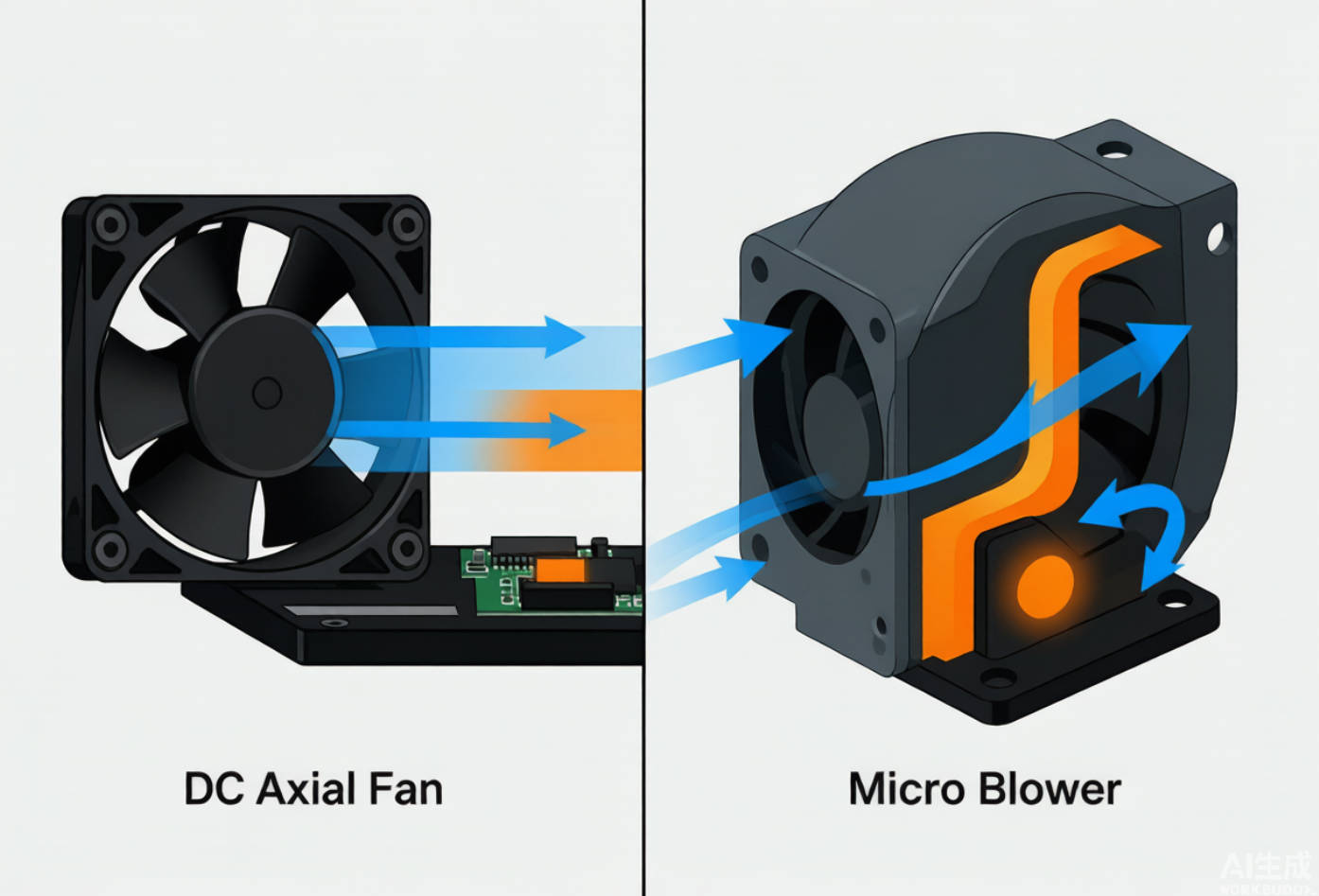

The best cooling solution depends on the enclosure design and airflow resistance. Two common choices are miniature DC axial fans and compact blowers.
A DC axial micro fan moves air parallel to the fan shaft. It is usually the most practical option when air can travel in a relatively straight path through the enclosure.
Micro axial fans are often selected for:
- Open-board electronics
- Ventilated network equipment
- Compact power supplies
- LED modules
- Small control units
- Devices with low-to-moderate airflow resistance
Their strengths include compact installation, broad voltage options, efficient airflow delivery, and flexible mounting orientation. Larger fan diameters generally support higher airflow, while thicker fan profiles can improve pressure performance.
A micro blower or centrifugal fan directs air outward from the impeller rather than straight through the fan. It is particularly useful when the system has tight channels, narrow outlets, filters, dense components, or a 90-degree airflow path.
Micro blowers are frequently used in:
- Restricted electronic enclosures
- Compact medical instruments
- Portable analyzers
- Devices with internal ducts
- High-density communication modules
- Targeted cooling of specific hot spots
When an application has significant airflow resistance, a blower can be more suitable than an axial fan because it is designed to provide useful airflow at higher static pressure. SANYO DENKI's fan-selection guidance similarly distinguishes low-pressure axial applications from higher-pressure centrifugal or blower applications.
Selecting a micro fan should begin with the thermal problem—not with a preferred fan size. A reliable process combines calculated targets with prototype testing.
Start by determining how much heat the device must dissipate. Identify major heat sources, including processors, DC-DC converters, MOSFETs, power modules, LEDs, batteries, and charging circuits.
Record:
- Total heat dissipation in watts
- Heat generated by individual hot spots
- Maximum allowable component and enclosure temperatures
- Ambient operating temperature
- Required temperature rise above ambient
- Continuous or intermittent duty cycle
For air-only cooling, the required airflow can be estimated from heat load and allowable temperature rise. SANYO DENKI provides the following basic relationship:
Q=V/(ρ×Cp×ΔT)
Where Q is required airflow, V is heat to be dissipated, ρ is air density, Cp is the specific heat of air, and \(\Delta T\) is the allowable temperature rise. This calculation is a starting point, not a final product-selection result.
Review the complete enclosure before choosing a fan model. Ask where air enters, where it exits, and whether it passes across the components that need cooling.
A strong airflow path should:
- Bring cool air toward the hottest components first
- Avoid recirculating hot exhaust air back to the inlet
- Minimize sharp turns and unnecessary obstructions
- Provide sufficient vent area for intake and exhaust
- Avoid placing cable bundles directly in the airflow channel
- Maintain clearance around the fan inlet and outlet
A fan cannot compensate indefinitely for poor mechanical airflow design. Improving vent placement or removing a blockage may reduce temperature more effectively than increasing fan speed.
Do not select a fan solely by its maximum CFM rating. Compare the fan's airflow-static-pressure curve with the expected system impedance.
For projects without formal airflow-measurement equipment, SANYO DENKI recommends selecting a fan with roughly 1.5 to 2 times the required maximum airflow because real operating airflow commonly falls between one-third and two-thirds of the fan's maximum airflow. Final selection should then be verified through actual installation testing.
This is particularly important for compact housings with dust filters, narrow grilles, high-density boards, or long air channels.
A fan must work reliably under the actual operating conditions of the finished product. Check:
- Rated voltage and operating voltage range
- Startup voltage
- Rated current and power consumption
- PWM speed-control requirement
- Tachometer or alarm-signal requirement
- Operating temperature range
- Expected life
- Bearing type
- IP protection requirement, if applicable
- Shock, vibration, and transportation requirements
- Safety and compliance requirements for the final market
For example, a portable battery-powered device may prioritize low power consumption and low startup voltage. A telecom device may prioritize high static pressure, alarm feedback, long operational life, and stable performance at elevated ambient temperatures.
Even experienced teams can encounter cooling issues when the fan selection process overlooks installation conditions.
A high-CFM figure can be misleading if the enclosure has high resistance. Always consider the pressure-airflow curve and real operating point.
If the hot exhaust is drawn back into the air inlet, the fan may run correctly while internal temperatures continue to rise. Separate intake and exhaust paths whenever possible.
Restricted inlet or outlet clearance can reduce airflow, increase turbulence, and raise noise. Reserve adequate mechanical space around the fan.
Increasing fan speed may solve a temperature problem but create unacceptable acoustic noise. Design teams should set temperature and noise targets early, especially for medical, consumer, office, and residential applications.
Calculations and simulations are valuable, but real hardware reveals cable blockage, hot-air recirculation, uneven component loading, vibration, and acoustic behavior. Measure component temperatures in the assembled product at expected ambient conditions.
In our experience supporting electronics and industrial customers, the most successful cooling projects treat the micro fan as part of an integrated thermal system. The fan, enclosure, vent design, heat sink, PCB layout, power profile, and control strategy must work together.
For example, an engineer may initially select a 30 mm DC axial fan based on available mounting space. During testing, the equipment may show a high temperature rise because a narrow rear grille and dense cable routing create more resistance than expected. Instead of immediately choosing a louder, higher-speed fan, the team can evaluate three practical options:
1. Increase the effective exhaust vent area.
2. Reposition cables and components to open the airflow path.
3. Change to a higher-static-pressure fan or compact blower.
This approach often improves thermal performance while reducing noise and energy consumption. It also creates a more reliable product because the fan is not continuously forced to operate at the highest possible speed.
Capital Technology can support this selection process with DC fan, AC fan, blower, and customized cooling-solution options for different design constraints. For projects requiring recognized high-performance cooling technology, we can also provide SANYO DENKI fan solutions through our authorized distribution capability.
If you are developing compact electronics, the right micro fan can make the difference between a product that merely operates and one that performs reliably over its intended service life.
Share your application details with Capital Technology, including enclosure dimensions, heat load, target temperature, voltage, available mounting space, airflow path, expected quantity, and environmental requirements. Our engineering team can help evaluate whether a DC micro axial fan, compact blower, AC fan, or customized thermal solution is the most suitable fit for your project.
Contact Capital Technology today to discuss your micro fan requirements and request a tailored cooling recommendation.
A micro fan is designed for highly compact equipment where installation space, power consumption, airflow path, and noise are tightly constrained. It generally requires more careful selection because even small obstructions can significantly affect installed performance.
Start with the available mounting space, then calculate the required airflow based on heat load and allowable temperature rise. After that, assess airflow resistance inside the enclosure and select a fan using its pressure-airflow curve rather than size alone.
A DC axial fan is often suitable for relatively open, straight airflow paths. A micro blower is usually more appropriate for restricted spaces, narrow ducts, dense assemblies, filters, or applications that require higher static pressure.
Possible causes include inadequate static pressure, blocked vents, poor inlet or outlet clearance, hot-air recirculation, insufficient airflow across the main hot spot, incorrect fan orientation, or a fan operating outside its intended voltage range.
Not always. Higher speed can increase airflow and pressure, but it may also increase noise, power consumption, vibration, and wear. Improving the enclosure airflow path may be a more effective and balanced solution.
Provide the product application, dimensions, voltage, target airflow, estimated heat load, allowable temperature rise, ambient temperature, mounting space, expected annual volume, noise requirement, operating hours, and any signal or control requirements such as PWM or tachometer output.
