Choosing the right San Ace cooling fan is not simply a matter of selecting the highest airflow specification. The correct choice depends on how much air your equipment needs, how much resistance exists inside the airflow path, and where the fan's operating point falls on its airflow–static pressure curve.
For designers of telecom cabinets, servers, power supplies, industrial control equipment, EV chargers, energy-storage systems, and communication hardware, airflow and static pressure must be evaluated together. A fan with high free-air airflow may underperform once it faces a dense heat sink, narrow vent, dust filter, cable obstruction, or compact chassis.
At Capital Technology Co., Limited, we work with cooling requirements involving DC fans, AC fans, and high-performance San Ace cooling fans. As the CAPTIAL brand owner and a principal SANYO DENKI distributor, we understand that a dependable thermal design begins with selecting a fan for the real installed system, not only for the maximum values printed on a datasheet.
Airflow and static pressure describe two different but connected aspects of cooling fan performance.
- Airflow measures the volume of air that a fan moves over time.
- Static pressure measures the fan's ability to push air through resistance.
- Both values change during actual installation.
- The fan's real operating point is determined by the fan curve and the system resistance curve.
In simple terms, airflow answers:
"How much air can the fan move?"
Static pressure answers:
"How effectively can the fan keep moving air when the system blocks or resists that airflow?"
A San Ace fan is selected correctly when it can deliver the required airflow at the resistance level of the finished equipment.
Airflow is commonly stated in:
- CFM — cubic feet per minute
- m³/min — cubic meters per minute
- m³/h — cubic meters per hour
Higher airflow can remove more heat because moving air carries thermal energy away from heat-generating components. This makes airflow a primary design factor for equipment with relatively open ventilation paths.
Typical applications that may prioritize airflow include:
- Open-frame power systems
- Large cabinets with wide ventilation openings
- Low-density industrial enclosures
- Equipment with minimal filters or restrictive grilles
- Systems with large internal air channels
However, maximum airflow is usually measured at zero static pressure. This is often called free-air operation. It does not mean the fan will provide the same airflow after it is mounted inside a real product.
Static pressure is commonly stated in:
- Pa — pascals
- mmH₂O — millimeters of water column
- inchH₂O — inches of water column
A cooling fan needs static pressure to overcome airflow restrictions. These restrictions are created by internal hardware and enclosure features.
Common sources of airflow resistance include:
- Dense fin heat sinks
- Air filters
- Fan guards
- Perforated panels
- Narrow ducts
- EMI shielding structures
- Server blades and PCB assemblies
- Cable bundles
- Battery modules
- Closely packed power electronics
A high-static-pressure San Ace cooling fan is often more suitable for compact, high-power-density equipment. In these systems, a high-airflow fan with insufficient pressure capability can lose a significant amount of airflow after installation.

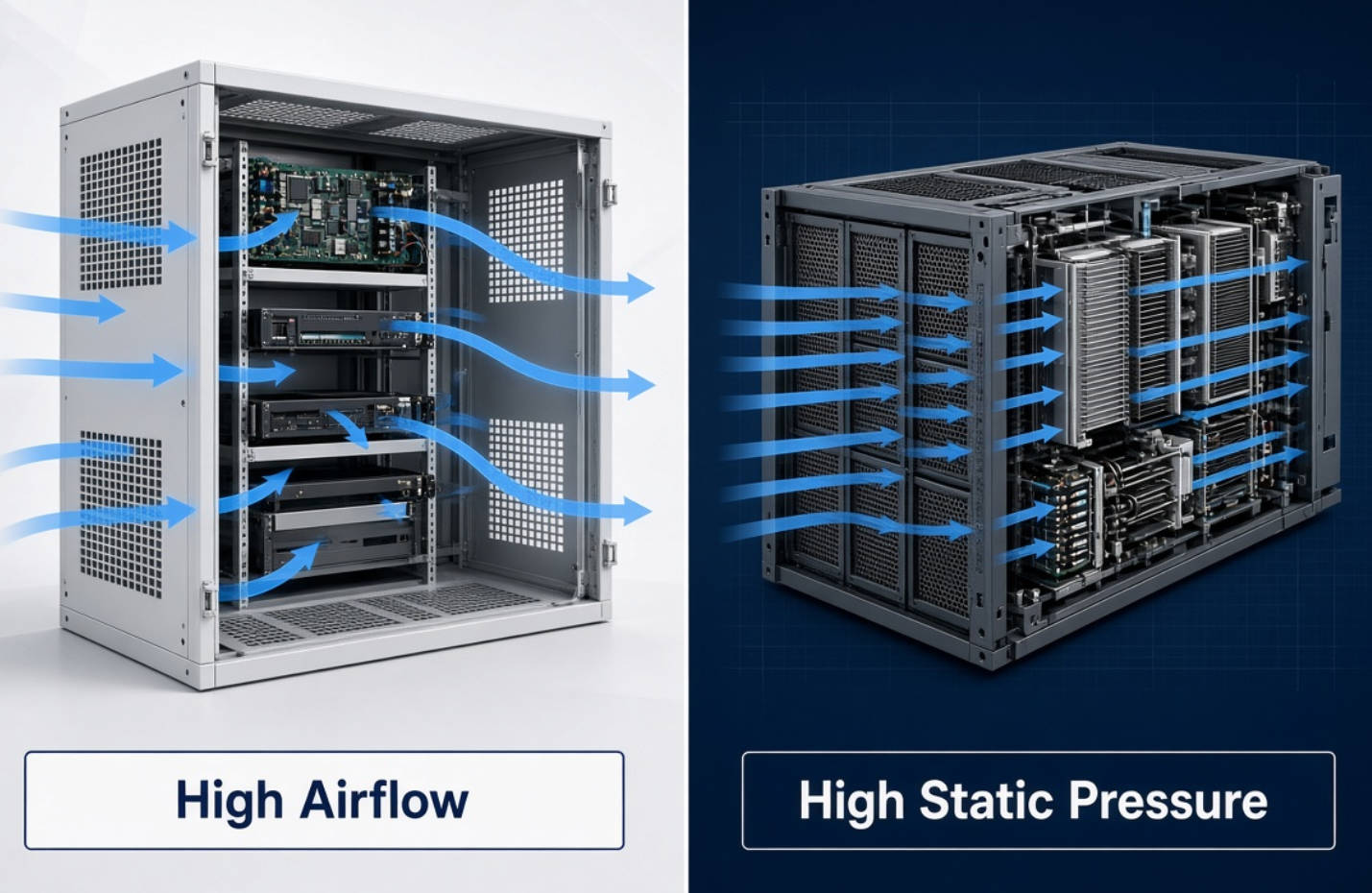

The following table provides a practical comparison between airflow and static pressure when selecting a San Ace cooling fan.
| Selection Factor | Airflow | Static Pressure |
|---|---|---|
| Primary meaning | Volume of air moved by the fan | Ability to move air against resistance |
| Common units | CFM, m³/min, m³/h | Pa, mmH₂O, inchH₂O |
| Maximum value occurs when | Airflow path is unrestricted | Airflow is blocked or near zero |
| Most important for | Open and low-resistance equipment | Restricted and high-impedance equipment |
| Typical installation example | Open industrial cabinet | Server, switch, dense heat sink, filtered enclosure |
| Main risk of selecting too low | Insufficient heat removal | Airflow collapses after installation |
| Best evaluation method | Required airflow calculation | Fan curve and system impedance analysis |
The key principle is straightforward:
High airflow does not automatically mean high cooling performance in a restrictive system.
A fan must create enough pressure to maintain useful airflow through the actual internal structure of the equipment.
A fan datasheet may list a maximum airflow value and a maximum static pressure value. These figures are useful, but they do not represent the normal operating condition at the same time.
A fan reaches its:
- Maximum airflow at approximately zero static pressure.
- Maximum static pressure at approximately zero airflow.
In real equipment, the fan operates somewhere between these two extremes.

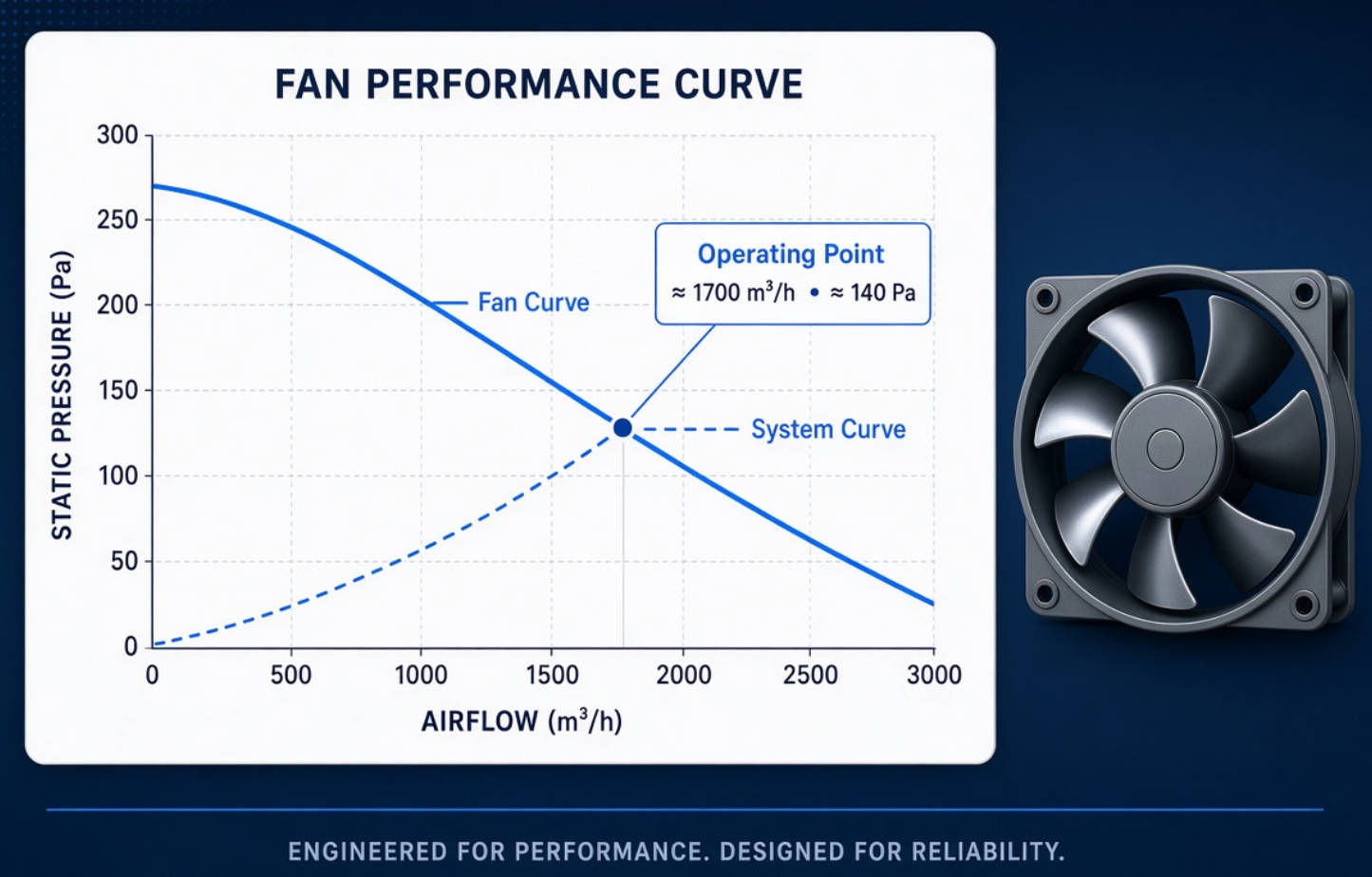

This relationship is shown by the P-Q curve, also called the airflow–static pressure characteristic curve. It plots airflow on one axis and static pressure on the other.
The equipment itself also has a resistance characteristic, often called the system impedance curve. The operating point is where the fan curve and system curve intersect.
Imagine two 92 mm San Ace DC fans:
| Fan Option | Maximum Airflow | Maximum Static Pressure | Best Fit |
|---|---|---|---|
| Fan A | 118 CFM | 280 Pa | General high-airflow cooling |
| Fan B | 80 CFM | 700 Pa | Restricted airflow paths |
If both fans are installed in an open enclosure, Fan A may move more air and provide better cooling.
But if the enclosure contains a high-density heat sink, narrow airflow channels, filters, and tightly arranged PCBs, Fan B may maintain more actual airflow at the operating point. As a result, it may cool the critical component more effectively despite its lower free-air airflow value.
The best fan is not the fan with the highest number. It is the fan that delivers the required airflow at the required pressure.
A disciplined fan selection process helps reduce thermal failures, noise complaints, unnecessary power consumption, and redesign costs.
Begin by estimating how much heat must be removed from the enclosure.
The total heat load may include:
- CPU, GPU, FPGA, or ASIC heat dissipation
- Power supply losses
- DC/DC converter losses
- Battery charging losses
- RF module heat generation
- Motor drive electronics
- LED driver heat
- Transformer and inductor losses
For early-stage design, engineers often calculate approximate airflow from total heat dissipation and allowable temperature rise.
A practical relationship is:
Q=P/(ρ×Cp×ΔT)
Where:
- Q is required volumetric airflow.
- P is heat dissipation.
- ρ is air density.
- Cp is the specific heat capacity of air.
- ΔT is the allowable air temperature rise.
This calculation provides an initial airflow target. It should not replace thermal testing because internal recirculation, component placement, altitude, and installation conditions can significantly affect performance.
Next, map the complete airflow path from fan inlet to fan outlet.
Look for restrictions such as:
- Narrow intake and exhaust openings
- Fan guards
- Filters
- Heat sinks
- Internal partitions
- PCB spacing
- Cable harnesses
- Air ducts
- Perforated metal panels
- Dust accumulation risk
A design with more restrictions requires a fan with stronger static-pressure performance.
System impedance increases as airflow increases. In many cases, the relationship can be approximated as:
Ps = C*Q2
Where:
- Ps is static pressure.
- Q is airflow.
- C is a system-specific resistance coefficient.
This means that doubling airflow can create approximately four times the resistance pressure requirement. That is why compact electronics can become difficult to cool even when only a modest airflow increase is needed.
For a new product, system impedance may be estimated through simulation, prototype testing, comparative measurement, or engineering experience. For an existing system, measurement of installed airflow and temperature rise gives more reliable selection data.
Overlay the fan's airflow–static pressure curve with the system impedance curve.
The intersection shows the expected operating point.
Choose a candidate fan whose curve provides sufficient margin above the required operating point. In many cases, selecting a fan that runs close to its limit can lead to temperature instability when filters become dirty, ambient temperature rises, or components are upgraded.
A useful engineering target is to avoid selecting a fan only for its free-air maximum. Instead, focus on the airflow delivered at the pressure level your system actually creates.
After identifying fans that meet thermal requirements, compare the following:
- Sound pressure level
- Input power
- Rated speed
- Bearing type
- Expected service life
- Operating temperature range
- Voltage range
- Speed control method
- Alarm output
- PWM compatibility
- Locked-rotor protection
- Sensor options
- Ingress protection needs
- Mounting space
The quietest fan may not be the best choice if it cannot maintain airflow through a restrictive system. Similarly, the highest-speed fan may not be ideal if a lower-power model can meet the required operating point with less noise.
Final fan selection should always be confirmed in the assembled product.
Test under realistic conditions:
1. Maximum ambient temperature
2. Maximum electrical load
3. Dust filter condition
4. Normal and abnormal airflow orientation
5. Expected installation clearance
6. Fan speed-control range
7. Temperature at critical components
8. Acoustic performance at operator distance
This final validation step is essential because small changes in vent shape, cable routing, heat-sink geometry, and board layout can shift the system resistance curve.
A high-airflow San Ace fan is usually the best starting point when the system has a relatively low-resistance airflow path.
Choose airflow-focused fan performance when the equipment has:
- Large intake and exhaust openings
- Open internal spacing
- Limited use of filters
- Low-density electronics
- Short and straight airflow channels
- Few obstructions between inlet and outlet
- A need to exchange large volumes of warm air quickly
Typical applications include:
- Large telecom cabinets
- Industrial cabinets
- Ventilated power enclosures
- Open-frame test equipment
- Low-restriction electrical control systems
For example, a cabinet with generous ventilation openings may benefit more from a fan with high CFM than from an extreme high-static-pressure fan. In this situation, pressure capability beyond the system requirement may increase noise and power use without providing a meaningful thermal advantage.
High static pressure becomes critical when airflow must pass through narrow, dense, or restrictive paths.
Prioritize static pressure for:
- Rack servers
- Network switches
- Storage systems
- Telecom base-station equipment
- High-density power supplies
- EV charging equipment
- Energy-storage systems
- Battery management systems
- Compact industrial PCs
- Filtered control enclosures
- Systems using dense fin heat sinks
San Ace high-static-pressure, counter-rotating, and high-speed fan configurations can be especially useful when a standard axial fan cannot maintain enough airflow through the system.
For example, a high-density switch may contain tightly packed PCBs, high-power processors, optical modules, and narrow exhaust vents. Even a fan with high free-air airflow can struggle in this environment. A high-static-pressure fan may produce lower airflow in open air but deliver better real cooling once installed.
San Ace cooling fans are available in multiple configurations, including DC fans, AC fans, ACDC fans, blower fans, counter-rotating fans, long-life fans, and models with control or monitoring functions.
| Fan Category | Typical Strength | Suitable Application |
|---|---|---|
| DC fan | Compact size, speed control, broad voltage options | Telecom, industrial electronics, servers |
| AC fan | Simple AC-powered cooling | Industrial cabinets, electrical equipment |
| ACDC fan | Wide AC input with DC fan characteristics | Global equipment with variable mains input |
| High static pressure fan | Strong performance through restrictions | Heat sinks, filters, compact servers |
| Counter-rotating fan | Very high pressure and airflow in compact space | Storage, switches, high-density equipment |
| Blower fan | Directed airflow through ducts or targeted zones | Printers, instruments, compact modules |
| Long-life fan | Durability-focused cooling | 24/7 industrial and communication equipment |
The correct product family depends on installation space, voltage, airflow direction, operating environment, system resistance, and lifecycle expectations.
Increasing fan speed can raise both airflow and static pressure. In general, airflow rises roughly in proportion to rotational speed, while static pressure rises approximately with the square of rotational speed.
This can make high-speed fans highly effective in restrictive systems. However, the trade-offs can be substantial:
- Higher acoustic noise
- Higher power consumption
- More vibration
- Greater dust movement
- Increased mechanical stress
- Potentially higher system-level cost
From an engineering perspective, the best solution is often not "use the fastest fan." It is "reduce unnecessary resistance and select the most efficient fan curve."
Before moving to a higher-speed model, examine whether the enclosure can be improved through:
- Larger vent area
- Lower-resistance fan guards
- Better cable management
- More direct airflow channels
- Optimized heat-sink fin spacing
- Improved inlet and outlet separation
- Reduced recirculation zones
- Cleaner filter design
These changes may reduce pressure loss enough to allow a quieter and lower-power fan to meet the same thermal target.
Avoid these frequent errors when choosing a San Ace cooling fan.
Maximum CFM is measured with minimal restriction. It does not show installed airflow in a real system.
Filters, fan guards, and fine perforations can create significant pressure loss. Their effect increases as airflow rises.
A high-performance fan can solve a thermal issue but create unacceptable noise for office, medical, commercial, or operator-facing equipment.
Confirm whether the product needs airflow from frame side to label side or from label side to frame side. Incorrect orientation can cause recirculation and local hot spots.
A system that passes thermal testing with a clean filter may fail after filter loading increases system impedance.
Datasheet performance is essential, but it is not a substitute for thermal testing in the final enclosure.
The most effective fan selection process combines component knowledge with system-level thermal understanding. A fan supplier should be able to discuss not only voltage, size, and CFM, but also pressure curves, mounting conditions, control methods, acoustic constraints, and application environment.
Capital Technology Co., Limited supplies thermal solutions built around DC fans, AC fans, and San Ace cooling fan options. With independent CAPTIAL products and principal SANYO DENKI distribution capability, we can help engineering and procurement teams evaluate cooling requirements for demanding communication, industrial, and power-electronics projects.
Provide your enclosure size, heat load, allowable temperature rise, voltage, available mounting space, airflow direction, and internal restrictions. A more accurate system description leads to a more reliable fan recommendation.
To choose a San Ace cooling fan by airflow and static pressure, start with the real cooling challenge inside the equipment.
Choose high airflow when the airflow path is open and resistance is low. Choose high static pressure when air must pass through filters, heat sinks, narrow vents, dense PCBs, or other restrictions. Then use the fan curve and system impedance curve to identify the operating point that matters in actual service.
A well-matched cooling fan improves component reliability, reduces overheating risk, controls acoustic output, and can prevent expensive redesign work. Do not select from maximum CFM alone. Select the fan that delivers sufficient airflow at your actual system pressure.
Airflow is the volume of air moved by the fan, while static pressure is the force that allows the fan to push air through restrictions. Both values are necessary for proper cooling fan selection.
No. A higher-CFM fan may perform well in open air but lose much of its airflow when installed in a restrictive enclosure. In high-resistance systems, static pressure capability can be more important.
Your system may need a high-static-pressure fan if it includes dense heat sinks, filters, narrow vents, compact PCB spacing, long air ducts, tight cable bundles, or high-density electronic modules.
The operating point is where the fan's airflow–static pressure curve intersects with the system impedance curve. It represents the actual airflow and pressure the fan will deliver after installation.
Yes. Two identical fans in series can increase pressure capability, while two identical fans in parallel can increase airflow capacity. Actual results depend on system design, spacing, control strategy, and airflow interaction.
The final enclosure includes real restrictions that cannot always be predicted accurately from a datasheet. Testing confirms temperature, airflow, noise, power consumption, and reliability under real operating conditions.
DC fans are commonly preferred in electronics because they can support speed control, monitoring, compact packaging, and low-voltage operation. AC fans remain useful for many industrial cabinets and AC-powered equipment. The best option depends on the system voltage, control requirements, environment, and performance target.
Provide the equipment heat load, enclosure dimensions, ambient temperature, voltage, available installation space, airflow direction, required service life, noise limits, and details about filters, heat sinks, vents, and other airflow restrictions.
1. SANYO DENKI, [Fan Air Volume and Static Pressure: Basic Knowledge of Fans]
2. SANYO DENKI, [Guideline in Selecting a Fan]
3. SANYO DENKI, [San Ace DC Cooling Fans]
4. SANYO DENKI, [DC Fan Product Catalog]
5. SANYO DENKI, [ACDC Fan and AC Fan Product Catalog]
6. SANYO DENKI, [Cooling Systems Specialty Technologies for Achieving High Airflow and High Static Pressure]
7. SANYO DENKI, [92 × 92 × 25 mm San Ace 92 High Static Pressure Fan]
8. SANYO DENKI, [38 × 38 × 28 mm San Ace 38 9HVA Type DC Fan]
9. SANYO DENKI, [80 × 80 × 80 mm San Ace 80 Counter-Rotating Fan]
10. SANYO DENKI, [92 × 92 × 25 mm San Ace 92AD ACDC Fan] [sanyodenki]
