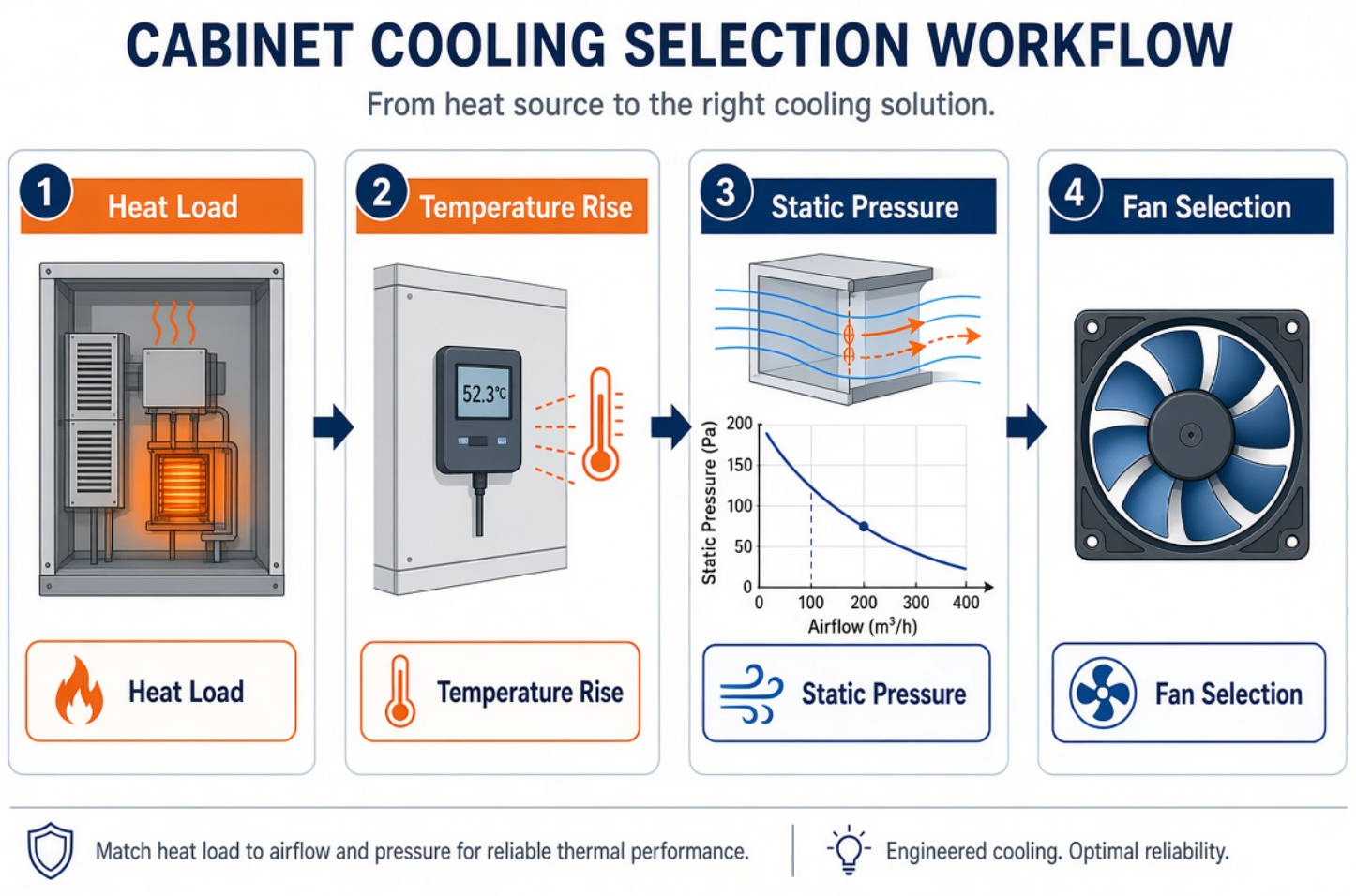

>> Step 1: Calculate internal heat dissipation
>> Step 2: Define the allowable temperature rise
>> Step 3: Estimate required airflow
>> Step 4: Check the fan curve under real resistance
● Design an Airflow Path That Reaches Hot Components
>> Use low intake and high exhaust
>> Keep cables out of the airflow channel
>> Separate hot and sensitive components
● Open-Loop Fans vs. Closed-Loop Cooling
● Smart Fan Control Improves Reliability
>> Recommended control strategy
● Common Cabinet Cooling Mistakes to Avoid
>> Installing intake and exhaust too close together
>> Ignoring filter maintenance
>> Using fans when ambient air is already too hot
>> Treating cooling as an afterthought
● Why Work With Capital Technology
● FAQ
>> 1. How do electronic cabinet cooling fans prevent overheating?
>> 2. How do I know whether I need a DC fan or AC fan?
>> 3. What is more important: airflow or static pressure?
>> 4. Can a cooling fan lower cabinet temperature below ambient temperature?
>> 5. Where should cabinet cooling fans be installed?
>> 6. How often should cabinet fan filters be cleaned or replaced?
>> 7. Why is my cabinet still overheating after adding a fan?
Electronic cabinet cooling fans are one of the most practical ways to prevent overheating in telecom cabinets, industrial control panels, power electronics, data equipment, and automation enclosures. By creating a controlled airflow path, the right DC fan, AC fan, or blower removes heat before it becomes a reliability, performance, or downtime problem.
At Capital Technology Co., Limited, we work from a simple engineering principle: a cooling fan is not merely an air-moving component. It is part of the cabinet's complete thermal-management system. Fan airflow, static pressure, operating environment, filtration, mounting position, and control logic must work together to protect the equipment inside.
This guide explains how electronic cabinet cooling fans work, how to select them, and how to avoid the airflow mistakes that cause persistent hot spots.
Every electronic enclosure produces heat. Power supplies, rectifiers, PLCs, VFDs, CPUs, switches, relays, converters, and communication modules all convert part of their input energy into heat during normal operation.
In an open room, some of that heat dissipates naturally. Inside a compact cabinet, however, heat can become trapped. The cabinet may protect sensitive components from dust, moisture, accidental contact, and physical impact—but it can also restrict natural convection.
The result is a rising internal temperature, especially near the top of the enclosure where hot air collects.
Overheating rarely begins with a dramatic failure. More often, it appears as gradual instability:
- Thermal throttling in processors, communication equipment, and power electronics
- Shortened capacitor life due to sustained high temperatures
- Solder-joint fatigue caused by repeated heating and cooling cycles
- Nuisance alarms and intermittent communication failures
- Premature fan failure when the cooling system itself operates beyond its intended conditions
- Unplanned downtime in industrial, telecom, and infrastructure applications
For high-availability systems, the relevant question is not simply, "Is the cabinet hot?" It is: "Are all critical components operating inside their specified temperature limits under peak load and worst-case ambient conditions?"
Electronic cabinet cooling fans use forced convection. They move air across hot surfaces, heat sinks, and components, then carry the absorbed heat toward the cabinet exhaust.
A properly designed system has three stages:
1. Cooler air enters through an intake vent, filter fan, or lower cabinet opening.
2. Air moves across the components that generate the most heat.
3. Hot air exits through an exhaust fan, upper vent, or dedicated outlet.
This continuous air exchange prevents hot air from remaining around temperature-sensitive electronics.
Installing more fans does not automatically solve an overheating problem. A cabinet can contain several high-CFM fans and still run hot if intake air bypasses the heat source and exits immediately.
This is known as airflow short-circuiting.
A better design creates a defined path: cool air enters low, moves through the equipment zone, absorbs heat, and leaves high on the opposite side. This diagonal airflow pattern uses the natural tendency of hot air to rise while forcing cooling air through the areas that need it most.
> Practical rule: Select a fan system based on effective airflow through the cabinet—not free-air airflow listed on a datasheet alone.
Both DC cooling fans and AC cooling fans can provide reliable cabinet cooling. The right choice depends on the power supply, required control method, operating environment, airflow resistance, and maintenance strategy.
| Selection factor | DC fan | AC fan |
|---|---|---|
| Typical power source | 12 VDC, 24 VDC, 48 VDC | 110 VAC, 220–240 VAC |
| Speed control | Simple with PWM, voltage, or smart controls | Usually fixed speed; variable-speed options may require added control hardware |
| Monitoring options | Tachometer, alarm output, locked-rotor signal, PWM control | Often simpler wiring; monitoring depends on model |
| Common applications | Telecom, battery systems, servers, automation, network equipment | Electrical cabinets, machinery, HVAC panels, industrial control cabinets |
| Energy optimization | Strong potential with temperature-based speed control | Suitable for straightforward, continuous-duty cooling |
| Selection priority | Smart control, compact integration, low-voltage systems | Installation simplicity, mains-powered equipment, rugged industrial use |
An axial fan moves a high volume of air in relatively low-resistance conditions. It is usually the preferred solution for electronic cabinets with open airflow paths, large vents, and moderate filter resistance.
Axial fans are widely used in:
- Telecom and communication cabinets
- Control panels
- Network switches and server racks
- Power supplies and UPS systems
- Indoor industrial automation enclosures
A centrifugal fan or blower is generally more suitable when air must travel through restrictive paths, dense filters, narrow ducts, heat sinks, louvers, or closely packed wiring.
Its main advantage is higher static pressure. In practical terms, it can continue moving useful air when a standard axial fan loses too much airflow because resistance inside the cabinet is high.
For cabinets with substantial impedance, static-pressure performance is often more important than the fan's maximum free-air CFM rating.
A reliable thermal design begins with heat load, not fan dimensions.
Add the heat dissipation of all components inside the enclosure. Whenever possible, use the manufacturer's stated power-loss data rather than total input power.
Typical internal heat sources include:
- AC/DC and DC/DC power supplies
- Variable-frequency drives and servo drives
- Transformers and contactors
- PLCs, CPUs, switches, and routers
- Rectifiers, inverters, and battery-charging systems
- Displays, industrial PCs, and communication modules
If a component's heat-loss figure is unavailable, request it from the equipment manufacturer before finalizing the fan selection.
Calculate the difference between the maximum permitted internal air temperature and the highest expected ambient temperature:
ΔT=Tinternal target−Tambient maximum
For example, if the cabinet must stay at or below 40°C and the maximum surrounding temperature is 30°C, the available temperature rise is 10°C.
A smaller allowable temperature rise means the system needs more airflow.
For an initial engineering estimate:
For a 200 W cabinet with a 10°C allowable rise:
(3.1×200)/10=62 m³/h
This should be treated as a starting point—not the final selection. Add margin for filter contamination, altitude, component aging, cable congestion, and seasonal ambient-temperature changes.
The installed airflow is lower than the free-air rating when the cabinet includes:
- Dust filters
- Fan guards
- Louvers
- Narrow vent cutouts
- Cable bundles
- Dense heat sinks
- Internal partitions
- Long or curved duct paths
Always review the fan's P-Q curve, which shows airflow at different static-pressure levels. The selected fan should still deliver the required airflow at the system's expected operating resistance.

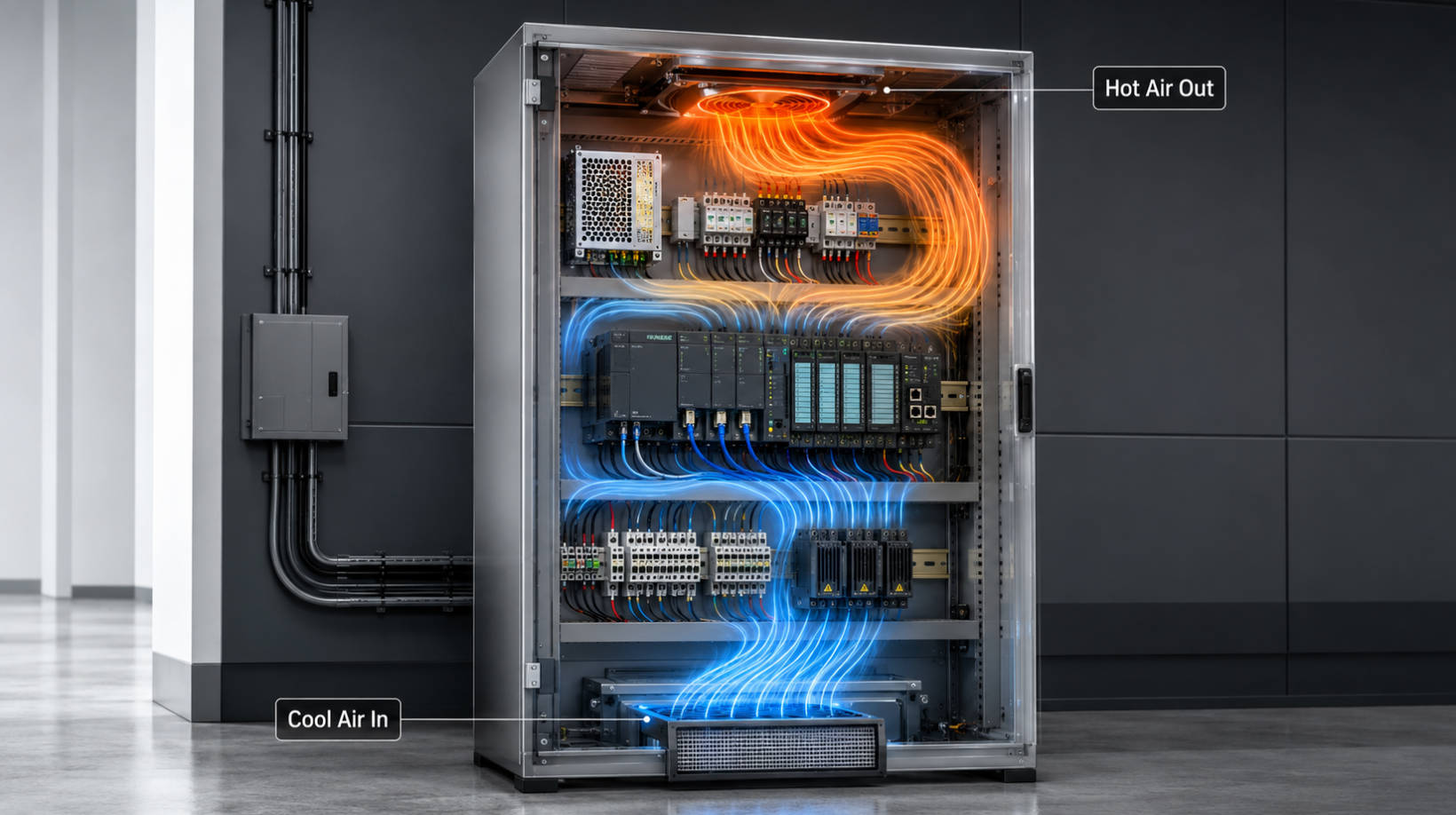

The most effective cabinet cooling fan is one installed in the right position.
Place the air intake near the bottom of the enclosure and the exhaust outlet near the top. This supports the natural upward movement of hot air and encourages a full cabinet sweep.
For larger cabinets, place the intake and exhaust on opposite sides or opposite corners where possible. The objective is to prevent cool air from bypassing the hottest equipment.
Cable bundles are a common source of hidden airflow resistance. A cabinet may have an adequate fan on paper but poor real-world cooling because cables block the route between intake and exhaust.
Use cable routing channels, spacing, and internal baffles to preserve a clear air path through high-heat zones.
Do not place a temperature-sensitive PLC, communications module, or battery-management system directly above a high-heat drive or power supply without considering the thermal plume.
Where layout flexibility exists:
- Put major heat sources closer to the exhaust path
- Keep sensitive electronics out of the hottest upper zone
- Leave clearance around fan inlets and outlets
- Avoid placing components directly against cabinet walls when airflow is required
A fan-based system is effective only when ambient air is cool enough and clean enough to enter the cabinet.
| Environment or condition | Recommended approach | Key consideration |
|---|---|---|
| Clean indoor environment, moderate heat load | Filter fan and exhaust vent | Maintain filters and verify airflow |
| Dusty factory floor | High-static-pressure filter fan | Monitor filter loading and service intervals |
| Outdoor cabinet with solar exposure | Fan system plus sun shield or larger thermal solution | Account for solar heat gain |
| Hot ambient above target internal temperature | Air conditioner or thermoelectric solution | Fans alone cannot cool below ambient |
| Corrosive, wet, or washdown area | Closed-loop heat exchanger or sealed cooling solution | Avoid introducing contaminated air |
| High IP or NEMA protection requirement | Matched, gasketed cooling system | Preserve enclosure protection performance |
An IP rating measures protection against ingress of solids and liquids, while NEMA enclosure types include additional environmental considerations. They are not interchangeable ratings. [iec]
A cabinet fan running at full speed continuously may provide cooling, but it can also create unnecessary noise, energy use, dust accumulation, and bearing wear.
- Use a temperature sensor near the hottest expected area
- Start fans at a defined threshold
- Increase fan speed as cabinet temperature rises
- Trigger an alarm if the temperature remains high despite maximum fan speed
- Use tachometer or locked-rotor monitoring where system availability is critical
- Schedule preventive inspection for filters, guards, vibration, and abnormal noise
A smart cooling strategy is especially valuable for telecom, network, battery, and industrial-control applications with changing loads.
A fan with a high advertised CFM rating may deliver insufficient airflow after filters, guards, and internal restrictions are added.
Better approach: Select according to the required operating point on the fan curve.
This allows air to enter and leave without cooling the internal heat sources.
Better approach: Create a longer, intentional airflow route through the cabinet.
A clogged filter reduces airflow, raises static pressure, and can turn a previously reliable cooling design into a recurring overheating issue.
Better approach: Set maintenance intervals based on the actual dust level, not a generic calendar schedule.
Fans transfer heat to surrounding air. They cannot reduce cabinet temperature below the temperature of the air entering the cabinet.
Better approach: Consider a closed-loop heat exchanger, air conditioner, or thermoelectric cooler when ambient conditions exceed the internal temperature target.
Late-stage fan additions can conflict with enclosure cutouts, IP protection, wiring routes, EMC needs, and maintenance access.
Better approach: Include thermal design during the cabinet-layout and component-selection stages.
Capital Technology Co., Limited provides thermal-management support for equipment manufacturers and system integrators seeking dependable DC fan and AC fan solutions.
As a source manufacturer with the independent CAPITAL brand and as a leading distributor of SANYO DENKI products, we help customers evaluate fan selection beyond nominal airflow. Our approach considers voltage, airflow, static pressure, bearing system, lifecycle expectations, noise, operating temperature, installation space, and application environment.
Our products support demanding applications across telecommunications, industrial automation, power electronics, network infrastructure, and electronic equipment. Capital Technology has also become a supplier to recognized organizations including ZTE, HUAWEI, and HYTERA.
Need help selecting an electronic cabinet cooling fan? Send Capital Technology your cabinet dimensions, internal heat load, maximum ambient temperature, protection requirement, power supply, and installation layout. Our engineering team can help identify a DC fan, AC fan, blower, or complete airflow strategy matched to your real operating conditions.
They prevent overheating by forcing air across heat-generating components and exhausting hot air from the enclosure. This reduces hot spots and helps keep internal temperatures within the operating limits of the installed equipment.
Choose based on available power, required controls, monitoring needs, and the application environment. DC fans are well suited to low-voltage systems and smart speed control, while AC fans are common in mains-powered industrial cabinets.
Both matter. Airflow indicates the volume of air a fan can move, while static pressure indicates its ability to overcome resistance from filters, vents, cables, guards, and heat sinks. In restrictive cabinets, static pressure is often the deciding factor.
No. A fan exchanges internal air with ambient air, so it cannot cool below the incoming-air temperature. If the surrounding environment is hotter than the desired cabinet temperature, use an air conditioner, thermoelectric cooler, or another closed-loop solution.
Install intake fans or vents low in the cabinet and exhaust fans or outlets high in the cabinet. Ideally, place them on opposite sides or corners to move air through the entire enclosure rather than allowing it to bypass hot components.
The correct interval depends on dust concentration, operating hours, and filter type. Inspect filters regularly after installation, establish a site-specific maintenance schedule, and replace or clean filters before airflow reduction affects cabinet temperature.
Common causes include inadequate fan static pressure, clogged filters, blocked vents, poor fan placement, airflow short-circuiting, excessive ambient temperature, or an internal heat load larger than the cooling system was designed to handle.
