Forced air cooling is no longer a "nice to have" add‑on; for most modern electronics, it is a mission‑critical design choice that directly determines performance, reliability, and product lifetime. As a thermal engineer working with data centers, telecom OEMs, and industrial device manufacturers, I have seen repeatedly that the right combination of DC and AC fans can turn a borderline thermal design into a robust, scalable platform. [acdcecfan]

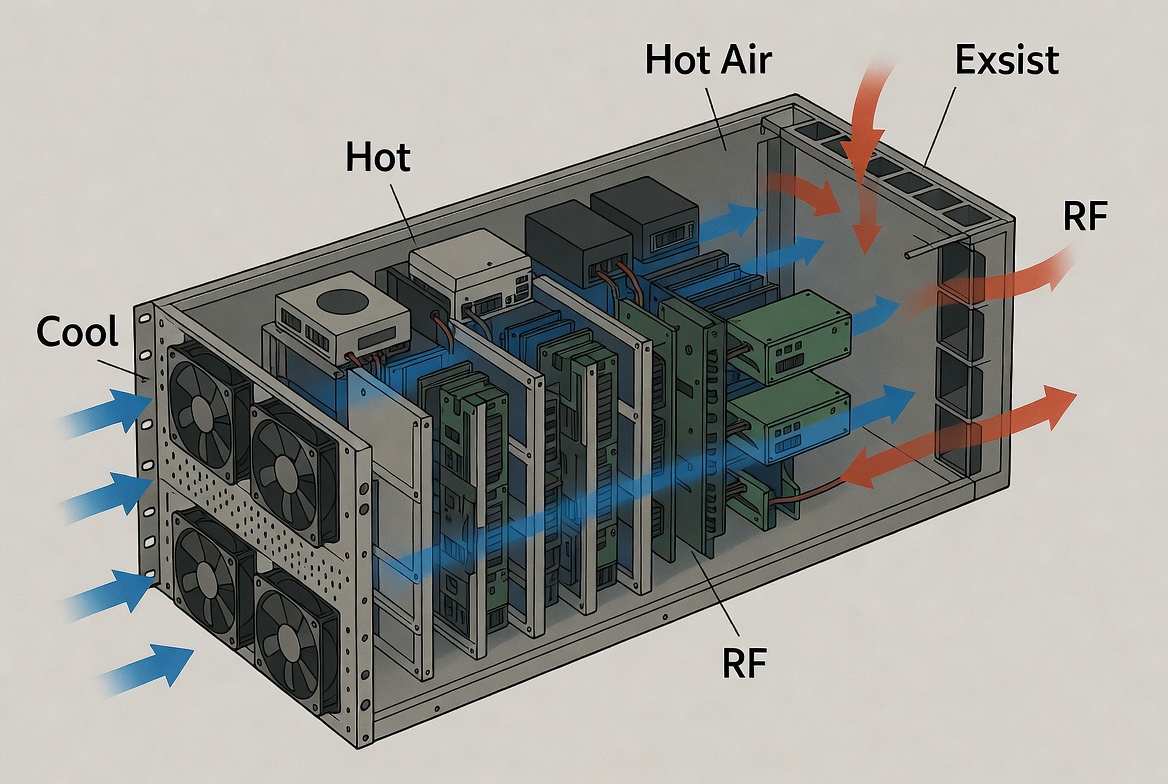

Forced air cooling uses fans or blowers to actively move air across hot components and heat‑dissipating surfaces, increasing convective heat transfer and keeping temperatures within safe limits. Unlike passive cooling, which relies only on natural convection and radiation, forced air systems give engineers a controllable thermal "lever" they can tune for different workloads and environments. [ig]
In practice, this means adding DC or AC axial fans, centrifugal blowers, or EC fans inside enclosures, racks, or cabinets to direct airflow through a defined path. By engineering that path with inlet and outlet openings, baffles, and filters, you can achieve consistent cooling even as ambient temperature, load, or altitude change. [acdcecfan]
Modern processors, FPGAs, RF front ends, and high‑density power supplies can reach power densities that are orders of magnitude higher than a decade ago. According to industry case data, a well‑designed forced‑air system can handle thermal loads far beyond what a passive‑only design can support, especially in compact 1U servers, 5G radio heads, and medical imaging power modules. [acdcecfan]
Without forced airflow, you would need heatsinks, chassis, or radiators up to 5–10 times larger to keep junction temperatures in spec, which is not realistic in most form factors. This is exactly why high‑performance servers and base stations rely on tightly engineered fan trays and ducting instead of oversized metal blocks. [ig]
Forced air cooling enables high power density and miniaturization by allowing components to be placed closer together without overheating. That is how designers can fit multi‑kilowatt power stages or multi‑socket processors into low‑profile "pizza‑box" servers and compact outdoor telecom units. [fanacdc]
If you try to maintain the same power level with only natural convection, the enclosure size balloons, cable lengths increase, and EMI, vibration, and serviceability all become harder to manage. Forced air lets you avoid that trade‑off and ship smaller, lighter, more competitive products. [fanacdc]
From a system designer's perspective, the business case for forced air cooling usually aligns around four pillars.
- Better thermal margins: Actively moving air over hotspots reduces component temperatures and increases long‑term stability under peak loads. [acdcecfan]
- Higher reliability and lifetime: Every 10 °C reduction in operating temperature can significantly extend component lifetime, especially for capacitors and semiconductors. [ig]
- Design flexibility: You can tune airflow with fan speed profiles, add redundancy, or create independent thermal zones for different boards. [fanacdc]
- Cost and size optimization: Fans are relatively inexpensive compared to the cost of oversizing metal structures or redesigning entire chassis for natural convection. [acdcecfan]
When we evaluate new customer projects at Capital Technology Co., Limited (CAPITAL), we typically see that a carefully optimized DC or AC fan solution reduces overall BOM and enclosure cost compared with "over‑engineering" passive heatsinks. [en.szcpt]

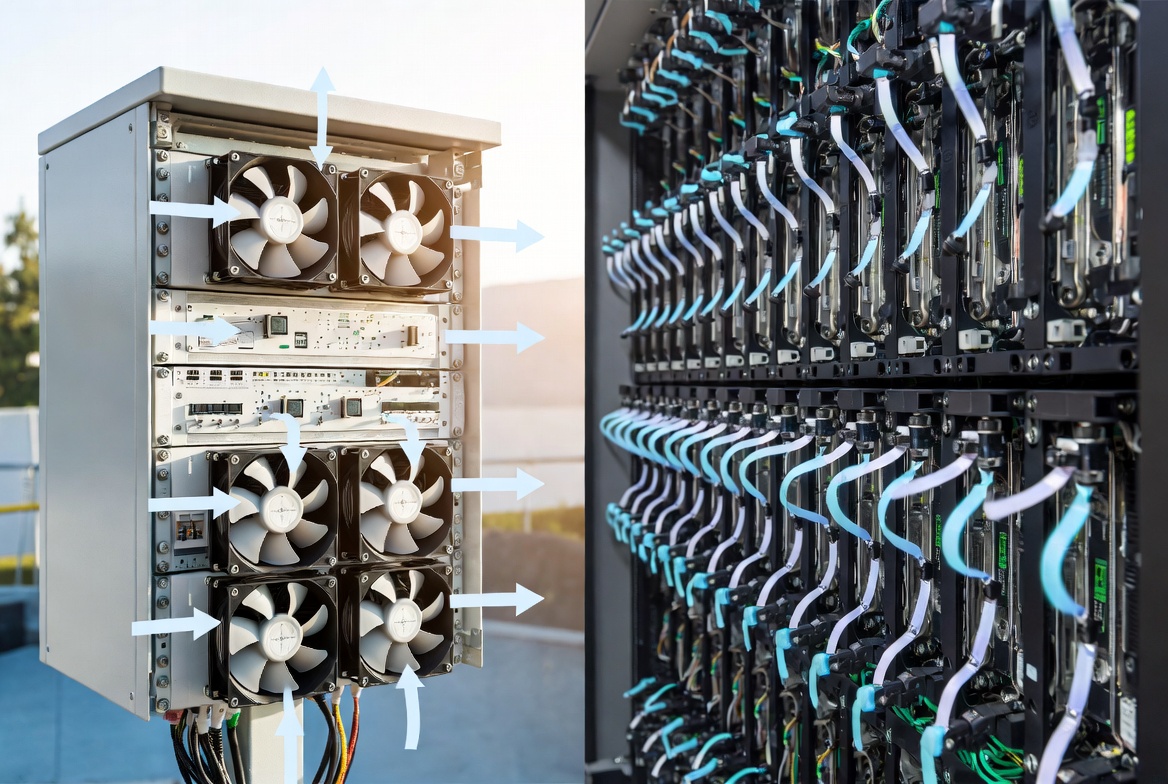

In 5G radio units and baseband units, high RF output power and compact outdoor enclosures create extreme thermal stress. Forced air cooling with high‑reliability DC fans ensures stable RF performance across wide ambient temperature ranges and in polluted urban environments. Many leading OEMs, including ZTE, Huawei, and Hytera, rely on advanced fan solutions supplied by Capital to keep these systems within strict thermal budgets. [sanyodenki-cn]
Data centers push compute density to the limit. Forced air cooling allows 1U and 2U servers to deliver multi‑kilowatt racks while maintaining safe CPU and memory junction temperatures. Here, PWM‑controlled DC fans and intelligent fan trays enable dynamic airflow control: the system ramps fans up under peak workload and slows them down to reduce noise and power when idle. [acdcecfan]
Industrial automation controllers, inverters, UPS systems, and medical power supplies often operate 24/7 in demanding conditions. Forced air cooling extends their mean time between failures (MTBF) by keeping power semiconductors and magnetics within safe limits, even in dusty, high‑humidity environments. AC fans, DC fans, or EC fans can be combined with filters and sealed housings to strike a balance between cooling performance and environmental protection. [acdcecfan]

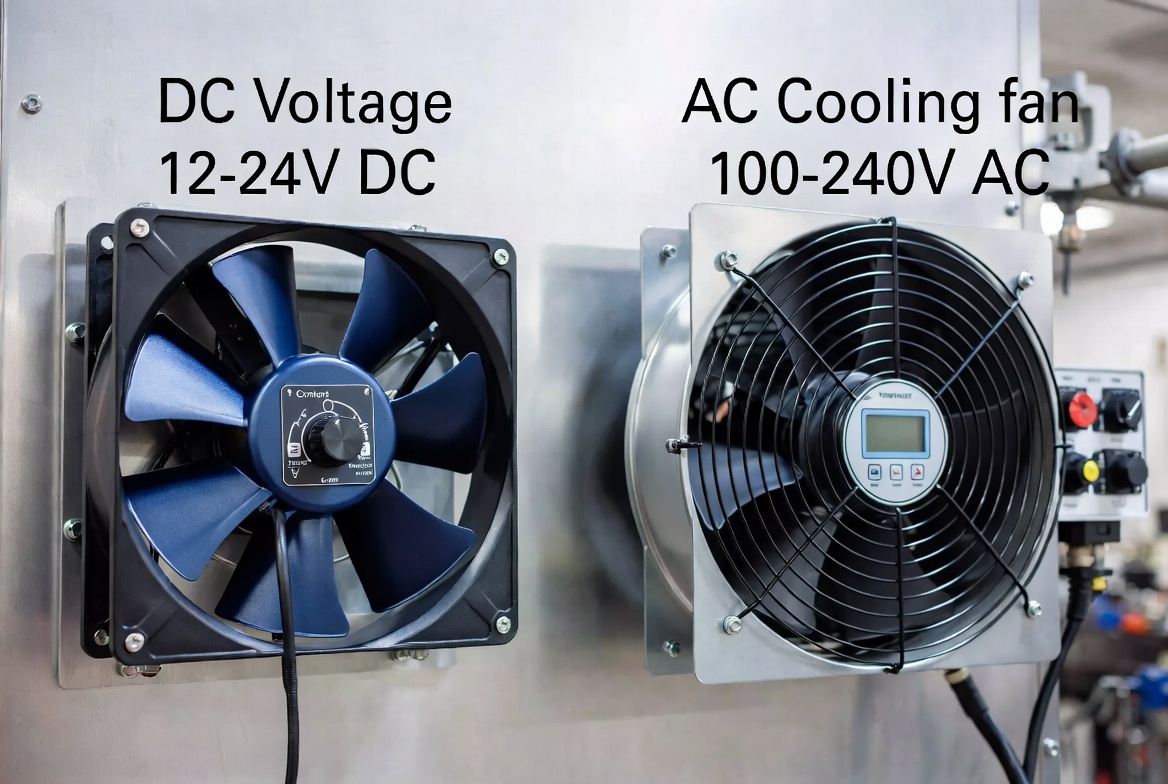

From an engineering and procurement standpoint, the most common question is: Should I use DC or AC fans for forced air cooling? There is no universal answer; each technology has strengths depending on your application.
| Feature | DC Cooling Fans | AC Cooling Fans |
|---|---|---|
| Power input | Low‑voltage DC (typically 5–60 V) acdcecfan | Mains AC (110–240 V, 50/60 Hz) acdcecfan |
| Control | Easy speed control via PWM or voltage acdcecfan | Limited direct speed control ig |
| Efficiency | High, especially with EC designs acdcecfan | Lower than modern DC/EC in many use cases delta-americas |
| Integration | Ideal for boards, telecom, servers acdcecfan | Ideal for standalone equipment, cabinets ig |
| Noise optimization | Fine‑grained fan curves possible acdcecfan | More fixed‑speed; noise reduction via design ig |
| Typical use | IT, telecom, instrumentation, medical acdcecfan | HVAC, industrial cabinets, large power systems ig |
In many modern systems, especially where energy efficiency and precise thermal management matter, DC fans or EC fans are becoming the default choice. AC fans remain a strong option where mains power is readily available and control requirements are simpler, such as certain industrial panels and legacy equipment. [delta-americas]

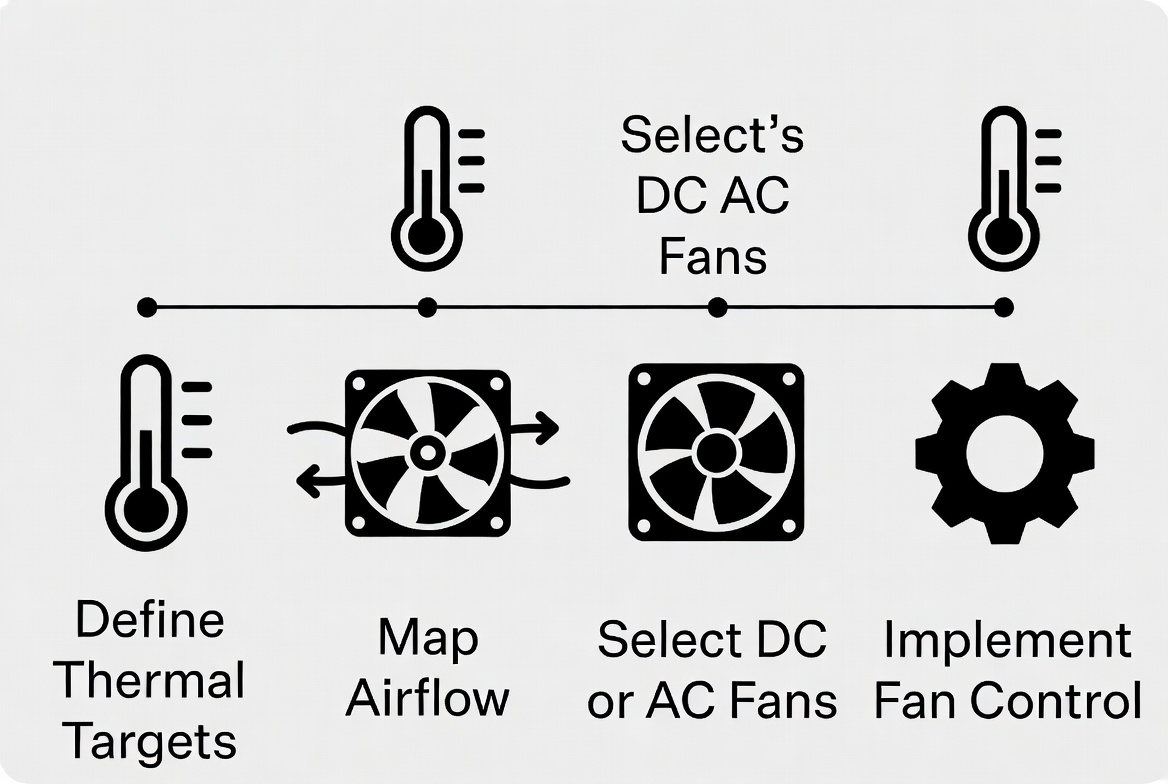

Based on field projects with telecom, networking, and industrial customers, a repeatable design approach typically includes these steps.
Start with clear, quantitative requirements:
- Maximum allowable junction temperature for key components
- Ambient temperature range and altitude
- Maximum system power and typical load profiles
With these, you can calculate required thermal resistance from junction to ambient and determine the necessary airflow (CFM) to stay within margin. [ig]
Next, define how air will actually move:
- Identify inlets and outlets, and ensure there is enough open area
- Position fans to pull or push air across the hottest zones first
- Avoid dead zones around tall components or cable bundles
CFD simulation helps, but even simple smoke tests and temperature mapping with thermocouples reveal where airflow is insufficient. [fanacdc]
Choose between DC, AC, or EC fans based on:
- Supply voltage and available power
- Required CFM, static pressure, and acoustics
- Expected lifetime and maintenance constraints
Brands such as SANYO DENKI are known for high‑reliability fans with excellent MTBF and performance under demanding conditions, and Capital, as a chief agent, leverages these products in many tailored solutions. [en.szcpt]
In advanced systems, forced air is not just on/off:
- Use temperature‑based fan curves to balance noise, power, and cooling
- Implement redundancy (N+1 fans) in critical infrastructure
- Add tachometer feedback and alarms for fan failure detection
Customers often report that moving from fixed‑speed AC fans to controlled DC or EC fans significantly reduces field failures and improves acoustic comfort. [acdcecfan]
From customer feedback and failure analyses, several patterns emerge that are worth highlighting.
1. "Just enough" airflow is dangerous. Designs that pass the lab test on a single hot day may fail in real deployments when filters clog, altitude changes, or ambient temperatures spike. Always design with margin. [ig]
2. Noise and reliability are linked. Oversized fans running at lower speeds are often both quieter and more reliable than small fans forced to run at maximum RPM. [fanacdc]
3. Dust is a silent killer. In telecom shelters and factory floors, dust accumulation can gradually choke airflow. User comments frequently mention that systems with easily accessible filters and clear maintenance instructions remain stable much longer. [carolinafarmstewards]
This is why we strongly recommend engaging a cooling partner early in the design cycle. Retrofitting forced air into an almost‑finished product is usually more expensive and less effective than co‑designing airflow, fans, and mechanical layout from the start. [ig]
You should seriously consider moving to or upgrading a forced air solution if:
- Your device experiences thermal throttling or unexpected shutdowns under peak load
- Field units in hot regions fail more often than those in cooler climates
- You are launching a new high‑density version of an existing platform
- Compliance testing flags high component temperatures or stability issues
In these cases, adding or optimizing DC and AC fans often delivers the fastest ROI compared with alternative thermal measures. A focused redesign of airflow and fan selection can unlock higher performance, faster time‑to‑market, and fewer warranty incidents. [acdcecfan]
As an original thermal solutions manufacturer with its own CAPITAL brand and as the chief agent of SANYO DENKI, Capital Technology Co., Limited brings both product depth and application expertise. Capital has become a trusted supplier to leading companies such as ZTE, Huawei, and Hytera by providing not just fans, but complete, validated cooling strategies for harsh, high‑reliability environments. [sanyodenki-cn]
By combining high‑quality DC and AC fans, thermal simulation, and on‑site testing, Capital can help you:
- Choose the optimal fan model and size for your design
- Balance performance, noise, efficiency, and cost
- Validate thermal performance with real‑world test conditions
If you are in the concept or redesign phase of a thermally challenging product, partnering with a specialist early can dramatically reduce project risk and shorten your path to a robust, scalable forced air cooling solution. [en.szcpt]
If your current or upcoming design is flirting with thermal limits, now is the right time to review your cooling strategy. A short consultation can reveal whether a tuned combination of DC and AC fans, better airflow design, or an upgrade to higher‑efficiency SANYO DENKI fans will give you the margins you need. [sanyodenki-cn]
Contact Capital Technology Co., Limited to discuss your application, share your thermal challenges, and receive a tailored forced air cooling proposal backed by real‑world industry experience. [en.szcpt]
If components consistently run close to their maximum rated temperature, or if you see throttling, random reboots, or temperature‑related errors, you likely need forced air cooling. Thermal imaging or spot temperature measurements under peak load are a simple way to confirm whether current cooling is sufficient. [fanacdc]
DC fans run on low‑voltage DC, are easy to control via PWM or voltage, and are ideal for electronics like servers and telecom systems. AC fans run directly on mains voltage, making them convenient for certain industrial or standalone equipment where simple, robust operation is the primary goal. [acdcecfan]
Yes. By using larger, more efficient fans at lower speeds and intelligent fan control curves, you can achieve strong cooling with low acoustic noise. Many medical and office‑grade systems combine DC or EC fans with well‑designed airflow channels to keep both noise and temperature under control. [delta-americas]
The interval depends on the environment. In clean offices, intervals of several months may be adequate, while dusty industrial or telecom environments might require maintenance every few weeks. Monitoring temperature trends or differential pressure can help you set a data‑driven maintenance schedule. [carolinafarmstewards]
Capital combines its own CAPTIAL‑brand cooling solutions with SANYO DENKI's proven fan technology and acts as the chief agent in multiple markets. This gives you access to a wide portfolio of high‑reliability DC and AC fans plus application engineering support trusted by major brands such as ZTE, Huawei, and Hytera. [sanyodenki-cn]
