Fan airflow resistance determines how much air a cooling fan actually moves through your equipment. Whether you are selecting a DC fan for a telecommunications enclosure or an AC fan for an industrial cabinet, maximum airflow alone cannot tell you whether the system will stay cool.

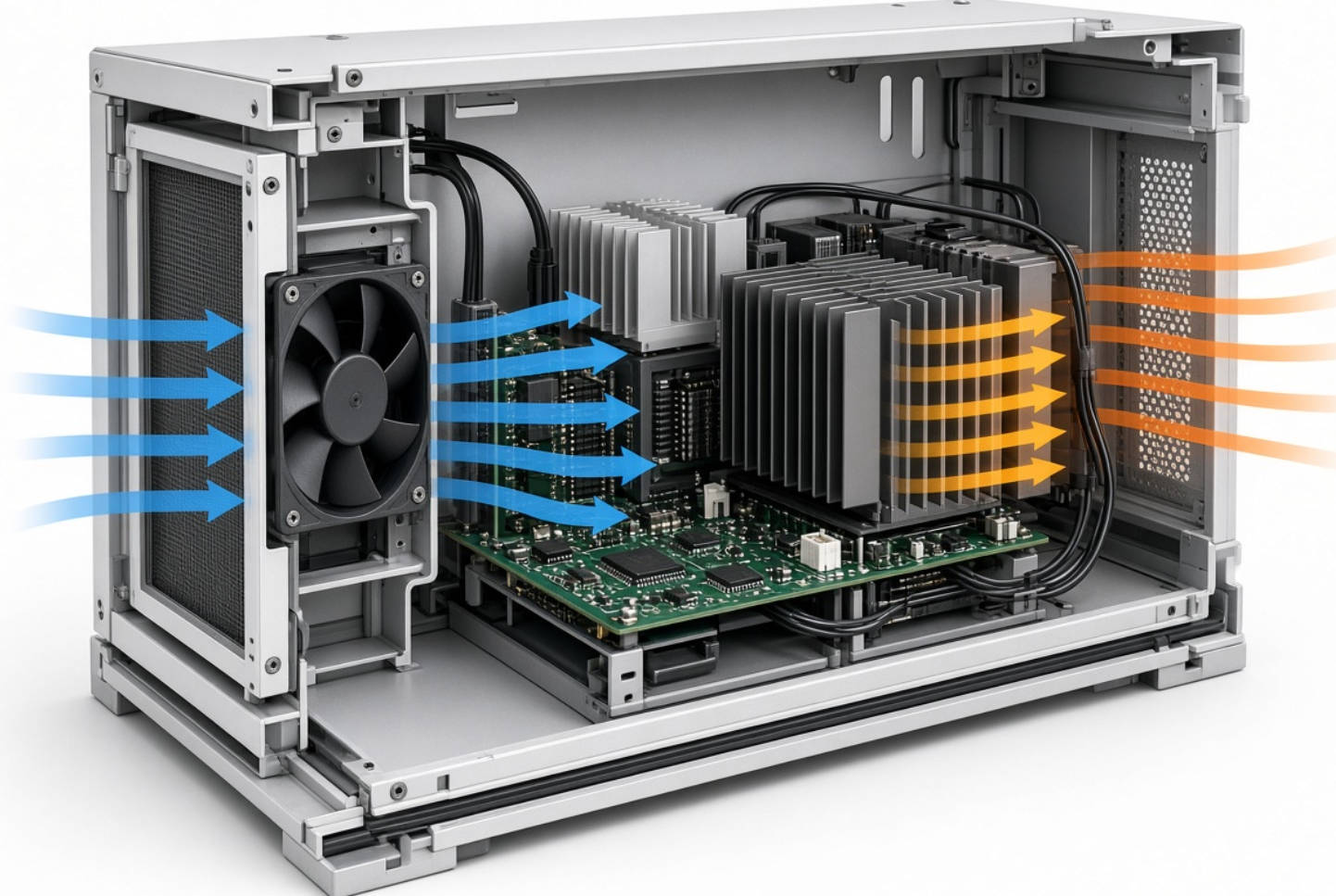

Filters, grilles, heatsinks, circuit boards, and cable bundles all restrict airflow. A fan that performs well in open air may deliver substantially less air after installation.
At Capital Technology Co., Limited, our selection approach starts with the enclosure, not simply the fan label. The objective is to match the fan's pressure capability to the equipment's resistance while meeting temperature, noise, power, and maintenance requirements.
This guide explains how to evaluate airflow resistance, identify the operating point, and turn those findings into a practical fan specification.
Fan airflow resistance, also called system impedance, describes how strongly an enclosure opposes moving air.
It is a property of the airflow path rather than an independent rating of the fan. Changing a fan usually does not remove the restrictions created by densely packed components, narrow vents, or restrictive filters.
Typical contributors include:
- Intake filters and protective grilles.
- Narrow heatsink channels.
- Closely spaced circuit boards.
- Abrupt changes in airflow direction.
- Cable bundles blocking ventilation paths.
- Undersized inlet or exhaust openings.
For many electronics-cooling applications, system resistance can be approximated by:
ΔP=KQ2
Here, ΔP is pressure loss, Q is airflow, and K represents the resistance of the particular airflow path.
Under this approximation, doubling airflow requires four times the pressure. This explains why increasing airflow through a restrictive enclosure becomes progressively more demanding.
The relationship is an engineering approximation, not a universal rule. Filter characteristics, flow conditions, and changes in internal geometry can alter the measured curve.
A fan's maximum airflow is normally specified at zero static pressure. Its maximum static pressure occurs at zero airflow.
These are opposite endpoints of the fan's airflow–static pressure curve, commonly called the P–Q curve. They do not occur simultaneously.
Inside equipment, the fan operates somewhere between those endpoints.

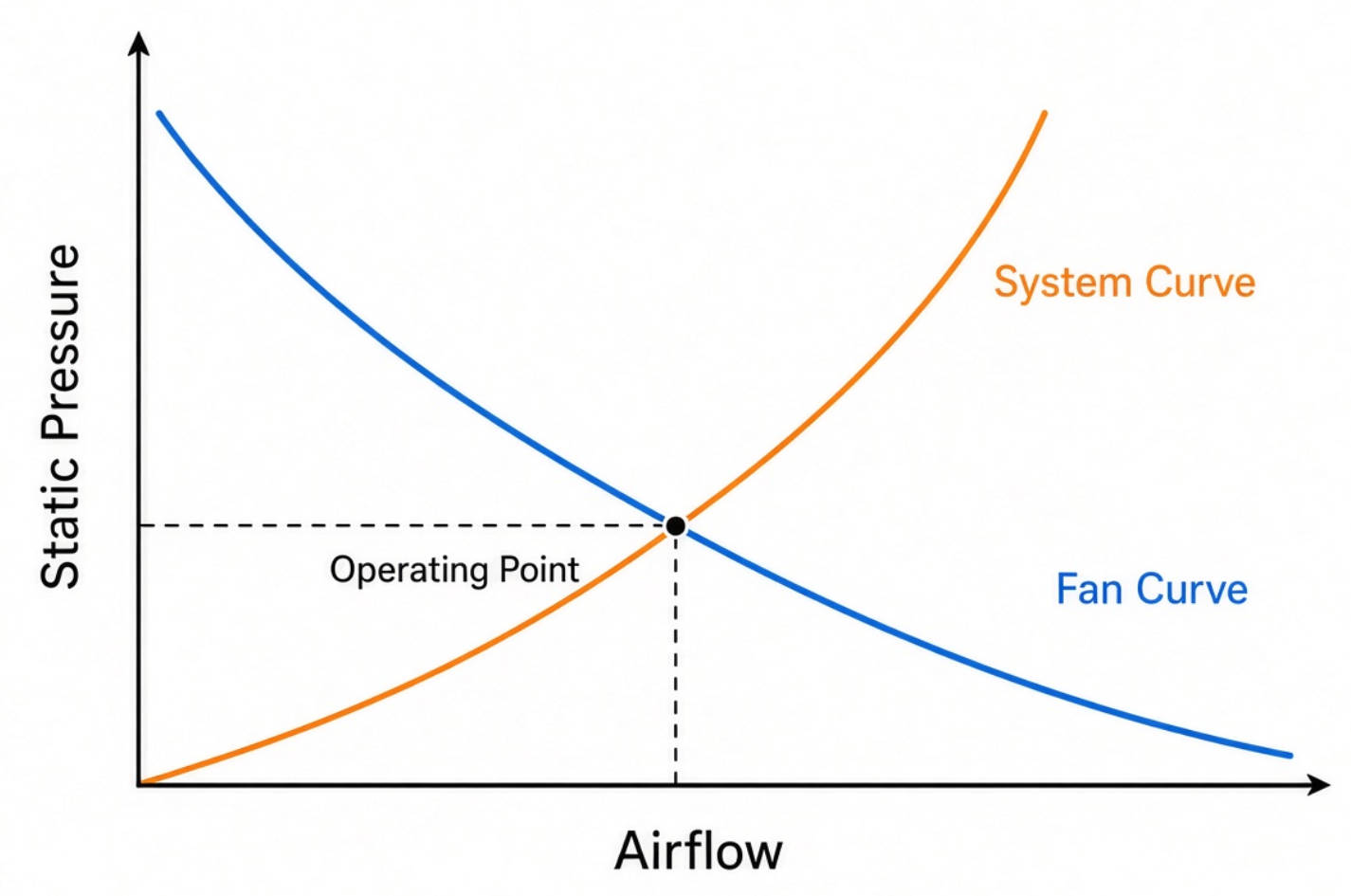

The actual operating point is where two curves intersect:
1. The fan's P–Q performance curve.
2. The enclosure's system resistance curve.
That intersection determines the operating airflow delivered through the equipment.
| Selection parameter | What it describes | How to use it |
|---|---|---|
| Maximum airflow | Airflow at zero static pressure | Initial comparison, not proof of cooling |
| Maximum static pressure | Pressure at zero airflow | Initial indication of pressure capability |
| P–Q curve | Available pressure across an airflow range | Match the fan to the enclosure |
| System resistance curve | Pressure required to move air through equipment | Identify the installed operating point |
| Component temperature | Thermal outcome in the assembled system | Confirm whether the design succeeds |
A higher free-air rating does not automatically mean better cooling. The stronger candidate is the fan that delivers sufficient airflow against the resistance your equipment actually presents.
Before selecting a fan, establish how much heat the ventilation air must remove.
For a first-pass estimate:
Q=P/ρcpΔT
Where:
- Q = volumetric airflow in m³/s.
- P = heat transferred to the air in watts.
- ρ = air density in kg/m³.
- cp = air's specific heat capacity in J/(kg·K).
- ΔT = allowable air temperature rise in °C or K.
Use heat dissipation rather than automatically treating equipment nameplate power as heat released inside the enclosure.
This calculation estimates bulk heat removal. It does not establish the temperature of every component.
Consider a hypothetical enclosure transferring 300 W into its ventilation air, with an allowable air temperature rise of 10°C.
Using approximate air properties of 1.2 kg/m³ and 1,005 J/(kg·K):
Q=300/(1.2×1005×10)≈0.0249 m³/s
That equals approximately 1.49 m³/min, or 53 CFM.
The important distinction is that 53 CFM is the estimated required operating airflow—not the required free-air fan rating.
The selected fan must deliver that airflow against the enclosure's pressure loss. Final testing must also confirm acceptable component temperatures under the intended ambient and loading conditions.
This is a calculation example, not a reported customer installation.
SANYO DENKI describes the multi-nozzle double-chamber method for measuring airflow. The pressure difference across a nozzle is used to determine air velocity, from which airflow is calculated.
Combining airflow and pressure measurements allows engineers to characterize system resistance and compare it with fan performance.
Portable instruments can make these measurements more accessible outside a large test laboratory. For example, the listed measurement ranges for the San Ace Airflow Tester model 9AT2560S-0001 are:
- Airflow: 0.20–8.00 m³/min.
- Static pressure: 0–999 Pa.
- Main-unit mass: approximately 6 kg.
These are model-specific specifications, not universal capabilities of airflow testers. Check the selected instrument's range, accuracy, calibration status, and connection requirements before testing.
An open cover or missing filter can make a restrictive design appear better than it is.
For representative measurements, install:
- Production-equivalent panels and vents.
- The specified filter and grille.
- Representative boards and heatsinks.
- Normal cable routing.
- Ducts, seals, and mounting hardware.
Record the configuration with the results. Without that information, comparisons between prototypes may be misleading.
SANYO DENKI recommends yearly calibration of its Airflow Tester to maintain measurement accuracy. Follow the requirements applicable to your instrument and quality system.
Document maximum ambient temperature, expected heat dissipation, allowable component temperatures, operating duration, and installation environment.
Identify components that could overheat even when average enclosure temperature remains acceptable.
Calculate an initial airflow target. State the assumptions, including air properties and allowable temperature rise.
Treat the result as a starting point for measurement and thermal validation.
Measure the complete enclosure where possible.
If only an estimate is available, identify the uncertainty and plan prototype testing rather than hiding it behind an arbitrary airflow multiplier.
Find the intersection between each candidate fan curve and the system curve.
Compare candidates at the required operating region—not solely at their maximum airflow or maximum pressure endpoints.
Check supply voltage, AC frequency where applicable, current, power consumption, dimensions, mounting, connectors, and airflow direction.
For controlled fans, verify the specified control interface and monitoring functions.
Measure operating airflow and critical temperatures under representative loads.
Also assess noise, power consumption, startup behavior, and any required alarm response. Select the fan only after the assembled equipment meets its acceptance criteria.

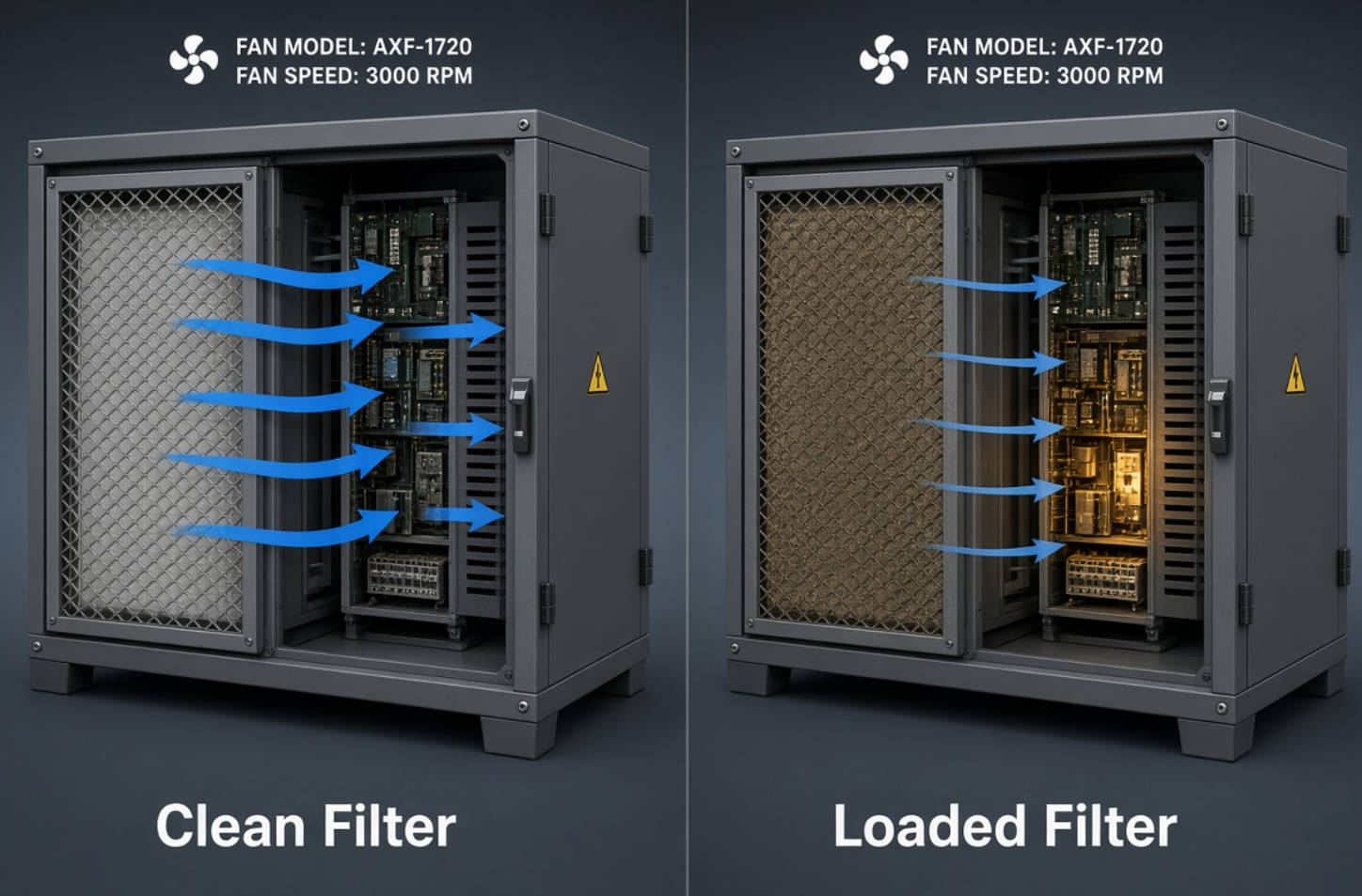

A clean filter is only one operating condition.
As a filter accumulates contamination, its resistance can increase. At the same fan speed, the operating point may move toward lower airflow.
The practical question is therefore not simply, "Does this fan work today?" It is, "Does the cooling system remain acceptable until the planned maintenance interval?"
A useful validation plan includes:
- A clean-filter baseline.
- A defined higher-resistance filter condition.
- Measurements of critical component temperatures.
- Confirmation of available fan-speed adjustment.
- A documented filter maintenance criterion.
Where supported, speed control can help adapt cooling output to changing conditions. However, it cannot overcome unlimited resistance, and higher speed may increase noise and power demand.
Define the dirty-filter test condition explicitly. "Partially blocked" is not a repeatable engineering specification.
A more powerful fan is not always the most effective first change.
Reducing unnecessary resistance may allow the existing fan to deliver more useful airflow.
| Observed problem | Design action to investigate | Validation focus |
|---|---|---|
| Restricted intake | Review vent opening and grille geometry | Airflow and acoustic effects |
| Cables crossing the inlet | Reroute and secure cable bundles | Repeatability in production |
| Air bypassing hot components | Add suitable ducting or baffles | Component temperatures |
| Hot exhaust returning to intake | Separate inlet and exhaust paths | Intake-air temperature |
| Excessive filter pressure loss | Review filter area and specification | Filtration and airflow together |
Every change has constraints. Increasing vent area may affect ingress protection. Changing a filter may affect contamination control.
Evaluate the complete requirement rather than optimizing airflow in isolation.
Total airflow and useful airflow are not identical.
Air can follow an easier path around a dense heatsink instead of passing through it. An enclosure may therefore show adequate overall airflow while a processor, power device, or communications module remains too hot.
When investigating a hotspot, examine:
- Whether fresh air reaches the component.
- Whether air bypasses the intended heatsink.
- Whether adjacent components obstruct the path.
- Whether hot exhaust recirculates.
- Whether the heatsink and thermal interface are suitable.
This is why airflow measurements should be paired with component-temperature measurements.
The engineering objective is not the highest possible airflow reading. It is reliable cooling of the components that determine system performance and service life.
Capital Technology Co., Limited manufactures cooling solutions under the CAPITAL brand and supplies SANYO DENKI products.
According to our company information, Capital serves as a chief agent for SANYO DENKI and has supplied companies including ZTE, HUAWEI, and HYTERA.
For a new project, the useful starting point is a complete application brief:
- Enclosure dimensions and internal layout.
- Supply voltage and available power.
- Heat dissipation and ambient temperature.
- Required operating airflow or measured resistance.
- Filter and environmental requirements.
- Noise limits and control functions.
- Expected production volume and qualification needs.
Send these details to Capital Technology Co., Limited to request a DC fan or AC fan shortlist matched to your application, together with the performance information needed for prototype validation.
Airflow resistance describes the equipment's opposition to moving air. Static pressure describes a pressure condition. The system resistance curve shows the pressure needed at different airflow rates, while the fan curve shows the pressure the fan can provide.
No. A CFM rating at zero static pressure does not establish installed airflow. Compare the fan's P–Q curve with the enclosure's resistance curve, then verify temperatures in the assembled equipment.
No. The appropriate choice depends on the power supply, performance curve, control requirements, installation constraints, and operating environment. Neither category automatically guarantees better cooling in a particular enclosure.
Fan airflow is approximately proportional to speed under comparable conditions, while pressure capability scales approximately with speed squared. Actual installed behavior also depends on the system curve and the fan's permitted operating range.
Not necessarily. Parallel fans theoretically increase airflow capability, while series arrangements increase pressure capability. Actual results depend on system resistance, installation geometry, and fan interaction. Validate the assembled arrangement.
There is no universal percentage. Base the margin on measurement uncertainty, filter loading, ambient conditions, component variation, and reliability requirements. Document those assumptions and verify the chosen margin through testing.
