Selecting between EC fans and centrifugal fans is not a simple "which one is better?" decision. An EC fan describes the motor and control technology, while a centrifugal fan describes the airflow design—meaning a centrifugal fan can also use an EC motor.
For engineers designing telecom cabinets, network equipment, industrial control panels, HVAC units, battery energy-storage systems, and precision electronics, the right solution depends on airflow volume, static pressure, installation space, noise targets, energy use, and system-control requirements. At Capital Technology Co., Limited, our work supplying DC fans, AC fans, branded CAPITAL cooling products, and SANYO DENKI solutions gives us a practical perspective: the fan must be selected for the entire air path, not just its nameplate specifications.
An EC fan uses an electronically commutated motor, commonly called an EC motor or brushless DC motor. It combines a permanent-magnet motor with integrated electronic controls that manage motor speed and torque.
Unlike a traditional fixed-speed AC fan, an EC fan can respond to a control signal. It may operate according to temperature, pressure, PWM, 0–10 V, or system-level communication requirements.
This technology can be applied to several fan geometries:
- EC axial fans
- EC centrifugal fans
- EC blowers
- EC plug fans
- EC backward-curved fans
The important point is that EC is not an airflow direction. It is a motor-and-control platform.
The onboard electronics continuously switch current through the motor windings. This creates a rotating magnetic field and drives the rotor without brushes or a mechanical commutator.
In practical cooling systems, that design enables:
- Variable-speed operation based on heat load
- Lower energy consumption during partial-load conditions
- Soft start and lower inrush current
- More precise airflow adjustment
- Potential speed, alarm, and fault-output monitoring
- Reduced mechanical wear associated with brushed motors
For equipment with fluctuating heat output, such as 5G base stations, servers, power supplies, telecom cabinets, and battery systems, variable speed is often more valuable than maximum-speed performance alone.

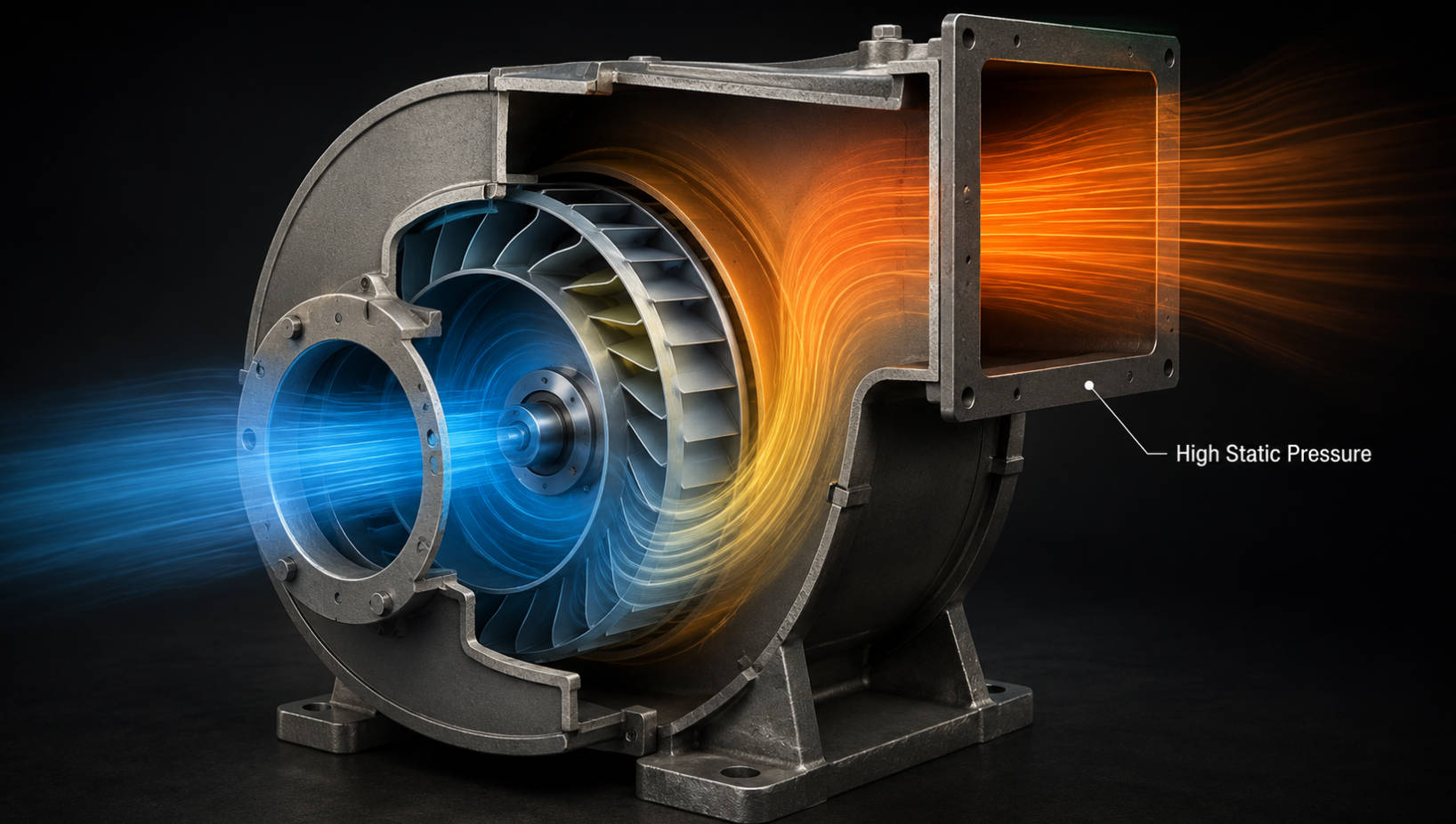

A centrifugal fan moves air differently from an axial fan. Air enters near the center of the impeller and is redirected outward, typically by about 90 degrees, before leaving through the fan outlet.
This change in airflow direction helps centrifugal fans generate higher static pressure than many axial fan designs. Static pressure is the fan's ability to keep air moving when the system contains resistance, such as filters, heat sinks, narrow passages, grilles, ducts, bends, or dense electronic components.
Centrifugal fans are often called blowers in compact electronics applications, although terminology can vary by manufacturer and industry.
The impeller design directly affects pressure capability, airflow, efficiency, noise, and contamination tolerance.
| Centrifugal fan type | Typical characteristics | Common applications |
|---|---|---|
| Forward-curved | High airflow in compact housings, often used at lower-to-medium pressure | HVAC fan coils, air handlers, compact ventilation |
| Backward-curved | Strong efficiency potential, stable performance, suitable for EC integration | AHUs, data centers, telecom, industrial equipment |
| Radial-blade | Rugged and more tolerant of particles | Dust collection, process ventilation, material handling |
| Cross-flow | Wide, even airflow pattern | Display equipment, appliances, compact electronics |
A centrifugal fan should not automatically be viewed as less efficient than an EC fan. The more accurate comparison is usually EC centrifugal fan versus AC centrifugal fan, or EC axial fan versus centrifugal fan for a specific system duty point.

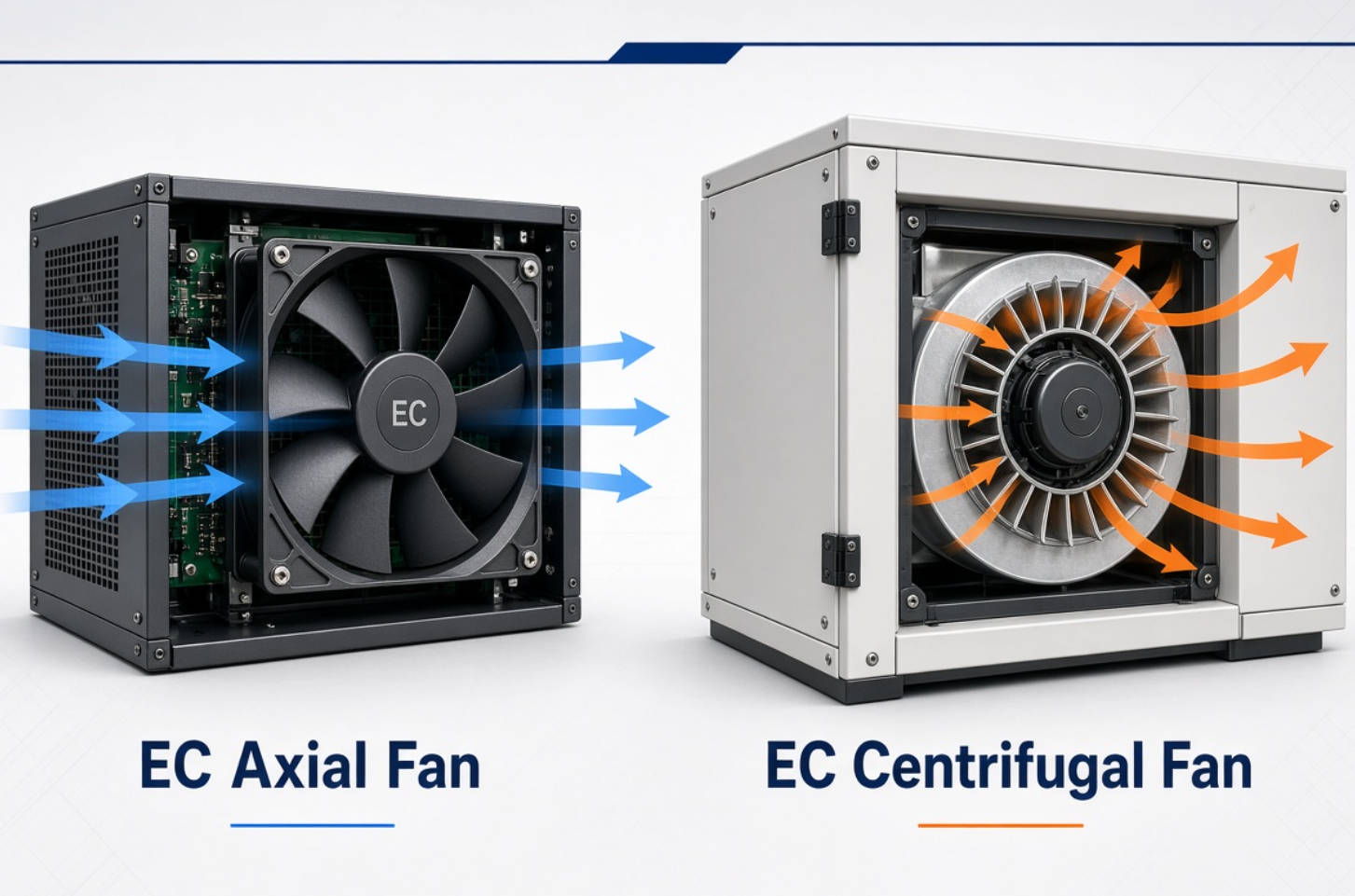

The central distinction is straightforward:
- An EC fan is defined primarily by motor technology and electronic speed control.
- A centrifugal fan is defined primarily by impeller geometry and airflow direction.
Therefore, these two terms are not mutually exclusive.
A system designer can choose:
1. An EC axial fan for high airflow and low-to-medium resistance.
2. An AC centrifugal fan for a basic fixed-speed high-pressure application.
3. An EC centrifugal fan for high static pressure plus intelligent speed control.
4. A DC blower for compact, low-voltage electronic equipment requiring directed airflow.
For many demanding industrial and telecom applications, an EC centrifugal fan is the most complete technical solution because it combines pressure capability with efficient variable-speed control.
| Selection factor | EC fan | Centrifugal fan | Engineering implication |
|---|---|---|---|
| Primary definition | Motor and control technology | Airflow and impeller design | The categories can overlap |
| Motor type | Typically brushless DC with integrated electronics | Can use AC, DC, or EC motors | Verify both motor and impeller type |
| Speed control | Usually built in | Depends on motor and drive system | EC designs simplify variable-speed control |
| Airflow direction | Depends on fan geometry | Air enters axially and exits radially | Useful for compact ducted layouts |
| Static pressure | Depends on axial or centrifugal configuration | Usually stronger in restricted air paths | Important for filters, heat sinks, and ducts |
| Part-load efficiency | Often strong because speed can follow demand | Depends on motor, impeller, and control method | Compare system energy at actual operating points |
| Initial cost | Usually higher than basic AC designs | Varies by design and motor | Evaluate lifecycle cost, not purchase price only |
| Monitoring capability | Often supports alarm or speed output | Depends on fan motor and controller | Valuable in mission-critical equipment |
| Maintenance needs | Generally low, especially in brushless designs | Depends on bearings, contamination, and operating conditions | Plan for cleaning and bearing-life requirements |
| Best use case | Variable thermal load and intelligent equipment cooling | High-resistance, ducted, or directed airflow systems | Match fan curve to real system resistance |
The most common fan-selection mistake is choosing a model only by free-air airflow, such as CFM or m³/h. Free-air airflow is measured at nearly zero external resistance. Real equipment rarely operates in that condition.
A telecom cabinet may include inlet guards, filters, cable congestion, heatsinks, power modules, exhaust grilles, and narrow channels. Each component adds resistance. As resistance rises, the actual airflow delivered by the fan decreases.
This is why static pressure matters.
EC axial fans are often suitable when the equipment needs relatively high airflow but has a short and open air path.
Typical applications include:
- Outdoor condensers
- Cabinet ventilation with large vents
- General electronics cooling
- Battery racks with low airflow resistance
- Server chassis with open front-to-back paths
- Cooling towers and air-cooled heat exchangers
An axial design moves air generally parallel to the motor shaft. It is compact and effective for moving air through relatively unrestricted spaces.
Centrifugal fans are usually the better choice when air must move through restrictive components or be directed through an enclosure.
Typical applications include:
- Telecom base stations
- Filtered electrical enclosures
- Dense server and networking equipment
- HVAC ducts and air handling units
- Medical equipment
- Laser equipment
- UPS systems and inverter cabinets
- Industrial control panels with heat sinks
- Battery energy-storage cabinets
A centrifugal blower can maintain airflow more effectively as filters become loaded with dust or as the air path becomes more complex. However, the final selection must still be verified against the fan-performance curve.
Energy performance is not determined by motor efficiency alone. It depends on the motor, controller, impeller, operating point, system resistance, runtime, and control strategy.

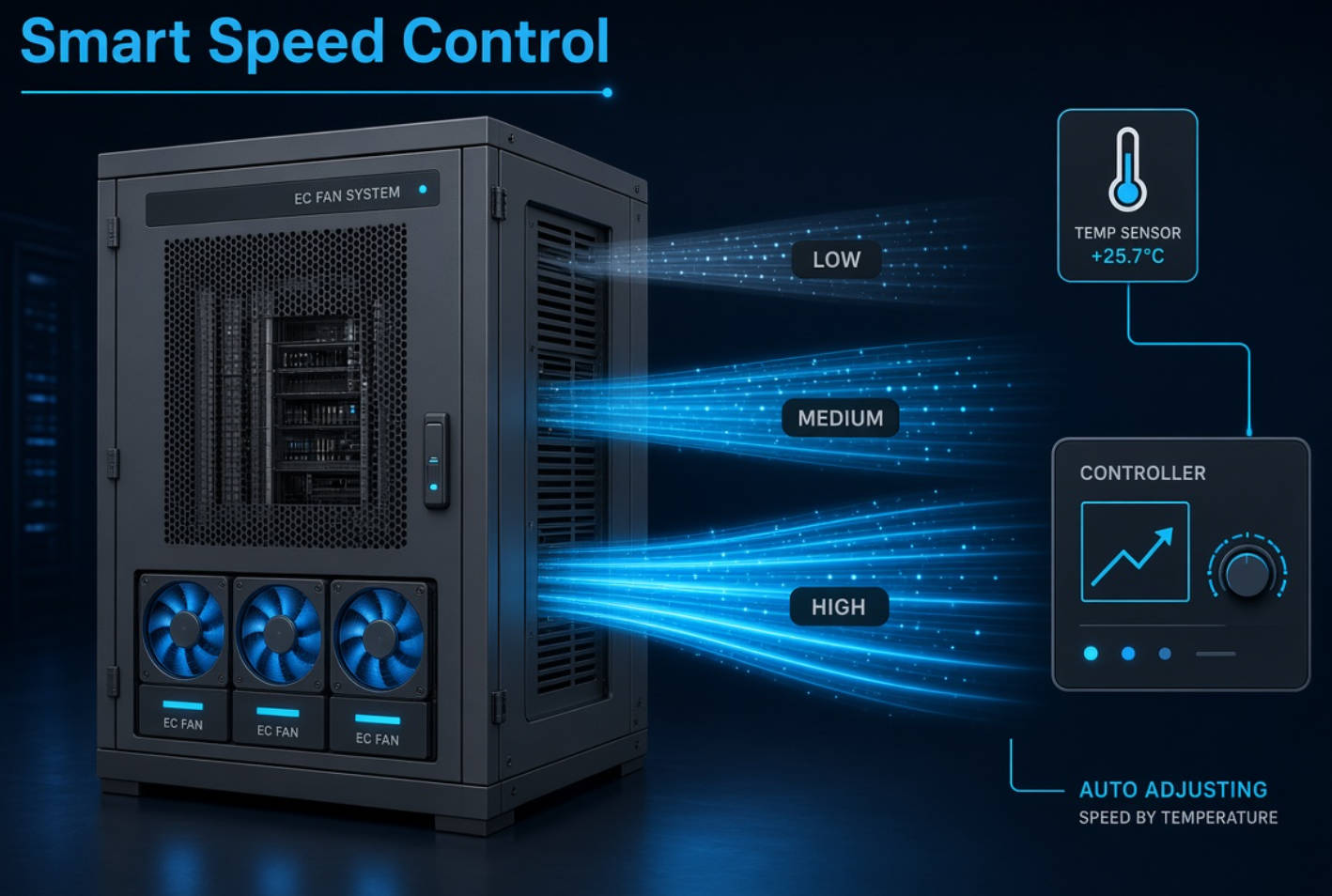

Still, EC technology offers an important advantage: it allows the fan to reduce speed when full cooling capacity is not required.
Fan affinity laws explain why this matters. Airflow changes approximately in proportion to speed, pressure changes approximately with the square of speed, and power changes approximately with the cube of speed. In other words, a moderate speed reduction can produce a meaningful reduction in fan power.
For example, if a temperature-controlled EC fan can operate below full speed for much of the year, it may reduce energy consumption and noise while maintaining safe component temperatures.
Use this process when evaluating an EC fan upgrade:
1. Measure or estimate the equipment's real thermal load at peak and normal operation.
2. Identify the required airflow and allowable temperature rise.
3. Calculate or test the total system resistance, including filters and grilles.
4. Select a fan whose curve meets the duty point with reasonable pressure margin.
5. Use temperature or pressure feedback to control EC fan speed.
6. Validate noise, airflow, and component temperatures after installation.
Do not select a fan with excessive pressure margin simply to "be safe." Oversizing can lead to unnecessary noise, power use, and airflow recirculation.
Noise is a system-level outcome. It is influenced by fan speed, blade design, turbulence, mounting method, enclosure resonance, airflow restrictions, and control settings.
An EC fan can reduce noise when it is programmed to run only as fast as required. But an EC fan running at full speed through a poorly designed grille may still create substantial acoustic noise.
Centrifugal fans can also be quiet in the right design. In ducted or pressure-sensitive systems, they may achieve the required airflow at a lower rotational speed than an unsuitable axial fan forced to work against excessive resistance.
For industrial and communications equipment, ask suppliers for more than airflow data.
Evaluate:
- Bearing type and rated operating life
- Operating temperature range
- IP rating and environmental protection
- Salt-spray or corrosion requirements for outdoor deployment
- Locked-rotor protection
- Reverse-polarity protection for DC products
- Tachometer, alarm, or PWM functions
- EMC performance where required
- Fan curve and acoustic data
- Availability of long-term supply and traceability
As a supplier to customers in communications and industrial sectors, Capital Technology recommends treating thermal design as a reliability decision. A lower-priced fan that cannot sustain airflow through a loaded filter or high ambient condition can create far greater downstream risk than its purchase-price saving.
Consider a network cabinet containing power modules, radio equipment, a filter screen, and densely arranged cables.
A standard AC axial fan may appear sufficient based on free-air airflow. Yet, once the filter collects dust and the internal resistance rises, the operating point can move into a low-airflow area of the fan curve.
An EC centrifugal fan may be the stronger option when the cabinet has:
- High internal component density
- Long or narrow air channels
- Replaceable intake filters
- Heat sinks with restrictive fin spacing
- Seasonal changes in ambient temperature
- A need for remote status monitoring
- Strict energy or acoustic targets
The EC controller can increase speed during high-load or high-ambient periods, then reduce speed during normal operation. This approach supports thermal stability without operating at maximum noise and power continuously.
Use the following decision guide before requesting a fan quotation or sample.
| Your requirement | Recommended direction |
|---|---|
| Large airflow, open path, limited space | Consider an EC axial fan |
| High static pressure, filters, ducts, dense heat sinks | Consider a centrifugal fan or blower |
| High pressure plus speed control | Consider an EC centrifugal fan |
| Simple fixed-speed operation with low upfront budget | Consider a properly selected AC fan |
| Compact low-voltage electronics | Consider a DC fan or DC blower |
| Remote monitoring and adaptive cooling | Prioritize EC fans with alarm, tachometer, PWM, or communication options |
| Mission-critical telecom or industrial system | Request fan curves, reliability data, environmental specifications, and validation samples |
The best fan is not necessarily the most advanced model. It is the model that delivers the required airflow at the actual system pressure, environmental condition, and operating duty cycle.
Capital Technology Co., Limited provides thermal-management products for customers that need dependable cooling performance, including DC fans, AC fans, and tailored cooling solutions. Alongside our independent CAPITAL brand, we serve as a leading SANYO DENKI agent and support demanding application requirements across communications, industrial electronics, and related sectors.
Our approach begins with application data rather than generic product recommendations. By reviewing airflow requirements, static pressure, voltage, installation constraints, operating temperature, control needs, and reliability targets, we help customers narrow the selection from "fan type" to a solution that supports the complete system.
Choosing between EC fans and centrifugal fans starts with understanding the distinction: EC technology improves control and part-load efficiency, while centrifugal design improves performance against airflow resistance. For complex, high-density, or filtered systems, an EC centrifugal fan can provide an especially strong balance of pressure, control, reliability, and energy performance.
Contact Capital Technology today to discuss your application, request fan-curve guidance, or identify a DC fan, AC fan, EC fan, or centrifugal blower solution for your equipment.
No. An EC fan refers to electronically commutated motor technology, while a centrifugal fan refers to the way the fan moves air. A centrifugal fan can be powered by an EC motor, AC motor, or DC motor.
In many variable-load applications, EC centrifugal fans can provide better energy performance because they use integrated electronic speed control and can reduce speed when demand falls. Actual savings depend on the fan curve, control strategy, runtime, and system resistance.
Choose a centrifugal fan when the airflow path has high resistance, such as filters, long ducts, narrow channels, restrictive heat sinks, or dense internal equipment. Axial fans are generally more suitable for high airflow with lower resistance.
Yes. An EC fan can reduce noise when speed control allows it to run below maximum speed during lower thermal loads. However, grille design, turbulence, mounting, and enclosure construction also affect total noise.
Static pressure indicates a fan's ability to overcome resistance in the air path. If a fan has insufficient pressure capability, its real airflow can fall sharply once filters, vents, ducts, or heat sinks are installed.
Provide voltage, available installation space, target airflow, estimated static pressure, operating temperature, noise limit, expected runtime, environmental conditions, and any required control signals such as PWM, 0–10 V, tachometer, or alarm output.
1. U.S. Department of Energy. Improving Fan System Performance: A Sourcebook for Industry. Covers fan laws and explains the relationship between fan speed, airflow, pressure, and power. [Read the source] [www1.eere.energy]
2. AMCA International. Pressures in a Ventilation and Fan System. Explains static pressure, total pressure, velocity pressure, and resistance in fan systems. [Read the source] [amca]
3. AMCA International. Introducing the Fan Energy Index. Discusses fan selection, static pressure, total pressure, and energy-performance considerations. [Read the source] [amca]
4. U.S. Department of Energy. Pump and Fan Technology Characterization and R&D Assessment. Provides context on ECM/BLDC motor efficiency across fan applications. [Read the source] [energy]
5. ebm-papst. Choosing the Ideal AHU Fan: EC Centrifugal Fan vs. AC Axial Fan. Discusses EC centrifugal fan performance in AHU applications, including low maintenance, compact design, noise, and ducted airflow suitability. [Read the source] [ebmpapst]
6. ebm-papst. Telecommunication Base Station Cooling. Describes centrifugal and EC fan use in IT and telecom equipment cooling. [Read the source] [ebmpapst]
