For engineers and sourcing teams designing thermal-management systems, EC fans can save far more than electricity. Compared with conventional AC fan solutions, electronically commutated fans can provide intelligent speed control, lower heat loss, reduced noise at part load, easier system monitoring, and a stronger foundation for long-term operating-cost control.
At Capital Technology Co., Limited, we work with DC fans, AC fans, EC fan solutions, and high-reliability cooling products for demanding electronics and industrial applications. As the owner of the CAPITAL brand and a leading SANYO DENKI distributor, we understand that selecting a fan is not simply about airflow. It is about matching airflow, static pressure, electrical input, acoustic requirements, lifecycle expectations, and control architecture to the real operating conditions of the equipment.
An EC fan, short for electronically commutated fan, combines a brushless DC motor with built-in electronic control circuitry. Although many EC fans accept AC mains input, the onboard electronics rectify and manage that power to operate the motor efficiently as a DC motor.
Unlike a traditional AC fan that commonly runs at a fixed speed, an EC fan can often adjust its speed according to system demand. This makes it especially valuable in applications where cooling requirements change over time.
Typical EC fan control options include:
- 0–10 V analog speed control
- PWM speed control
- Temperature-based control
- External controller or building-management-system control
- Alarm, tachometer, and status-output functions
- Modbus or intelligent communication options on selected products
The main benefit is straightforward: instead of consuming maximum power whenever the equipment is operating, an EC fan can deliver only the airflow needed at that moment.

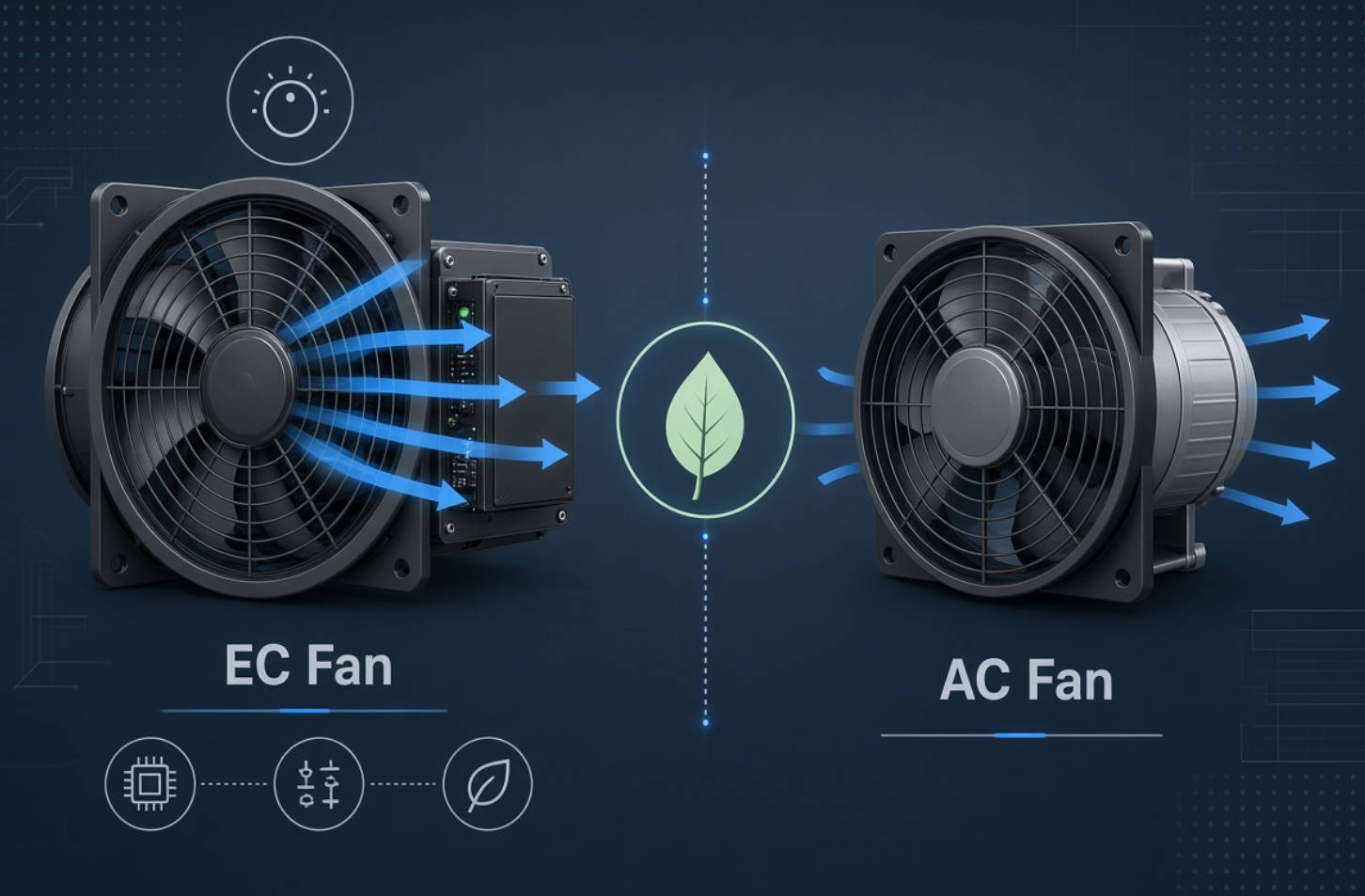

An AC fan remains a practical choice for many stable, cost-sensitive applications. However, EC fan technology is often the stronger option when energy efficiency, adjustable airflow, low noise, and monitoring capability matter.
| Feature | EC Fan | Conventional AC Fan |
|---|---|---|
| Motor technology | Brushless DC motor with electronics | AC induction or shaded-pole motor design |
| Speed control | Built-in or easily integrated | Often limited or requires external solutions |
| Part-load efficiency | Typically strong | Often less efficient at varying load |
| Airflow matching | Can follow real-time thermal demand | Frequently operates at one fixed speed |
| Monitoring | Alarm and speed-feedback options are common | Usually more limited |
| Noise management | Lower speed can reduce noise | Fixed high speed may create unnecessary noise |
| Initial cost | Usually higher | Usually lower |
| Lifecycle value | Often stronger in variable-load systems | Can be suitable for simple, fixed-duty systems |
The best choice is not always the fan with the lowest purchase price. In a cabinet, telecom enclosure, HVAC unit, refrigeration system, or energy storage device operating for thousands of hours each year, the true cost includes electricity, field maintenance, noise complaints, downtime risk, and replacement logistics.
The most important reason to choose an EC fan is not only motor efficiency. It is the ability to reduce fan speed when full airflow is unnecessary.

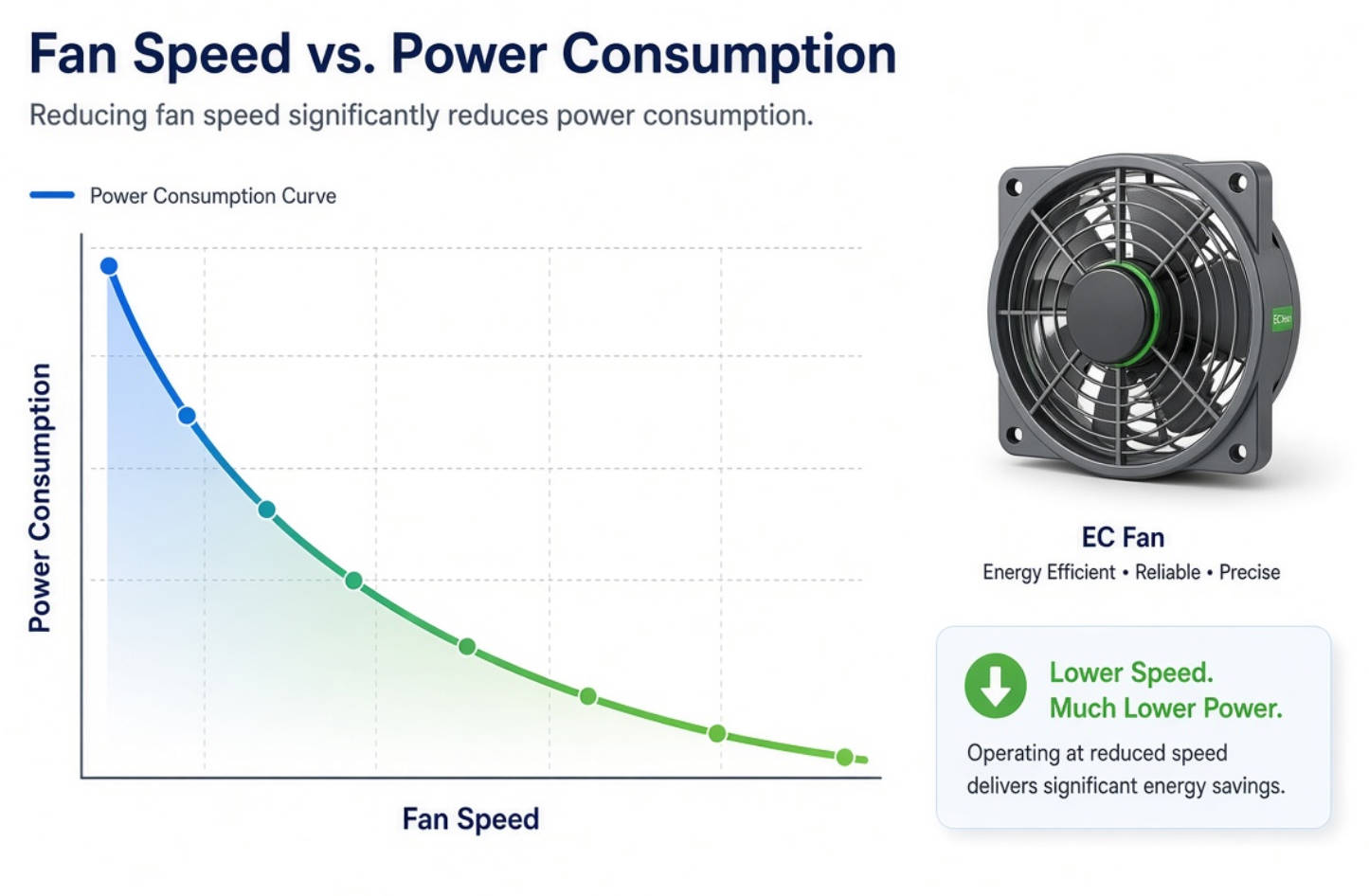

For many fan systems, the fan affinity laws show that power demand changes approximately with the cube of fan speed:
P2=P1×(N2/N1)3
Where:
- P is power
- N is fan speed
This relationship means a modest speed reduction can create a disproportionately large reduction in power demand. For example, if a fan can operate at 80% rather than 100% speed under normal conditions, the theoretical power requirement can fall to about 51% of full-speed demand.
That does not mean every EC fan installation automatically cuts energy use by half. Real results depend on airflow resistance, fan curve selection, control programming, operating hours, ambient temperature, and whether the system truly spends time at part load. However, it explains why variable-speed EC fan systems can outperform fixed-speed cooling designs when thermal demand varies.
Every watt lost in the motor becomes additional heat inside or near the system. In thermal-management design, this creates an undesirable loop:
1. An inefficient fan consumes electrical power.
2. Some of that power becomes heat.
3. The system needs more airflow to remove that extra heat.
4. The fan may need to operate harder and longer.
A high-efficiency EC fan helps reduce this internal heat burden. For compact electronics, sealed enclosures, battery systems, and high-density telecom equipment, that reduction can support more stable thermal conditions.
EC fans are particularly useful when cooling demand is not constant. They are also valuable when operators need better visibility into fan health and system performance.
Telecom cabinets, base-station equipment, routers, switches, and data communication systems can experience changing loads and ambient conditions. An EC fan can increase airflow during peak thermal events and reduce speed during lighter-load periods.
For equipment manufacturers serving customers such as telecommunications, networking, and wireless-communications providers, fan control should be considered at the system-design stage rather than after overheating becomes a field issue.
Key selection priorities include:
- Required airflow and static pressure at the actual system operating point
- Redundant fan architecture for mission-critical equipment
- Tachometer and alarm outputs
- Operating-temperature range
- Expected service life
- Dust, humidity, and corrosion exposure
- Electromagnetic compatibility requirements
PLCs, drives, power supplies, inverters, servo systems, and industrial computers generate heat that can fluctuate with machine load. A fixed-speed AC fan may run at maximum output even when the cabinet is lightly loaded.

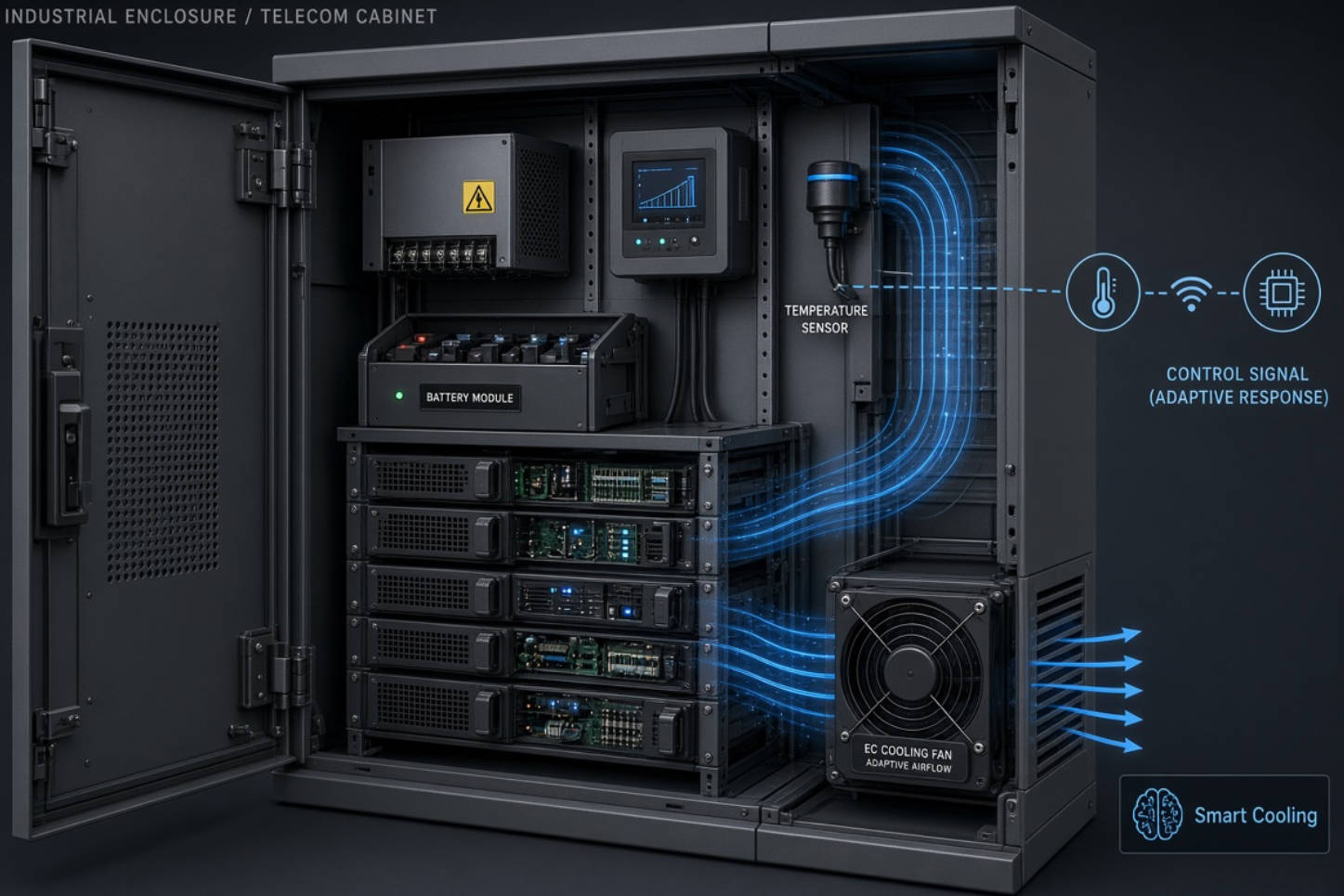

An EC cooling fan allows a more responsive thermal strategy. For example, a temperature sensor can trigger higher fan speed only after the internal cabinet temperature reaches a defined threshold. This can reduce unnecessary noise and energy use during low-load production periods.
EC axial fans and EC centrifugal blowers are widely used in air-handling units, condensing units, evaporators, heat pumps, commercial refrigeration, and ventilation systems. These applications often operate for long periods, so small efficiency improvements can become meaningful over the equipment lifecycle.
European ecodesign rules have also increased attention on fan efficiency. Regulation (EU) 2024/1834 establishes ecodesign requirements for certain fans with electrical input power between 125 W and 500 kW and replaced the former Regulation (EU) No 327/2011 from July 2026, subject to specified transitional provisions.
Battery energy storage systems, UPS systems, EV charging equipment, rectifiers, and power-conversion cabinets require dependable cooling because excessive temperature can accelerate component aging and reduce performance.
In these applications, an EC fan can contribute to:
- Temperature-responsive cooling
- Remote condition monitoring
- Reduced energy consumption during standby or low-load operation
- Lower acoustic impact in commercial or urban installations
- Better redundancy management in multi-fan systems
Selecting an EC fan only by frame size or maximum airflow is a common mistake. A technically sound selection process should start with the system's real thermal and mechanical requirements.
Identify the heat generated by all internal components, including power supplies, processors, drives, batteries, and conversion losses. A fan cannot be selected accurately without understanding the heat that must be removed.
Use the target temperature rise, ambient condition, enclosure design, and heat load to estimate airflow requirements. Leave a realistic engineering margin, but avoid oversizing the fan excessively.
Oversized fans can create:
- Unnecessary power consumption
- Excessive acoustic noise
- Increased dust intake
- Higher purchase cost
- Inefficient operation at the actual duty point
Free-air airflow data can be misleading. Filters, grilles, heat sinks, bends, narrow vents, and dense internal layouts all add resistance.
Review the P-Q curve, also called the airflow-static-pressure curve, and identify the expected operating point of the installed system. The correct fan is one that delivers the required airflow at the actual static pressure.
Control strategy should match the equipment design.
| Control method | Best suited for |
|---|---|
| Fixed-speed EC operation | Simple upgrades requiring higher efficiency |
| PWM control | Electronics, servers, telecom, and embedded systems |
| 0–10 V control | HVAC and industrial equipment |
| Thermistor or temperature control | Standalone cabinets and local thermal control |
| Intelligent communication | Connected equipment and remote-management systems |
A fan's catalogue specifications must be evaluated against the operating environment. Confirm requirements for:
- IP protection level
- Ball bearing or sleeve bearing design
- Salt spray or corrosion resistance
- Dust and oil exposure
- Operating temperature
- Altitude
- Vibration and shock
- Alarm output
- Locked-rotor protection
- Safety approvals and regulatory requirements
For demanding projects, prototype testing inside the final enclosure is essential. Laboratory fan performance alone cannot fully predict system performance after filters, cable routing, obstructions, and recirculation paths are added.
The strongest EC fan business case usually combines several benefits rather than relying on electricity savings alone.
A fixed-speed fan operates without knowing whether the equipment is cool, warm, or approaching a thermal limit. An EC fan combined with temperature feedback can respond to actual conditions.
This allows engineering teams to build a more intelligent cooling profile:
- Low speed during idle or low-load operation
- Moderate speed during normal duty
- High speed during peak load or elevated ambient temperature
- Alarm response when fan speed or airflow is abnormal
Fan noise increases rapidly as speed rises. Running a correctly selected EC fan at lower speed during ordinary operation can reduce perceived noise and improve user comfort.
This is especially important for:
- Medical equipment
- Office and retail installations
- Telecom cabinets near residential areas
- Laboratory instruments
- Premium appliances
- Indoor energy-storage equipment
EC fan models can offer tachometer outputs, alarm signals, and fault monitoring. These functions help equipment makers and maintenance teams identify fan problems before a cooling failure damages higher-value components.
However, monitoring does not eliminate the need for maintenance. Dust accumulation, blocked airflow paths, aging filters, and poor enclosure design can still reduce cooling performance. A well-designed thermal-management plan should include inspection and cleaning intervals based on the real operating environment.
An EC fan may be a suitable replacement for an AC fan, but "same size" does not automatically mean "drop-in replacement." Confirm the following before changing the design:
1. Mechanical fit: Frame size, mounting holes, depth, airflow direction, and connector arrangement.
2. Electrical compatibility: Input voltage, frequency, wiring, grounding, inrush current, and control-signal requirements.
3. Performance match: Airflow and static pressure at the true operating point, not merely at free air.
4. Safety and compliance: Required approvals, insulation class, EMC expectations, and application-specific regulations.
5. Control integration: Whether the existing system can provide PWM, 0–10 V, temperature, or digital control signals.
6. Failure behavior: Alarm requirements, locked-rotor protection, redundancy strategy, and safe operating mode.
7. Lifecycle economics: Purchase cost, annual operating hours, energy rate, service access, and downtime risk.
An EC fan is most effective when it is part of a complete thermal-management strategy. That means selecting the correct fan type, designing a clean airflow path, validating performance under real load, and building the right control logic into the equipment.
Capital Technology Co., Limited supports customers with DC fan, AC fan, EC fan, and high-reliability cooling solutions for electronics, telecommunications, industrial equipment, and other demanding applications. With our own CAPITAL brand and our role as a leading SANYO DENKI distributor, we can help engineering and purchasing teams evaluate performance, reliability, control requirements, and supply continuity.
Need help selecting an EC fan for your product or enclosure? Contact Capital Technology with your heat load, enclosure dimensions, operating environment, required airflow, and target service life. Our technical team can help you identify a practical cooling solution that balances performance, energy efficiency, reliability, and total cost.
An EC fan uses a brushless DC motor and integrated electronics, while a conventional AC fan typically uses an AC motor with less flexible speed control. EC fans are often better suited to variable-load cooling because they can adjust speed to match thermal demand.
Sometimes, but not always. Check mechanical dimensions, voltage, wiring, airflow direction, static-pressure capability, control requirements, safety approvals, and system airflow performance before replacement.
EC fans provide the greatest energy-saving potential when cooling demand varies and the fan can reduce speed during part-load operation. If a fan must run continuously at full speed, the savings may be smaller, although motor efficiency may still be beneficial.
They can be quieter in real operation because they can run at lower speeds when full airflow is unnecessary. Actual noise depends on fan size, speed, blade design, airflow resistance, mounting method, and enclosure resonance.
PWM control is common in electronics and telecom systems. A 0–10 V signal is widely used in HVAC and industrial equipment. Temperature-based control works well for standalone cabinets. The best option depends on the existing controller and required level of monitoring.
Start with the equipment heat load, maximum ambient temperature, allowable internal temperature rise, enclosure design, and system airflow resistance. Then verify the selected fan's performance on its P-Q curve at the expected static pressure.
Provide the application, dimensions, voltage, required airflow, static pressure, operating temperature, control method, IP rating, bearing type, expected annual quantity, certifications, and any special reliability or noise requirements.
1. Orion Fans. "[EC Fans Save More Than Energy]." Accessed August 22, 2026.
2. U.S. Department of Energy. "[Adjustable Speed Drive Part-Load Efficiency]." Explains fan affinity laws and the cube relationship between speed ratio and power demand.
3. European Commission. "[Commission Regulation (EU) 2024/1834]." Ecodesign requirements for fans driven by motors with electrical input power from 125 W to 500 kW.
4. European Commission. "[Industrial Fans: Energy-Efficient Products]." Overview of EU fan ecodesign requirements and updated performance provisions.
5. SANYO DENKI. "[Cooling Fans and Blowers]." Product and technology information for SAN ACE cooling fans and blowers.
6. U.S. Department of Energy. "[Improving Fan System Performance: A Sourcebook for Industry]." Technical guidance on industrial fan-system efficiency, controls, and performance assessment.
