Choosing between a cross flow fan and an axial fan is not simply a question of size or airflow. The right choice depends on the complete thermal design: required airflow, static pressure, space, noise target, operating environment, reliability requirements, and lifecycle cost.
For engineers and sourcing teams designing telecom cabinets, power supplies, industrial control equipment, medical devices, HVAC units, battery systems, or consumer appliances, fan selection should begin with the real operating point—not with a free-air airflow figure on a datasheet. Capital Technology Co., Limited supports this process with DC fans, AC fans, cooling solutions under the CAPITAL brand, and SANYO DENKI cooling fan solutions for demanding applications.
Both cross flow fans and axial fans move air to control temperature, remove heat, improve ventilation, or create a directed air stream. However, their air path, mechanical structure, pressure capability, installation requirements, and ideal applications are very different.
A cross flow fan moves air across the length of a cylindrical impeller. It is also commonly called a tangential fan or transverse flow fan. Its long outlet can create a broad, relatively even curtain of air.
An axial fan moves air in a direction parallel to the fan's rotating shaft. The air enters from one side and exits from the other side in a straight-through path. DC axial fans and AC axial fans are widely used for electronics cooling, ventilation, telecom equipment, servers, industrial cabinets, power electronics, and HVAC systems.
The most important distinction is simple:
- Choose a cross flow fan when you need a wide, uniform air curtain from a long and narrow outlet.
- Choose an axial fan when you need efficient, direct airflow through an enclosure, heat sink, panel, cabinet, or open ventilation path.
- Do not select either fan based only on maximum airflow at zero static pressure.
In a real system, the fan must overcome resistance created by grilles, filters, heat sinks, louvers, bends, ducts, cable congestion, and other internal obstructions. The actual operating point is where the fan performance curve intersects the system resistance curve.
The following comparison helps engineering teams quickly identify the most appropriate fan architecture.
| Feature | Cross Flow Fan | Axial Fan |
|---|---|---|
| Airflow direction | Air moves across the impeller axis | Air moves parallel to the fan axis |
| Typical shape | Long cylindrical impeller | Circular or square frame with hub and blades |
| Air outlet | Long, wide, distributed outlet | Concentrated straight-through airflow |
| Best airflow pattern | Broad and uniform air curtain | High-volume direct airflow |
| Typical pressure range | Moderate, depending on housing design | Low to moderate for common designs; higher with specialized axial designs |
| Installation geometry | Long and narrow spaces | Panel openings, heat sinks, cabinets, ducts, equipment walls |
| Noise characteristics | Can provide smooth airflow when properly housed | Can be quiet or loud depending on blade design, speed, pressure, grille, and system turbulence |
| Common applications | Air curtains, indoor AC units, ovens, display equipment, appliances | Telecom cabinets, server racks, power supplies, inverter systems, industrial enclosures, HVAC ventilation |
| Common motor options | AC or DC, depending on product design | DC, AC, EC, and high-performance intelligent fan systems |
Although this table provides a useful starting point, it should not replace fan curve analysis. A fan that looks suitable by size or airflow rating can still fail if it cannot maintain the required airflow at the actual system static pressure.

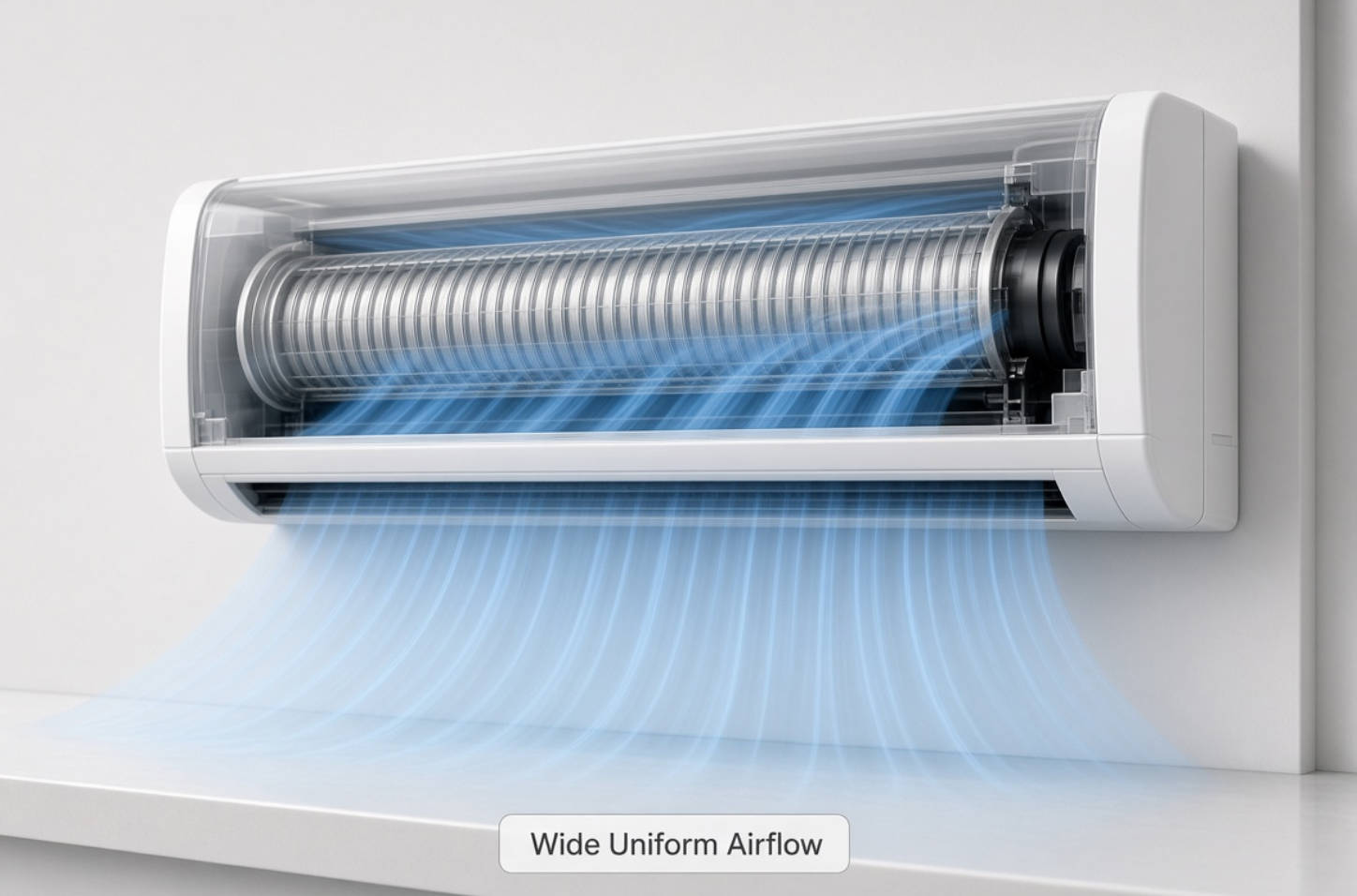

A cross flow fan uses a long, cylindrical impeller with many forward-curved blades. Air enters the fan through part of the impeller circumference, passes through the blade structure, and exits through another section of the impeller. This distinctive air path gives the fan its "cross flow" name.
Unlike a conventional axial fan, which produces a concentrated forward airflow stream, a cross flow fan can deliver air over a long horizontal or vertical opening. This makes it particularly useful when designers need to distribute air consistently across a wide surface.
Cross flow fans are often selected because they provide several mechanical and airflow advantages:
- Wide airflow coverage: A long impeller can distribute air across a large outlet width.
- Compact depth: The fan may fit into shallow product housings where a large axial fan is impractical.
- Uniform outlet airflow: This is useful when cooling or heating must be spread across a broad area.
- Low-profile integration: Cross flow fan assemblies can be designed into slim appliances and compact HVAC products.
- Flexible outlet direction: The fan housing can help guide airflow to a specific zone.
For example, an indoor air conditioning unit needs to push conditioned air evenly across a room-facing outlet. A long cross flow fan is often a natural fit because it can create a broad air stream across the unit's width.
Cross flow fans are commonly used in products where airflow distribution matters more than concentrated airflow force.
Typical applications include:
- Split air conditioner indoor units
- Air curtains at retail entrances
- Fan heaters
- Convection ovens
- Fireplace and heating equipment
- Electronics and display equipment
- Refrigeration equipment
- Vending machines
- Office automation equipment
- Compact appliances
A cross flow fan is not automatically the best answer for every compact cooling requirement. Designers should carefully assess its limitations.
- It may not be the best option for forcing air through dense heat sinks, filters, or highly restrictive internal channels.
- Its final performance depends strongly on the fan housing, inlet geometry, outlet shape, and nearby obstructions.
- It may require more mechanical integration work than a standard square-frame axial fan.
- Cleaning, dust accumulation, and service access should be considered in applications with contaminated air.
A cross flow fan should therefore be evaluated as part of an integrated airflow assembly, not as an isolated component.
An axial fan uses rotating blades around a central hub to move air in a direction parallel to the shaft. The configuration is familiar: air enters at the fan inlet and is discharged straight through the outlet.
This direct airflow path makes axial fans highly useful for equipment enclosures, ventilation panels, heat exchangers, telecom cabinets, server systems, power electronics, battery energy storage systems, and industrial control panels.
DC axial fans are especially common in electronic cooling because they are compact, easy to mount, available in many voltage options, and can support speed monitoring, PWM speed control, alarm outputs, and other intelligent functions. AC axial fans remain widely used in industrial equipment, ventilation systems, and applications that require straightforward connection to AC power.
Axial fans are popular because they offer a strong balance of airflow capability, packaging flexibility, and system-level efficiency.
- High airflow in compact footprints: Axial fans can move substantial air volume through a panel or enclosure.
- Straight-through ventilation: They work well when air enters one side of a cabinet and exits the other.
- Wide product availability: DC fans and AC fans are offered in many frame sizes, voltages, speeds, bearing systems, and protection levels.
- Easy installation: Square-frame designs can be mounted to enclosure walls, fan trays, heat exchangers, or internal equipment structures.
- Control options: Many DC axial fans support tachometer output, locked-rotor alarm, PWM control, temperature-based speed control, and redundant fan configurations.
- Scalability: Multiple fans can be arranged in parallel or in fan trays to create redundancy and higher total airflow.
Axial fans are suitable for many high-reliability cooling and ventilation environments:
- Telecom base stations and communication cabinets
- 5G infrastructure equipment
- Network switches and routers
- Data center servers
- Power supplies and UPS systems
- Industrial automation cabinets
- Inverters and frequency converters
- Battery storage systems
- EV charging equipment
- Medical devices
- Laser equipment
- HVAC ventilation systems
- Welding machines and industrial machinery
For equipment manufacturers serving customers such as telecom, networking, industrial automation, and power-electronics companies, axial fan selection often affects not only thermal performance but also product uptime, maintenance needs, noise compliance, and warranty risk.
One of the most common fan-selection mistakes is comparing only the maximum CFM or m³/h value listed on a datasheet.
That maximum airflow rating is usually measured under free-air conditions, meaning the fan is operating with little or no external resistance. Real equipment does not operate in free air.
A telecom cabinet or industrial electrical enclosure may include:
- Air inlet grilles
- Dust filters
- EMI shielding
- High-density heat sinks
- Printed circuit boards
- Power modules
- Cable bundles
- Internal partitions
- Outlet louvers
- Narrow airflow channels
Each of these elements adds resistance. As resistance increases, the airflow delivered by the fan decreases.
The system resistance generally rises approximately with the square of airflow. In practical terms, doubling airflow can create a much larger pressure-loss challenge.
A fan curve typically plots:
- Airflow on the horizontal axis, often in CFM or m³/h
- Static pressure on the vertical axis, often in Pa, mmH₂O, or inches of water gauge
- Power input, current, speed, noise, or efficiency as additional performance data
To select a fan correctly:
1. Define the airflow requirement needed to maintain the target component temperature.
2. Estimate or test the system static pressure at that airflow.
3. Locate the required airflow and pressure on the fan curve.
4. Confirm that the selected fan can operate at that duty point.
5. Review power consumption, noise, speed, expected ambient temperature, and reliability margin.
6. Validate the result with prototype testing under realistic operating conditions.

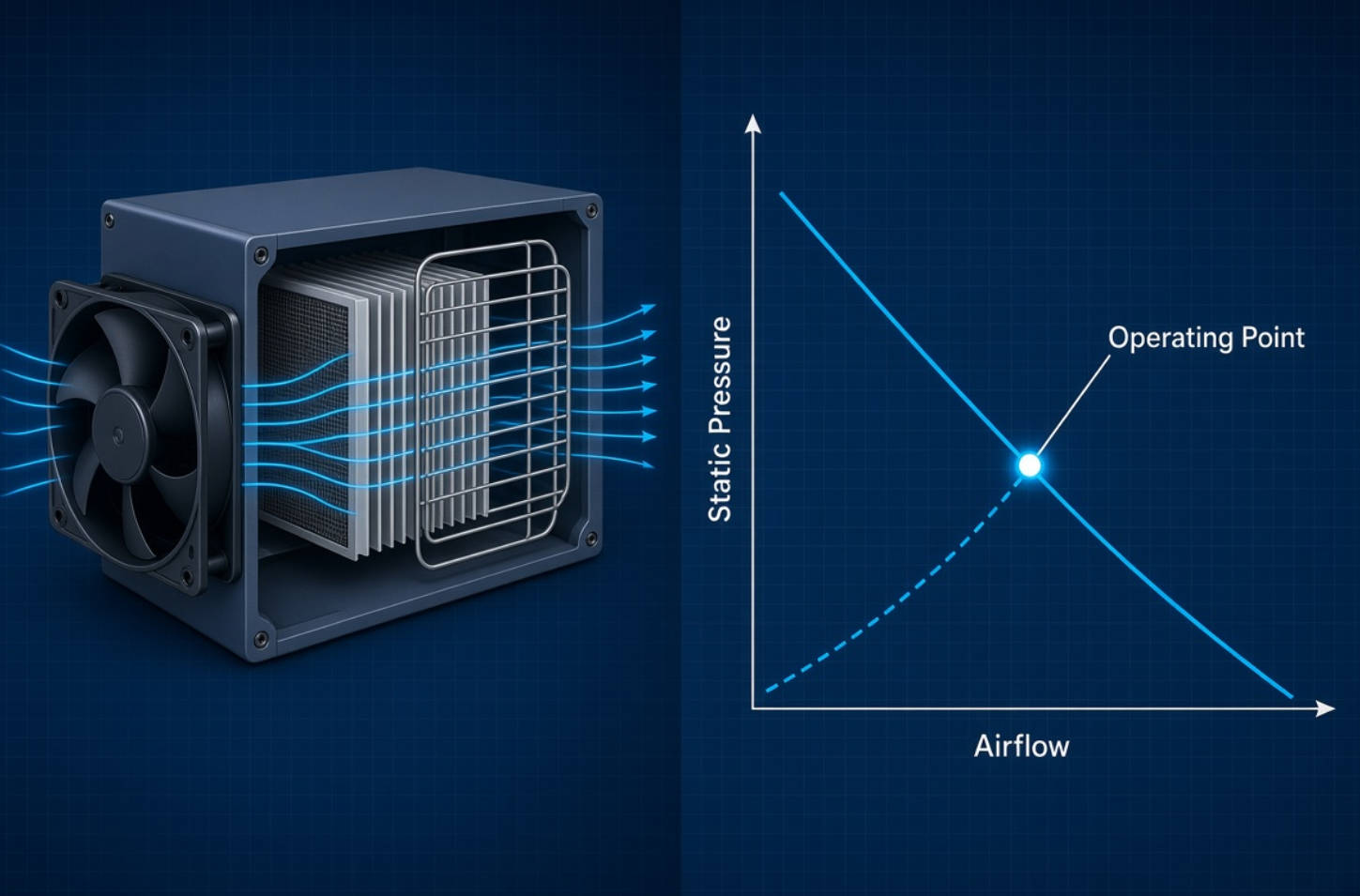

The operating point is the intersection between the fan curve and the system curve. It is the real performance condition—not the free-air number—that determines whether the fan will cool the equipment effectively.
A cross flow fan is often the better option when product geometry requires a long, narrow airflow outlet and relatively even air distribution.
Choose a cross flow fan when:
- The product needs an air curtain or broad airflow distribution.
- The installation area is long and shallow.
- The cooling or heating zone extends across a wide surface.
- A compact appliance housing limits the use of a large axial-fan assembly.
- Low-profile mechanical integration is a high priority.
- The application benefits from a smooth, distributed outlet airflow pattern.
In an air curtain system, the goal is to create a continuous stream of air across a doorway. A narrow axial fan could create a concentrated jet, but it may not cover the full entrance width effectively. A properly designed cross flow fan can create a wider and more continuous air barrier.
The fan alone is not the entire solution. The outlet nozzle, impeller length, housing design, motor control, air intake path, and installation height all influence the final air curtain performance.
An axial fan is usually the stronger choice when the equipment requires direct, high-volume airflow through an enclosure or across heat-generating components.
Choose an axial fan when:
- The airflow path is relatively straight.
- You need high airflow through a cabinet, chassis, or ventilation opening.
- The installation uses a square or circular fan opening.
- You need DC voltage operation, PWM control, tachometer feedback, or alarm monitoring.
- You need modular fan trays or redundant cooling architecture.
- The equipment runs continuously and requires a mature, serviceable cooling design.
- The product has moderate airflow resistance and the selected fan curve meets the required duty point.

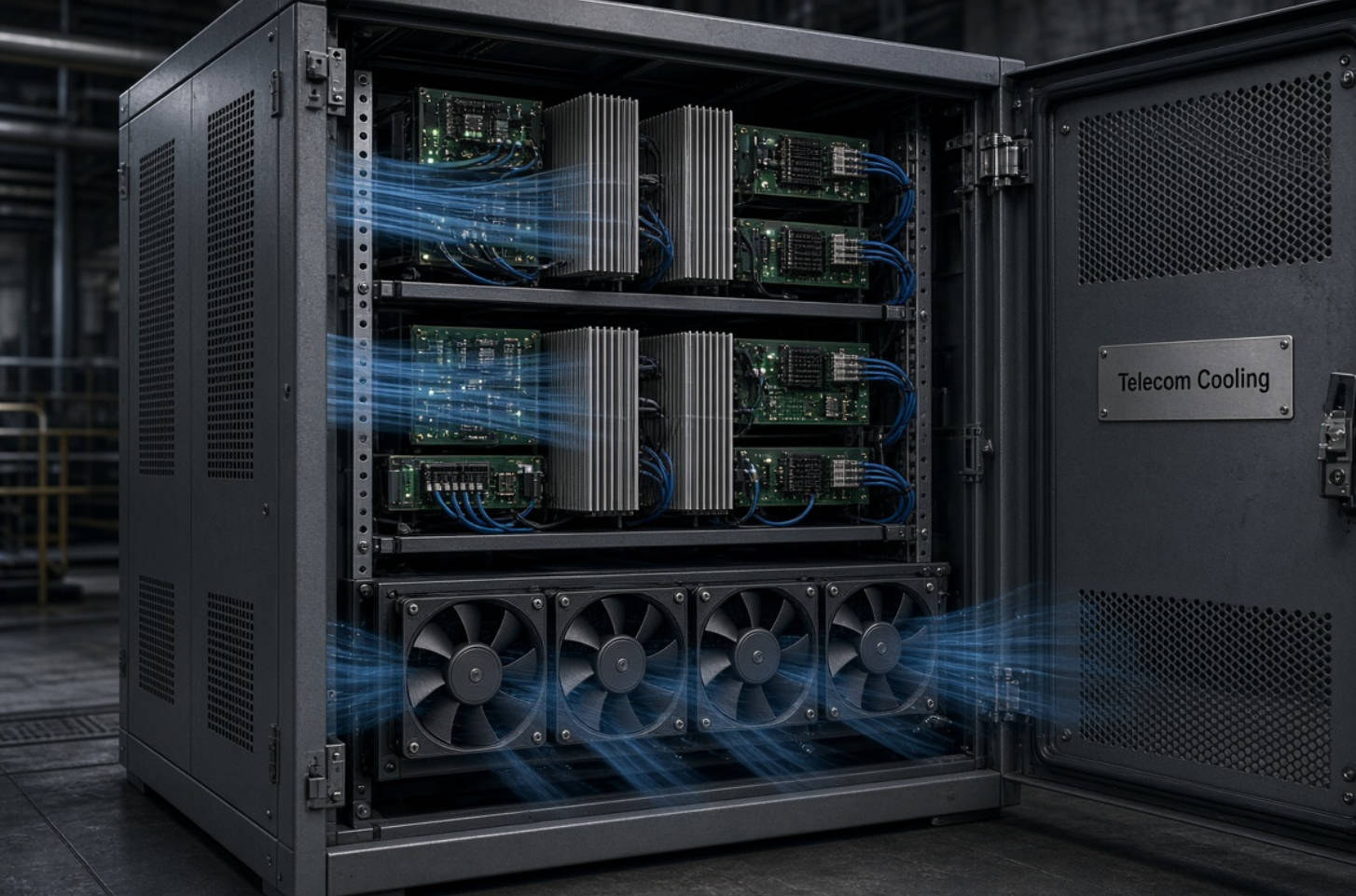

A telecom cabinet may contain power modules, communication boards, RF equipment, batteries, cable harnesses, and filters. The airflow path can become restrictive quickly.
In this case, the engineering team should not select a DC axial fan only because it has a high free-air CFM rating. Instead, the team should measure or model the cabinet's pressure drop, define the required airflow at operating temperature, and select a DC fan that provides enough pressure and airflow at the expected duty point.
For high-reliability communication equipment, the design should also consider fan alarms, speed feedback, bearing life, redundancy, dust-filter maintenance, and thermal protection strategy.
The choice between a DC fan and an AC fan is separate from the choice between axial and cross flow fan structures. Both DC and AC motors can be used in different fan designs, depending on the product and application requirements.
| Selection Factor | DC Fan | AC Fan |
|---|---|---|
| Typical power source | 5V, 12V, 24V, 48V DC | 110V, 220V, 230V, or other AC supply |
| Speed control | Often easy with PWM, voltage control, or intelligent electronics | May require external speed control methods |
| Monitoring functions | Commonly supports tachometer, alarm, and control signals | Usually simpler, but product-dependent |
| Typical applications | Electronics, telecom, servers, battery systems, power electronics | Industrial equipment, AC-powered cabinets, ventilation, machinery |
| System integration | Strong fit for intelligent electronic systems | Strong fit for direct AC-powered equipment |
| Reliability strategy | Suitable for monitored and redundant fan arrays | Suitable for robust, straightforward continuous-duty systems |
For engineers, the selection should start with the available power architecture, control requirements, reliability target, and maintenance strategy.
For buyers, it is important to confirm that the fan supplier provides complete specifications rather than only voltage and size. A meaningful comparison should include airflow-pressure curves, rated current, speed, sound level, bearing type, operating temperature, IP protection level if required, expected service life, and connection options.
Before requesting a quotation for a DC fan, AC fan, axial fan, or cross flow fan, prepare the following information.
- Target airflow in CFM or m³/h
- Estimated system static pressure in Pa or mmH₂O
- Maximum allowable temperature for key components
- Ambient temperature range
- Heat load in watts
- Required temperature rise limit
- Available installation space
- Fan frame size or impeller dimensions
- Maximum allowable fan thickness
- Airflow direction
- Mounting-hole pattern
- Connector type and cable length
- Required inlet and outlet clearance
- Input voltage and acceptable voltage range
- Rated current and power limit
- Speed-control method
- Tachometer or alarm requirements
- PWM signal requirements
- EMC or electrical compliance needs
- Required service life
- Bearing type: sleeve, ball bearing, or other design
- Operating temperature range
- Humidity and condensation exposure
- Dust, oil mist, salt spray, vibration, or corrosive-gas exposure
- IP rating requirements
- Safety approvals and regional compliance requirements
- Maximum sound-pressure level
- Distance and test conditions for noise measurement
- Tonal-noise sensitivity
- Whether lower noise is needed at full load, idle, or both
- Whether fan-speed control can reduce noise during low thermal load
A well-prepared technical requirement document reduces sampling delays, avoids mismatched products, and gives suppliers the information needed to recommend a fan with confidence.
A fan may claim a high maximum airflow, but performance can drop significantly when installed behind filters, grilles, heat sinks, or restrictive internal structures. Always evaluate airflow and static pressure together.
A powerful fan does not guarantee effective cooling. If hot exhaust air returns to the inlet side, equipment temperature can remain high even with large nominal airflow.
Use physical separation, airflow baffles, sealing foam, proper inlet-and-outlet placement, and thermal testing to minimize recirculation.
Clean filters and dirty filters do not create the same pressure drop. If a system will operate in dusty environments, select the fan with enough performance margin for filter loading and plan a practical maintenance schedule.
Higher fan speed can increase airflow and pressure, but it can also increase power consumption, noise, vibration, and bearing stress. A better solution may be a larger fan at lower speed, a better airflow path, a lower-restriction grille, or intelligent speed control.
Noise depends on fan speed, blade design, mounting condition, grille geometry, turbulence, enclosure resonance, and airflow restrictions. Compare sound data under relevant operating conditions whenever possible.
A cooling fan is not a standalone commodity. It is part of the complete thermal-management system.
The final result depends on the relationship between the fan, enclosure, heat source, ambient conditions, airflow path, control strategy, and maintenance plan. This is why two products using the same nominal fan size can have very different temperature performance and field reliability.
For demanding B2B applications, work with a supplier that can support more than product shipment. The best partner should help evaluate operating conditions, recommend suitable DC fans or AC fans, provide performance documentation, assist with samples, and support customization where required.
Capital Technology Co., Limited combines its CAPITAL cooling fan product offering with access to SANYO DENKI fan solutions for applications requiring stable quality, performance consistency, and professional technical support. For projects involving telecom equipment, industrial automation, power electronics, networking hardware, or other high-reliability systems, fan selection should be validated during the design stage—not after overheating becomes a field failure.
If you are selecting a DC axial fan, AC axial fan, cross flow fan, or custom cooling solution, prepare your airflow requirement, static-pressure estimate, installation size, voltage, operating temperature, noise target, and service-life expectation.
Capital Technology Co., Limited can help you compare suitable cooling fan options for your equipment and support the next steps from technical evaluation and samples to volume supply.
Contact our engineering and sales team today to discuss your cooling-fan requirements and receive a professional recommendation for your application.
A cross flow fan moves air across the length of its cylindrical impeller and typically creates a wide, distributed air stream. An axial fan moves air parallel to its shaft and is commonly used for direct ventilation and electronics cooling through enclosures, cabinets, and equipment panels.
Neither type is universally better. Axial fans are often preferred for direct, high-volume enclosure cooling and straight airflow paths. Cross flow fans are often better when the application needs a long, even airflow outlet in a compact, shallow housing.
Start by determining the heat load, target component temperature, available mounting space, input voltage, required airflow, and estimated static pressure. Then select a DC fan whose performance curve delivers the required airflow at the expected system resistance. Consider alarms, PWM control, bearing type, noise, ambient temperature, and dust-filter loading.
The installed system introduces airflow resistance. Filters, grilles, heat sinks, cable bundles, louvers, ducting, and narrow passages all increase static pressure. As static pressure rises, the airflow delivered by the fan decreases according to its performance curve.
Often, yes. A larger fan may produce the required airflow at a lower rotational speed than a smaller fan. Lower speed can reduce aerodynamic noise, although the final acoustic result still depends on blade design, mounting, grille geometry, enclosure resonance, and system restrictions.
Provide fan size, voltage, airflow target, static-pressure requirement, thickness limit, airflow direction, wire or connector specification, bearing preference, operating temperature range, noise limit, expected operating life, quantity, and relevant certifications. The more complete the information, the more accurate the recommendation will be.
You need both. CFM or m³/h indicates airflow volume, while static pressure indicates the fan's ability to overcome system resistance. The correct fan must meet both requirements at the actual operating point.
PWM control allows the system to adjust fan speed according to real thermal demand. This can reduce noise and power consumption during low-load periods while maintaining higher cooling performance when temperature rises.
1. Blauberg Motors. "What Are Cross Flow Fans and Axial Fans."
[https://www.blaubergmotors.com/news/what-are-cross-flow-fans-and-axial-fans/]
2. Air Movement and Control Association International, Inc. "Straightening Out Fan Curves."
3. Air Movement and Control Association International, Inc. "About Fan Energy Index."
[https://www.amca.org/advocate/energy-efficiency-and-system-performance/about-fan-energy-index/]
4. U.S. Department of Energy. "Improving Fan System Performance: A Sourcebook for Industry."
[https://docs.nlr.gov/docs/fy03osti/29166.pdf]
5. Greenheck. "The Basics of Fan Performance Tables, Fan Curves and System Curves."
6. ENERGY STAR. "Ventilation Fans: Key Product Criteria."
[https://www.energystar.gov/products/ventilation_fans/key_product_criteria]
7. Integra Controls. "Fan Curves Explained: A Complete Guide."
