Keeping an outdoor TV cool is not just a "nice to have" – it is the difference between years of reliable entertainment and a dead screen in the middle of summer. Speaking as an engineer who has helped design cooling solutions for telecom cabinets, base stations, and outdoor displays, I can tell you that most failures we see in the field come down to one issue: poor thermal management. [acdcecfan]
When you put a TV into an outdoor enclosure, you are creating a small, closed micro‑climate around the screen. [acrtmatic]
- The TV's power supply, backlight and main board continuously generate heat. [thetvshield]
- Solar radiation can easily drive the cabinet surface temperature far above the ambient air temperature, especially in direct sun. [pcenclosures]
- Without deliberate airflow, hot air pools at the top of the enclosure, creating localized hotspots that can exceed the TV's rated limit even when the outside air still feels comfortable. [acdcecfan]
Most consumer TVs are designed to operate safely up to around 95–104 °F (35–40 °C), while some outdoor‑rated models may tolerate higher temperatures but can start to black out around 125–130 °F. When the air around the TV climbs beyond that range, you risk: [pcenclosures]
- Image blackouts or auto‑shutdown. [zebozap]
- Premature LED backlight aging. [deertv]
- Permanent damage to power boards or plastic housings. [thetvshield]
From our experience in DC fan and radiator design, we assume safe operation only when active thermal management is in place – meaning there is a controlled airflow path plus at least one properly specified fan. [rittal]
Many DIY outdoor TV cabinets start with a simple idea: "If I cut some vents, the hot air will escape." The reality is more complicated. [reddit]
Passive vents rely purely on natural convection:
- Hot air rises to the top and escapes.
- Cooler air enters from lower openings.
This can work in mild climates, but it quickly becomes inadequate when:
- The enclosure is in direct sun for several hours. [deertv]
- The TV is a high‑brightness model (common for outdoor use) that generates more heat. [acrtmatic]
- The cabinet is mounted close to a wall with little room for air to circulate. [firgelliauto]
In our lab testing on outdoor electronics, passive vents alone often allow the internal temperature to climb 10–20 °F above ambient, even without direct solar load. In a 95 °F backyard, that can push your TV well into the danger zone. [rittal]
This is why every industrial‑grade outdoor enclosure – from telecom base stations to smart traffic cabinets – uses forced convection with fans rather than relying on vents alone. [movincool]

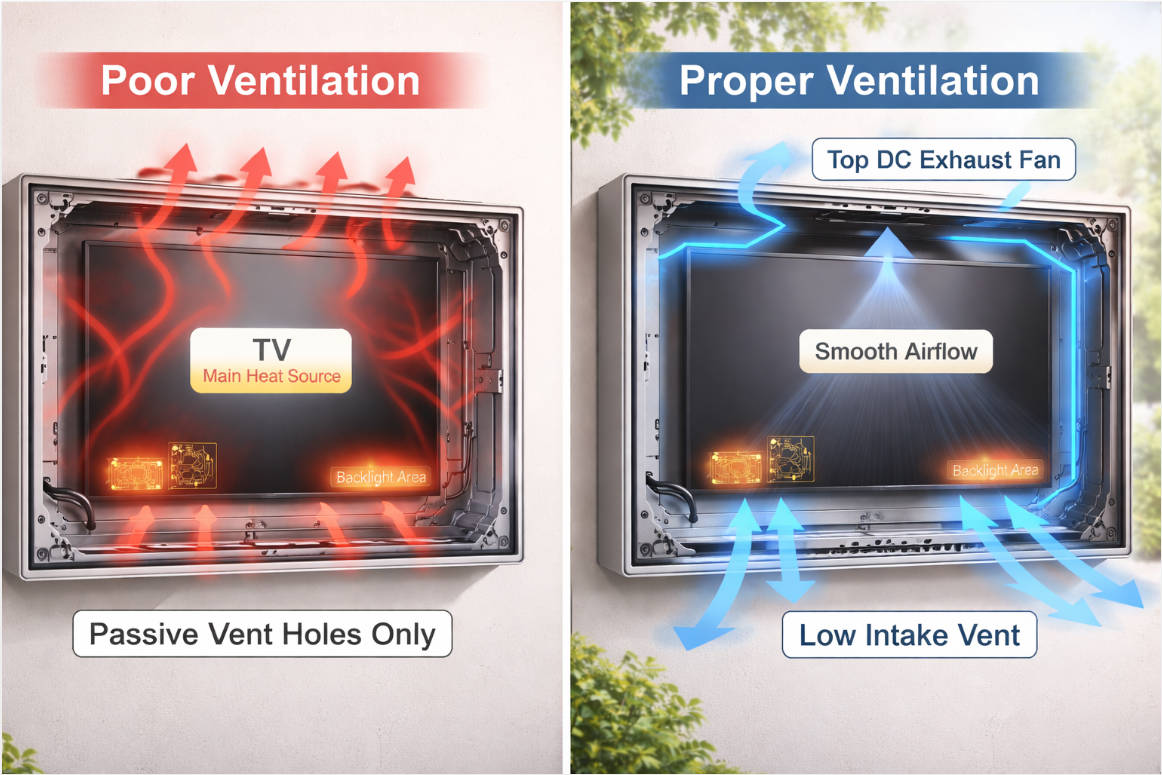

The most important design principle I share with homeowners and professional integrators is this:
> Do not just "add a fan." Design an airflow path.
For a typical outdoor TV enclosure, that means:
1. Low intake, high exhaust
- Place cool‑air intake vents low on one side of the enclosure.
- Place exhaust vents high on the opposite side or at the top, so hot air is actively removed. [acdcecfan]
2. Single, directed flow path
- Air should enter, sweep across the back of the TV and electronics, and then exit.
- Avoid designs where air can "short‑circuit" directly from intake to exhaust without cooling the TV. [reddit]
3. At least one active fan at the exhaust
- Mount the fan at or near the top exhaust vent to pull hot air out of the enclosure. [acrtmatic]
- In many of our customer projects, this single change drops internal temperatures by 10–15 °F. [rittal]
4. Weather‑protected and filtered vents
- Use louvers, hoods, or mesh to block direct rain and insects. [deertv]
- In dusty areas, add removable filters that you can clean every few months. [movincool]
This basic "bottom‑to‑top" airflow concept is exactly the same approach we use to cool outdoor telecom cabinets deployed for ZTE and Huawei base stations – the difference is simply scale. [sanyodenki]

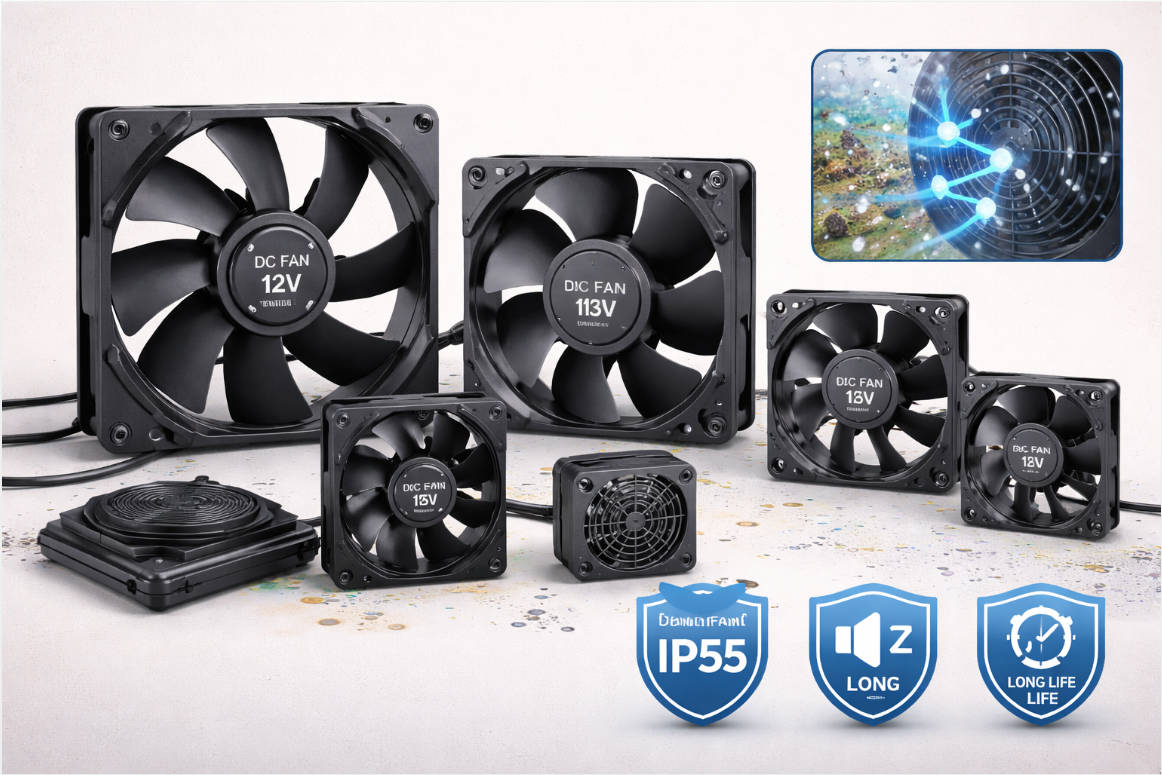

As a manufacturer of DC fans, AC fans and radiators for industrial use, we see the same mistakes over and over: undersized fans, non‑sealed bearings, and generic PC fans used outdoors. [cndghw]
When cooling an outdoor TV enclosure, you should focus on four parameters:
Select a fan that can provide enough cubic feet per minute (CFM) for your cabinet volume and heat load.
- Small cabinet (around a 32–43" TV): typically 20–40 CFM is adequate with a good airflow path. [acdcecfan]
- Larger cabinet (55–65" TV, high brightness): often 40–80 CFM or more is recommended, sometimes using two fans. [rittal]
In industrial projects, we frequently use multiple weatherproof DC fans in parallel when high internal dissipation or direct sun exposure is expected. [acdcecfan]
For outdoor applications, this is non‑negotiable:
- Choose at least IP55 (protection against dust and water jets) for the fan assembly. [rittal]
- In harsh coastal or industrial environments, we recommend higher protection or conformal‑coated electronics. [movincool]
Standard indoor PC fans are usually not sealed, meaning moisture, mist, or insects will quickly destroy bearings and electronics. [acdcecfan]
Both can work, but each has its typical use case:
- DC fans
- Easier speed control with thermostats or PWM.
- Lower noise at reduced speed.
- Ideal when a low‑voltage power source (such as the TV's auxiliary output or a small DC adaptor) is available. [rittal]
- AC fans
- Simple wiring in locations with stable AC mains.
- Useful for larger cabinets that need higher airflow. [movincool]
Capital Technology, operating under the CAPITAL brand and as a core distributor for SANYO DENKI, supplies both high‑reliability DC and AC fans that are widely used in telecom and industrial enclosures – the same technology is directly applicable to outdoor TV cabinets. [cndghw]
For residential use, noise matters:
- Look for fans with low dB(A) ratings at your intended operating speed. [acdcecfan]
- Ball‑bearing or advanced fluid‑dynamic bearings offer longer life than sleeve bearings in outdoor conditions. [rittal]
In our outdoor installations, we target a fan lifetime rating of at least 40,000–60,000 hours at 40 °C to avoid frequent maintenance. [movincool]

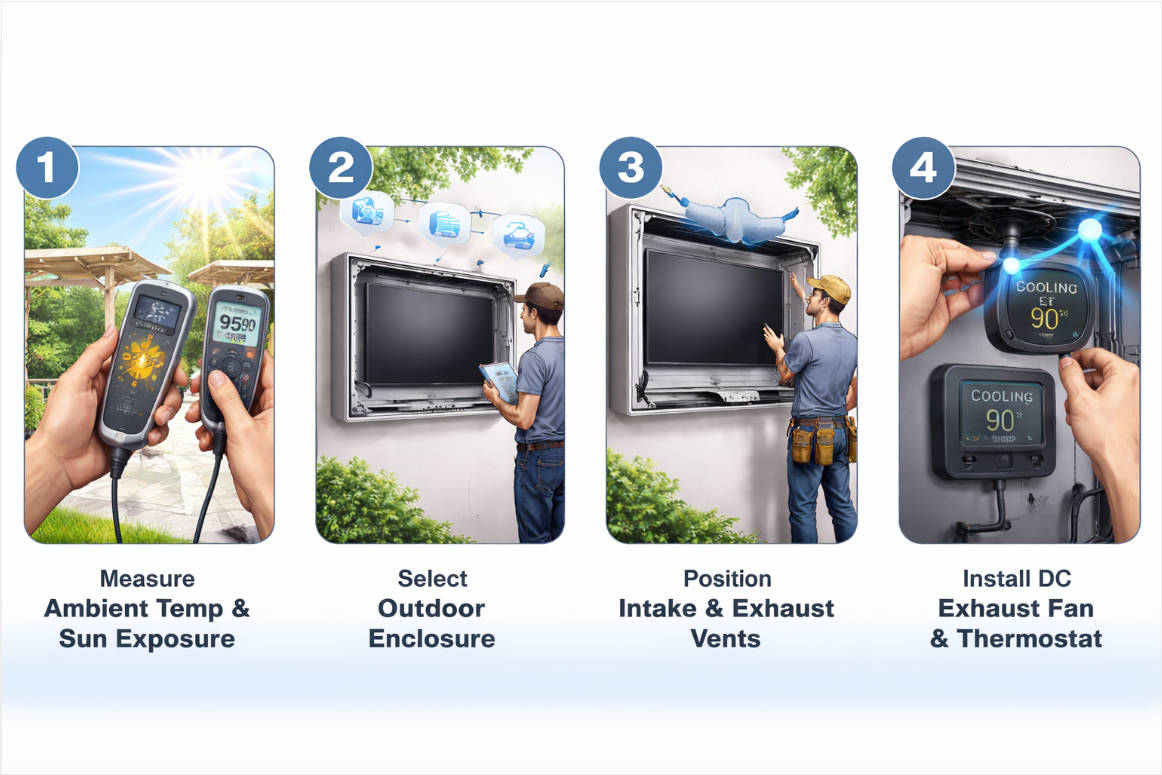

When homeowners or integrators ask us for help with a specific project, we usually follow a simple process. You can apply the same steps.
- Peak summer ambient temperature in your region.
- Whether the enclosure will be in direct sun (south‑facing wall, poolside) or mostly shaded. [pcenclosures]
- Any local constraints like salty seaside air, dust, or high humidity. [acrtmatic]
If the cabinet sits in direct sunlight for several hours a day, we always design with a higher cooling margin or suggest shade structures. [pcenclosures]
If you have not yet bought an enclosure, consider:
- Outdoor‑rated TV cabinets with built‑in ventilation, weatherproof construction, and UV‑resistant windows. [thetvshield]
- Cabinets that allow some spacing behind the TV and include mounting options that hold the screen away from the rear wall for better airflow. [zebozap]
Whenever possible, mount the enclosure on a north‑facing or shaded wall to minimize solar load before the fan even starts working. [deertv]
Draw a simple diagram:
- Cold‑air intake at the lower left or right.
- Hot‑air exhaust with a fan at the top on the opposite side.
- Path that forces air to pass over the back of the TV and main hot spots (power board). [acrtmatic]
This is the same airflow concept used in professional outdoor electronics cabinets we supply fans and radiators for. [acdcecfan]
Based on volume and environment, we select:
- One or two weatherproof DC fans (IP55+) with total airflow in the 30–80 CFM range for typical residential enclosures. [acrtmatic]
- Thermostat‑controlled operation so the fan starts when the internal air temperature hits around 95 °F (35 °C) and stops once it cools. [acrtmatic]
In industrial deployments for customers like ZTE or Huawei, we commonly use similar temperature‑controlled fan systems to minimize noise and power consumption while maximizing component life. [sanyodenki]
Where climate demands it, we recommend:
- Gore‑type vents that equalize pressure and allow moisture to escape while blocking water ingress. [reddit]
- Desiccant packs inside the enclosure in very humid or coastal environments. [reddit]
These techniques come from outdoor telecom and military electronics design and translate well to home outdoor TVs. [reddit]
Reading manufacturer specs is useful, but what really shapes our recommendations is what we see in the field.
From customer feedback and project reviews:
- Cabinets with only passive vents often run 10–20 °F hotter internally than cabinets with correctly placed exhaust fans. [rittal]
- Adding a small DC exhaust fan at the top has solved repeated summer shutdown issues in many DIY home enclosures. [acrtmatic]
- Mounting the cabinet under a pergola roof or eave drastically reduces thermal load; fans then operate at lower duty cycles and noise levels. [deertv]
- Using indoor‑grade fans without IP protection leads to failure within one or two seasons in wet climates. [acdcecfan]
As a factory focusing on DC fans, AC fans and radiators, we designed the same kind of solutions for critical outdoor telecom equipment, where downtime is unacceptable and internal heat loads are significantly higher than a single TV. Those projects confirm that simple, robust airflow plus the right fan will outperform any amount of passive vent holes. [cndghw]
If you are investing in an outdoor TV, the incremental cost of professional‑grade cooling is small compared to the cost of replacing the screen.
From our experience in industrial projects, these components add the most value:
- IP55 or higher DC fans with long‑life bearings and stable performance. [rittal]
- AC fans for larger cabinets or when airflow requirements are higher, typical in multi‑display or digital signage setups. [movincool]
- Aluminum radiators and heat sinks that can be attached to hotspots or integrated into the cabinet design for additional conductive cooling. [cndghw]
Capital Technology (CAPITAL), as a specialized thermal‑solution manufacturer and SANYO DENKI distributor, supplies these elements to OEMs and system integrators building outdoor enclosures for telecom, networking and display applications. The same product families are suitable for serious homeowners, hospitality projects, and commercial outdoor entertainment spaces. [sanyodenki]
For homeowners and installers, here is a concise checklist that combines consumer‑level practicality with industrial best practices:
1. Position smartly
- Use shade where possible (north‑facing wall, under eaves or pergola). [deertv]
2. Pick the right enclosure
- Outdoor‑rated, UV‑resistant front window, internal space around the TV for airflow. [thetvshield]
3. Design the airflow path
- Low intake, high exhaust, forced airflow over the back of the TV. [acrtmatic]
4. Install at least one weatherproof exhaust fan
- Preferably a DC fan with thermostat control and IP55 rating or higher. [acdcecfan]
5. Manage humidity and dust
- Use weather‑protected vents, optional Gore‑type vent, and clean filters regularly. [reddit]
6. Monitor temperature
- Add a simple digital thermometer inside during the first summer to verify performance; ideally, keep internal temperature below 104 °F (40 °C). [pcenclosures]
7. Plan for maintenance
- Make fans and filters accessible for cleaning or replacement. [movincool]
These are the same principles we rely on in mission‑critical deployments; scaled correctly, they work just as well in your backyard.
If you already own an outdoor TV enclosure and have experienced blackouts, shutdowns, or noticeable heat when you open the door, upgrading the cooling system is one of the highest‑impact changes you can make. [acrtmatic]
As a source manufacturer of DC fans, AC fans and radiators, Capital Technology (CAPITAL) can help you:
- Select weatherproof DC/AC fans sized correctly for your specific enclosure and climate. [cndghw]
- Design an effective airflow layout based on proven telecom and industrial enclosure standards. [sanyodenki]
- Configure complete cooling kits for outdoor TVs, digital signage, and outdoor electronics cabinets. [cndghw]
If you are planning a new project or upgrading an existing enclosure, contact our engineering team to discuss your environment, cabinet size and operating conditions so we can propose a tailored cooling solution that keeps your outdoor TV safe for the long term. [cndghw]
Most consumer TVs are designed to operate reliably up to around 95–104 °F (35–40 °C) internal air temperature. Outdoor‑rated TVs may tolerate higher ranges, but once internal air climbs toward 125–130 °F, blackouts, shutdowns, or long‑term damage become much more likely, especially under direct sunlight. [thetvshield]
Passive vents help, but they usually cannot prevent heat buildup in sunny or hot climates, especially with high‑brightness outdoor TVs. A correctly sized, IP‑rated exhaust fan at the top of the enclosure establishes continuous airflow, which keeps the internal temperature much closer to safe limits and is the standard in professional outdoor electronics. [rittal]
For most outdoor applications, you should choose at least IP55 to protect against dust and water jets from any direction. In harsher coastal or industrial environments, stronger sealing or conformal coating may be advisable to maximize fan lifetime and reliability. [movincool]
If you have flexible power options and want quieter, temperature‑controlled cooling, a DC fan is usually preferable because it allows simple speed control and reduced noise at partial load. For larger cabinets with higher airflow needs or where AC mains is the only power source, an AC fan can be a robust option, similar to those used in industrial outdoor enclosures. [movincool]
A specialist manufacturer like Capital Technology can help you size and select weatherproof DC/AC fans, radiators and layout strategies tailored to your enclosure dimensions, local climate and mounting conditions. Drawing on experience with telecom, networking and industrial projects, we can design a practical solution that keeps your outdoor TV operating safely for years instead of seasons. [sanyodenki]
