If you are looking for a 12V DC squirrel cage fan for compact equipment, targeted cooling, or ducted airflow applications, this guide will help you choose the right solution. In this article, we explain how a squirrel cage fan works, where it performs best, what specifications matter most, and how Capital Technology Co., Limited supports OEM and industrial cooling projects with both CAPITAL brand products and SANYO DENKI supply capabilities.

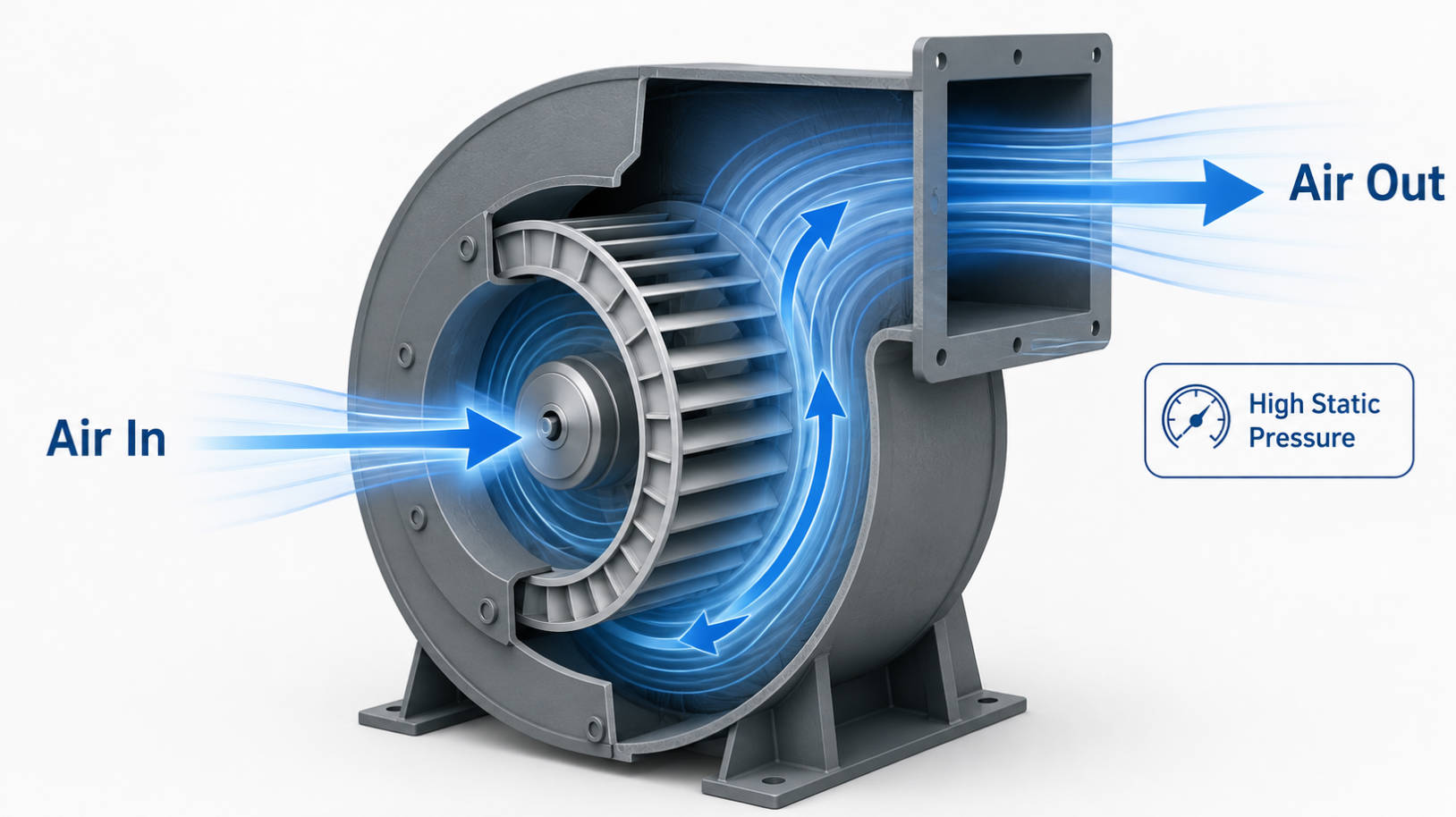

A 12V DC squirrel cage fan is a type of centrifugal blower fan that pulls air in through the center of the impeller and pushes it out at a 90-degree angle. This design is different from an axial fan, which moves air in a straight line. Because of that structure, squirrel cage fans are often chosen when airflow must be directed through a housing, duct, or narrow channel.
In practical terms, the squirrel cage design is ideal when you need:
- Focused airflow instead of broad ventilation.
- Better pressure performance than many axial fans.
- Compact cooling inside equipment with limited space.
- Stable airflow delivery in enclosed or semi-enclosed systems.
The 12V DC platform is one of the most widely used power options for small and medium cooling systems. It is common in electronics, telecom devices, battery-powered equipment, compact appliances, and OEM assemblies because it is easy to integrate and compatible with many control systems.
From an engineering and sourcing perspective, 12V DC fans are popular because they usually offer:
- Simple power matching for many devices.
- Flexible installation in both commercial and industrial products.
- Broad replacement compatibility across legacy systems.
- Good balance of airflow, power draw, and noise for compact applications.
Compared with an axial fan, a squirrel cage fan is often the better choice when airflow resistance matters. In our experience working with industrial cooling projects, this is one of the most misunderstood fan categories: customers often ask for "more airflow," but what they actually need is more usable airflow under resistance.
- Higher static pressure for ducted or restricted paths.
- More controlled airflow direction for localized cooling.
- Compact design for space-constrained equipment.
- Strong performance in enclosed systems such as cabinets, enclosures, and thermal modules.
- Reliable operation when paired with quality bearings and brushless DC motor construction.
A 12V DC squirrel cage fan is widely used in applications where direct airflow must be guided to a specific heat source or vent path. Common use cases include electronics, industrial control cabinets, mini HVAC modules, appliance cooling, inverter systems, and DIY ventilation projects.
Typical application scenarios include:
1. Server cabinets and telecom enclosures.
2. Refrigerator and appliance cooling.
3. Inverters and power supply units.
4. Amplifiers and audio equipment.
5. Industrial control boxes and automation devices.
6. Portable heating, ventilation, and air handling systems.
Choosing the right blower fan is not only about voltage. To get a cooling solution that lasts, you should evaluate the airflow path, resistance, noise target, installation dimensions, and duty cycle. This is especially important for OEM buyers and product engineers who want stable thermal performance over time.
Do you need high airflow volume, or do you need airflow that can overcome resistance? If air must pass through filters, ducts, fins, or a narrow outlet, a squirrel cage fan is usually more suitable than an axial fan.
A product may be listed as 12V, but its dimensions, outlet size, and mounting holes still need to fit the enclosure. For example, compact blower fans may have very different physical footprints and outlet geometries depending on model design.
Power consumption matters for battery-backed systems, portable devices, and low-energy applications. Product examples in the market show a wide range of ratings, such as around 1.7W to 11W depending on size and performance target.
Dual ball bearing models are often selected when long service life and more stable operation are priorities. For industrial buyers, bearing choice can significantly affect durability, temperature tolerance, and maintenance cycle.
Noise is not just a comfort issue. In telecom, office equipment, and consumer electronics, fan acoustics can influence product acceptance. Market examples show noise levels in the range of roughly 42 dBA to 54 dBA, depending on design and operating condition.

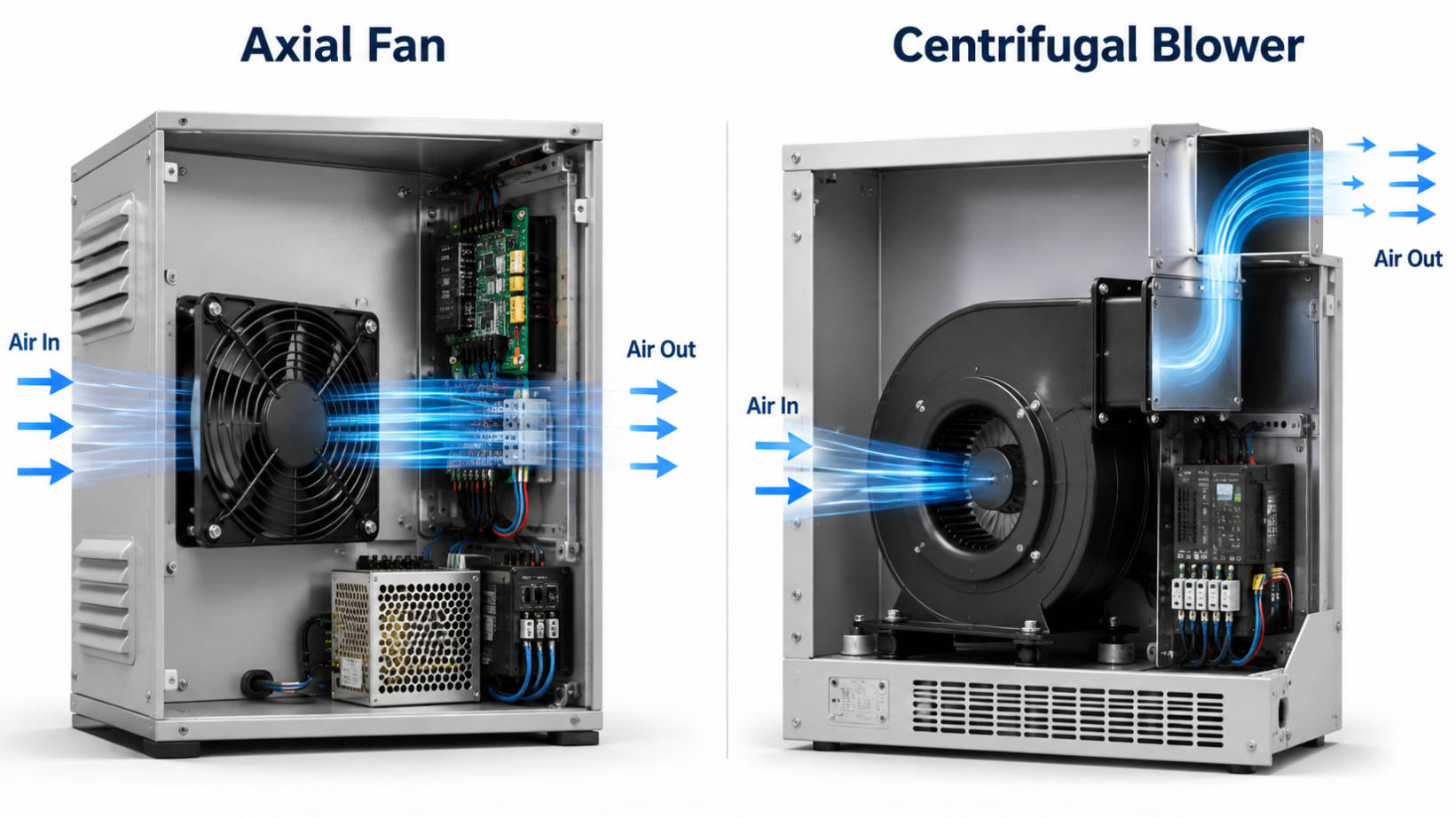

The most important question is not "which fan is better," but which fan is better for the airflow path you are designing. Axial fans are usually better for open ventilation, while squirrel cage fans are better for guided or pressured airflow.
| Factor | 12V DC Squirrel Cage Fan | 12V DC Axial Fan |
|---|---|---|
| Airflow direction | Turns airflow 90 degrees | Pushes air straight through |
| Best use case | Ducts, enclosures, restricted channels | Open-air ventilation |
| Static pressure | Better under resistance | Usually lower |
| Noise profile | Can be efficient in compact systems | Often quieter in open flow |
| Design value | Targeted airflow control | Broad-area cooling |
If your product has a heat sink, duct, baffle, or internal airflow path, the squirrel cage fan usually gives better real-world cooling performance. If you only need to circulate air in open space, an axial fan may be simpler and more efficient.
Capital Technology Co., Limited is positioned as a cooling fan manufacturer and sourcing partner for industrial customers. According to the company's public profile, Capital Technology Co., Limited is the chief agent of SANYO DENKI and also operates its own CAPITAL brand, serving customers in cooling fan and thermal management applications.
This matters because buyers in industrial and OEM markets often need more than a product page. They need:
- Consistent supply
- Technical selection support
- Product authenticity
- Application guidance
- After-sales communication
- A vendor that understands both manufacturing and system integration
SANYO DENKI itself is a well-established manufacturer of cooling fans, motors, and UPS products, which further strengthens buyer confidence when sourcing through an authorized supply channel.
Here are a few expert-level rules we recommend when sourcing a 12V DC squirrel cage fan for an OEM or industrial project:
1. Define the thermal problem first.
Do not start with fan size. Start with heat load, airflow path, and resistance.
2. Match the fan to the enclosure.
A fan can have strong specifications but still underperform if the outlet path is poorly designed.
3. Prefer stable performance over peak numbers.
In real applications, consistent airflow matters more than a headline CFM value.
4. Ask for application advice early.
A good supplier should help you match fan structure, voltage, current, noise, and mounting requirements.
5. Test under actual working conditions.
Bench performance is useful, but installed performance is what determines success.
If you are developing a product that needs compact, directed, and reliable cooling, contact Capital Technology Co., Limited for application support and product selection. Whether you need a CAPITAL branded solution or sourcing support for SANYO DENKI cooling fans, our team can help you choose the right 12V DC squirrel cage fan for your project.
They are often used to describe the same type of fan structure. The key feature is that air enters the center and exits at an angle, which makes the design suitable for guided airflow.
It depends on the application. If your system has ducts, filters, or resistance, a squirrel cage fan is usually better. If you only need open-air ventilation, an axial fan may be enough.
They are commonly used in electronics, telecom equipment, power supplies, appliances, inverters, mini HVAC systems, and industrial control boxes.
Check voltage, current, airflow, static pressure, size, outlet shape, bearing type, and noise level. These factors matter more than voltage alone.
Yes. Based on the company's public profile, Capital Technology Co., Limited operates as a cooling fan supplier and chief agent of SANYO DENKI, which makes it suitable for OEM sourcing and thermal solution support.
