A 12V DC centrifugal fan is often the right cooling choice when an electronic enclosure has restrictive airflow paths, dense components, heat sinks, filters, ducts, or narrow vents. Unlike an axial fan, a DC centrifugal blower is designed to generate higher static pressure, helping air continue moving through resistance rather than simply circulating in open space.
At Capital Technology Co., Limited, we work with OEM and industrial customers that need dependable thermal-management solutions for demanding equipment. As the manufacturer behind the independent CAPITAL brand and a leading SANYO DENKI distributor, we support projects requiring DC fans, centrifugal blowers, fan accessories, and application-based cooling selection. Our experience serving customers in communications, industrial electronics, power systems, and professional equipment helps us evaluate cooling requirements beyond catalog airflow figures.

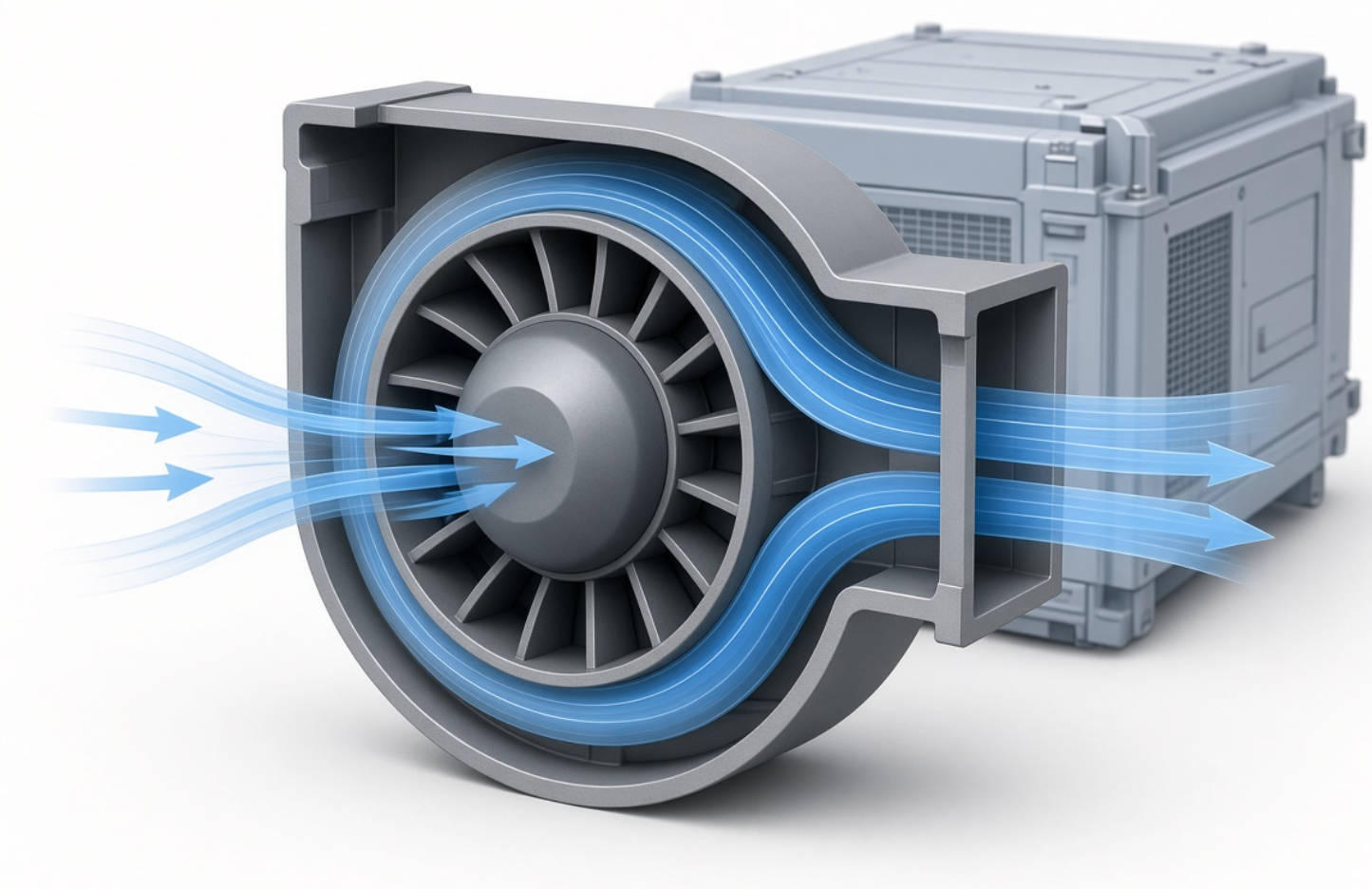

A 12V DC centrifugal fan, also called a 12V blower fan or DC centrifugal blower, draws air into the impeller inlet and redirects it outward through a side outlet. This airflow path creates pressure that is better suited to restrictive cooling systems.
In a typical axial fan, air enters and exits in the same direction as the motor shaft. Axial fans work well in relatively open enclosures. However, when air must move through a narrow duct, heat sink fins, filters, perforated panels, or compact internal channels, an axial fan may lose much of its effective airflow.
A centrifugal cooling fan is usually the better option when your product requires:
- Higher static pressure
- Directed airflow through a side outlet
- Cooling inside compact or enclosed spaces
- Air movement through dense heat sinks or filters
- More controlled airflow routing
- Reliable cooling for power-dense electronics
The critical point is simple: maximum airflow is not the same as usable airflow inside a real device. A fan must operate against the resistance created by the system.
Many buyers begin by comparing CFM ratings. CFM, or cubic feet per minute, measures the fan's air volume under specified conditions. However, a fan's maximum airflow figure is normally measured with little or no resistance.
Real equipment is different.
A telecom cabinet may contain cable bundles, power modules, filters, card cages, vents, and heat sinks. A medical device may use narrow air passages and strict noise limits. A power supply may force air through tightly spaced internal components. These features create system impedance, also known as airflow resistance.
When resistance rises, airflow falls. The fan's pressure-airflow curve determines whether it can still provide enough cooling at the actual operating point.
| Selection factor | Why it matters |
|---|---|
| Airflow (CFM or m³/min) | Indicates air volume available for heat removal |
| Static pressure (Pa or inH₂O) | Determines whether the fan can push air through restrictions |
| Fan curve | Shows airflow performance across changing resistance levels |
| Voltage range | Confirms compatibility with the 12V DC power system |
| Noise level | Important for office, medical, telecom, and user-facing equipment |
| Lifetime | Helps estimate maintenance requirements and field reliability |
| PWM or speed control | Enables cooling performance and noise optimization |
| Sensor output | Supports fan monitoring, alarm systems, and predictive maintenance |
For example, a SANYO DENKI 12V centrifugal blower in the San Ace B97 series is listed with 65.3 CFM maximum airflow and 1,950 Pa maximum static pressure. This illustrates why centrifugal blowers are commonly selected for restrictive cooling paths: their pressure capability can be far greater than that of many standard axial fans.
A 12V centrifugal fan is not automatically better than an axial fan. It is better for the right airflow challenge.
Choose a 12V DC centrifugal blower fan when the system has high airflow resistance or needs controlled air delivery. Typical applications include:
- Telecom base stations and network equipment
- Servers, storage systems, and edge-computing hardware
- UPS systems and power converters

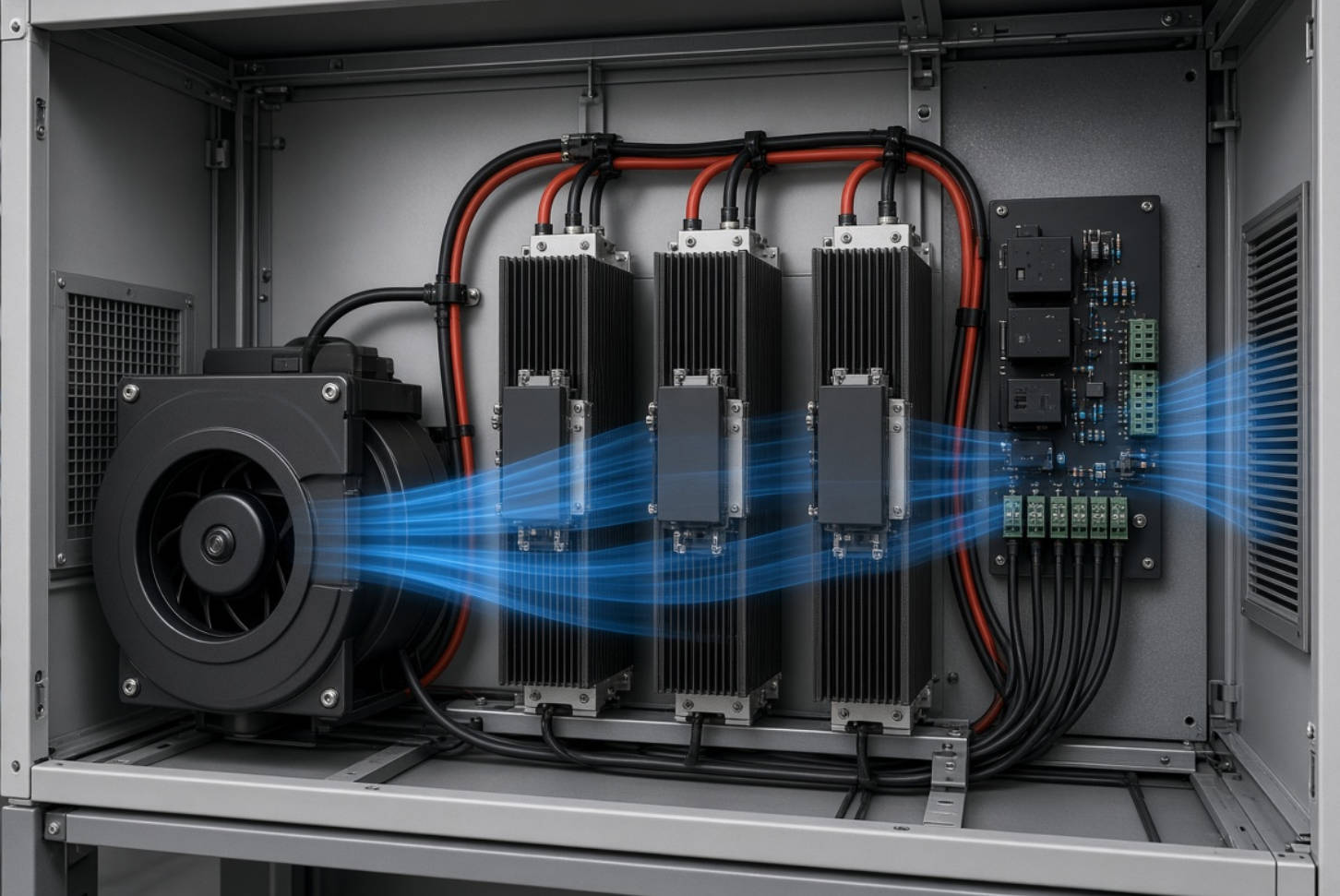

- Industrial control cabinets
- Battery-management systems
- EV charging equipment
- Medical diagnostic devices
- Laser equipment and optical instruments
- Printers, scanners, and imaging systems
- Compact air-purification or filtration modules
- Professional communication equipment
For open-frame equipment with low resistance and large ventilation openings, an axial fan may provide a more economical solution. But for high-density electronics, selecting an axial fan solely because its free-air CFM looks high can cause overheating after assembly.
Selecting a blower should begin with the system—not the fan model.
First, identify:
- Total heat load in watts
- Maximum allowable internal temperature
- Ambient operating temperature
- Required temperature rise from inlet to outlet
- Location of the main heat-generating components
- Expected duty cycle
Higher ambient temperature reduces the available cooling margin. A fan that performs adequately in a laboratory may be insufficient in an outdoor cabinet, a factory environment, or a fully populated rack.
A preliminary airflow target can be estimated using the heat load and allowable air-temperature rise. However, this calculation is only the starting point.
The design team must then consider:
- Heat sink efficiency
- Air leakage
- Recirculation risk
- Inlet and outlet restrictions
- Component placement
- Altitude
- Dust buildup over time
- Filter loading
A cooling fan should be selected with a practical performance margin rather than only meeting an ideal calculation.
This is where many cooling projects fail.
System resistance comes from every feature that obstructs airflow, including:
- Narrow louvers
- Fine mesh filters
- Duct turns
- Dense heat sinks
- Small perforations
- Cable bundles
- Fan guards
- Internal modules
- Dust accumulation
The selected fan must provide enough airflow at the system's actual resistance point. Use the manufacturer's P-Q curve, also called a pressure-airflow curve, to evaluate this operating point.
For a 12V DC centrifugal fan, verify:
- Nominal and allowable voltage range
- Rated current and startup current
- Power consumption
- Connector type and wire length
- PWM control requirements
- Tachometer or pulse-sensor output
- Locked-rotor protection
- Reverse-polarity protection
- Alarm and monitoring requirements
Speed-control capability can be especially valuable. A PWM-controlled blower can reduce fan speed during low-load periods, lowering noise and energy use while preserving thermal headroom when demand increases.
A high-speed blower can solve a thermal issue while creating a noise issue. Fan selection should balance cooling, acoustic performance, and long-term reliability.
Review:
- Sound pressure level at the specified measurement distance
- Bearing system
- Operating temperature range
- Expected service life
- Humidity and condensation exposure
- Dust, oil mist, or corrosive gases
- IP rating, where applicable
- Vibration and shock requirements
SANYO DENKI publishes detailed fan data including frame size, voltage, airflow, static pressure, sound pressure level, expected lifetime, sensor options, IP rating, and PWM-control availability. These parameters should be reviewed at the model level rather than assumed across an entire product family.
| Feature | 12V DC centrifugal fan | 12V DC axial fan |
|---|---|---|
| Airflow direction | Air enters axially and exits sideways | Air moves parallel to the motor shaft |
| Static pressure | Generally higher | Generally lower to medium |
| Best for | Ducts, filters, heat sinks, compact airflow channels | Open chassis and low-resistance ventilation |
| Airflow routing | Highly controllable | Less suitable for sharp directional changes |
| Space profile | Often requires room for the outlet path | Often easier to mount on flat panels |
| Typical challenge | Noise at high speed | Performance drops in restrictive systems |
A centrifugal blower is usually the more suitable solution when air must be pushed through a restrictive path. Industry guidance on fan selection emphasizes that the chosen fan must provide both required airflow and adequate static-pressure increase for the device's resistance.
The fan may be correctly specified, but the enclosure design can still cause overheating. If hot exhaust air returns to the inlet, the fan repeatedly circulates warm air instead of introducing cooler air.
Improve the airflow path by:
- Separating inlet and exhaust locations
- Avoiding direct exhaust-to-inlet paths
- Sealing large leakage gaps
- Directing air across high-power components first
- Positioning temperature-sensitive components away from exhaust zones
- Using baffles or ducts where needed
Choosing the most powerful blower can create avoidable problems:
- Excessive noise
- Higher power draw
- Increased vibration
- Unnecessary cost
- Faster dust intake
- Poor user experience
A better approach is to select a fan with sufficient pressure margin and combine it with PWM speed control where appropriate. This allows the system to respond to real thermal demand.
A fan specification sheet is essential, but it cannot fully predict performance after assembly. Test the final system under representative conditions.
A useful validation plan includes:
1. Measure inlet and outlet temperatures.
2. Monitor the hottest critical component.
3. Test at minimum, nominal, and maximum supply voltage.
4. Test at realistic ambient temperature.
5. Measure fan speed and airflow-related alarms.
6. Evaluate noise at normal and peak loads.
7. Repeat testing after filter loading or simulated dust buildup.
This process helps identify problems such as blocked airflow paths, uneven cooling, recirculation, and incorrectly positioned temperature sensors.
Cooling components should be chosen as part of a complete thermal-management strategy. A reliable supplier should understand not only fan dimensions and voltage, but also the operating environment, pressure requirements, control logic, compliance expectations, and manufacturing constraints.
Capital Technology Co., Limited provides DC fan and cooling-solution support for projects that require application-focused selection. Our portfolio includes CAPITAL-brand cooling products alongside SANYO DENKI fan solutions, enabling customers to compare options based on technical requirements, availability, budget, and long-term product strategy.
For OEM and industrial buyers, we can support discussions around:
- 12V DC centrifugal fan selection
- High-static-pressure cooling design
- Axial fan and blower comparison
- PWM speed-control requirements
- Fan sensor and alarm integration
- Customized connector, cable, and mounting needs
- Cooling solutions for communication and industrial equipment
- Supply planning for production programs
If your equipment experiences overheating, high internal temperature, restricted airflow, or fan-noise issues, the solution should begin with a real assessment of the thermal system.
Contact Capital Technology with your heat load, enclosure size, voltage, airflow path, ambient temperature, and target noise level. Our team can help identify a suitable 12V DC centrifugal fan or blower solution for your project.
A 12V DC centrifugal fan is used to cool electronic equipment with restrictive airflow paths, such as power supplies, telecom equipment, servers, battery systems, industrial controls, and compact enclosures with heat sinks or filters.
The terms are often used interchangeably in electronics cooling. A centrifugal blower normally describes a compact centrifugal fan that takes in air through an inlet and discharges it through a side outlet at higher pressure.
Start with the equipment heat load and allowable temperature rise, then evaluate the system resistance. Select a fan using its pressure-airflow curve, not only its maximum free-air CFM rating.
Static pressure is the fan's ability to overcome airflow resistance. It becomes important when air must pass through filters, ducts, heat sinks, guards, dense components, or narrow vents.
Many DC centrifugal fan models support PWM control, but availability depends on the specific model. PWM control can help balance cooling performance, energy use, and noise.
They can be louder, especially at high speed, because they are often designed for higher pressure. Noise depends on fan size, speed, impeller design, mounting, airflow path, and control strategy.
Possibly, but the replacement should be evaluated carefully. You must confirm available space, outlet direction, mounting pattern, electrical requirements, airflow needs, static pressure, and noise limits.
1. SANYO DENKI. “DC Cooling Fan | San Ace | Product Lineup.” Product specifications for DC fan models, including airflow, static pressure, sound level, expected life, sensors, IP rating, and PWM availability. [https://products.sanyodenki.com/en/sanace/dc/dc-fan/lineup/] [products.sanyodenki]
2. RS Components. “Sanyo Denki San Ace B97 Series Blower Centrifugal Fan, 12V DC, 65.3 CFM.” Model-level airflow, static-pressure, speed, noise, bearing, and approval data. [https://no.rs-online.com/web/p/centrifugal-fans/0757102] [no.rs-online]
3. ebm-papst. “Compact Fans for AC and DC.” Fan-selection guidance explaining that a cooling fan must provide sufficient static-pressure increase to move required airflow through a device. [https://www.mouser.com/datasheet/2/120/Compact_fans_for_AC_and_DC_2016_01_US-1773461.pdf] [mouser]
4. SANYO DENKI. “Centrifugal Fan.” Product documentation covering construction and operating-temperature information for centrifugal fan products. [https://www.sanyodenki.com/america/document/Centrifugal_Fan.pdf] [sanyodenki]
5. Mouser Electronics. “9TD Type San Ace C70 Centrifugal Fans.” Product-family information covering compact dimensions, airflow, static pressure, motor protection, and environmental characteristics. [https://www.mouser.ca/new/sanyo-denki/sanyo-denki-9td-type-c70-fans/] [mouser]
