Radial fans remain one of the most reliable ways to move air, dust and gases in demanding industrial environments, but many engineers still struggle to choose and apply them correctly for modern DC/AC cooling applications. As someone who has spent years working with OEMs on thermal management projects in telecom, power electronics and industrial automation, I have seen both highly successful and very costly radial fan deployments—and the difference usually comes down to understanding fundamentals, selecting the right partner, and validating the design early. [sciencedirect]
In industrial projects, a radial fan (often called a centrifugal or blower fan) is not just a catalog item; it is a mechanical device your entire cooling strategy depends on. It uses an impeller powered by a motor to draw air in axially and discharge it at 90 degrees, creating a characteristic spiral flow that can generate much higher pressure than typical axial fans. [sciencedirect]
In my experience with telecom base stations and power cabinets, radial fans are often chosen when you must push air through filters, heat sinks, ducts or densely packed components where resistance to airflow is significant. This is why you see them widely used in factories, mining facilities and commercial buildings where both dust and static pressure are high. [fan2025]
Every radial fan project I review comes down to the same set of core components, and understanding them helps avoid many integration mistakes. [sciencedirect]
- Impeller – The heart of the fan; its blade design determines pressure, flow and sensitivity to dust. [sciencedirect]
- Fan housing – Shapes the flow, impacts noise and efficiency, and must match your ducting and installation constraints. [sciencedirect]
- Inlet and outlet ducts – Poorly designed inlets/outlets can easily waste 10–20% of available performance in real installations. [sciencedirect]
- Drive mechanism & motor – DC, AC or EC drive not only defines controllability and efficiency but also EMC and reliability. [en.szcpt]
- Drive shaft and support – Critical for vibration, noise and long-term bearing life, especially in 24/7 operation. [fan2025]
From a design-review standpoint, I always ask: "Where will this fan pull air from, where will it push it to, and how will dust, vibration and service access evolve over the next five years?" That single question surfaces most hidden risks early.

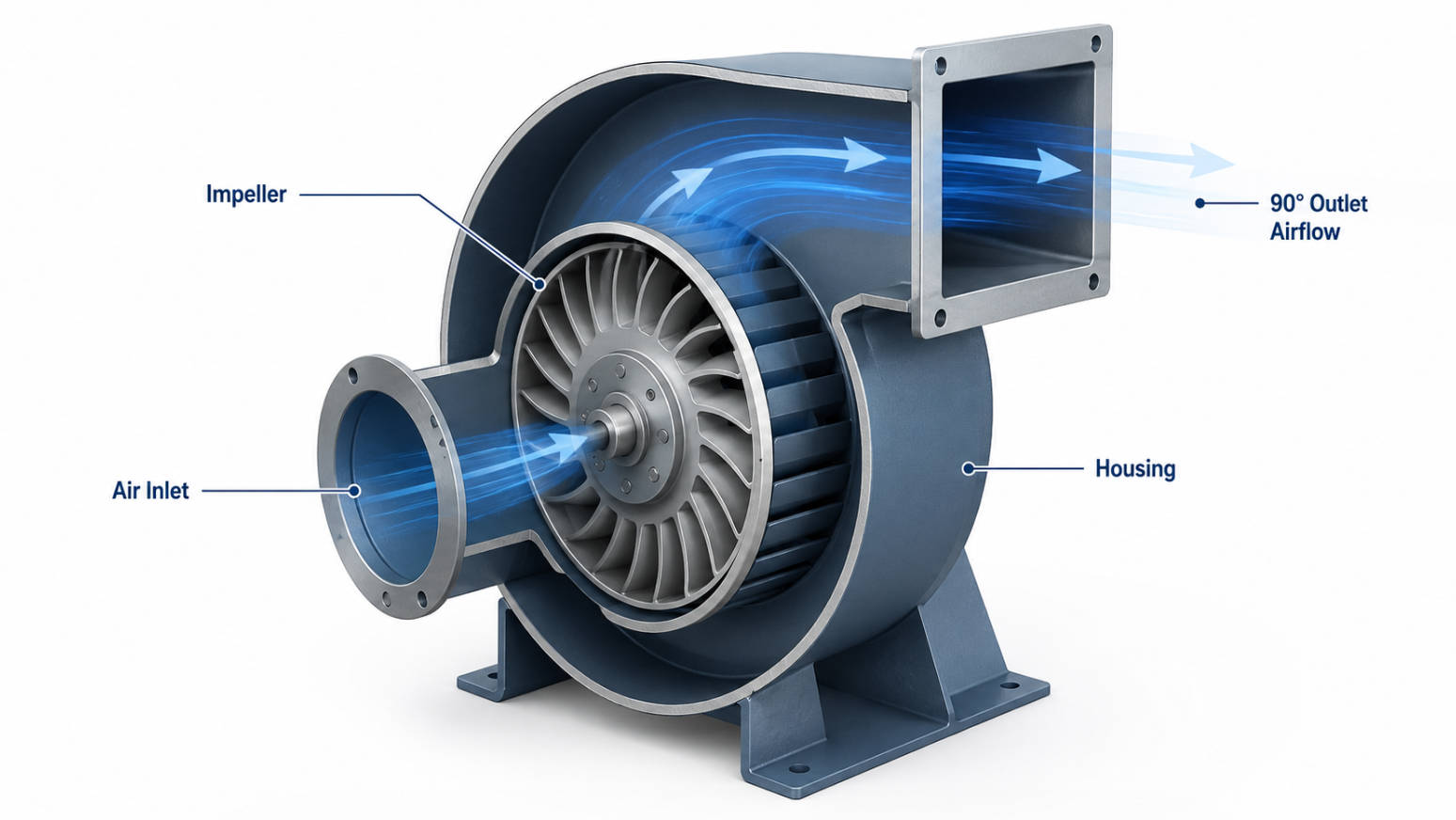

Functionally, a radial fan accelerates air with flat or curved blades that swing it outward from the hub, creating a pressure rise as the air is flung radially through the scroll housing. In practice, that means the fan behaves a bit like a pump: as system resistance increases (filters clog, ducts bend, grilles become obstructed), the operating point shifts along the fan curve. [sciencedirect]
In automotive and electronics cooling, radial fans are frequently used as radiator fans or blower fans where directional control of airflow and pressure are more important than raw open-air CFM. Modern electronic radiator fans rely on sensors and control modules to modulate speed so that the fan runs only when needed, balancing acoustics, energy use and component temperature. [sciencedirect]
For many engineers, the first selection decision is radial vs axial. This is usually where early mistakes happen.
- Radial fans move air perpendicular to the shaft, creating a spiral flow that delivers higher static pressure at medium airflow. [sciencedirect]
- Axial fans move air parallel to the shaft, providing high flow at relatively low pressure, ideal for open spaces or low-resistance paths. [sciencedirect]
- Use radial fans when you have filters, ducts, heat exchangers, complex cabinet layouts or dusty, high-temperature environments. [sciencedirect]
- Use axial fans when you need efficient bulk ventilation or straightforward equipment cooling with minimal flow restrictions.
| Scenario | Better choice | Why it works well |
|---|---|---|
| Telecom base station cabinet with filters | Radial fan | Handles static pressure and dust loading reliably sciencedirect |
| Open-frame server rack in clean environment | Axial fan | High airflow, low pressure needed |
| Cement plant process exhaust | Radial fan | Rugged, self‑cleaning blades, high pressure capability sciencedirect |
| Simple room or enclosure ventilation | Axial fan | Cost‑effective, high volume flow |
Within centrifugal fans, engineers frequently compare radial, airfoil, forward‑curve and backward‑curve designs. Each has clear trade‑offs. [sciencedirect]
- Airfoil fans – High efficiency, low noise; best for clean air in industries like power generation, metals and chemical processing, but they are vulnerable to dust build‑up. [sciencedirect]
- Forward curve fans – Excellent for very high airflow at relatively low pressure, common in furnace and ventilation applications with limited dust. [sciencedirect]
- Backward curve fans – High efficiency and better dust tolerance than airfoil; good for high‑pressure clean or mildly contaminated air. [sciencedirect]
- Radial fans – Medium airflow, high pressure, and robust tolerance for dust, sticky materials and harsh conditions. [sciencedirect]
From a plant audit perspective, I tend to recommend radial fans wherever maintenance access is difficult, dust loading is unpredictable, or process conditions may deteriorate over time. The self‑cleaning behavior of radial impellers often pays for itself in reduced downtime and fewer emergency interventions. [sciencedirect]
Engineers sometimes underestimate how much impeller and blade design drive real-world performance.
- Radial fan impellers typically use 6–12 flat blades extending radially from the hub, with blades that are narrower, deeper and heavier than many backward‑ or forward‑curve designs. [sciencedirect]
- This simple, rugged geometry reduces dust accumulation on blade surfaces and makes the fan suitable for high‑pressure and high‑dust environments. [sciencedirect]
- Impellers are available in multiple geometries, including paddle wheel, open wheel, backplate wheel and steel plate designs, each tuned for specific flow and contamination profiles. [sciencedirect]
In recent years, more designers have adopted CFD and structural simulations to optimize these geometries early in the design cycle. A case study by SimScale and Dr. Heiser's engineering office demonstrated how virtual prototypes were used to increase volume flux while staying within strict limits on power consumption and minimum pressure rise. The team postponed physical prototyping until late in the project, significantly reducing late-stage design changes, development time and cost. [fan2025]

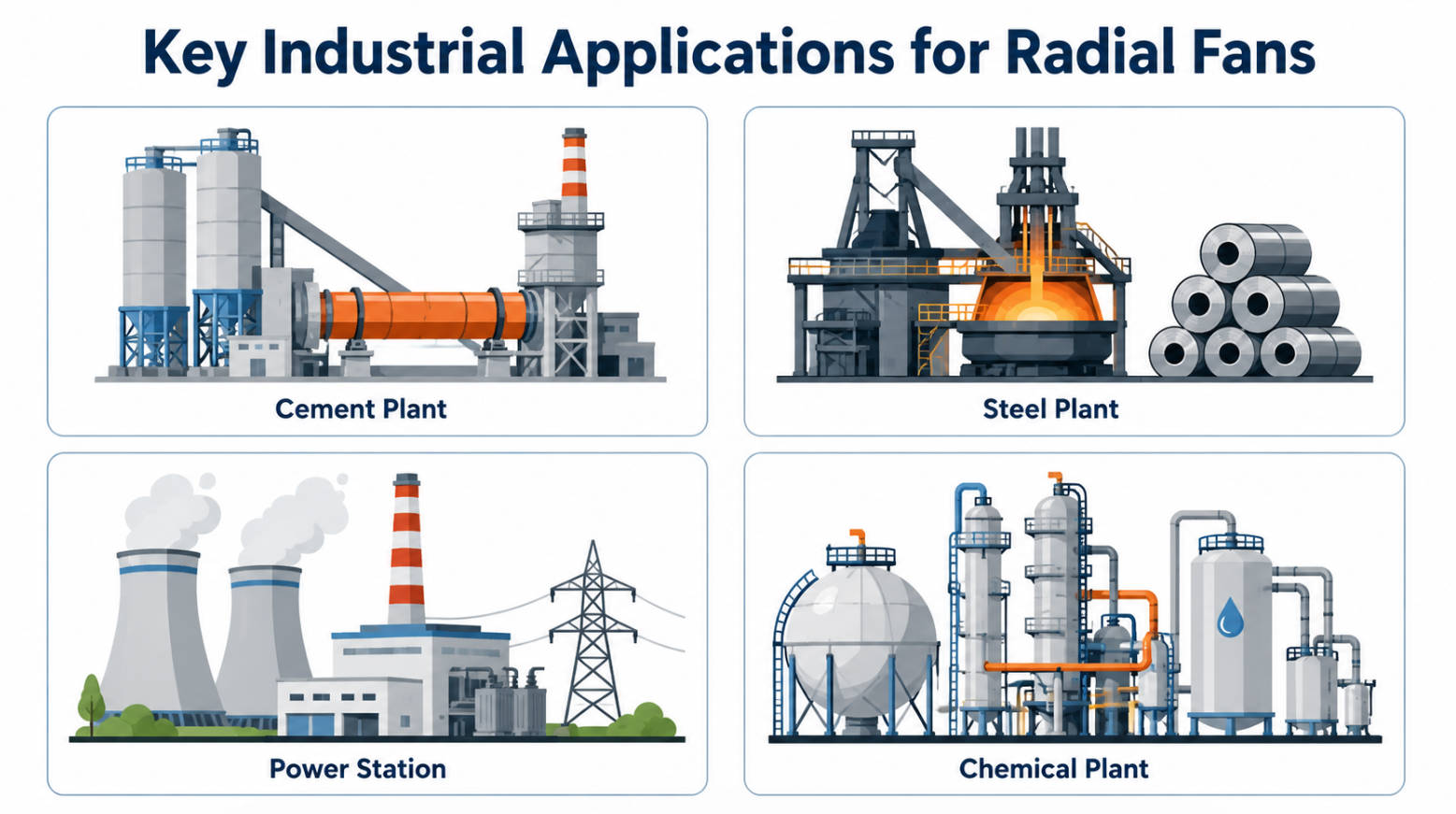

Radial fans are often invisible but critical to stable production and equipment uptime across a wide range of industries.
- Cement plants – Used in raw material preparation, grinding, storage, blending and exhaust gas removal from filters, where dust and high temperatures are the norm. [sciencedirect]
- Steel plants – Support de‑dusting, sintering and other high‑temperature processes, tolerating abrasive, particulate-laden airflows. [sciencedirect]
- Power stations – Radial and other centrifugal fans provide stable airflow and pressure for boilers, especially in power plants below 500 MW. [sciencedirect]
- Chemical industry – Heavy‑duty radial fans are central to exhausting corrosive or hazardous gases under strict safety requirements. [sciencedirect]
- Textile and glass manufacturing – Used for low‑pressure drying and for managing complex thermal profiles in ovens and process chambers. [sciencedirect]
In practice, I encourage plant teams to treat fans as part of a risk‑critical system, not a commodity. Poor fan selection or early cost‑cutting often reappears later as shortened equipment life, hot spots, compliance issues or unplanned downtimes that far exceed the original savings.
Radial blade fans offer a combination of mechanical robustness and cost‑effectiveness that explains their popularity in DC and AC cooling applications.
- Rugged construction allows them to thrive in high‑temperature, high static pressure and corrosive environments while maintaining stable performance. [sciencedirect]
- Self‑cleaning blades reduce dust buildup, lowering maintenance frequency and helping keep energy consumption predictable over time. [sciencedirect]
- Dust and particulate tolerance makes them ideal for applications where air contains fibers, powders or other solids that would quickly degrade other fan types. [sciencedirect]
- Cost advantages over more complex centrifugal designs mean radial fans often deliver the best balance of initial investment and long‑term operating cost, especially in demanding environments. [sciencedirect]
One practical example I have seen repeatedly is in mining and heavy‑industry exhaust systems: moving from an ill‑suited forward‑curve fan to a properly specified radial blower often stabilizes throughput and reduces clogged duct incidents within months.
When selecting radial fans for DC and AC cooling, I typically walk OEM teams through a structured checklist.
1. Define the cooling objective clearly
- Is the fan used for component protection, process stability, safety compliance, or all three?
- Clarify acceptable temperature ranges for critical devices (IGBTs, CPUs, power modules, batteries, etc.).
2. Quantify airflow and pressure requirements
- Estimate or simulate pressure losses across filters, heat sinks, grilles and ducting.
- Always consider worst‑case dust loading and filter aging.
3. Choose DC, AC or EC technology
- DC fans: Precise speed control (PWM), good for telecom and electronics where thermal load varies.
- AC fans: Simple wiring, robust and cost‑effective for many industrial and HVAC applications. [en.szcpt]
- EC fans: High efficiency with integrated control, increasingly popular in energy‑sensitive projects.
4. Assess environmental constraints
- Temperature range, humidity, vibration, shock, corrosive gases and airborne particulates.
- Required ingress protection (IP) rating and applicable safety standards.
5. Plan for maintenance and lifecycle
- Define how often filters will be checked and cleaned.
- Consider bearing life, access to the fan, and the cost of downtime for replacements.
This approach aligns closely with industry guidance on selecting industrial fans that fit both performance and safety requirements in manufacturing environments. [energylogic]
In the last decade, I have seen more OEMs move away from generic fan suppliers toward specialized thermal partners that combine in‑house products, agency lines and engineering support. Capital Technology Co., Limited is a good example of this model.
As the chief agent of SANYO DENKI—a leading enterprise in the cooling fan industry—Capital can combine the depth of a global brand with a local engineering and manufacturing base. At the same time, the company operates its own independent CAPITAL product series, covering DC/AC cooling fans, radiators, filters and reactors. [en.szcpt]
For DC and AC fan buyers, this structure offers three practical benefits:
- Access to a broad, proven portfolio of SANYO DENKI solutions for high‑reliability applications, backed by field data and certifications. [en.szcpt]
- The ability to obtain customized CAPITAL‑brand solutions when a standard fan does not fit the mechanical envelope or performance envelope.
- Direct engineering support, making it easier to integrate fans into complex systems and troubleshoot thermal or airflow issues during design, verification and after deployment. [en.szcpt]
In my experience, this kind of combined manufacturer–agent model shortens design cycles and reduces the risk of choosing fans that look good on paper but underperform in real cabinets or harsh sites.
One pattern I often recommend to OEMs is to pair expert fan suppliers with modern simulation workflows. The SimScale and Dr. Heiser radial fan case study highlights how this can work. [fan2025]
Engineers uploaded CAD models of a new radial fan to a cloud-based CFD platform to predict flow rates, pressure increase, power consumption, forces and moments before committing to prototypes. By running simulations on multi-core machines, they obtained actionable results within about an hour, including detailed pressure fields through the fan blades. [fan2025]
The outcome was a redesigned fan delivering a higher volume flux while respecting strict limits on power consumption and pressure requirements, enabling the team to postpone physical prototyping and significantly cut development risk and cost. For DC/AC cooling projects, the same approach—combined with a supplier able to translate simulation insights into manufacturable fan designs—creates a powerful competitive advantage. [fan2025]
Given how critical fan selection is to long‑term equipment performance, your CTA should be targeted and action‑oriented rather than generic. For Capital Technology, a strong CTA might look like this:
If you are designing or upgrading DC or AC cooling systems for telecom, power electronics, industrial automation or other high‑demand applications, contact the Capital engineering team to review your airflow, pressure and environmental requirements and receive a tailored radial fan or axial fan proposal based on both CAPITAL and SANYO DENKI solutions. [en.szcpt]
Choose a radial fan when your system has filters, ducts, heat exchangers or high dust levels and requires higher static pressure, even if airflow volume is moderate. Choose an axial fan when you need high airflow at low pressure, such as for open ventilation or simple electronics cooling with minimal obstructions. [sciencedirect]
Yes, radial fans with rugged impeller designs and appropriate bearings are widely used in cement, steel, power and chemical plants for 24/7 operation under high dust and temperature conditions. For continuous duty, focus on correct sizing, derating for temperature, and selecting suppliers with proven industrial references. [sciencedirect]
Modern CFD and structural simulation tools make it possible to optimize radial fan designs using CAD models before manufacturing prototypes. The Dr. Heiser case study showed how engineers increased volume flux while respecting power and pressure constraints by iterating virtually, cutting development time and cost. [fan2025]
A company that both manufactures its own fans and acts as an agent for a global brand can offer a broader portfolio, better technical support and more flexible customization options. Capital Technology, for example, represents SANYO DENKI while also producing its own CAPITAL series DC/AC fans, radiators and filters. [en.szcpt]
Before contacting a supplier, prepare details on your application, required airflow and pressure (or at least enclosure size and power dissipation), ambient and internal temperature ranges, available supply voltage (DC or AC), and environmental conditions such as dust, moisture and corrosive gases. Sharing this early helps the supplier recommend the right radial or axial fan faster and more accurately. [energylogic]
