Centrifugal fan design is no longer just about moving air—it is about engineering reliable, efficient and application‑specific cooling that can survive real industrial conditions, from telecom base stations to harsh factory floors. As an OEM thermal solutions manufacturer and SANYO DENKI chief agent, Capital Technology has seen firsthand how small design decisions in centrifugal fans translate into big differences in system stability, energy consumption, and lifecycle cost for customers like ZTE, Huawei and HYTERA. [acdcecfan]
Over the past decade working with DC fans, AC fans and compact centrifugal blowers for global telecom and industrial customers, I have learned that the most successful projects start with one principle: design the fan around the real application, not just the datasheet. This article walks through the core engineering concepts of centrifugal fan design, highlights practical trade‑offs, and shows how manufacturers like Capital Technology and SANYO DENKI apply these principles in mission‑critical systems. [sanyodenki]
In engineering terms, a centrifugal fan (radial fan) converts rotational mechanical power into increased air pressure by accelerating air radially outward through an impeller and scroll housing. Air enters near the hub, gains kinetic energy from the rotating blades, and then the volute converts part of that velocity into static pressure as the flow turns about 90 degrees toward the outlet. [yccfan]
From a system designer's point of view, this means a centrifugal fan is ideal when you need higher pressure against ducting, filters, heat sinks or complex enclosures, rather than just free‑air volume. [acdcecfan]

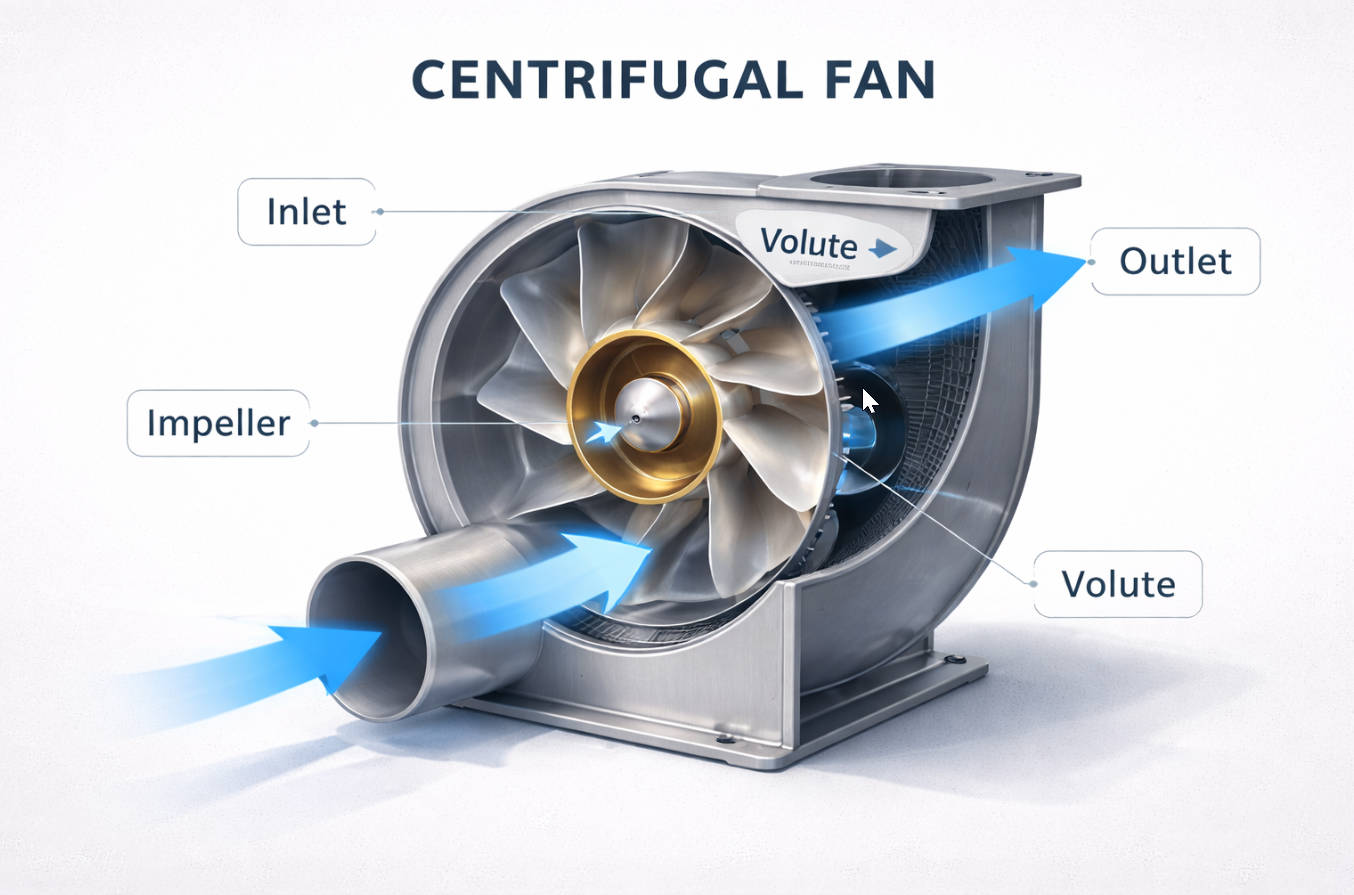

- Impeller: Blade wheel that imparts energy to the air and defines most of the fan's pressure–flow characteristics. [acdcecfan]
- Volute (scroll housing): Spiral housing that captures high‑velocity air and gradually expands the flow area to convert velocity into static pressure while reducing turbulence. [acdcecfan]
- Fan shaft and bearings: Mechanical link from motor to impeller; bearing choice (sleeve vs ball vs advanced bearings) strongly affects life and noise. [sanyodenki]
- Motor: DC or AC motor that drives the impeller; for compact DC centrifugal fans, motor control (PWM, tach output, alarm signal) is critical for system‑level monitoring. [sanyodenki]
When these parts are harmonized, you get stable airflow, predictable pressure and long‑term reliability even in compact electronic cooling applications. [sanyodenki]
From an aerodynamic standpoint, centrifugal fan performance is driven by impeller geometry, scroll design and operating speed. Well‑engineered fans balance static pressure, flow rate (CFM) and efficiency instead of maximizing a single metric. [hartzellairmovement]
The three dominant blade configurations are: [yccfan]
- Forward‑curved blades:
- High airflow at low to medium static pressure.
- Suitable for quiet HVAC and low‑pressure ventilation where efficiency demands are moderate. [yccfan]
- Backward‑inclined / backward‑curved blades:
- Higher efficiency and better static pressure capability.
- Popular in industrial exhaust, filtration and high‑pressure ducted systems. [hartzellairmovement]
- Radial blades:
- Straight blades, mechanically robust and tolerant of particulate‑laden or high‑temperature air streams. [yccfan]
- Used in heavy industrial exhaust, dust collection and harsh process environments.
Industry data from ASHRAE shows that optimizing fan aerodynamics can improve centrifugal fan efficiency by up to around 20% under favorable conditions, mainly by reducing losses near the impeller and scroll. [acdcecfan]
Turbulence and recirculation inside the volute are silent efficiency killers. By shaping the scroll cross‑section smoothly and matching the volute tongue position to the impeller diameter and blade angle, designers reduce flow separation, which in turn lowers noise and power draw. [hartzellairmovement]
Advanced centrifugal fan manufacturers also use CFD (computational fluid dynamics) and iterative prototyping to refine volute geometry, especially in compact DC centrifugal fans where every millimeter of space and every decibel of noise matter. [hartzellairmovement]
In the field, what destroys fans is rarely "theoretical" airflow; it is temperature, dust, vibration and corrosive gases. [sanyodenki]
Common choices for centrifugal fan impellers and housings include: [acdcecfan]
- Galvanized or coated steel: High strength, good for industrial exhaust and higher temperatures.
- Aluminum alloys: Lightweight, good thermal conductivity, often used in compact blowers and electronics cooling.
- Reinforced plastics: Corrosion‑resistant and cost‑effective for HVAC and electronics; must be carefully validated for high‑temperature or UV exposure.
Matching material to environment (temperature range, humidity, chemicals, dust type) significantly extends fan life and maintains stable performance. [sanyodenki]
For telecom outdoor cabinets, mining, or chemical plants, designers often specify: [acdcecfan]
- Special coatings on blades and housings to resist corrosive gases or abrasive particles.
- Encapsulated motors and sealed bearings to prevent contamination and moisture ingress.
- Robust mechanical frames and mounts to withstand vibration and shock.
These design reinforcements reduce unscheduled downtime and allow fans to maintain rated performance across their expected service life. [sanyodenki]
Selecting the right fan type is the foundation of a successful cooling or ventilation project. [hartzellairmovement]
| Fan type | Key characteristics | Best‑fit applications |
|---|---|---|
| Forward‑curved centrifugal fan | High airflow, low–medium pressure, relatively quiet | HVAC air handlers, residential/commercial ventilation, low‑pressure air circulation acdcecfan |
| Backward‑inclined centrifugal fan | High efficiency, higher pressure, lower turbulence | Industrial exhaust, filtration systems, material handling, process ventilation acdcecfan |
| Radial blade centrifugal fan | Straight blades, rugged, handles dust/particulates | High‑temperature exhaust, dust collection, harsh industrial processes acdcecfan |
Engineers often pair centrifugal fans with AC or DC motors depending on whether the priority is precise speed control (DC) or straightforward mains operation (AC). [acdcecfan]

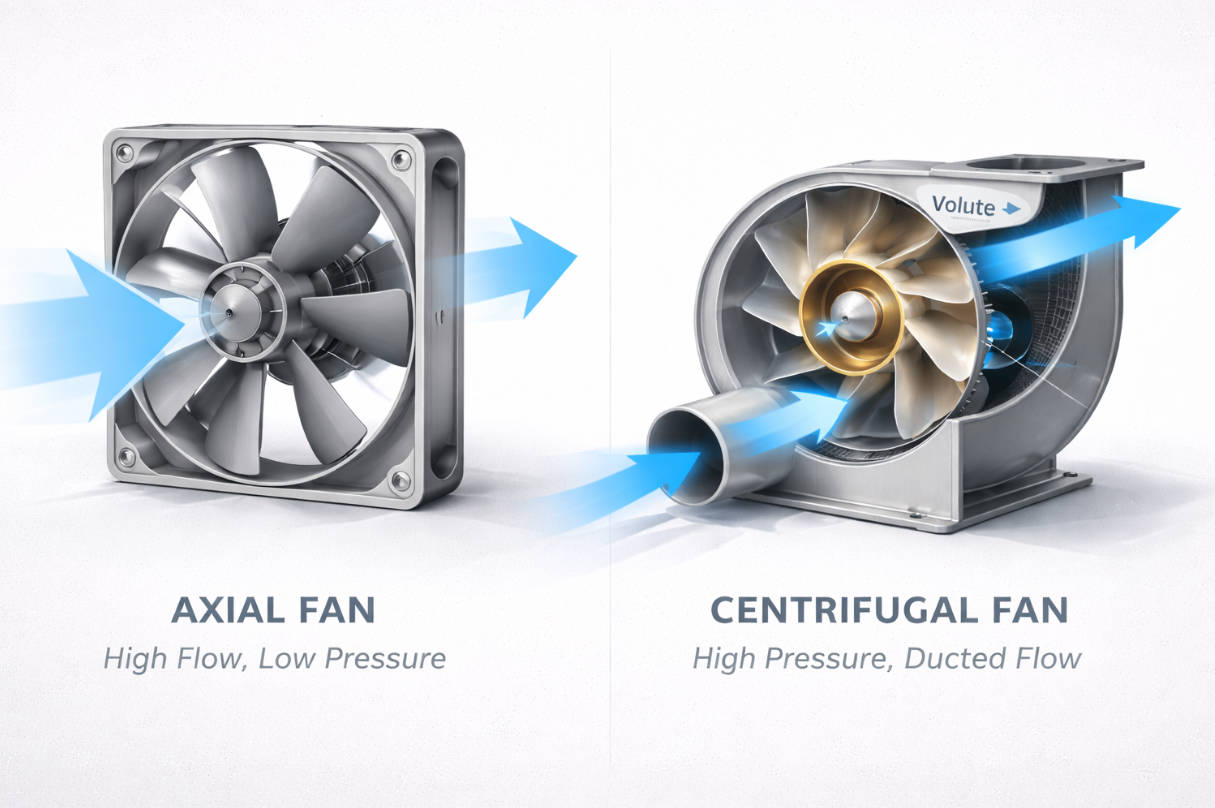

A recurring question from design engineers is whether to use an axial fan or a centrifugal blower in limited space. [yccfan]
- Axial fans move air parallel to the shaft, delivering high flow at low pressure and excel in open, low‑resistance environments such as general cabinet ventilation. [yccfan]
- Centrifugal fans turn the airflow approximately 90 degrees, generating significantly higher static pressure for the same footprint, which is ideal when flow must pass through heat sinks, filters, ducts or narrow channels. [hartzellairmovement]
For compact telecom base stations or network equipment where space is tight but airflow resistance is high, engineers frequently favor DC centrifugal fans for their combination of pressure capability, controllability and compact form factor. [yccfan]
In practice, optimizing a centrifugal fan is about pushing the operating point close to the fan's Best Efficiency Point (BEP) while staying within acoustic and reliability constraints. [hartzellairmovement]
To size a centrifugal fan correctly, engineers typically: [hartzellairmovement]
1. Define required airflow (CFM or m³/h) and system static pressure, including all filters, ducts, grills and heat sinks.

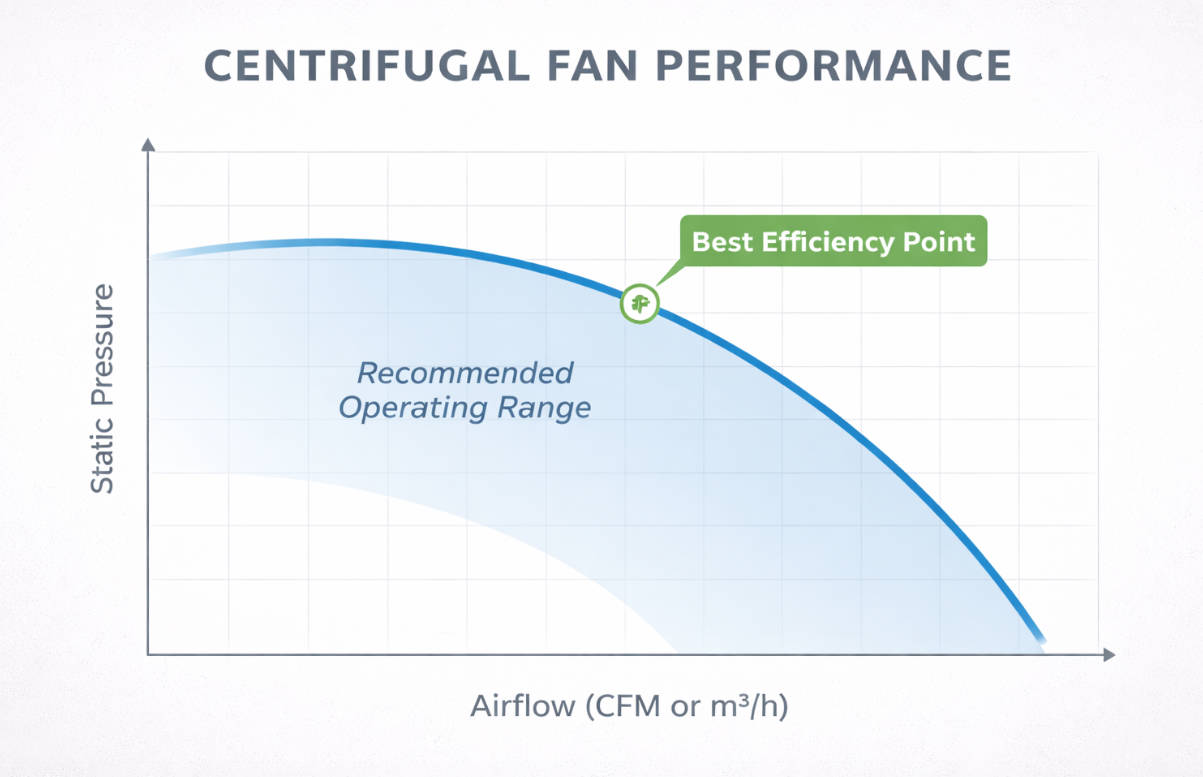

2. Plot this operating point on the fan curve and choose a model whose BEP is as close as possible to this point.
3. Check noise, efficiency and available control options (e.g., PWM control for DC fans).
Operating near the BEP reduces energy consumption, noise and stress on bearings and motor components, extending fan life. [acdcecfan]
Centrifugal fan losses mainly arise from: [acdcecfan]
- Internal friction between air and solid surfaces.
- Turbulence due to abrupt geometry changes or misaligned inlet and outlet.
Design measures to mitigate these include smooth volute contours, optimized blade entry and exit angles, and carefully designed inlets that minimize flow distortion. Some manufacturers also apply low‑friction or protective internal coatings in high‑wear areas to maintain performance over time. [hartzellairmovement]
Centrifugal fans appear in virtually every sector where controlled air movement, temperature and air quality are vital. [acdcecfan]
Forward‑curved and radial centrifugal fans are widely used in air handlers, rooftop units and ventilation systems because they can move large volumes of air with acceptable noise and efficiency. They support filtration, humidity control and temperature regulation in commercial buildings and public facilities. [acdcecfan]
Backward‑inclined and radial fans are preferred in industrial exhaust systems handling gases, dust, fumes and high‑temperature air. Their higher static pressure capability allows them to overcome filters, cyclones and scrubbers while maintaining safe environmental and regulatory conditions. [api]
Compact centrifugal DC fans are essential in telecom base stations, servers and network equipment where airflow must be directed through dense heat sinks and constrained ducts. Their high pressure and compact form make them especially suitable for space‑limited enclosures, helping prevent overheating and extending equipment service life. Capital Technology and SANYO DENKI have developed such fans specifically for customers like ZTE, Huawei and HYTERA, where reliable 24/7 operation is required. [sanyodenki]
From my experience supporting OEMs, a structured selection process prevents costly redesigns later in the development cycle. [hartzellairmovement]
1. Define the thermal and airflow target.
- Maximum allowable component or enclosure temperature.
- Required airflow (CFM/m³h) based on heat load and temperature rise.
2. Calculate total system static pressure.
- Include filters, ducts, louvers, bends, grills, and heat sinks.
- Use pressure loss data or CFD when systems are complex. [hartzellairmovement]
3. Choose the fan type.
- Forward‑curved for low‑pressure, low‑noise HVAC.
- Backward‑inclined or radial for industrial or high‑pressure systems. [acdcecfan]
4. Match a fan curve to your operating point.
- Aim to operate near the fan's BEP for best efficiency and lowest noise. [hartzellairmovement]
5. Validate environmental and reliability requirements.
- Temperature range, humidity, dust, chemical exposure, vibration.
- Confirm appropriate materials, coatings, IP rating and bearing system. [sanyodenki]
6. Plan control and monitoring.
- DC fans with PWM control, tach output and alarms enable intelligent thermal management and predictive maintenance. [sanyodenki]
By following this sequence with a technical partner like Capital Technology, designers can quickly narrow down to a small set of optimal centrifugal fan options. [sanyodenki]
A centrifugal fan may look simple from the outside, but behind a reliable product is a lot of testing, standards compliance and application experience. [amca]
Reputable manufacturers design centrifugal fans to meet recognized standards such as AMCA, ISO and sector‑specific specifications for HVAC and process industries. As a source‑factory for DC and AC fans and a chief agent of SANYO DENKI, Capital Technology can combine: [scribd]
- Proven global fan platforms with high reliability.
- Customization on voltage, speed, control features and mechanical interface.
- Application‑level support for telecom, industry and electronics customers.
This integrated approach reduces project risk, shortens verification cycles and delivers cooling solutions aligned with both local and international requirements. [sanyodenki]
For customers like ZTE, Huawei and HYTERA, fan development is often a co‑engineering exercise. Thermal simulations from the customer side are combined with fan test data from the manufacturer to refine airflow paths, mechanical integration and control logic. [sanyodenki]
The result is not just a fan, but a validated thermal solution tuned to the actual product architecture and lifecycle targets. [acdcecfan]
If you are planning a new telecom cabinet, industrial exhaust line, or compact electronic system, selecting the right centrifugal fan early can significantly reduce thermal risk and lifecycle cost. As a dedicated DC and AC fan manufacturer and SANYO DENKI chief agent, Capital Technology can support you from specification and simulation review through to sampling and mass production. [hartzellairmovement]
For detailed centrifugal fan selection, custom requirements or cross‑reference of existing part numbers, contact our engineering team with your airflow, static pressure and environmental requirements, and we will recommend an optimized DC or AC centrifugal fan solution for your project. [sanyodenki]
Use a centrifugal fan when your system has higher static pressure due to ducts, filters or dense heat sinks, and when maintaining airflow under resistance is more important than free‑air CFM. Axial fans are better for open or low‑restriction environments where high flow and low cost are the main priorities. [yccfan]
The combination of required airflow (CFM) and system static pressure at the operating point is the most critical. Once these two values are defined, you can select a fan whose curve passes near the desired point and then refine based on noise, efficiency and form factor. [hartzellairmovement]
Efficiency can often be improved by reducing system resistance (larger ducts, smoother bends, cleaner filters), operating closer to the fan's BEP and ensuring proper inlet/outlet conditions to avoid turbulence. In some cases, switching to a better‑matched impeller design or a more efficient motor can also yield noticeable energy savings. [acdcecfan]
For corrosive environments, coated steel, stainless steel or specific reinforced plastics are often used, depending on the exact chemicals and temperature. Dusty or abrasive environments typically benefit from robust metallic impellers, protective coatings, and sealed bearings or encapsulated motors to reduce wear and contamination. [sanyodenki]
Specialist manufacturers combine standardized, internationally proven platforms with application‑specific customization and testing. This ensures that the selected centrifugal fan not only meets the airflow and pressure specifications on paper but also survives real‑world conditions in telecom, industrial or electronics applications over the long term. [acdcecfan]
