As a thermal management specialist who has worked with leading telecommunications and data center clients including ZTE, Huawei, and Hytera, I've witnessed firsthand how inadequate cabinet cooling leads to catastrophic equipment failures and costly downtime. Modern electronic equipment continues to evolve toward higher power densities in increasingly compact form factors, generating concentrated heat loads that demand sophisticated cooling strategies. When critical components are housed within enclosed cabinets without proper thermal management, ambient temperatures can rapidly escalate beyond safe operating thresholds, triggering performance degradation, unexpected shutdowns, and premature component failure. [thermaledge]
The financial and operational stakes are substantial. Research demonstrates that up to 65% of IT equipment failures can be directly attributed to inadequate cooling, according to data from the Uptime Institute. In mission-critical industries such as telecommunications infrastructure, industrial automation, and data center operations, where system reliability and continuous uptime are non-negotiable requirements, implementing effective cabinet cooling solutions represents a strategic imperative rather than an optional enhancement. [acdcecfan]
This comprehensive guide draws on over two decades of experience in thermal solutions engineering to provide actionable insights into cabinet cooling methodologies, system selection criteria, and implementation best practices that maximize equipment longevity while optimizing operational efficiency.
Cabinet cooling encompasses the systematic management and regulation of thermal conditions within electrical enclosures housing sensitive electronic components. This process involves the strategic dissipation of heat generated by active equipment to maintain safe operating temperatures through three fundamental heat transfer mechanisms: conduction (direct thermal transfer through physical contact with enclosure surfaces), convection (thermal displacement through air circulation), and radiation (electromagnetic energy emission). [acdcecfan]
Proper thermal management delivers multiple critical benefits that directly impact operational reliability and total cost of ownership: [coolingfanmanufacturers]
1. Prevention of thermal-induced equipment failure: Electronic components operating beyond manufacturer-specified temperature limits experience accelerated degradation rates, with semiconductor junction temperatures exceeding design thresholds triggering immediate performance issues or catastrophic failure [envistaforensics]
2. Optimization of component operating temperatures: Most electronic devices exhibit peak performance within narrow temperature ranges; sustained operation outside these parameters induces thermal stress that cumulatively reduces serviceable lifespan [deltatsys]
3. Elimination of localized thermal hotspots: Inadequate airflow creates temperature gradients within enclosures, exposing certain components to excessive thermal stress while others remain adequately cooled [thermaledge]
4. Reduction in unplanned downtime and maintenance costs: Proactive thermal management prevents emergency repairs, extends mean time between failures (MTBF), and reduces total lifecycle expenses associated with premature component replacement [linkwellcn]
From our experience supplying CAPITAL and SANYO DENKI cooling solutions to Fortune 500 manufacturers, properly engineered cabinet cooling systems routinely extend equipment operational life by 40-60% compared to inadequately cooled installations. [ystechusa]
Several interconnected factors commonly trigger cabinet overheating conditions: [acdcecfan]
- High-density equipment configurations generating concentrated heat loads that exceed enclosure cooling capacity
- Insufficient airflow caused by obstructed ventilation paths, inadequate fan capacity, or poor internal layout design
- Elevated ambient temperatures in facilities lacking adequate environmental controls
- Absence of dedicated cooling infrastructure or reliance on passive ventilation in high-heat applications
- Dust accumulation and contamination blocking ventilation openings and insulating electronic components [simcona]
- Improper fan positioning that works against natural convection patterns rather than supporting optimal airflow [thermaledge]

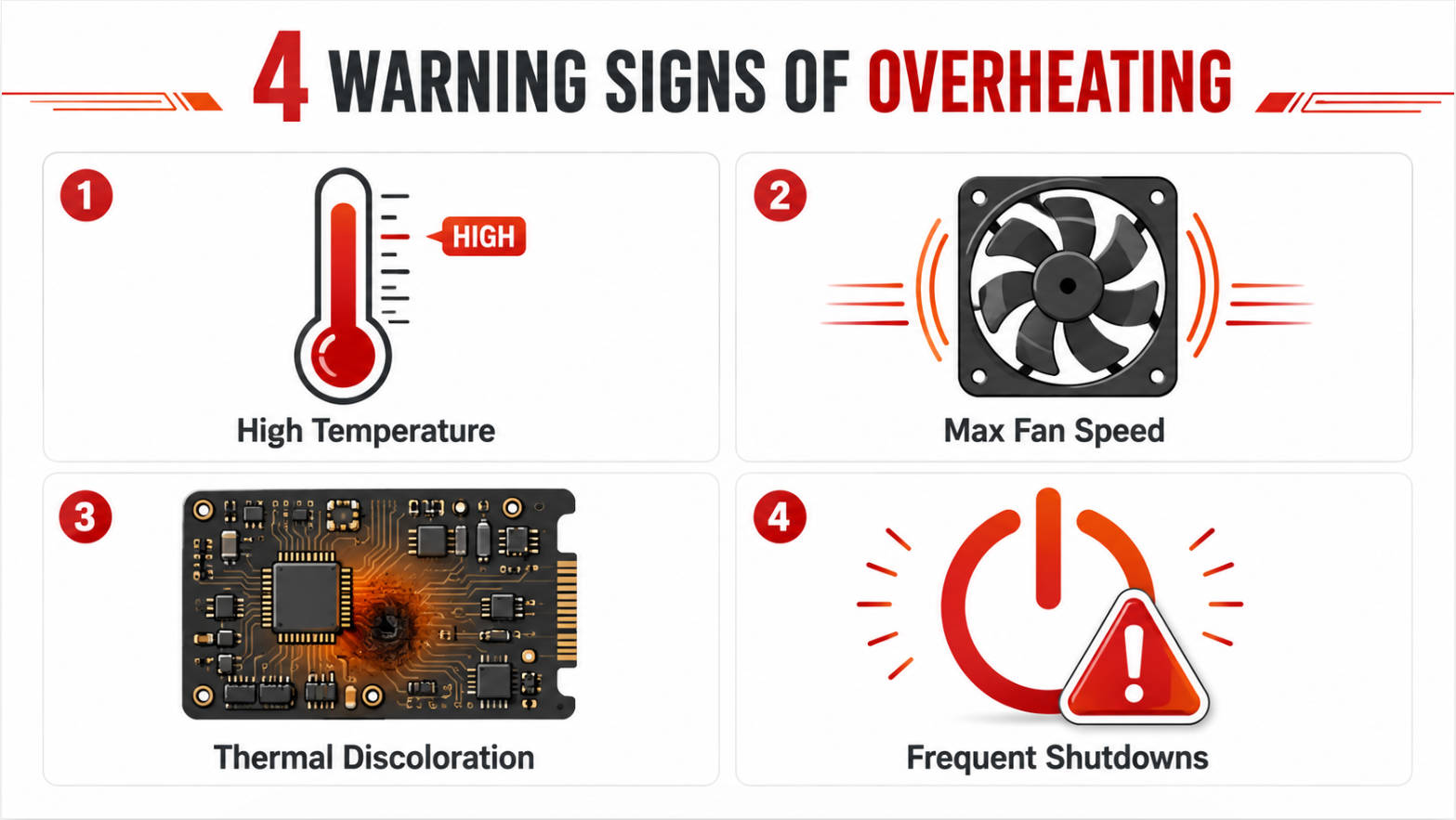

Recognizing early symptoms of thermal insufficiency enables proactive intervention before permanent damage occurs: [coolingfanmanufacturers]
- Frequent unexpected shutdowns as thermal protection circuits activate to prevent component damage
- Continuous maximum fan operation indicating the cooling system operates at capacity under normal loads
- Visible thermal damage including discolored components, warped circuit boards, or burned insulation
- Persistent high-temperature alarms from integrated monitoring systems
- Degraded performance metrics such as processing slowdowns or intermittent connectivity issues [envistaforensics]
Natural ventilation leverages convection principles to create passive airflow through strategically positioned vents, allowing heated air to rise and exit while drawing cooler ambient air into the enclosure. This approach proves most effective in low-heat applications where equipment power dissipation remains minimal and adequate ambient airflow exists. [acdcecfan]
Primary advantages: Minimal capital investment, zero ongoing energy consumption, virtually maintenance-free operation (requiring only periodic filter cleaning), and silent operation. [acdcecfan]
Operational limitations: Inadequate cooling capacity for high-density equipment, complete dependence on favorable ambient conditions, and inability to provide precise temperature control. Our engineering assessments indicate natural ventilation becomes insufficient when internal heat loads exceed approximately 100-150 watts in standard-size enclosures. [acdcecfan]

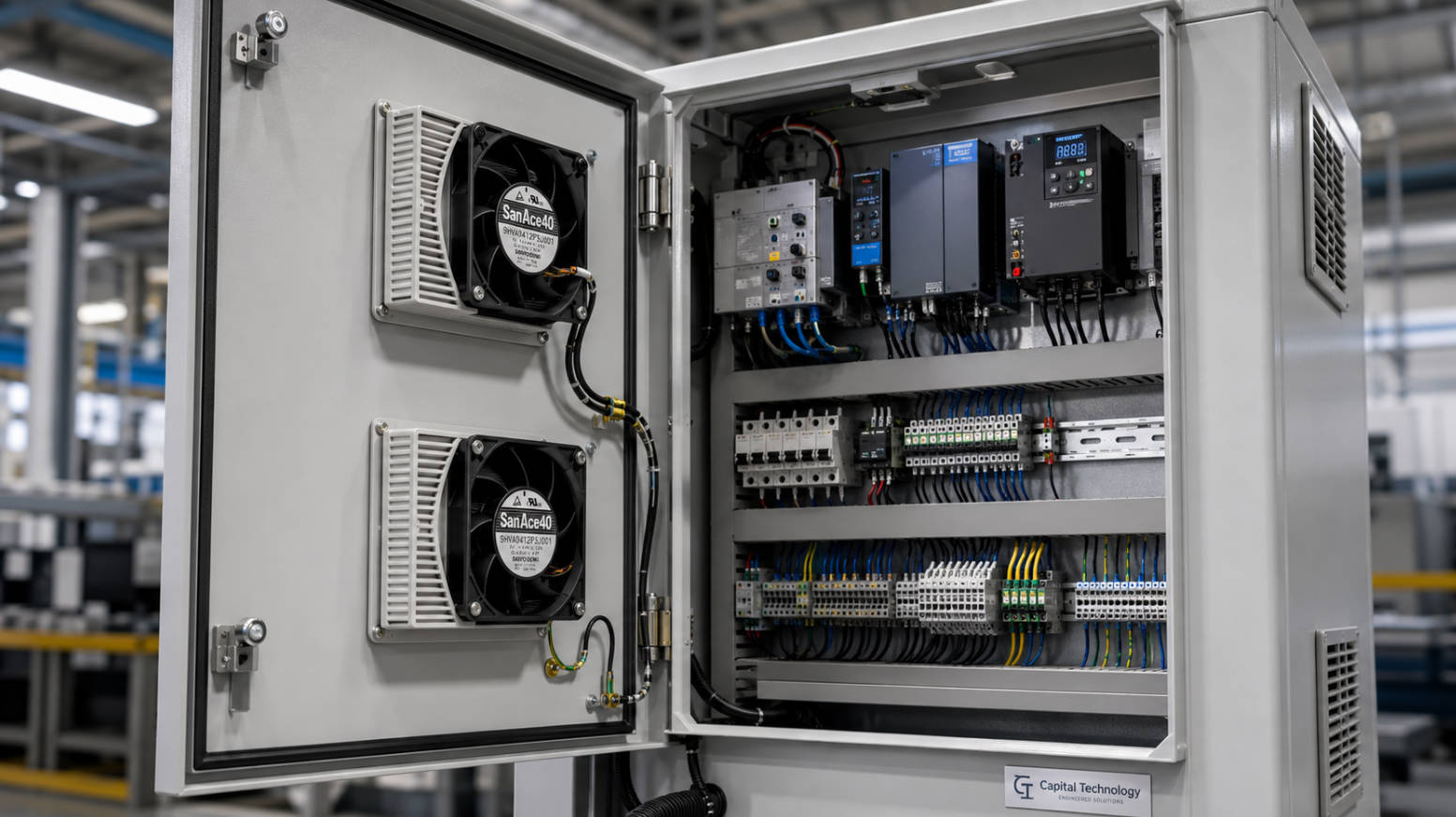

Active air circulation using cabinet cooling fans and blowers represents the most widely implemented thermal management solution across industrial applications. These systems actively move air through the enclosure, with performance characterized by airflow rate (measured in cubic feet per minute or CFM), static pressure capability, noise levels, and power consumption. [linkwellcn]
When specifying forced air cooling systems, the choice between DC and AC fan technologies significantly impacts performance, efficiency, and operational costs:

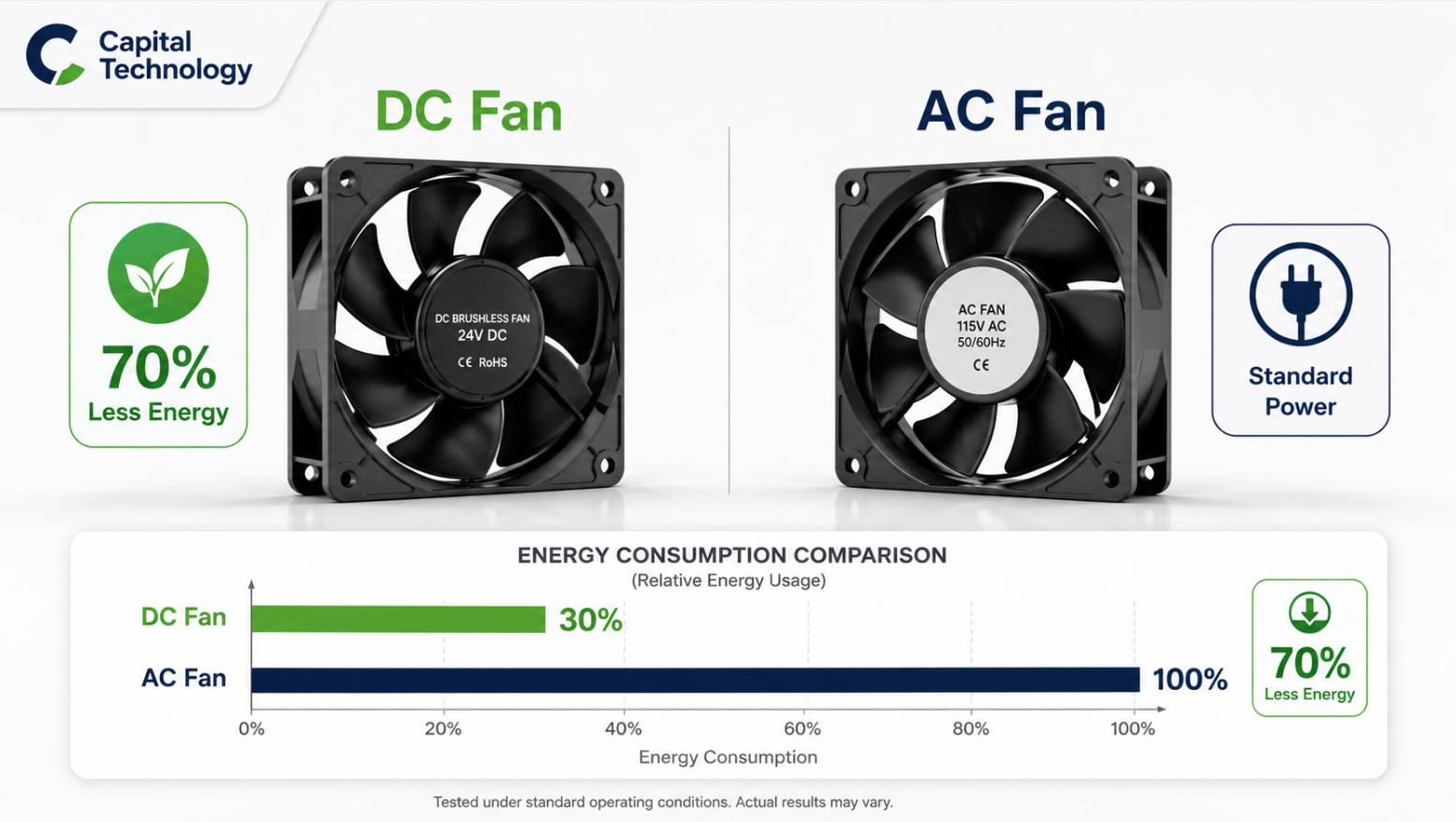

DC brushless fans deliver superior energy efficiency, consuming up to 70% less power than equivalent AC units while providing smoother operation and extended lifespan. These fans offer precise speed control, quieter operation, and reduced electromagnetic interference, making them ideal for telecommunications equipment and sensitive instrumentation. As authorized distributors of SANYO DENKI premium DC fans, we've documented energy savings exceeding $200 annually per fan in continuous-duty applications. [sofasco]
AC fans provide robust performance in high-airflow industrial applications, seamless integration with existing AC power infrastructure, and typically lower initial purchase costs. These units excel in environments where energy efficiency presents less concern than raw cooling capacity and where AC power availability eliminates the need for DC conversion. [fanquip.com]
Implementation advantages of forced air systems: Targeted cooling delivery to critical thermal zones, effective elimination of hotspots, relatively straightforward installation, and excellent cost-performance ratio for moderate thermal loads. [coolingfanmanufacturers]
For demanding applications requiring precise temperature control or operation in harsh environmental conditions, closed-loop systems provide superior thermal management. [acdcecfan]
Cabinet air conditioners utilize refrigeration cycles incorporating evaporators, compressors, condensers, and expansion valves to actively extract heat from enclosed spaces and reject it to the external environment. These units maintain remarkably stable internal temperatures regardless of equipment load variations or ambient condition fluctuations. [acdcecfan]
Heat exchangers transfer thermal energy from cabinet air to external cooling media (water, refrigerant, or outside air) without introducing external contaminants into the enclosure. Available configurations include air-to-air, air-to-water, and refrigerant-based systems, each optimized for specific operating conditions. [acdcecfan]
Strategic applications: Environments with extreme ambient temperatures, dusty or corrosive atmospheres requiring sealed enclosures, applications demanding precise temperature regulation (±2°C), and situations where contamination prevention justifies higher implementation costs. [acdcecfan]
Economic considerations: Closed-loop systems require substantially higher capital investment (typically 3-5x forced air solutions), consume more energy during operation, and necessitate regular preventive maintenance to ensure reliable performance. [mechanical-hub]
| Cooling System Type | Operating Principle | Optimal Applications | Relative Cost | Maintenance Requirements |
|---|---|---|---|---|
| Natural Ventilation | Passive convection through vents | Low-heat loads (<150W) in controlled environments | Low ($) | Minimal (quarterly filter inspection) |
| Forced Air (Fans) | Active air circulation via fans/blowers | Moderate to high heat loads in standard conditions | Moderate ($$) | Moderate (semi-annual cleaning and inspection) |
| Closed-Loop Cooling | Refrigeration or heat exchange systems | Extreme environments, precision temperature control | High ($$$) | High (quarterly professional maintenance) |
Proper cooling system specification requires comprehensive analysis of multiple technical and environmental factors: [thermaledge]
1. Accurate heat load calculation: Sum the power dissipation (in watts) of all internal equipment under maximum operating conditions; this determines minimum cooling capacity requirements [linkwellcn]
2. Environmental conditions assessment: Document ambient temperature ranges, humidity levels, altitude (affecting air density), and presence of corrosive agents or particulate contamination [simcona]
3. Physical constraints evaluation: Measure available mounting locations, clearance requirements, and accessibility for maintenance activities [thermaledge]
4. Performance specifications: Define acceptable noise levels (critical in occupied spaces), power consumption budgets, and required temperature tolerances [linkwellcn]
5. Operating environment classification: Determine NEMA/IP ratings required for dust, moisture, and chemical resistance based on installation location [simcona]
6. Total cost of ownership analysis: Compare initial acquisition costs against projected energy consumption, maintenance requirements, and expected service life [fanquip.com]
Use this engineering calculation to determine minimum required airflow: [linkwellcn]
Required CFM = (Total Heat Load in Watts × 3.16) / (Maximum Allowable Temperature Rise in °F)
For example, a cabinet dissipating 500W with a maximum allowable 15°F temperature rise requires: (500 × 3.16) / 15 = 105 CFM minimum airflow capacity. Apply a safety factor of 1.2-1.5 to account for filter resistance and aging degradation. [linkwellcn]

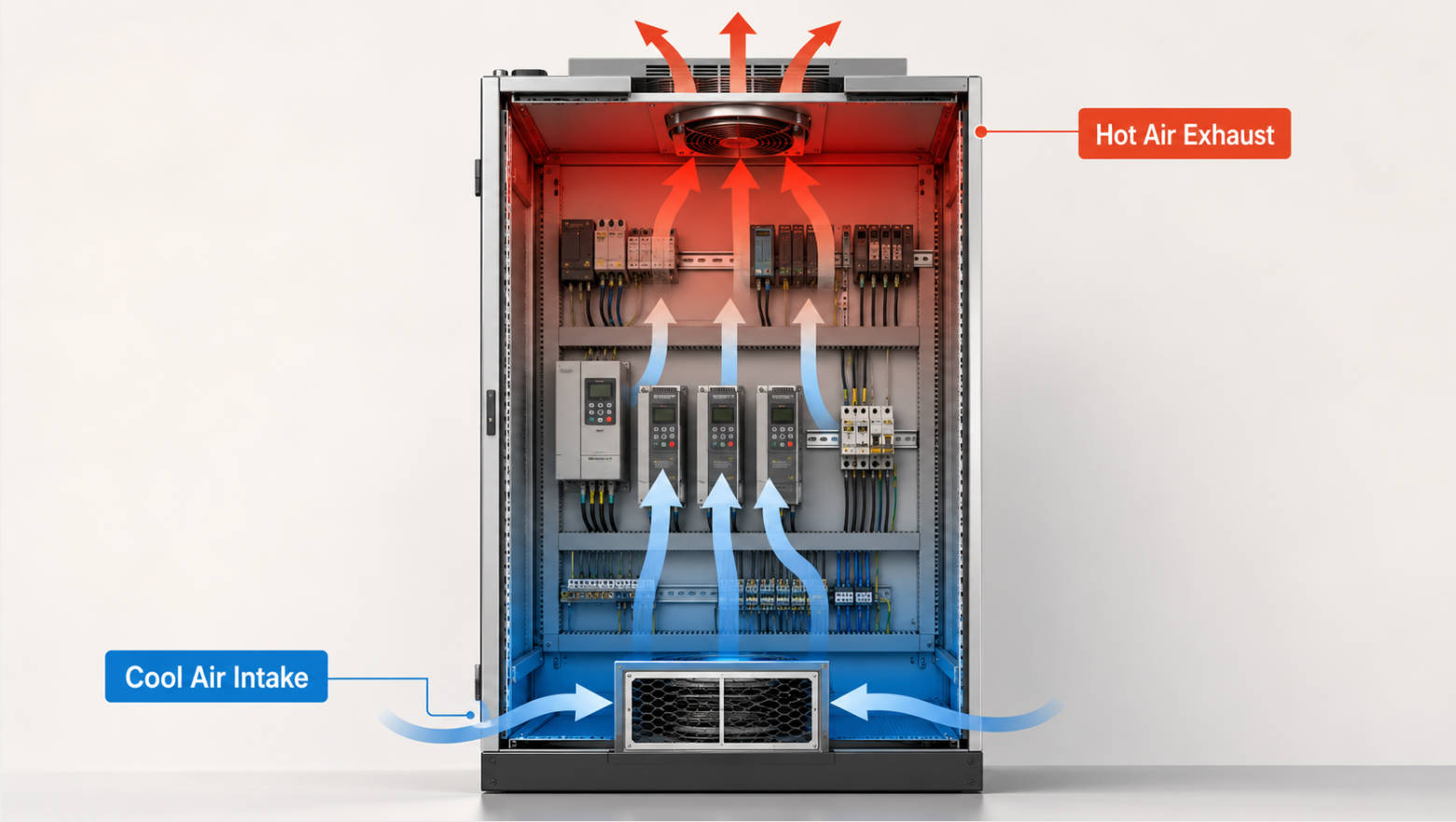

Proper fan placement leverages natural convection patterns rather than working against them. Position intake fans at the lower portion of the enclosure to introduce cool air, while mounting exhaust fans at the top to expel heated air. This configuration supports the natural tendency of hot air to rise, maximizing thermal efficiency. [thermaledge]
Positive pressure configurations (with intake airflow slightly exceeding exhaust) help prevent infiltration of external dust and contaminants. Conversely, negative pressure systems work better when containing internal contaminants or when minimizing electromagnetic emissions. [linkwellcn]
Maintain adequate spacing between heat-generating components to prevent airflow obstruction, and utilize blanking panels to prevent hot air recirculation through unused rack spaces. Strategic placement of high-heat components near exhaust paths further optimizes thermal management effectiveness. [thermaledge]
Dust accumulation on electronic components creates insulating layers that impede heat dissipation while potentially causing short circuits. Install washable or replaceable air filters at all intake points, specifying filter grades appropriate for the operating environment (MERV 8-11 for typical industrial applications, higher ratings for cleanroom environments). [simcona]
Establish preventive maintenance schedules requiring filter inspection every 30-90 days depending on environmental conditions, with immediate replacement when airflow restriction becomes apparent. Fan guards prevent foreign object ingestion while facilitating easier cleaning access. [acdcecfan]
Extreme operating conditions—including temperature extremes, high humidity, corrosive atmospheres, or heavy particulate contamination—demand specialized protection measures: [acdcecfan]
- Select enclosures with appropriate IP ratings (minimum IP54 for dusty environments, IP65+ for washdown areas) [simcona]
- Specify heat exchangers rather than direct ventilation to prevent contaminate ingress while maintaining cooling effectiveness [acdcecfan]
- Utilize ruggedized cooling components rated for shock, vibration, and corrosive exposure [mechanical-hub]
- Implement moisture management through condensate drains and motor housing space heaters when operating in high-humidity conditions [mechanical-hub]
Effective cabinet cooling represents a critical investment in equipment reliability, operational continuity, and total cost optimization for any organization dependent on electronic systems. By understanding thermal management principles, accurately assessing cooling requirements, selecting appropriate technologies, and implementing professional installation practices, engineers can prevent the majority of thermally-induced equipment failures while significantly extending component service life.
Whether your application demands simple forced-air ventilation or sophisticated closed-loop temperature control, partnering with experienced thermal management specialists ensures optimal system performance. At Capital Technology Co., Limited, our engineering team leverages decades of experience with CAPITAL and SANYO DENKI premium cooling solutions to design customized thermal management systems for the world's most demanding applications.
Calculate total internal heat load by summing the power consumption (in watts) of all equipment under maximum operating conditions. Use the formula: Required CFM = (Heat Load × 3.16) / (Allowable Temperature Rise in °F), then multiply by 1.2-1.5 safety factor to account for filter resistance and performance degradation over time. For complex installations, consult with thermal engineering specialists to perform computational fluid dynamics (CFD) analysis. [linkwellcn]
DC brushless fans consume up to 70% less electricity than equivalent AC fans due to their use of opposing polarity magnets that reduce rotational resistance and the constant DC flow versus alternating AC polarity. This efficiency advantage translates to lower operating costs, reduced heat generation from the fan itself, and often longer service life due to less thermal stress on motor components. DC fans also offer superior speed control and quieter operation. [youtube]
Maintenance frequency depends on environmental conditions and cooling system type. Filter inspection should occur every 30-90 days in typical industrial environments, with more frequent checks in dusty conditions. Fan cleaning and inspection should be performed semi-annually, checking for bearing wear, blade damage, and proper airflow. Closed-loop systems require quarterly professional maintenance including refrigerant level verification, condenser cleaning, and performance testing. Always document maintenance activities and monitor performance trends to identify degradation before failure occurs. [mechanical-hub]
Key failure indicators include frequent thermal shutdowns, continuous fan operation at maximum speed regardless of actual thermal load, visible heat damage (discolored components, warped materials), persistent high-temperature alarms, degraded equipment performance, and unusual fan noise or vibration. Temperature monitoring logs showing gradual increases over time indicate cooling system degradation requiring immediate investigation. Any sudden temperature spikes warrant emergency assessment to prevent catastrophic equipment damage. [envistaforensics]
Natural ventilation proves adequate only for low-heat applications (typically under 100-150 watts total dissipation) in environments with favorable ambient conditions and sufficient natural airflow. High-density electronic equipment, elevated ambient temperatures, limited air circulation, or precision temperature control requirements all necessitate active forced-air or closed-loop cooling systems. When specifying natural ventilation, always verify that worst-case heat loads and ambient conditions still maintain component temperatures within safe operating ranges, and consider future equipment additions that may increase thermal loads. [thermaledge]
