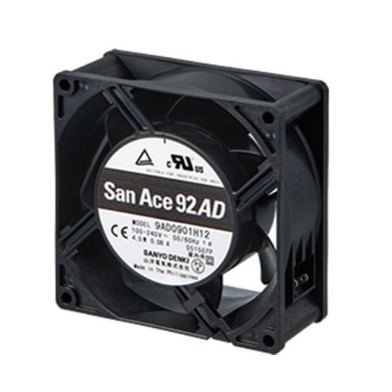

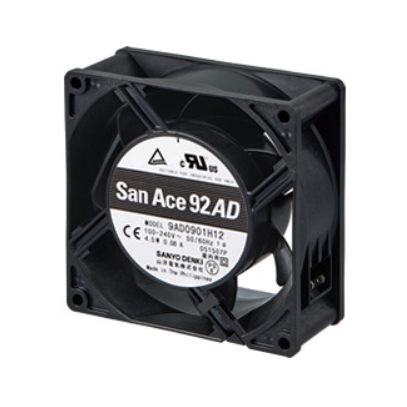

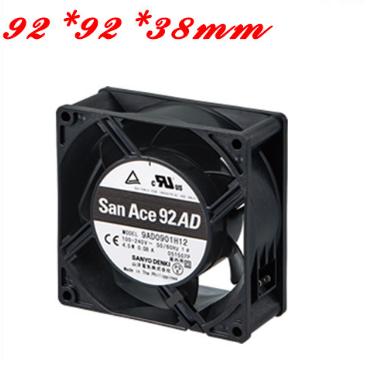

92×92×38 mm ACDC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor structure: Brushless DC motor
· Motor protection function: Locked rotor burnout protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 4000 VAC, for 1 minute (between input terminal and frame)；50/60 Hz, 2500 VAC, for 1 second (between input terminal and sensor output)
· Insulation resistance: 10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature: -30 to +75˚C (Non-condensing)
· Mass: 250 g
Do not solder wires directly to AC input terminals.
