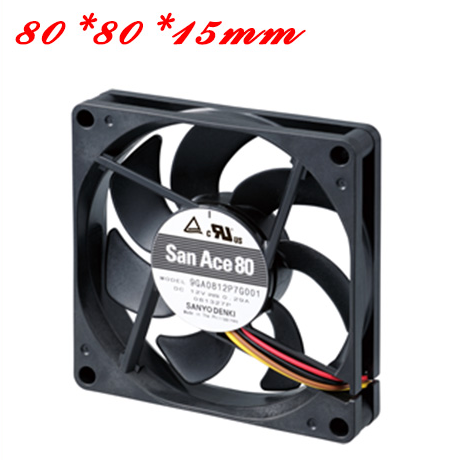

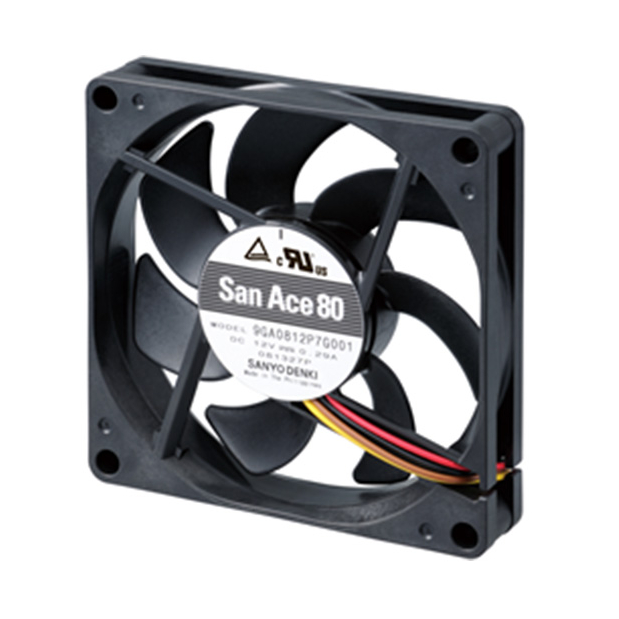

80×80×15 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown (For models without PWM control, there is no speed control wiring.)

· Mass：65g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	80×80×15 mm	9GA0812P7G001	12	10.2 to 13.8	100	0.29	3.48	6100	1.44	50.9	84.0	0.34	41	-20 to +70	40000/60˚C (70000/40˚C)
		9GA0812P7S001	12	10.2 to 13.8	100	0.17	2.04	5000	1.18	41.7	56.4	0.23	37
		9GA0824P7G001	24	20.4 to 27.6	100	0.13	3.12	6100	1.44	50.9	84.0	0.34	41
		9GA0824P7S001	24	20.4 to 27.6	100	0.08	1.92	5000	1.18	41.7	56.4	0.23	37
		9GA0812H7001	12	6 to 13.2		0.09	1.08	3800	0.89	31.4	32.6	0.13	29	-20 to +70	40000/60˚C (70000/40˚C)
		9GA0812M7001	12	7 to 13.2		0.04	0.48	2500	0.58	20.5	14	0.056	20		60000/60˚C (90000/40˚C)
		9GA0824H7001	24	12 to 26.4		0.05	1.2	3800	0.89	31.4	32.6	0.13	29		40000/60˚C (70000/40˚C)
		9GA0824M7001	24	12 to 26.4		0.02	0.48	2500	0.58	20.5	14	0.056	20		60000/60˚C (90000/40˚C)
