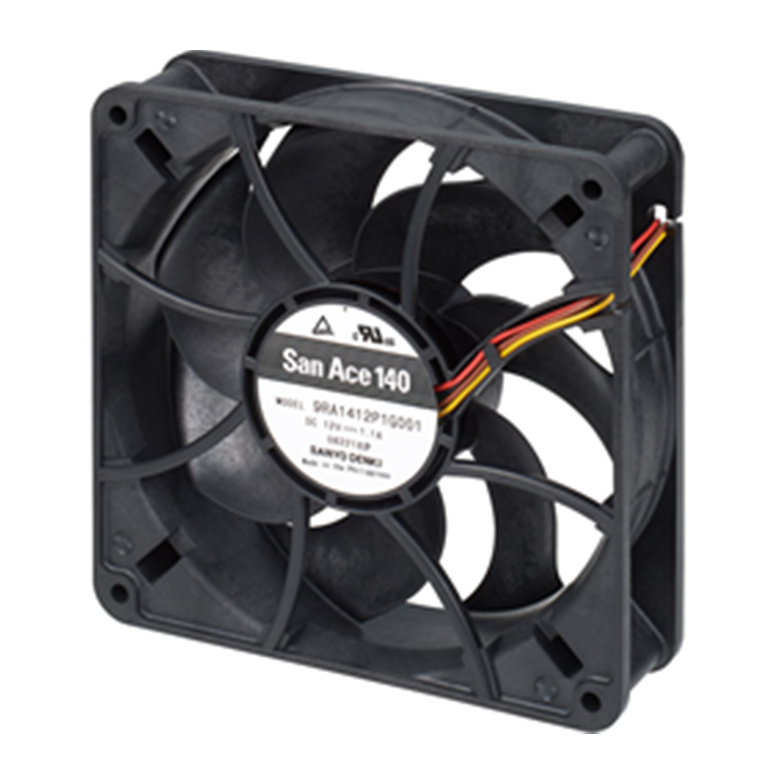

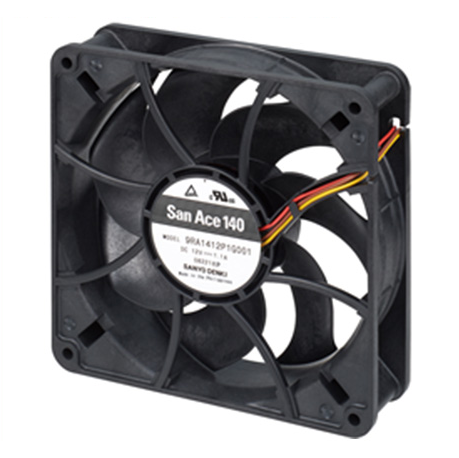

140×140×38 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：630g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	140×140×38 mm	9GV1412P1G001	12	10.8 to 13.2	100	4.6	55.2	7600	8.8	310	640	2.57	70	-20 to +70	40000/60˚C (70000/40˚C)
		9GV1412P1G001			20	0.26	3.12	2300	2.66	93	80	0.32	39
		9GV1412P1S001			100	3.1	37.2	6650	7.7	272	480	1.93	67
		9GV1412P1S001			20	0.26	3.12	2300	2.66	93	80	0.32	39
		9GV1412P1H001			100	1.7	20.4	5200	6.0	212	300	1.2	62
		9GV1412P1H001			20	0.26	3.12	2300	2.66	93	80	0.32	39
		9GV1424P1G001	24	21.6 to 26.4	100	2.3	55.2	7600	8.8	310	640	2.57	70
		9GV1424P1G001			20	0.13	3.12	2300	2.66	93	80	0.32	39
		9GV1424P1S001			100	1.55	37.2	6650	7.7	272	480	1.93	67
		9GV1424P1S001			20	0.13	3.12	2300	2.66	93	80	0.32	39
		9GV1424P1H001			100	0.85	20.4	5200	6.0	212	300	1.2	62
		9GV1424P1H001			20	0.13	3.12	2300	2.66	93	80	0.32	39
		9GV1448P1G001	48	36 to 60	100	1.15	55.2	7600	8.8	310	640	2.57	70
		9GV1448P1G001			20	0.11	5.28	2300	2.66	93	80	0.32	39
		9GV1448P1S001			100	0.78	37.44	6650	7.7	272	480	1.93	67
		9GV1448P1S001			20	0.11	5.28	2300	2.66	93	80	0.32	39
		9GV1448P1H001			100	0.42	20.16	5200	6.0	212	300	1.2	62
		9GV1448P1H001			20	0.11	5.28	2300	2.66	93	80	0.32	39
		9RA1412P1G001	12	10.8 to 13.2	100	1.10	13.2	4250	6.0	212	160	0.64	52	-20 to +70	40000/60˚C (70000/40˚C)
		9RA1412P1G001	12	10.8 to 13.2	20	0.09	1.1	1250	1.81	64.0	16.3	0.065	19
		9RA1424P1G001	24	21.6 to 26.4	100	0.53	12.7	4250	6.0	212	160	0.64	52
		9RA1424P1G001	24	21.6 to 26.4	20	0.05	1.2	1400	2.17	76.7	21.5	0.086	22
		9RA1448P1G001	48	43.2 to 52.8	100	0.28	13.4	4250	6.0	212	160	0.64	52
		9RA1448P1G001	48	43.2 to 52.8	30	0.04	1.9	1600	2.32	82.0	29.5	0.118	25
		9RA1412S1001	12	7 to 13.8		0.75	9.0	3750	5.3	187	130	0.52	49	-20 to +70	40000/60˚C (70000/40˚C)
		9RA1412H1001				0.43	5.2	3050	4.3	152	92	0.37	43
		9RA1412M1001				0.19	2.3	2250	3.2	113	54	0.22	35
		9RA1424S1001	24	14 to 27.6		0.37	8.9	3750	5.3	187	130	0.52	49
		9RA1424H1001				0.22	5.3	3050	4.3	152	92	0.37	43
		9RA1424M1001				0.10	2.4	2250	3.2	113	54	0.22	35
		9RA1448S1001	48	40.8 to 55.2		0.21	10.1	3750	5.3	187	130	0.52	49
		9RA1448H1001				0.13	6.2	3050	4.3	152	92	0.37	43
		9RA1448M1001				0.06	2.9	2250	3.2	113	54	0.22	35
