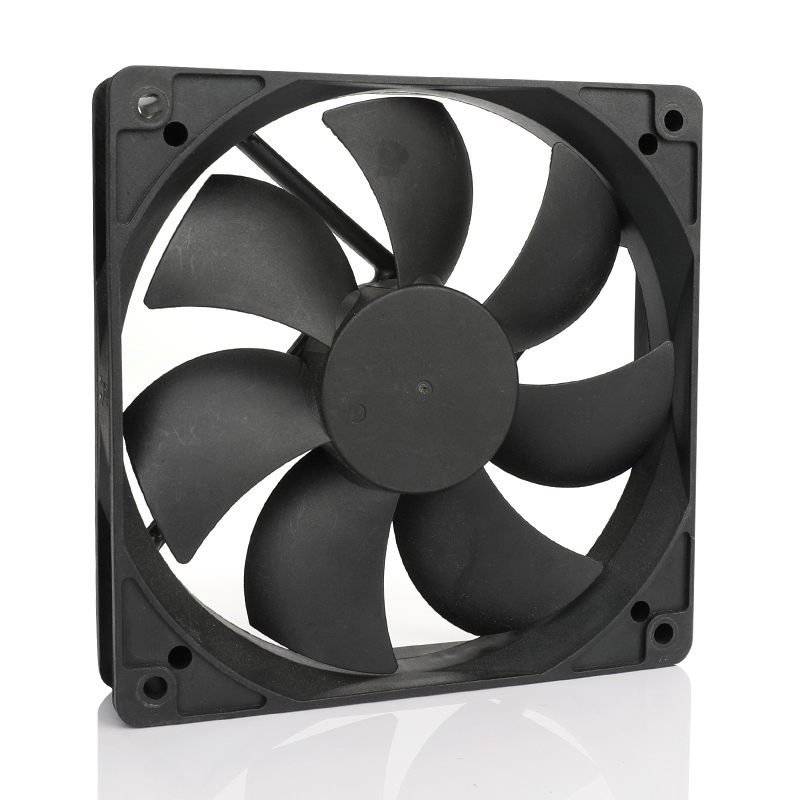

120×120×25mm DC Fan

Size: 120*120*25（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve, Hydraulic Bearing
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model Rated Operating Current Power Speed Max. Air Flow Max.Static Pressure Noise
Voltage Voltage
(VDC) (VDC) (AMP) (Watts) (RPM) (CFM) (m³/min) (mm-H2O) (pa) (dBA)
DC Fan CAPITAL 120×120×25mm  DC Fan CPT12025/12L 12 7~14 0.12 1.44 2000 64.01 1.81 2.94 28.81 40.84
CPT12025/12M 0.20 2.40 2500 81.03 2.29 4.49 44.00 45.69
CPT12025/12H 0.30 3.60 3000 97.06 2.75 6.14 60.17 49.65
CPT12025/12E 0.80 9.60 4000 128.85 3.65 10.32 101.14 55.89
CPT12025/12U 2.10 25.20 6000 200.03 5.66 20.82 204.04 64.70
CPT12025/24L 24 15~27 0.09 2.16 2000 64.01 1.81 2.94 28.81 40.84
CPT12025/24M 0.18 4.32 2500 81.03 2.29 4.49 44.00 45.69
CPT12025/24H 0.38 9.12 3000 97.06 2.75 6.14 60.17 49.65
CPT12025/24E 0.70 16.80 4000 128.85 3.65 10.32 101.14 55.89
CPT12025/24U 1.00 24.00 6000 200.03 5.66 20.82 204.04 64.70
CPT12025/48L 48 30~55 0.03 1.44 2000 64.01 1.81 2.94 28.81 40.84
CPT12025/48M 0.12 5.76 2500 81.03 2.29 4.49 44.00 45.69
CPT12025/48H 0.28 13.44 3000 97.06 2.75 6.14 60.17 49.65
CPT12025/48E 0.36 17.28 4000 128.85 3.65 10.32 101.14 55.89
CPT12025/48U 0.50 24.00 6000 200.03 5.66 20.82 204.04 64.70
CPT12025/12L 12 7~14 0.12 1.44 1500 58.88 1.67 1.51 14.80 31.94
CPT12025/12M 0.20 2.40 2000 79.80 2.26 2.64 25.87 38.19
CPT12025/12H 0.30 3.60 2500 97.52 2.76 3.82 37.44 43.04
CPT12025/12E 0.40 4.80 3000 99.85 2.83 5.61 54.98 47.00
CPT12025/12U 0.50 6.00 3500 110.25 3.12 6.62 64.88 50.34
CPT12025/24L 24 15~27 0.09 2.16 1500 58.88 1.67 1.51 14.80 31.94
CPT12025/24M 0.12 2.88 2000 79.80 2.26 2.64 25.87 38.19
CPT12025/24H 0.18 4.32 2500 97.52 2.76 3.82 37.44 43.04
CPT12025/24E 0.23 5.52 3000 99.85 2.83 5.61 54.98 47.00
CPT12025/24U 0.30 7.20 3500 110.25 3.12 6.62 64.88 50.34
CPT12025/48L 48 30~55 0.03 1.44 1500 58.88 1.67 1.51 14.80 31.94
CPT12025/48M 0.05 2.40 2000 79.80 2.26 2.64 25.87 38.19
CPT12025/48H 0.07 3.36 2500 97.52 2.76 3.82 37.44 43.04
CPT12025/48E 0.10 4.80 3000 99.85 2.83 5.61 54.98 47.00
CPT12025/48U 0.16 7.68 3500 110.25 3.12 6.62 64.88 50.34
CPT12025/12L 12 7~14 0.35 4.20 3000 79.56 2.25 4.89 47.92 44.76
CPT12025/12M 0.60 7.20 4000 111.64 3.16 10.76 105.45 51.00
CPT12025/12H 1.20 14.40 5000 140.22 3.97 15.22 149.16 55.85
CPT12025/12E 1.50 18.00 5500 151.23 4.28 16.75 164.15 57.92
CPT12025/12U 2.20 26.40 6000 162.79 4.61 18.49 181.20 59.81
CPT12025/24L 24 15~27 0.15 3.60 3000 79.56 2.25 4.89 47.92 44.76
CPT12025/24M 0.25 6.00 4000 111.64 3.16 10.76 105.45 51.00
CPT12025/24H 0.38 9.12 5000 140.22 3.97 15.22 149.16 55.85
CPT12025/24E 0.70 16.80 5500 151.23 4.28 16.75 164.15 57.92
CPT12025/24U 1.00 24.00 6000 162.79 4.61 18.49 181.20 59.81
CPT12025/48L 48 30~55 0.15 7.20 3000 79.56 2.25 4.89 47.92 44.76
CPT12025/48M 0.22 10.56 4000 111.64 3.16 10.76 105.45 51.00
CPT12025/48H 0.28 13.44 5000 135.77 3.85 12.87 126.13 55.85
CPT12025/48E 0.36 17.28 5500 151.23 4.28 16.75 164.15 57.92
CPT12025/48U 0.50 24.00 6000 162.79 4.61 18.49 181.20 59.81
CPT12025/12L 12 7~14 0.12 1.44 1500 48.75 1.38 1.33 13.03 31.94
CPT12025/12M 0.20 2.40 2000 63.34 1.79 2.13 20.87 38.19
CPT12025/12H 0.30 3.60 2500 78.31 2.22 3.17 31.07 43.04
CPT12025/12E 0.40 4.80 3000 91.03 2.58 4.42 43.32 47.00
CPT12025/12U 0.50 6.00 3500 112.39 3.18 6.00 58.80 50.34
CPT12025/24L 24 15~27 0.06 1.44 1500 48.75 1.38 1.33 13.03 31.94
CPT12025/24M 0.12 2.88 2000 63.34 1.79 2.13 20.87 38.19
CPT12025/24H 0.18 4.32 2500 78.31 2.22 3.17 31.07 43.04
CPT12025/24E 0.23 5.52 3000 91.03 2.58 4.42 43.32 47.00
CPT12025/24U 0.30 7.20 3500 112.39 3.18 6.00 58.80 50.34
CPT12025/48L 48 30~55 0.03 1.44 1500 48.75 1.38 1.33 13.03 31.94
CPT12025/48M 0.05 2.40 2000 63.34 1.79 2.13 20.87 38.19
CPT12025/48H 0.07 3.36 2500 78.31 2.22 3.17 31.07 43.04
CPT12025/48E 0.10 4.80 3000 91.03 2.58 4.42 43.32 47.00
CPT12025/48U 0.16 7.68 3500 112.39 3.18 6.00 58.80 50.34
CPT12025/12L 12 7~14 0.12 1.44 2000 68.98 1.95 2.38 23.32 35.00
CPT12025/12M 0.20 2.40 2500 81.60 2.31 3.41 33.42 39.85
CPT12025/12H 0.30 3.60 3000 99.78 2.83 4.74 46.45 43.80
CPT12025/12E 0.40 4.80 3500 118.56 3.36 6.15 60.27 47.15
CPT12025/12U 0.50 6.00 4000 120.53 3.41 6.31 61.84 50.05
CPT12025/24L 24 15~27 0.09 2.16 2000 68.98 1.95 2.38 23.32 35.00
CPT12025/24M 0.18 4.32 2500 81.60 2.31 3.41 33.42 39.85
CPT12025/24H 0.20 4.80 3000 99.78 2.83 4.74 46.45 43.80
CPT12025/24E 0.23 5.52 3500 118.56 3.36 6.15 60.27 47.15
CPT12025/24U 0.30 7.20 4000 120.53 3.41 6.31 61.84 50.05
CPT12025/48L 48 30~55 0.03 1.44 2000 68.98 1.95 2.38 23.32 35.00
CPT12025/48M 0.05 2.40 2500 81.60 2.31 3.41 33.42 39.85
CPT12025/48H 0.07 3.36 3000 99.78 2.83 4.74 46.45 43.80
CPT12025/48E 0.10 4.80 3500 118.56 3.36 6.15 60.27 47.15
CPT12025/48U 0.16 7.68 4000 120.53 3.41 6.31 61.84 50.05
